7x7 Galvanized and Stainless Steel Aircraft Cable
-Aircraft Cable
-GAS:Galvanized Aircraft Cable
-SSAC:Stainless Steel Aircraft Cable

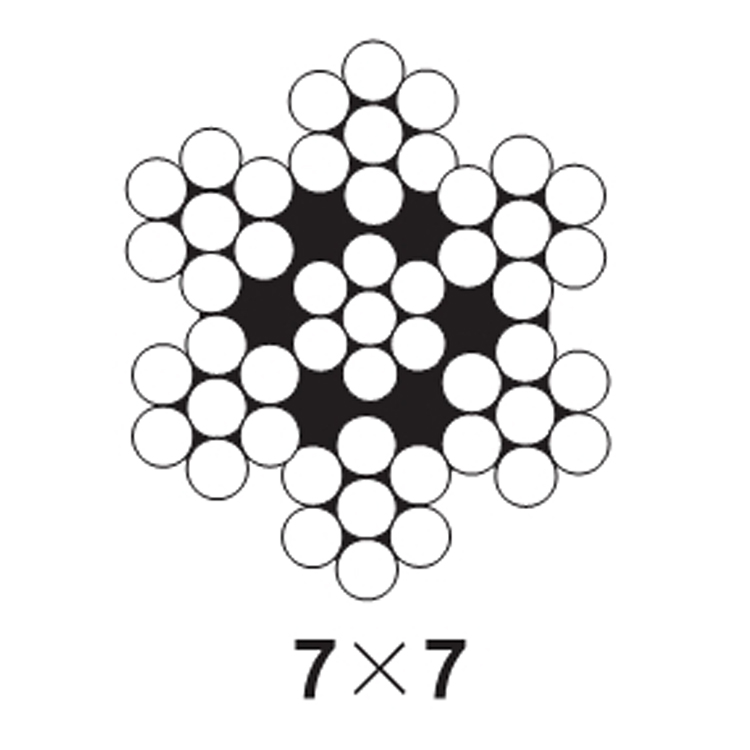

-7x7
-Diameter:3/64" to 3/8"
Detail Information
| 7×7 | |||||
| Diameter (mm) | Tolerance on Dia | Approx.Weight | Approx.Weight | Minimum | |
| Galvanized | Stainless | ||||
| in | in | kg/1000' | Ib/1000' | Ib | Ib |
| 3/64" | 0.008 | 1.91 | 4.20 | 270 | 270 |
| 1/16" | 0.010 | 3.40 | 7.50 | 480 | 480 |
| 3/32" | 0.012 | 7.26 | 16.00 | 920 | 920 |
| 1/8" | 0.014 | 12.93 | 28.50 | 1700 | 1700 |
| 5/32" | 0.016 | 19.50 | 43.00 | 2600 | 2400 |
| 3/16" | 0.018 | 28.12 | 62.00 | 3700 | 3700 |
| 1/4" | 0.018 | 48.10 | 106.00 | 6100 | 6100 |
| 5/16" | 0.022 | 75.80 | 167.00 | 9200 | 9000 |
| 3/8" | 0.026 | 107.10 | 236.00 | 13300 | 12600 |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.
-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Aircraft cable is a type of high-strength, flexible steel wire rope manufactured to precise specifications such as MIL-DTL-83420 or ASTM A1023. Common constructions include 7×7 and 7×19, with diameters typically ranging from 1/16 inch to 3/8 inch. Made from galvanized or stainless steel, aircraft cable offers excellent corrosion resistance, fatigue strength, and smooth operation. It is widely used in aerospace, automotive, marine, and control system applications, including flight controls, safety restraints, and mechanical linkages. Due to its critical use, aircraft cable requires strict quality control, uniform strand tension, and compliance with certified load and elongation standards to ensure maximum safety and reliability.
