Deck Cable Railing Kit Hardware System T316 Stainless Steel Jaw Swage Stud Turnbuckle Fit 1/8''Cable for Wood Post
* Place of Origin:China
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product name:Cable Railing Turnbuckle
* Material:Stainless Steel T316
* Cable Size: 1/8" , 3/16"
* Color:Silver
* Feature:Resistance to rust
* Application:Outdoor or indoor
* Packaging:Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.
Detail Information

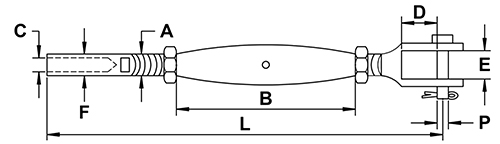

| Thread Diameter (A) x Take Up (B) | Cable Size (C) | Inside Jaw Length (D) | Inside Jaw Width (E) | Before Swage Diameter (F) | After Swage Diameter | Pin Diameter (P) | Closed Length (L) |
| 1/4" x 3-1/4" | 1/8" | 0.4 | 0.4 | 0.213-0.218 | 0.185-0.190 | 0.3 | 6.6 |
| 1/4" x 3-1/4" | 3/16" | 0.4 | 0.4 | 0.292-0.297 | 0.245-0.250 | 0.3 | 6.6 |
* Place of Origin:China
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product name:Cable Railing Turnbuckle
* Material:Stainless Steel T316
* Cable Size: 1/8" , 3/16"
* Color:Silver
* Feature:Resistance to rust
* Application:Outdoor or indoor
* Packaging:Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.

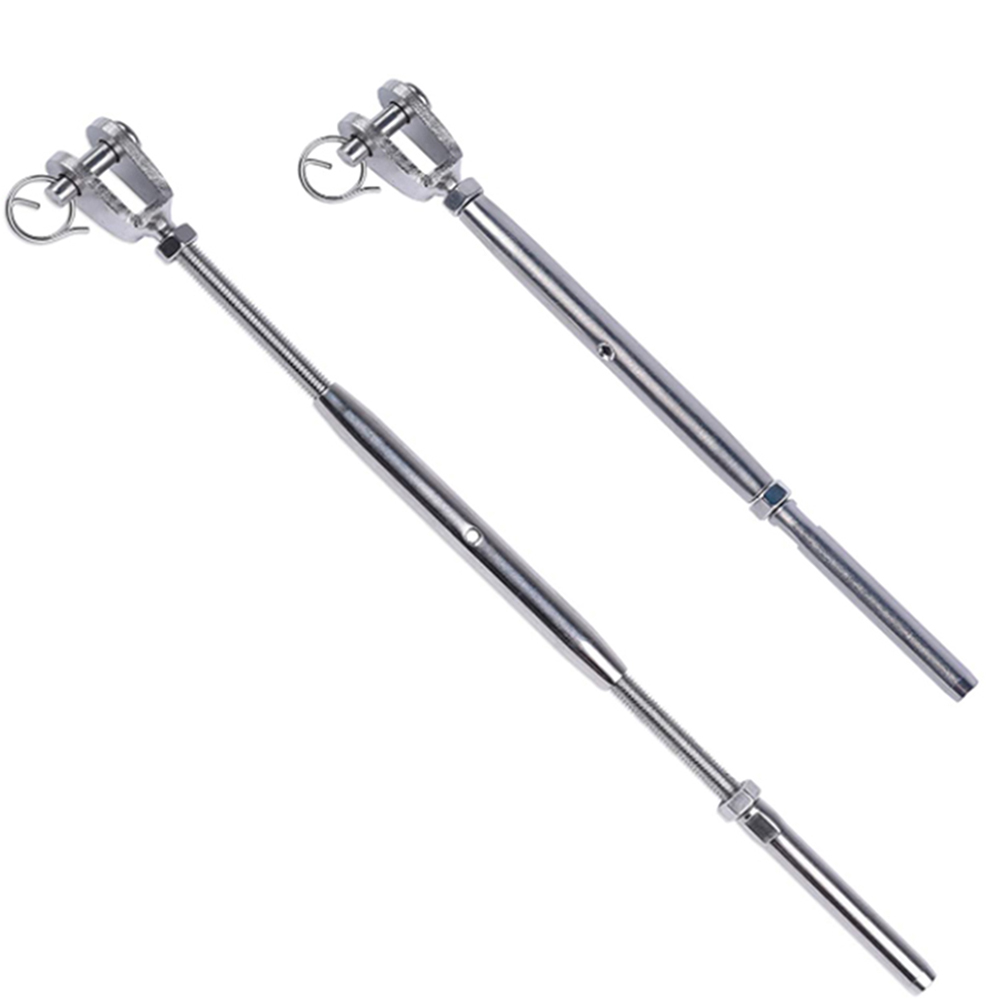

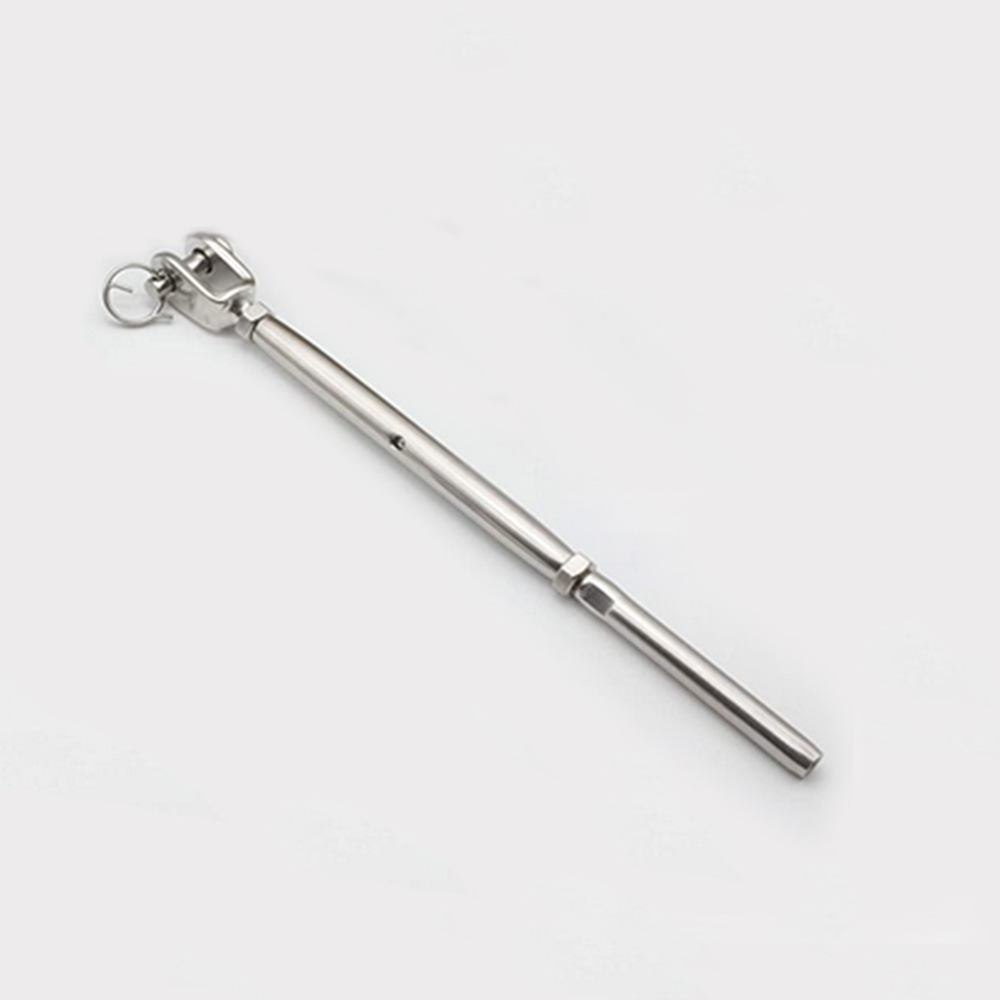

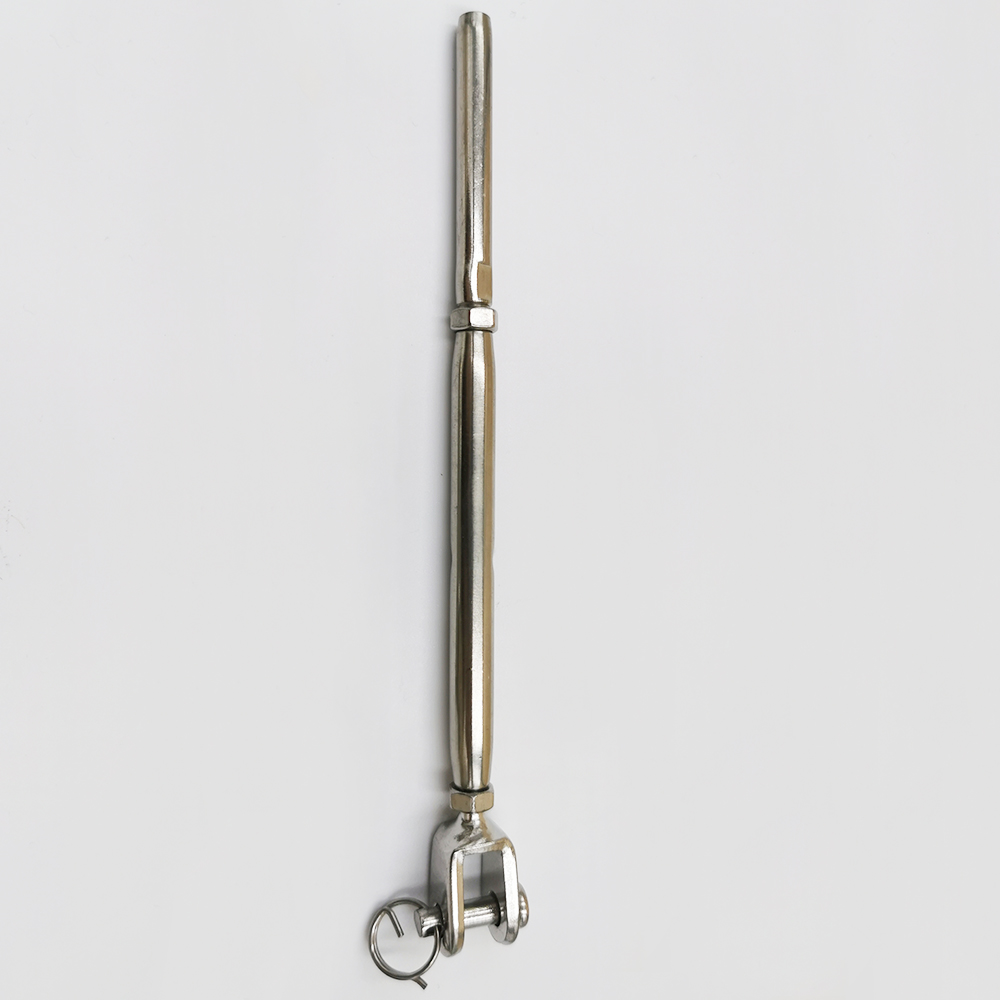

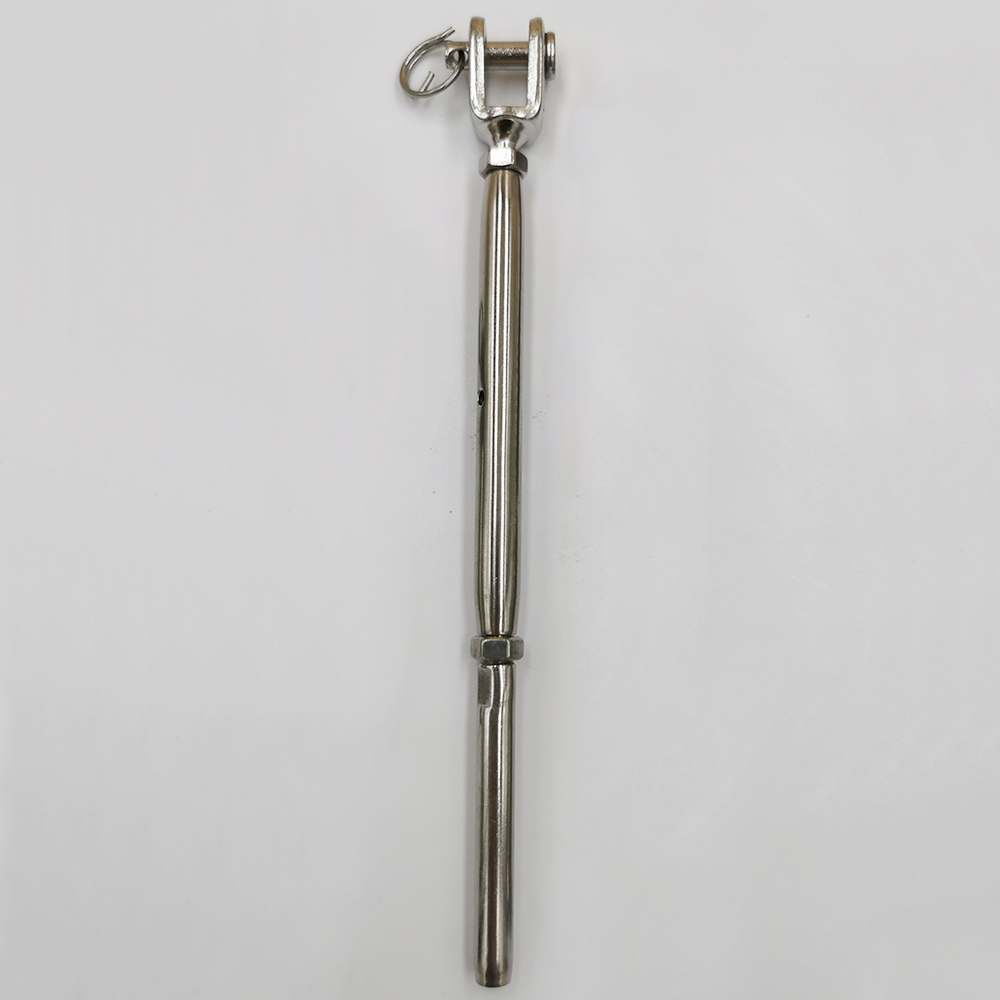

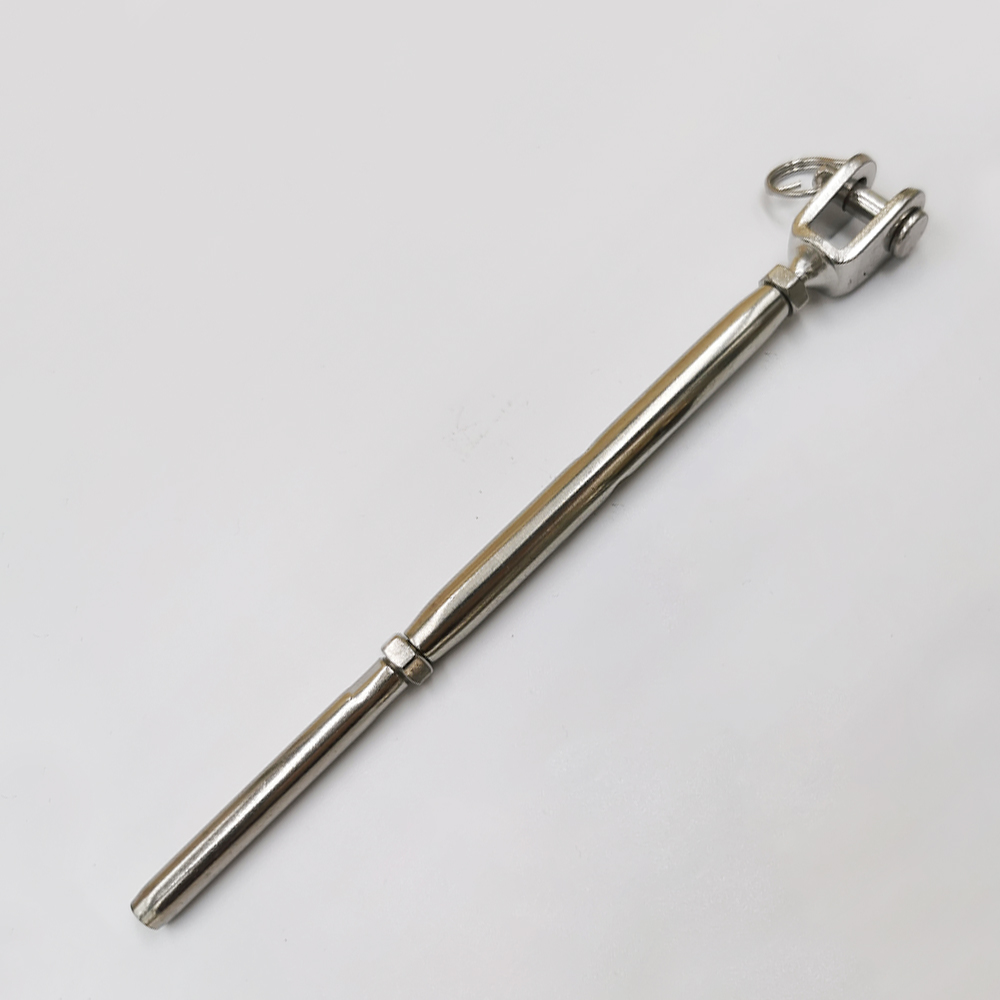

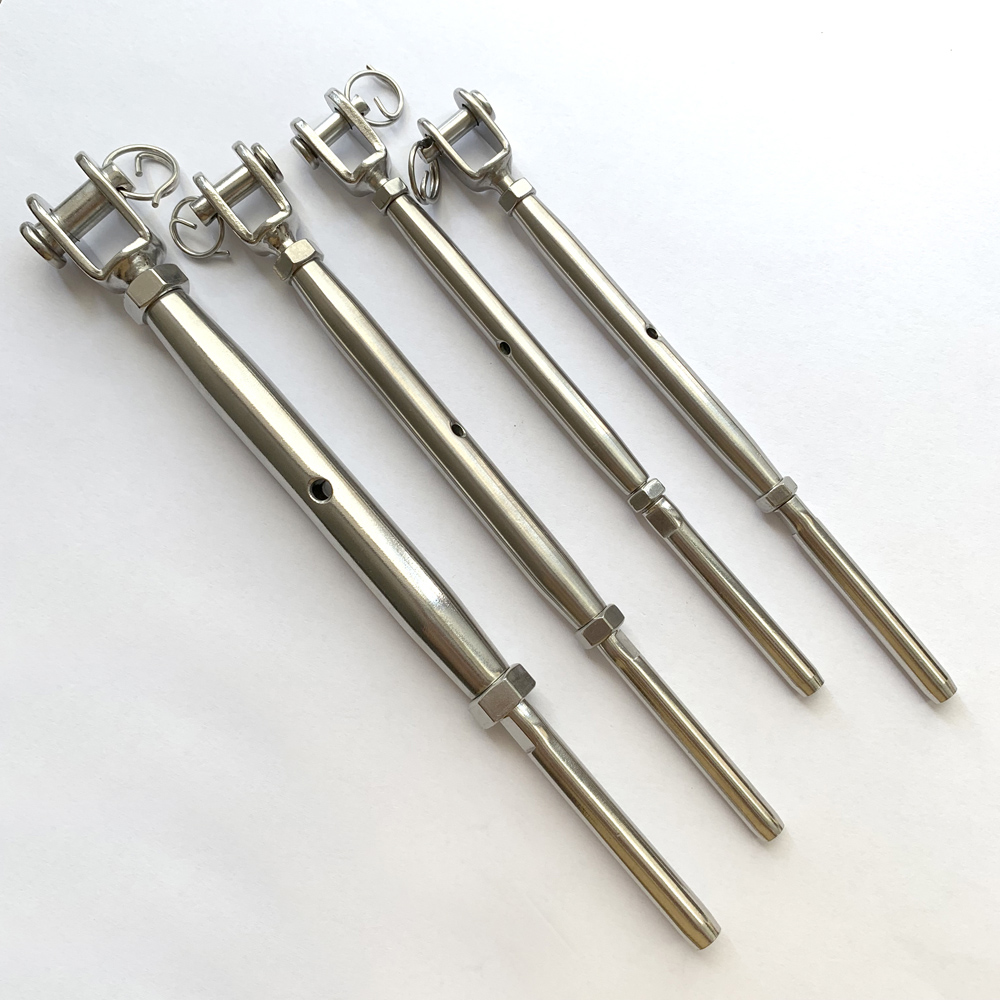

Hand swage jaw type turnbuckles are designed to take-up the slack in cable and have a jaw end fitting on ones side and a hand swage type fitting on the opposite side of the turnbuckle body. Secure the cable onto the hand swage fitting with three crimps using a 20 inch hand swager. There are sizes available for both 1/8 and 3/16 inch cable and they are made from corrosion resistant type 316 stainless steel.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Cable Railing End Fittings are precision components used to secure and tension stainless steel cables in modern railing systems. Typically made from high-quality stainless steel AISI 304 or 316, they meet international standards such as ASTM and ISO for mechanical strength and corrosion resistance. Common types include swage terminals, threaded studs, and turnbuckles, providing secure connections and easy adjustment. These fittings are widely used in residential, commercial, and marine projects. Key features include sleek appearance, excellent weather resistance, high load capacity, and maintenance-free performance, ensuring safety and a contemporary architectural look.
