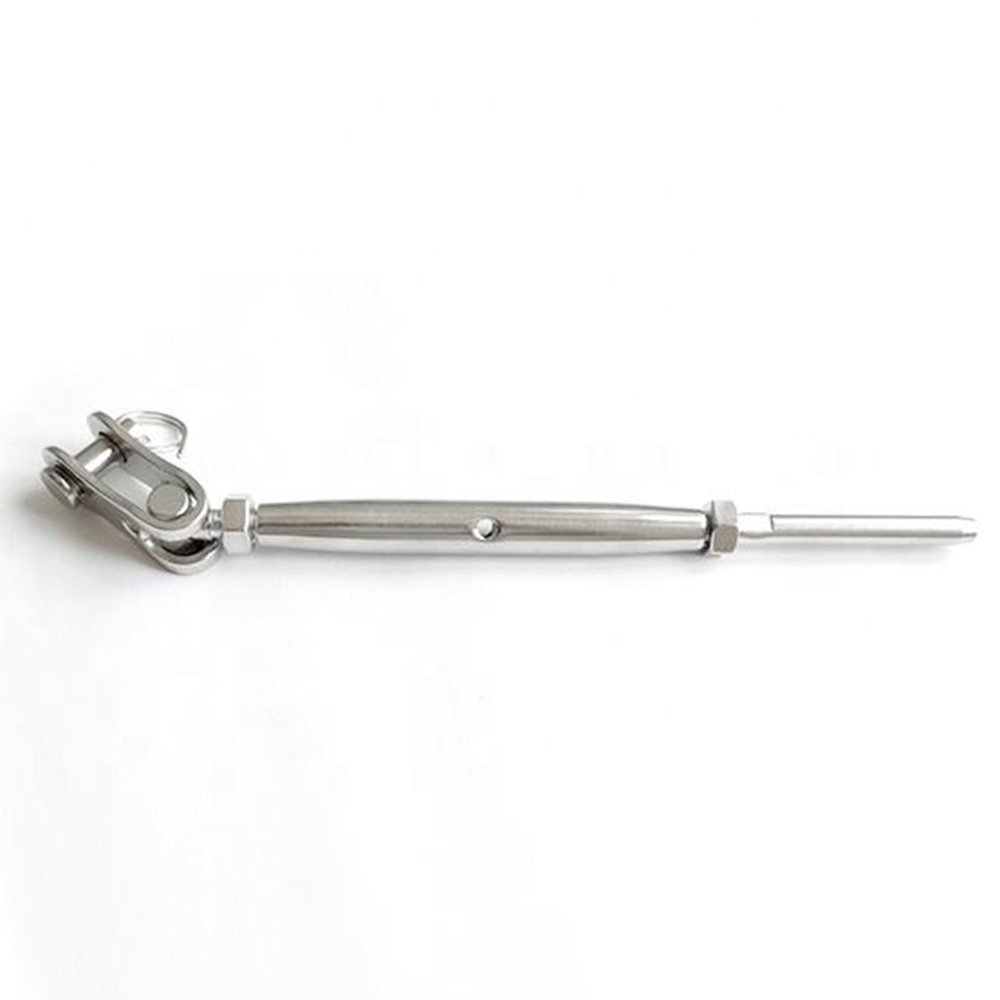

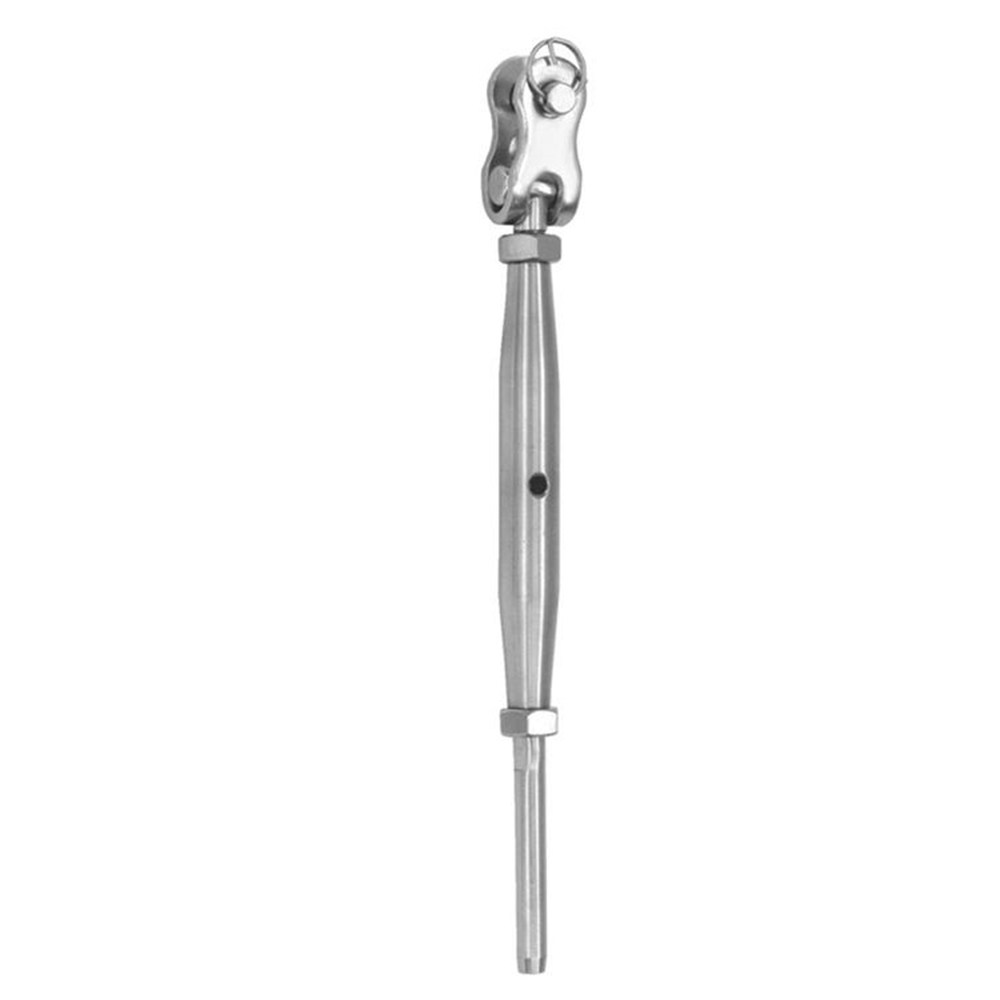

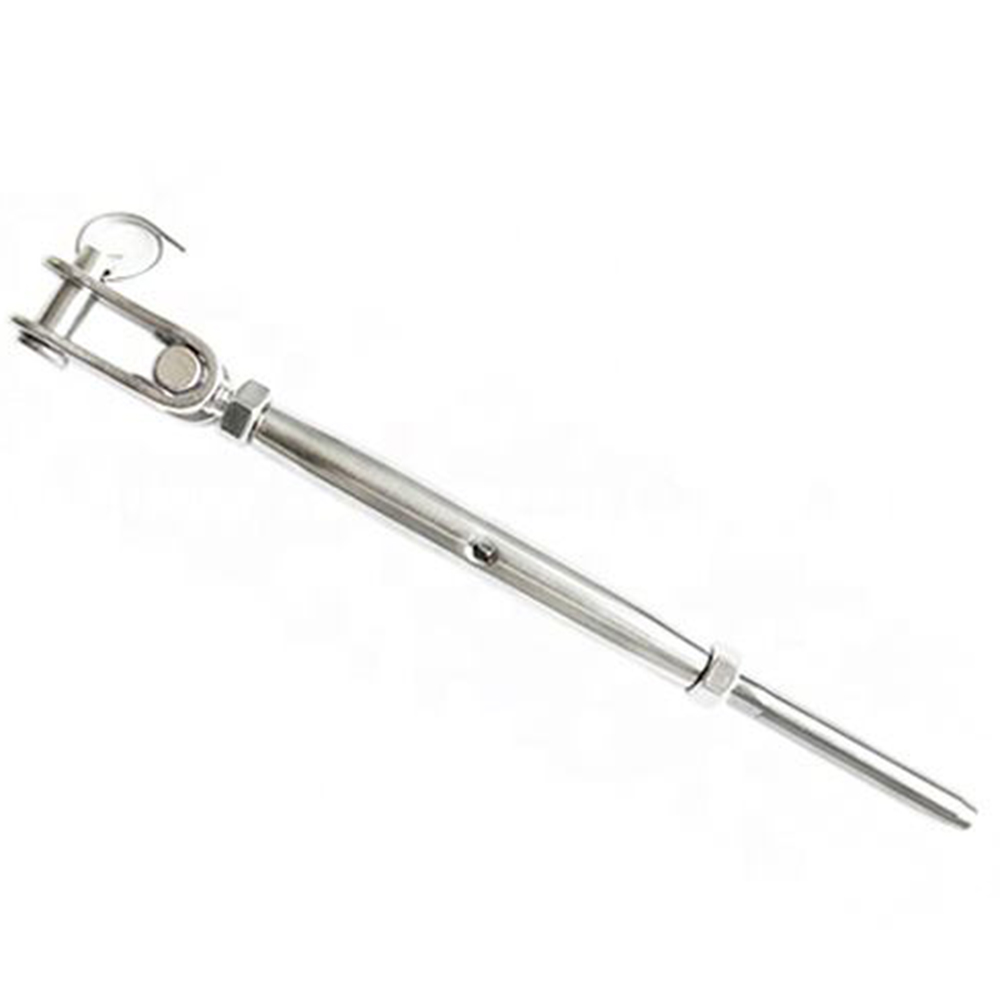

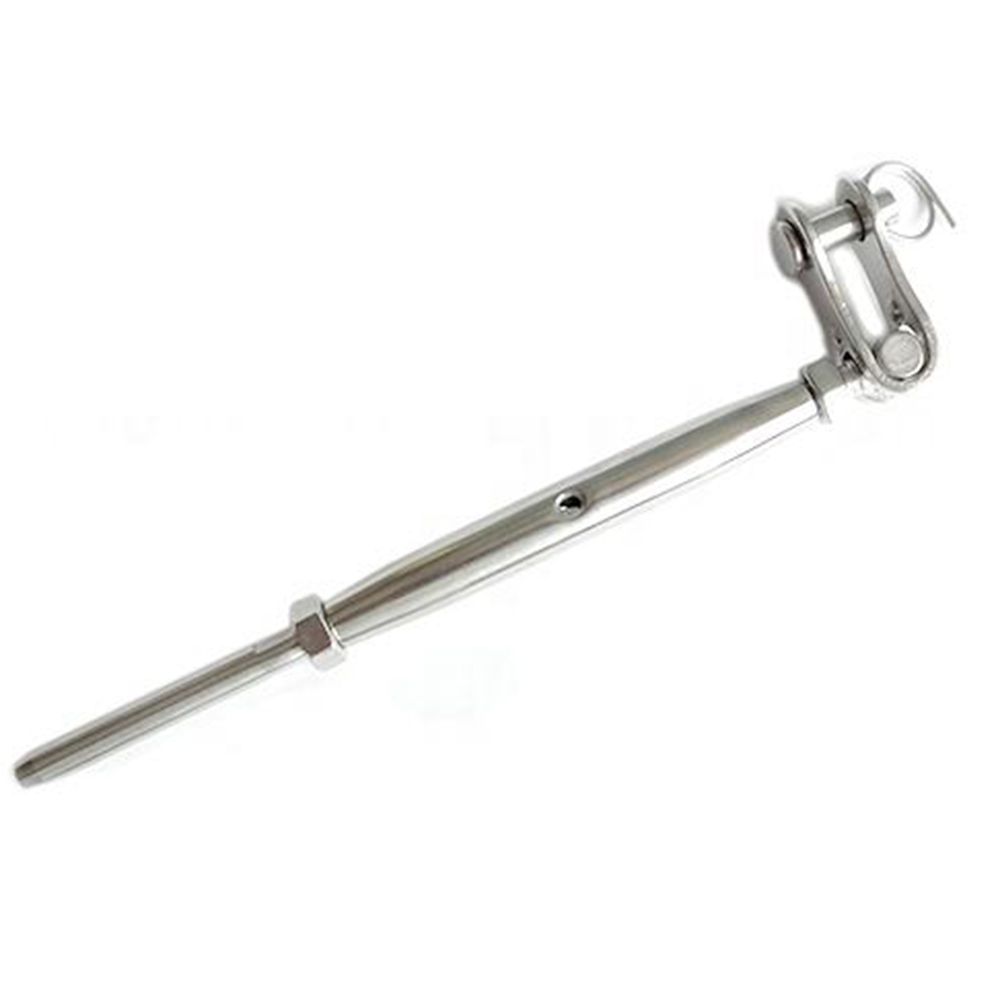

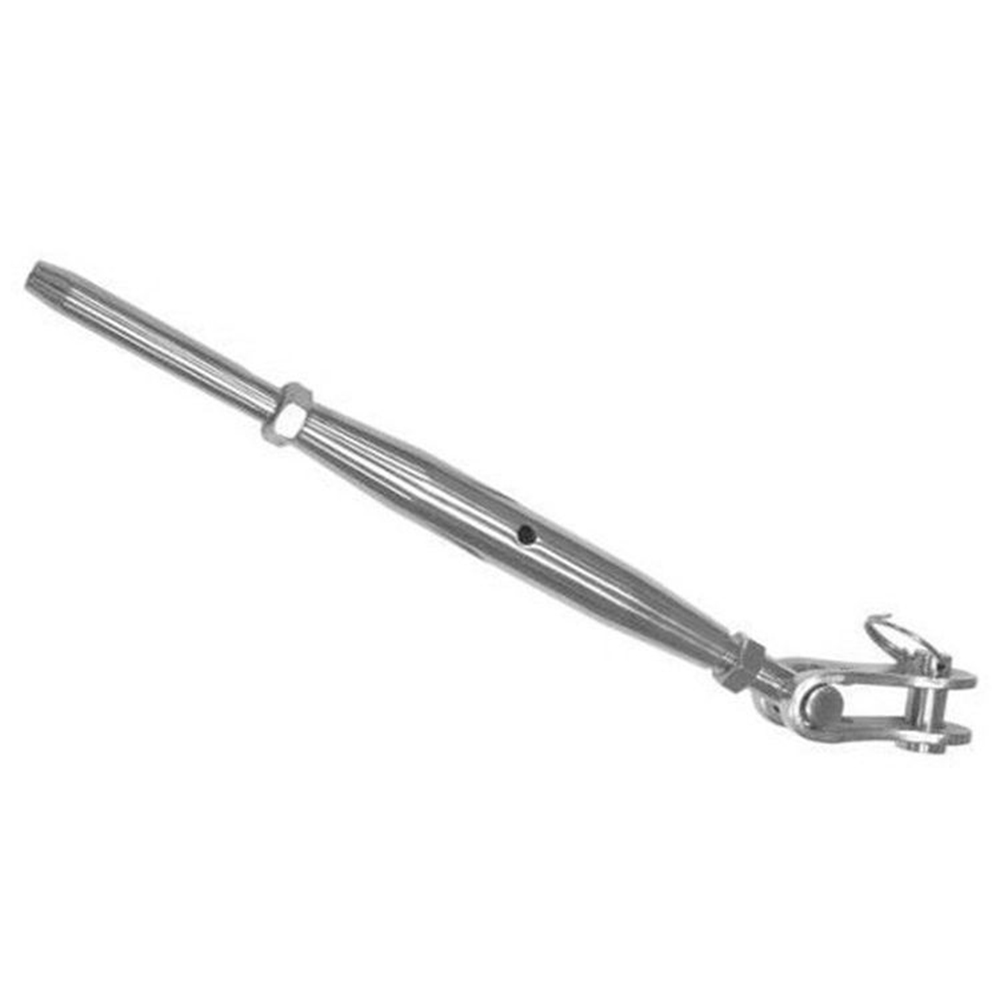

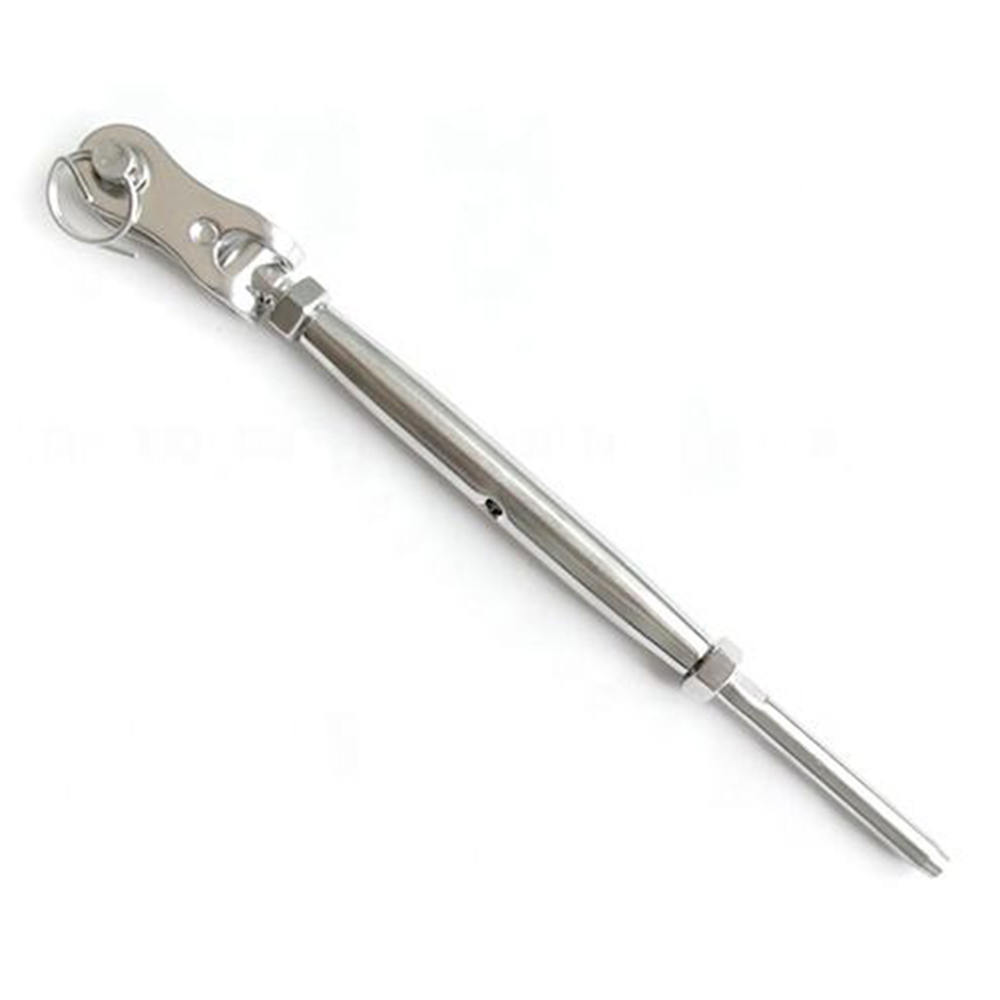

Stainless Steel Rigging Screw Turnbuckle with Swivel Toggle SS316 Closed Body Jaw Turnbuckle 1/8" Swinging Jaw Swage Stud Turnbuckle
* Place of Origin:China (Mainland)
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product name:Cable Railing Turnbuckle
* Material:Stainless steel T316
* Cable Size:1/8" , 3/16" or Customization
* Color:Silver
* Feature:Resistance to rust, corrosion
* Application:Indoors or outdoor
* Packaging:Polybag, carton or as per customer's requirements
* Note:Special specifications and marks can be made according to customers requirements.
Detail Information

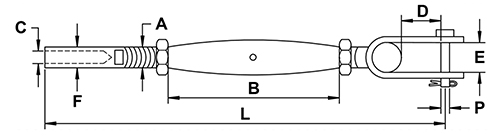

| Thread Diameter (A) x Take Up (B) | Cable Size (C) | Inside Jaw Length (D) | Inside Jaw Width (E) | Before Swage Diameter (F) | After Swage Diameter | Pin Diameter (P) | Closed Length (L) |
| 1/4" x 3-1/4" | 1/8" | 1 | 0.4 | 0.213-0.218 | 0.185-0.190 | 0.2 | 7 |
| 1/4" x 3-1/4" | 3/16" | 1 | 0.4 | 0.292-0.297 | 0.245-0.250 | 0.2 | 7 |
* Place of Origin:China (Mainland)
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product name:Cable Railing Turnbuckle
* Material:Stainless steel T316
* Cable Size:1/8" , 3/16" or Customization
* Color:Silver
* Feature:Resistance to rust, corrosion
* Application:Indoors or outdoor
* Packaging:Polybag, carton or as per customer's requirements
* Note:Special specifications and marks can be made according to customers requirements.
With a plain toggle on one end and a hand swage fitting on the other end, the hand swage toggle type turnbuckle is often used in hand rail applications. The hand swage end requires 3 crimps using a 20 inch hand swage tool. The fittings come in two sizes - for 1/8 and 3/16 inch cable. Fittings are made of type 316 stainless steel.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.

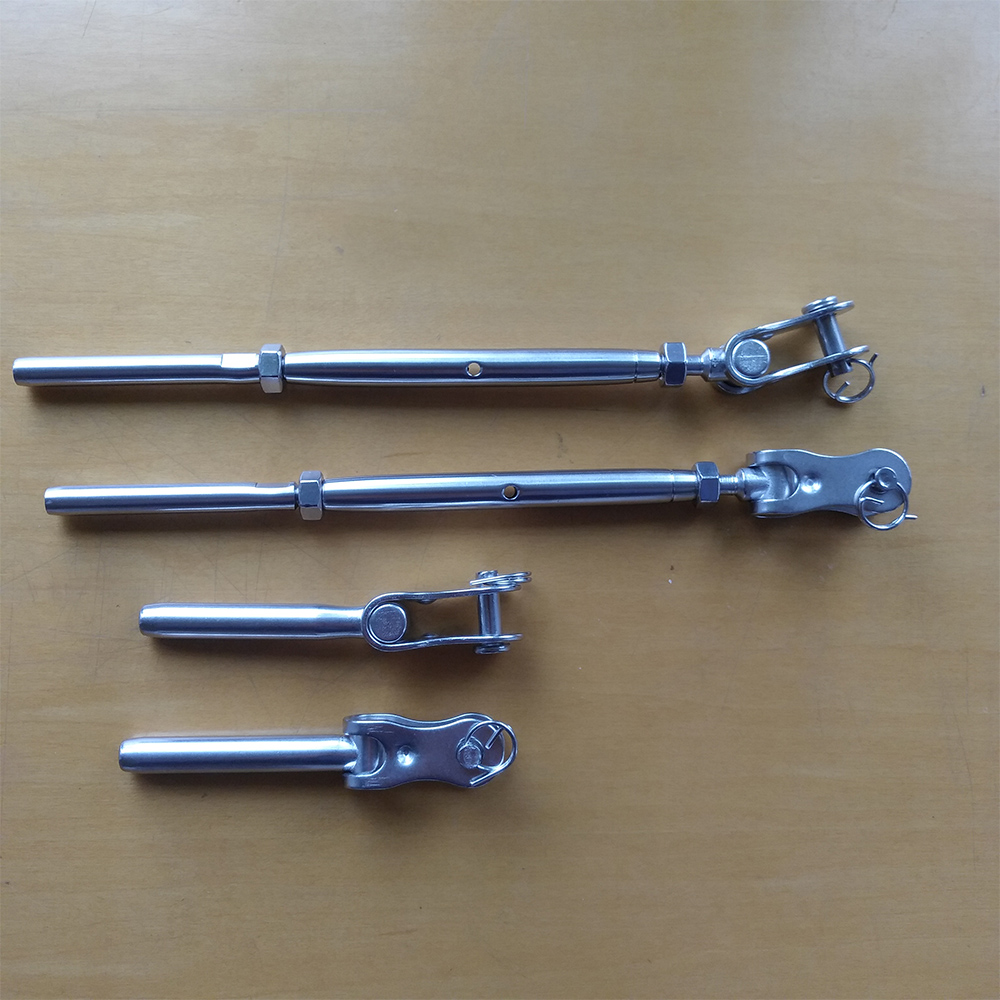

Cable Railing End Fittings are precision components used to secure and tension stainless steel cables in modern railing systems. Typically made from high-quality stainless steel AISI 304 or 316, they meet international standards such as ASTM and ISO for mechanical strength and corrosion resistance. Common types include swage terminals, threaded studs, and turnbuckles, providing secure connections and easy adjustment. These fittings are widely used in residential, commercial, and marine projects. Key features include sleek appearance, excellent weather resistance, high load capacity, and maintenance-free performance, ensuring safety and a contemporary architectural look.
