T316 Cable Railing Tensioner Marine Grade Deck Cable Railing Kits Stainless Steel Lag Screw Swage Turnbuckle and Lag Screws
* Place of Origin:China
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product Name:Cable Railing Kits
* Material:Stainless steel T316
* Surface treatment:Polished
* Color:Silver
* Thread:Coarse, fine
* Technology:Precision casting
* Feature:Antirust
* Application:Outdoor or indoor
* Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
* Packaging:Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.
Detail Information
| Thread Diameter (A) x Take Up (B) | Cable Size (C) | Before Swage Diameter (D) | After Swage Diameter |
| 1x4"x3-1/4" | 1/8" | 0.213-0.218 | 0.185-0.190 |
| 1/4"x3-1/4" | 3/16" | 0.292-0.297 | 0.245-0.250 |
Having a lag type fitting on one end of this turnbuckle allows the fitting to be conveniently screwed into a wood post of a cable railing or balustrade type system. While on the other end, this turnbuckle is fitted with a hand swage stud that is fixed onto the cable by crimping three times with a 20 inch hand swager. This fitting is available in two sizes to fit 1/8 or 3/16 inch cable. For maximum corrosion resistance, type 316 stainless steel is used to make the fitting.

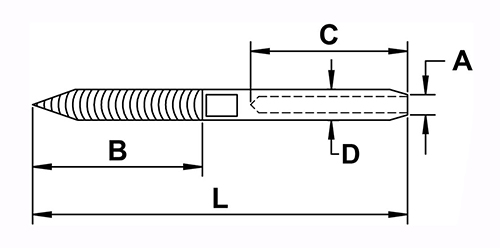

| Size (A) | Thread Length (B) | Stud Length (C) | Before Swage Diameter (D) | After Swage Diameter | Overall Length (L) |
| 1/8" | 2 | 1.35 | 0.213-0.218 | 0.185-0.190 | 3.95 |
| 3/16" | 2 | 2 | 0.292-0.297 | 0.245-0.250 | 4.32 |

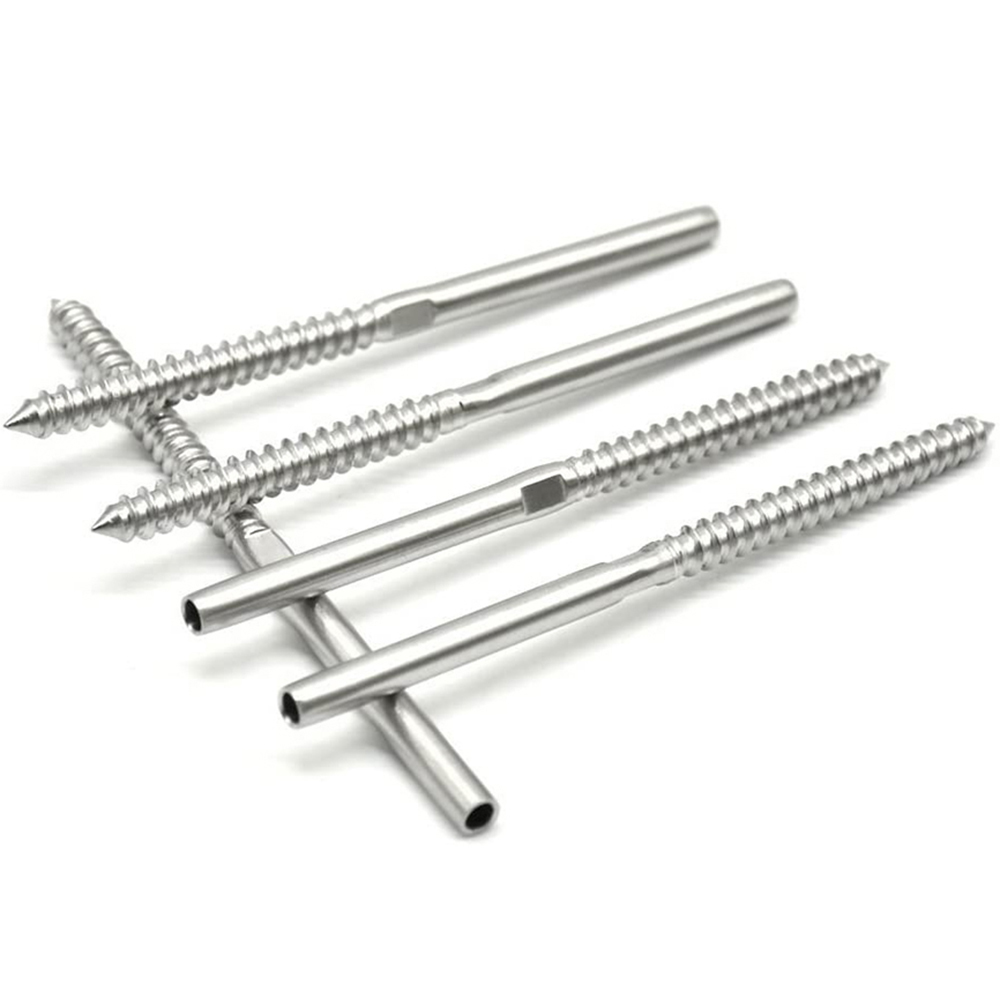

Designed with a swage end on one side of the fitting and lag threads on the other for screwing into wood posts, the hand swage lag studs are a popular choice for cable railing and balustrade applications. Available in two sizes to fit onto 1/8 and 3/16 inch cable, hand swage lag studs are made of marine grade type 316 corrosion resistant stainless steel. The swage end of the fitting requires three crimps from a 20 inch hand swage tool to secure the cable onto the fitting.
* Place of Origin:China
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product Name:Cable Railing Kits
* Material:Stainless steel T316
* Surface treatment:Polished
* Color:Silver
* Thread:Coarse, fine
* Technology:Precision casting
* Feature:Antirust
* Application:Outdoor or indoor
* Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
* Packaging:Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Cable Railing End Fittings are precision components used to secure and tension stainless steel cables in modern railing systems. Typically made from high-quality stainless steel AISI 304 or 316, they meet international standards such as ASTM and ISO for mechanical strength and corrosion resistance. Common types include swage terminals, threaded studs, and turnbuckles, providing secure connections and easy adjustment. These fittings are widely used in residential, commercial, and marine projects. Key features include sleek appearance, excellent weather resistance, high load capacity, and maintenance-free performance, ensuring safety and a contemporary architectural look.
