T316 Stainless Steel Cable Railing Kit Invisible Turnbuckle Swage Threaded Stud End Fitting Receiver Terminal for Wood & Metal

 * Place of Origin:China (Mainland)

 * Brand Name:CHONGHONG

 * Certificate:ISO9001/ISO14001

 * Product name:Cable Railing Kits

 * Material:Stainless steel T316

 * Cable Size:1/8" , 3/16" or Customization

 * Color:Silver

 * Feature:Resistance to rust, corrosion

 * Application:Indoors or outdoor

 * Packaging:Polybag, carton or as per customer's requirements

 * Note:Special specifications and marks can be made according to customers requirements.

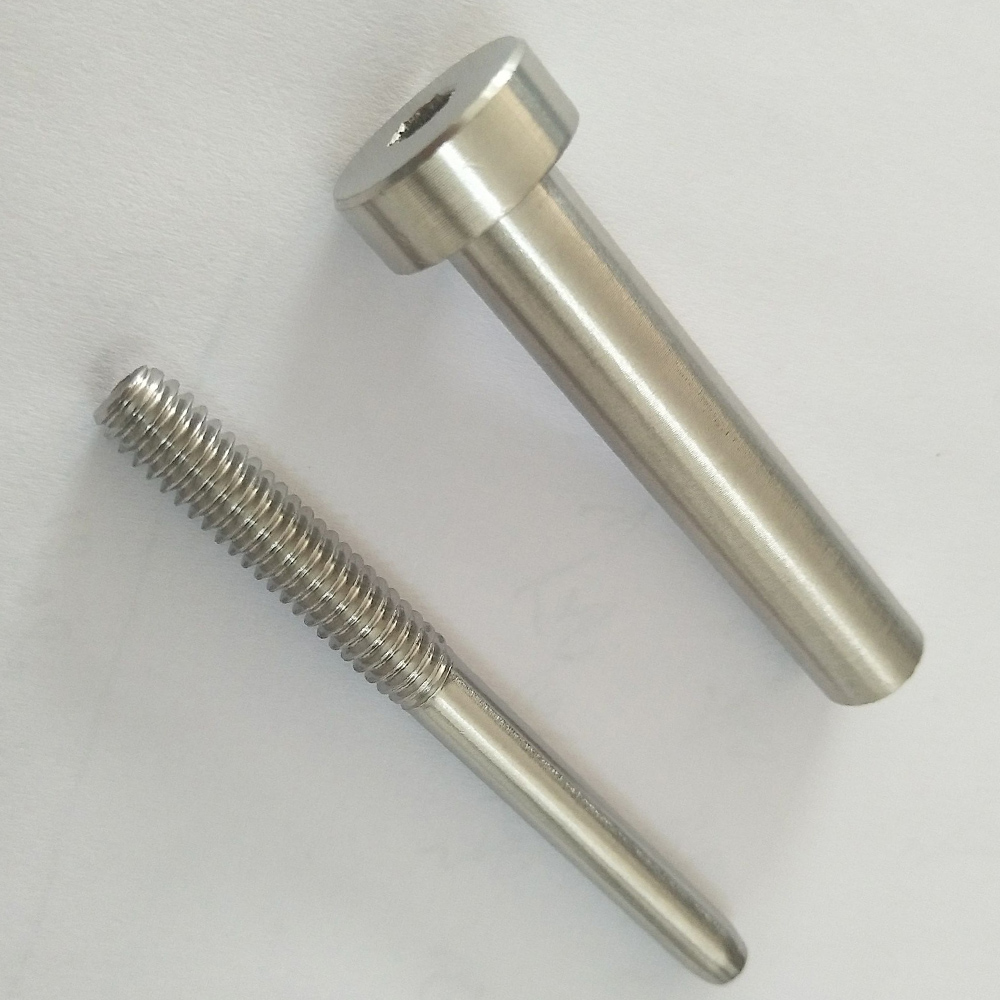

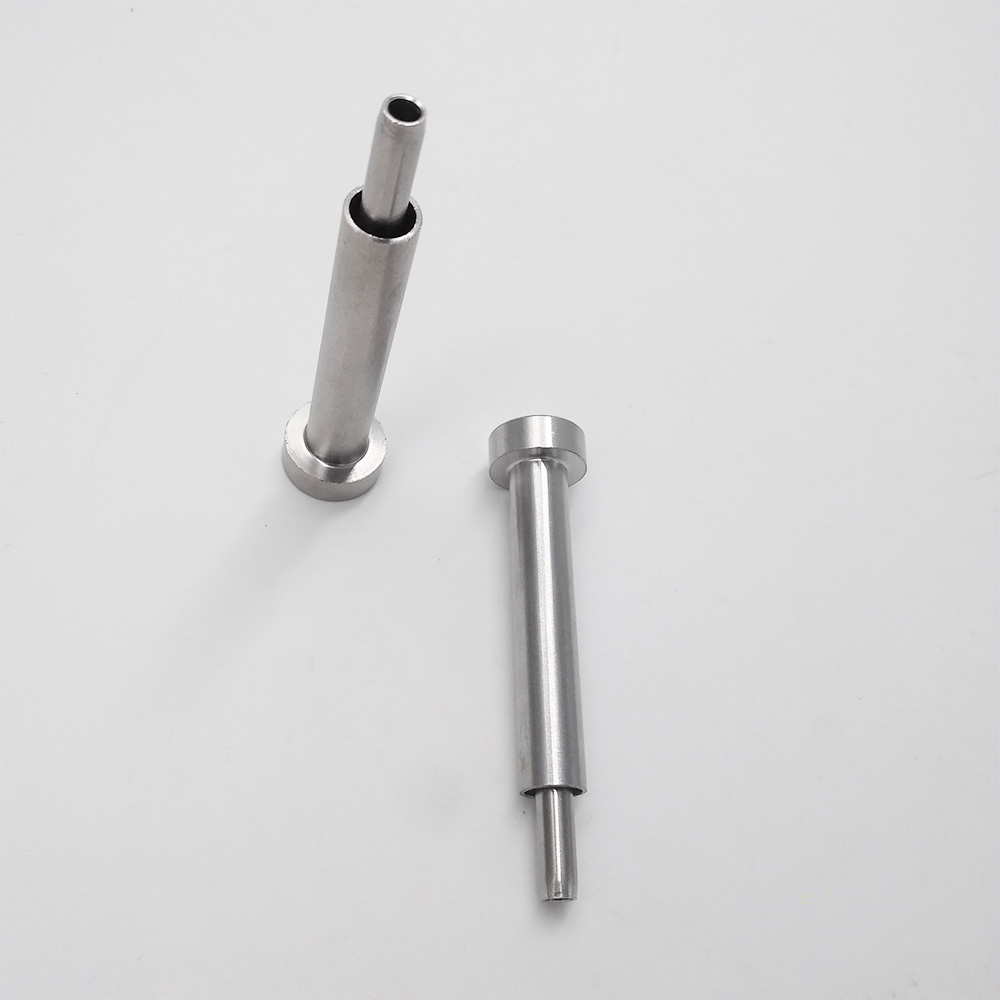

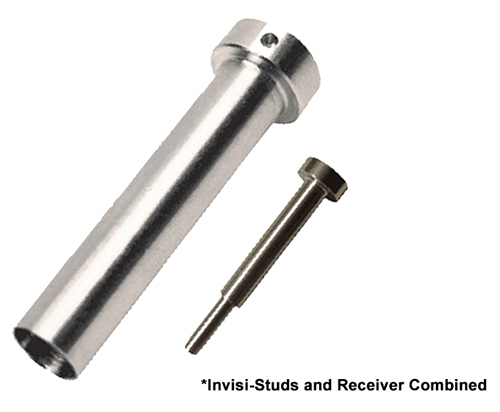

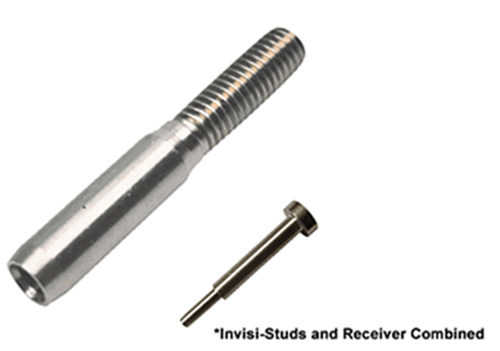

   Hand swage receivers and studs are used in combination when one prefers to have the fittings hidden in the wood post of a cable railing and balustrade deck system. The receiver is designed with a domed or button type head that can accept a hex type wrench. Inside the tube section of the receiver, the inside walls are threaded and ready to accept the swage stud - often referred to as an invisi-stud because it disappears into the receiver tube as it is threaded into it. The cable is inserted into the hollow section of the invisi-stud and then crimped three times to secure the cable to the stud. Although there is a size for 1/4 inch cable, the most common sizes are designed to work with 1/8 inch and 3/16 inch cable. For maximum resistance to corrosion, all hand swage receivers and studs are made from type 316 stainless steel.

Cable Railing Invisi-Studs

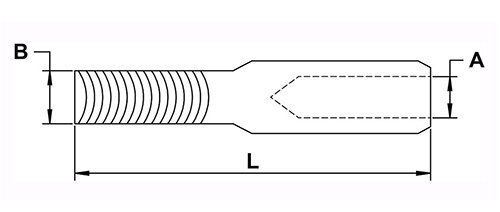

   Designed to match up and fit into stud receiver fittings, the invisi-studs are short and compact and must be crimped three times with a 20 inch hand swage tool. These fittings are then inserted into the receiver tube. These fittings are popular because they hide the tool crimp marks as the invisi-stud is sucked up into the receiver fitting. If the cable is measured right, the invisi-stud can be completely hidden in the wood post and, therefore, make for a very streamline appearance. Invisi-stud fittings are available in sizes to fit 1/8, 3/16 and 1/4 inch cable and are made of type 316 stainless steel.

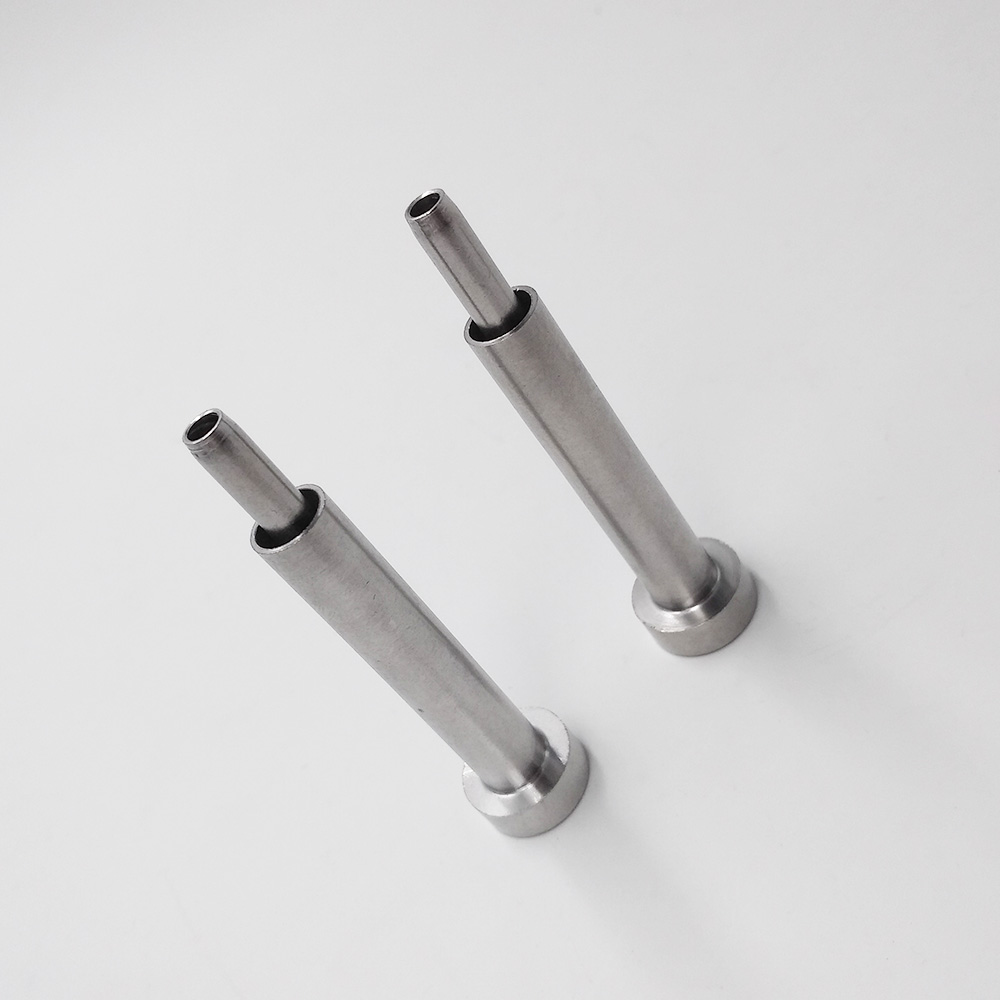

Cable Railing Invisi-Stud Receivers

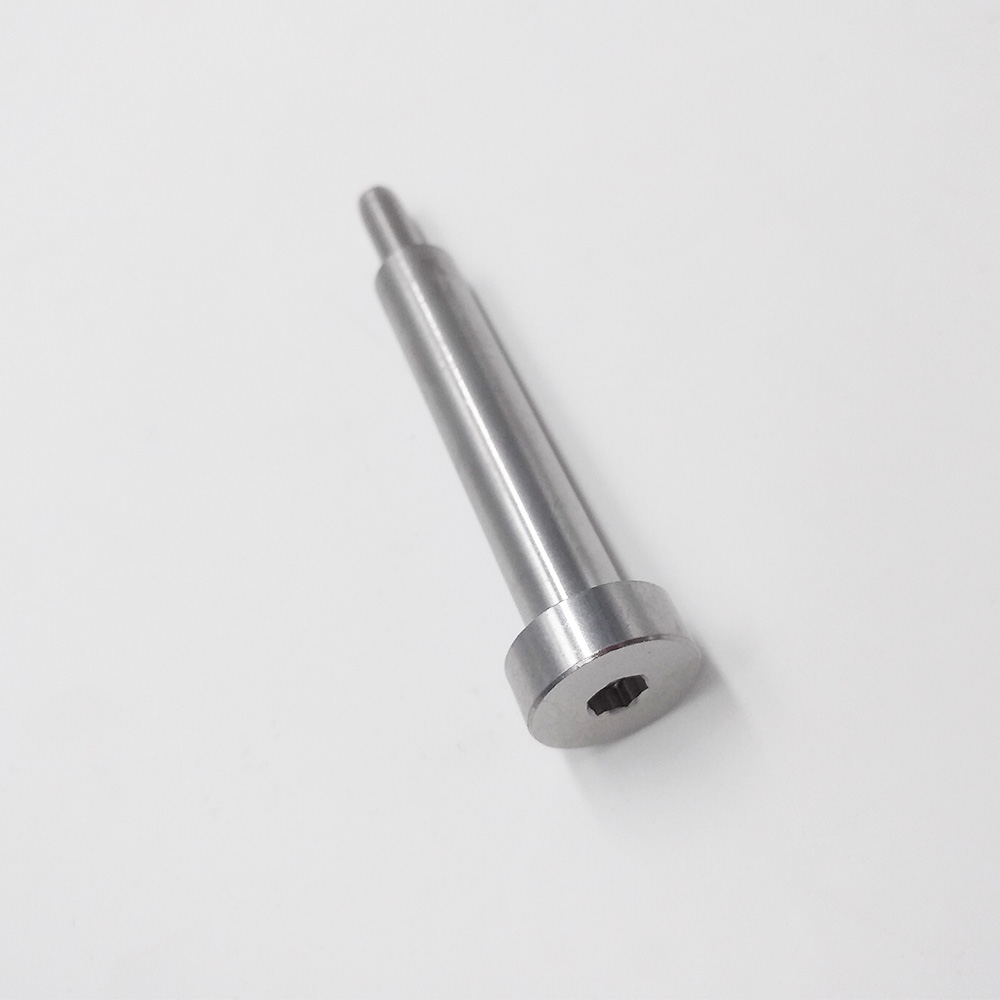

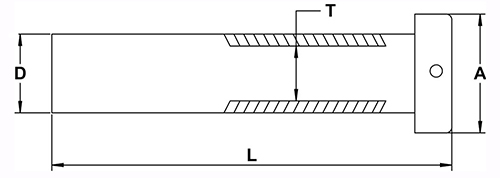

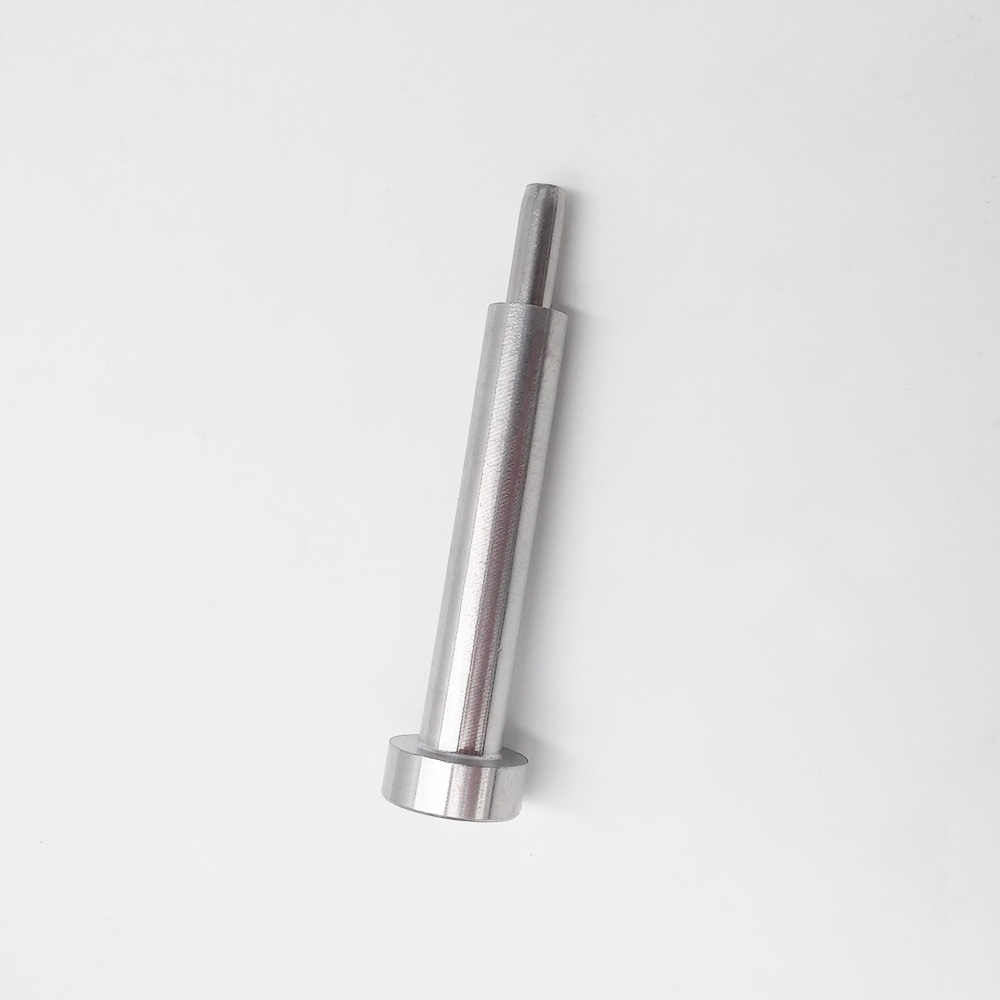

  Stud receivers are fittings designed to accept invisi-studs and are used almost exclusively in cable rail and balustrade applications. The stud receivers are machined to have a dome or button shape on the end and in that end, have a hex cavity cut into it to accept a hex shaped allen wrench. The stud receiver is a tensioning fitting and once the invisi-stud is inserted into the receiver tube, the receiver is turned using an allen wrench. As the receiver is turned, the invisi-stud is then retracted inside the receiver and the slack in the cable is reduced. Stud receivers come in sizes to accept mating with invisi-studs attached to 1/8, 3/16 and 1/4 inch cable. These fittings are also made of marine grade type 316 stainless steel cable.

Other related products:

   Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.

Cable Railing End Fittings are precision components used to secure and tension stainless steel cables in modern railing systems. Typically made from high-quality stainless steel AISI 304 or 316, they meet international standards such as ASTM and ISO for mechanical strength and corrosion resistance. Common types include swage terminals, threaded studs, and turnbuckles, providing secure connections and easy adjustment. These fittings are widely used in residential, commercial, and marine projects. Key features include sleek appearance, excellent weather resistance, high load capacity, and maintenance-free performance, ensuring safety and a contemporary architectural look.
