T316 Stainless Steel Toggle Turnbuckle Cable Railing Kits Fit 1/8" Stainless Steel Wire Rope for Cable Railing Systems
* Place of Origin:China
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product name:Cable Railing Turnbuckle
* Material:Stainless Steel 316
* Cable Size: 1/8",3/16"
* Surface Treatment: Polished
* Color:Silver
* Feature:Resistance to rust
* Application:Outdoor or indoor
* Packaging:Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.
Detail Information
| Thread Diameter (A) x Take Up (B) | Cable Size (C) | Hole Diameter (D) | Before Swage Diameter (E) | After Swage Diameter |
| 1/4" x 3-1/4" | 1/8" | 0.3 | 0.213-0.218 | 0.185-0.190 |
| 1/4" x 3-1/4" | 3/16" | 0.3 | 0.292-0.297 | 0.245-0.250 |
* Place of Origin:China
* Brand Name:CHONGHONG
* Certificate:ISO9001/ISO14001
* Product name:Cable Railing Turnbuckle
* Material:Stainless Steel 316
* Cable Size: 1/8",3/16"
* Surface Treatment: Polished
* Color:Silver
* Feature:Resistance to rust
* Application:Outdoor or indoor
* Packaging:Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.

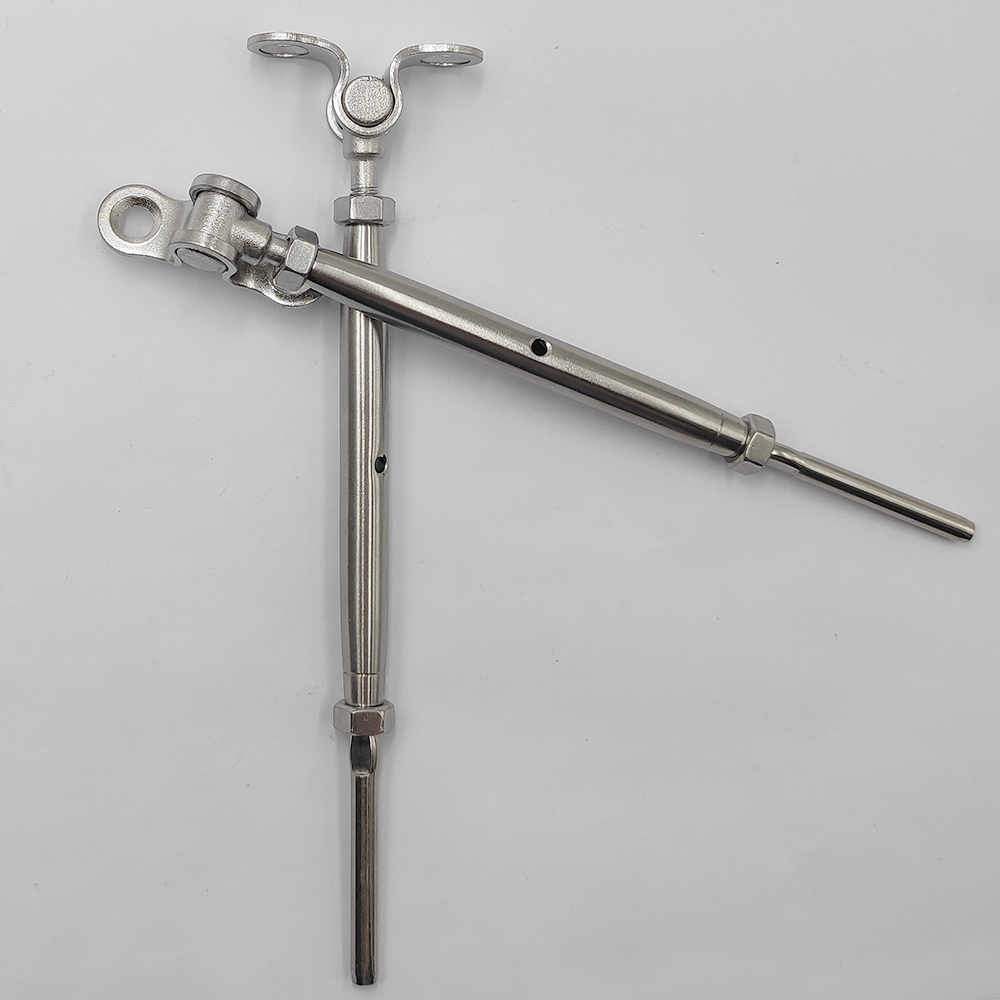

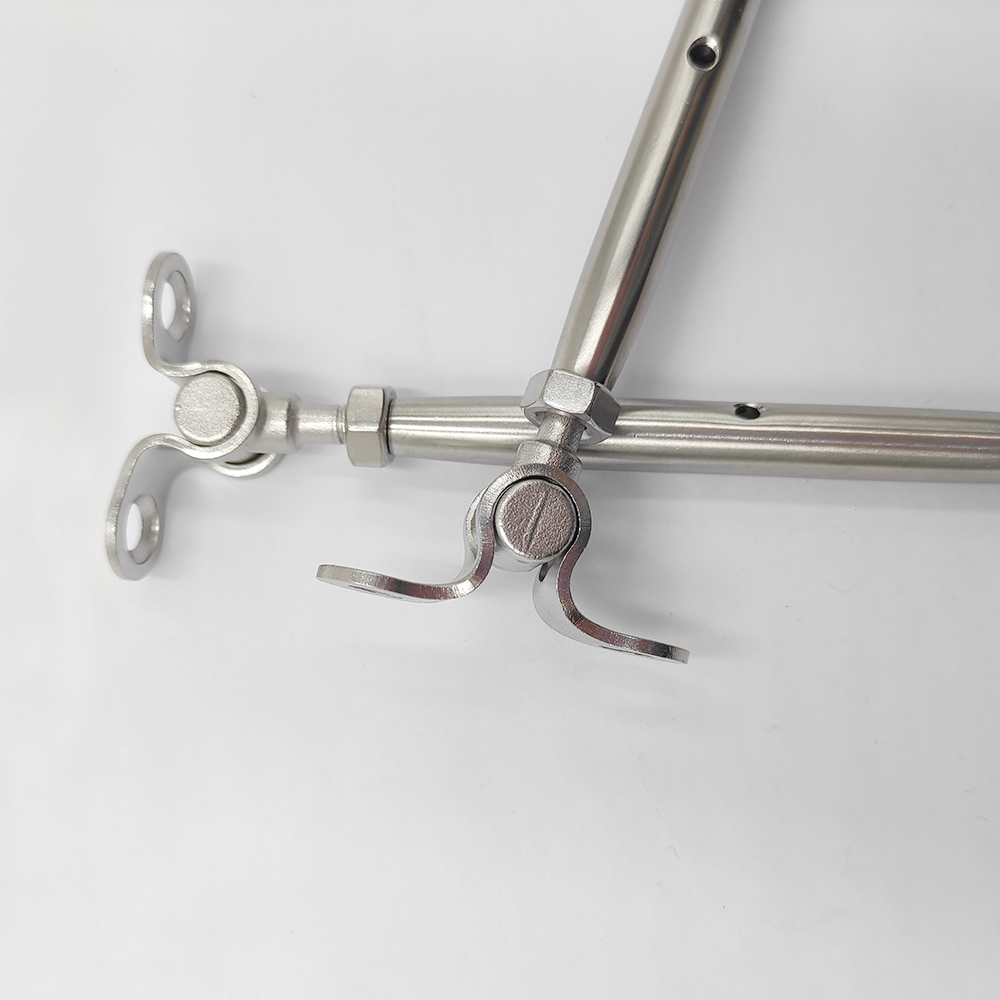

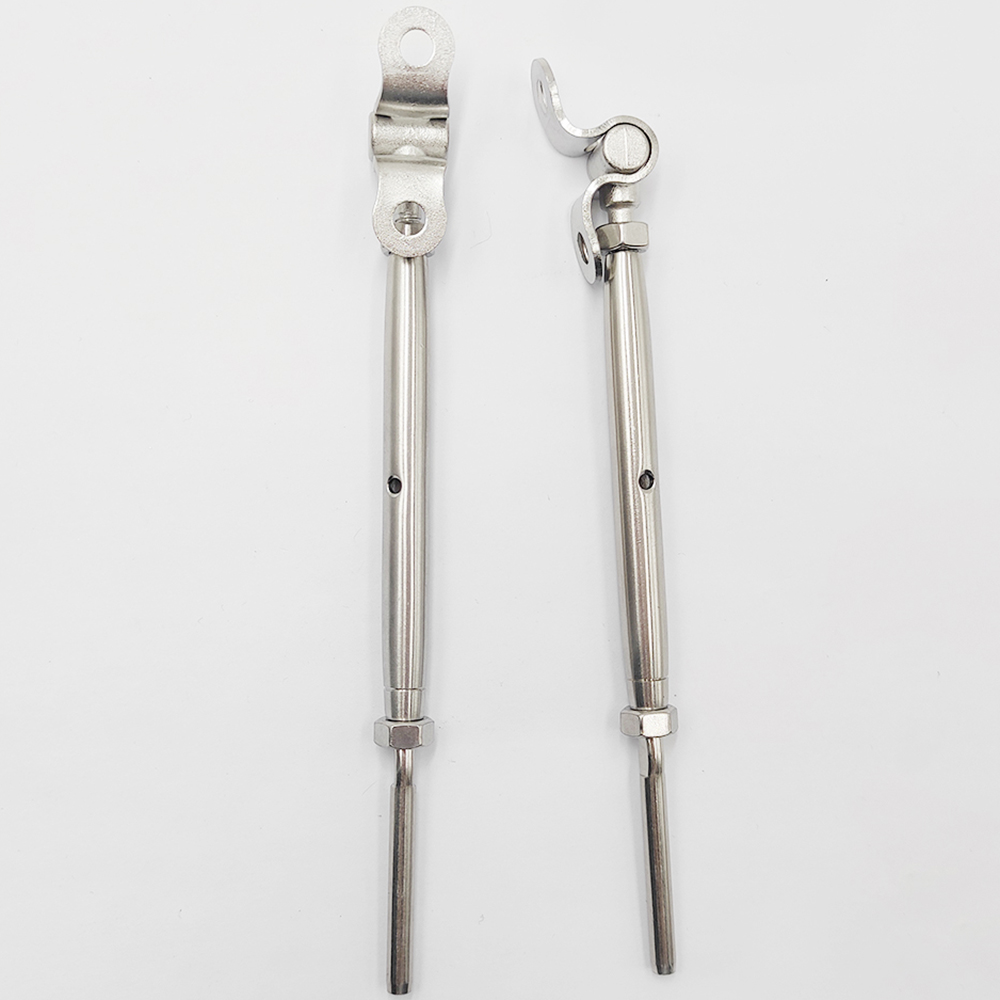

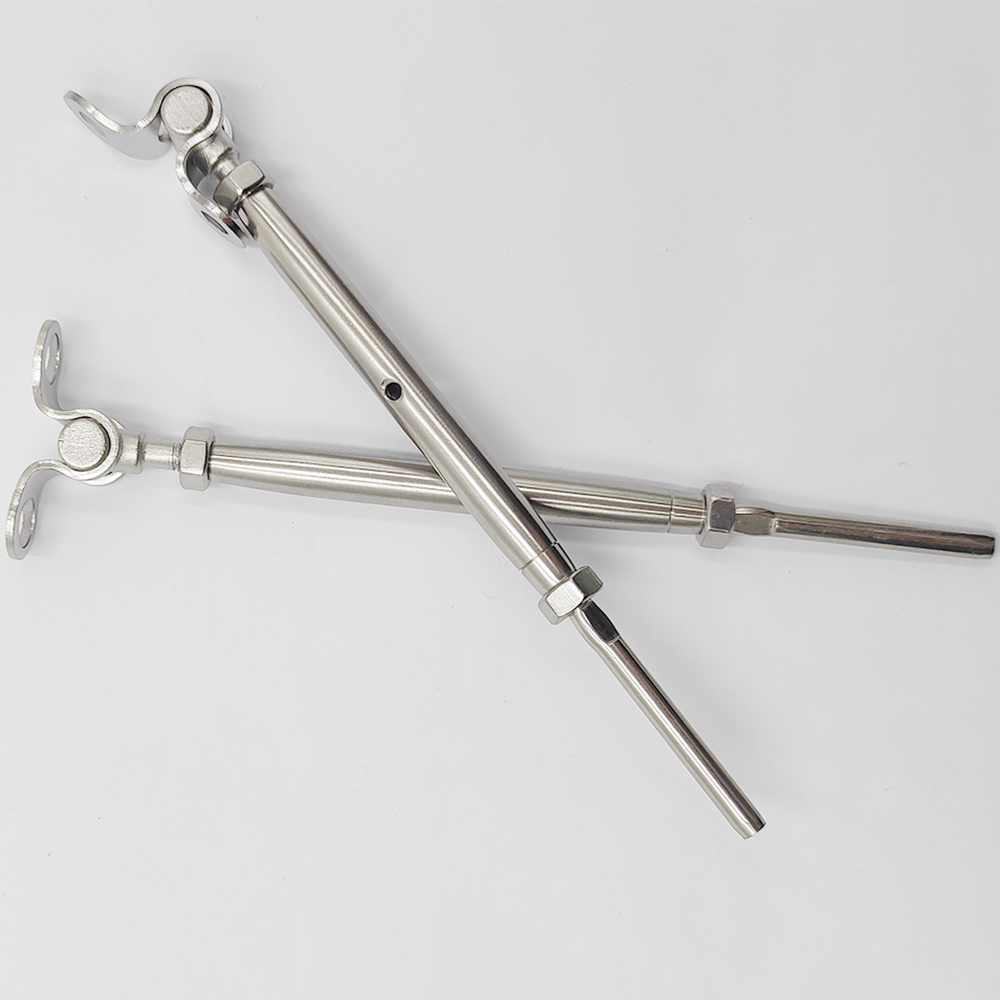

For use on the opposite end of a regular deck toggle, the hand swage turnbuckle with deck toggle is fitted with a hand swage stud on one end and a deck toggle on the other end. The deck toggle will require two 1/4 inch pan type screws to secure this type of turnbuckle to a post. The hand swage stud is fixed onto the end of the cable by crimping three times with a 20 inch hand swage tool. All components of this fitting are made from durable and corrosion resistant type 316 stainless steel. This fitting is available in 1/8 and 3/16 inch cable sizes. This fitting is a popular and common choice for cable railing and balustrade systems.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.

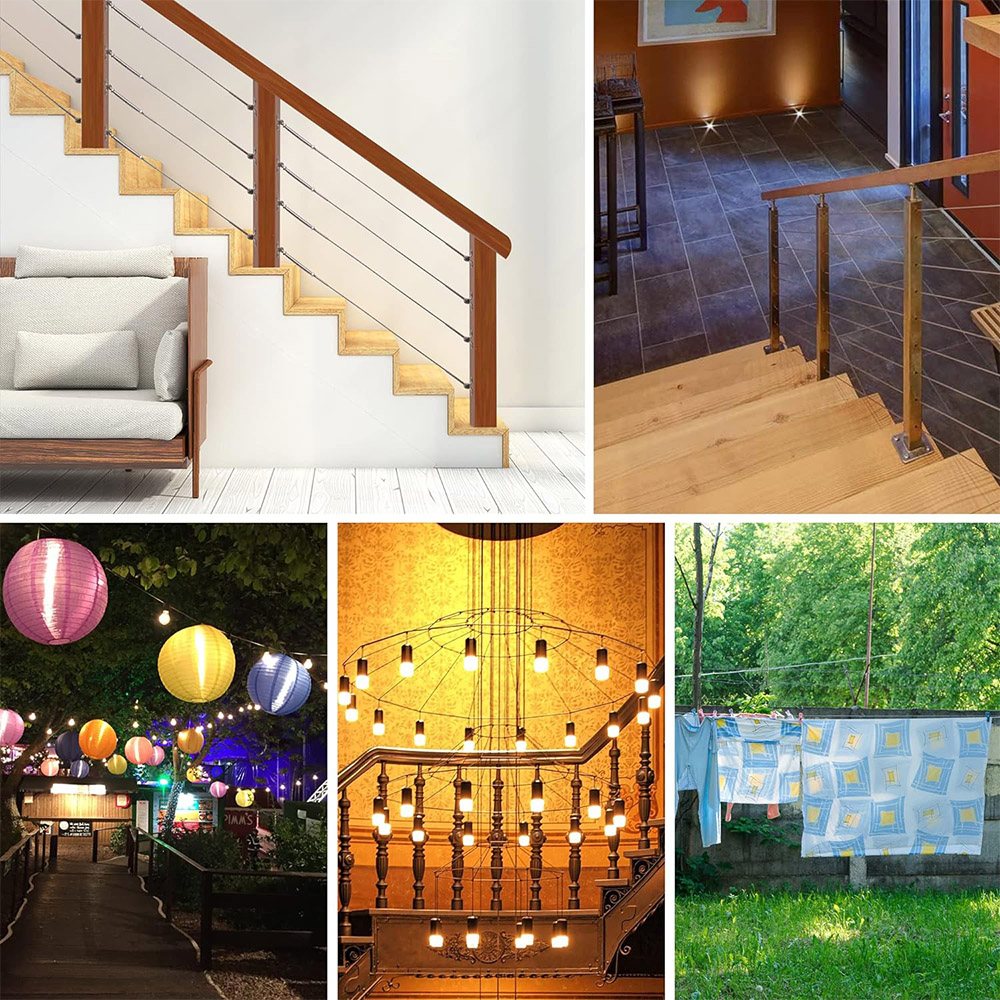

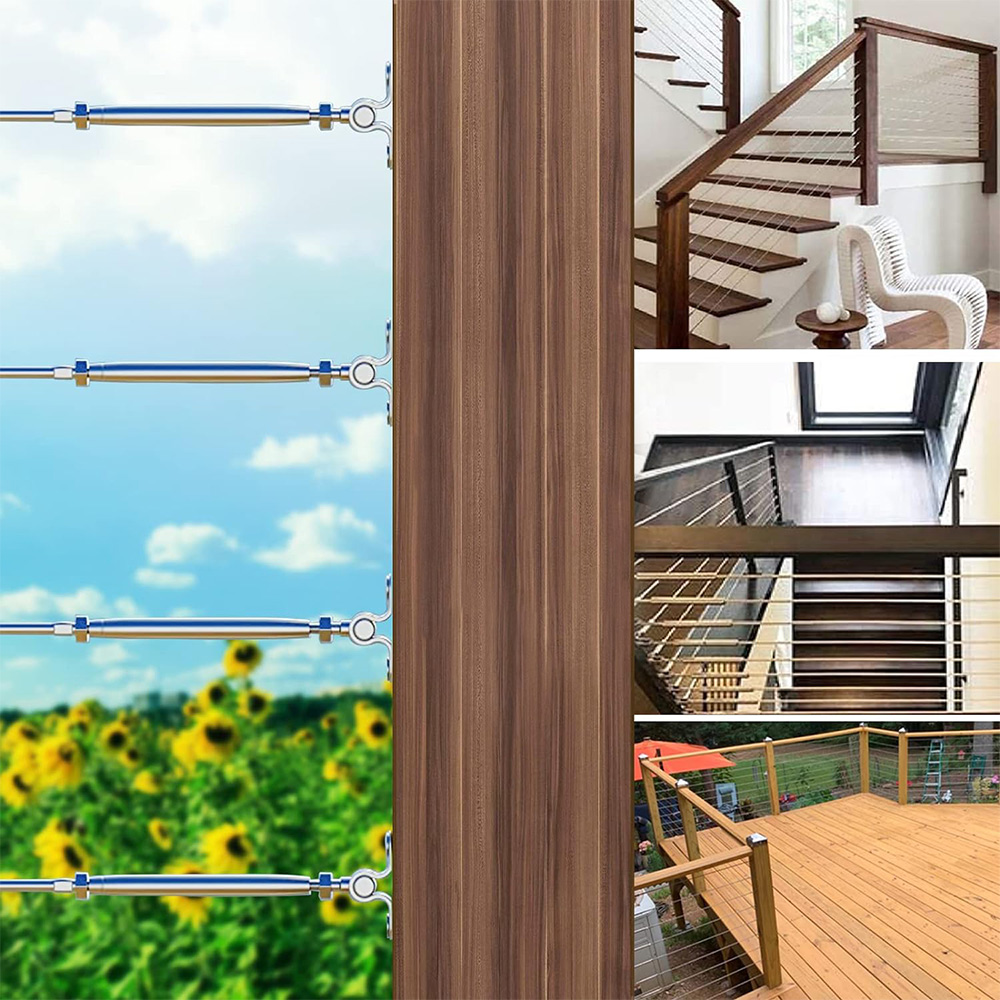

Cable Railing End Fittings are precision components used to secure and tension stainless steel cables in modern railing systems. Typically made from high-quality stainless steel AISI 304 or 316, they meet international standards such as ASTM and ISO for mechanical strength and corrosion resistance. Common types include swage terminals, threaded studs, and turnbuckles, providing secure connections and easy adjustment. These fittings are widely used in residential, commercial, and marine projects. Key features include sleek appearance, excellent weather resistance, high load capacity, and maintenance-free performance, ensuring safety and a contemporary architectural look.
