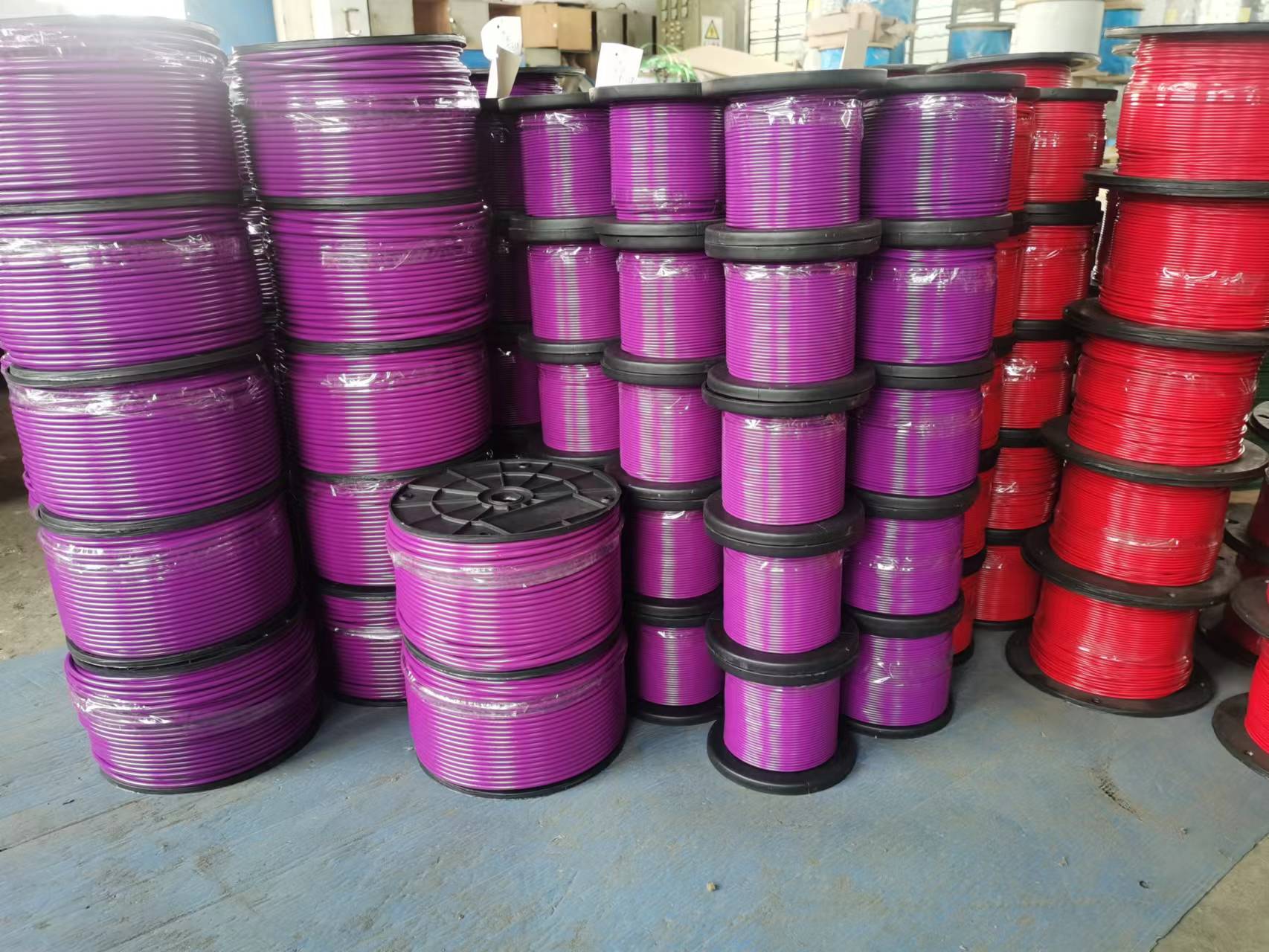

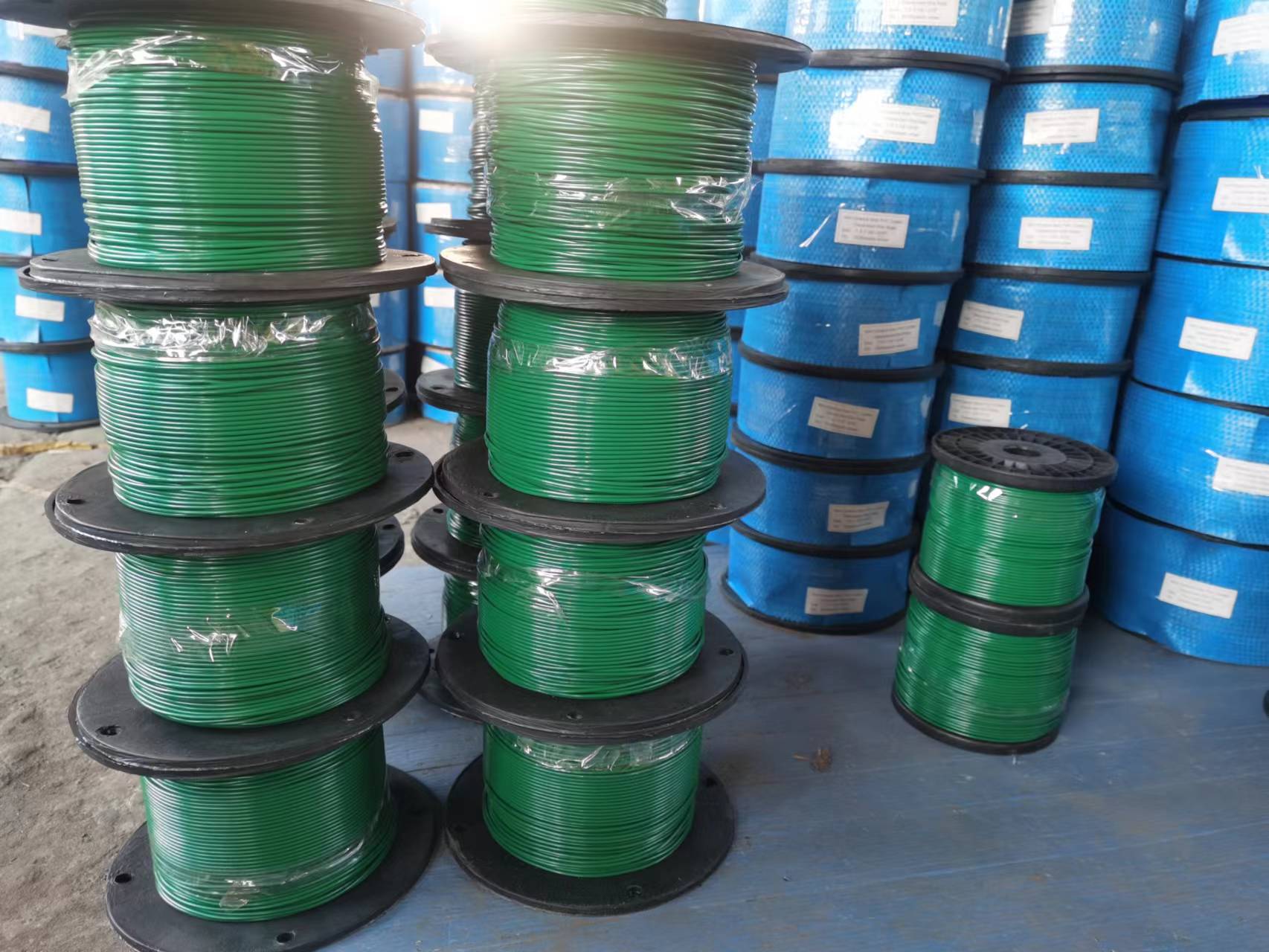

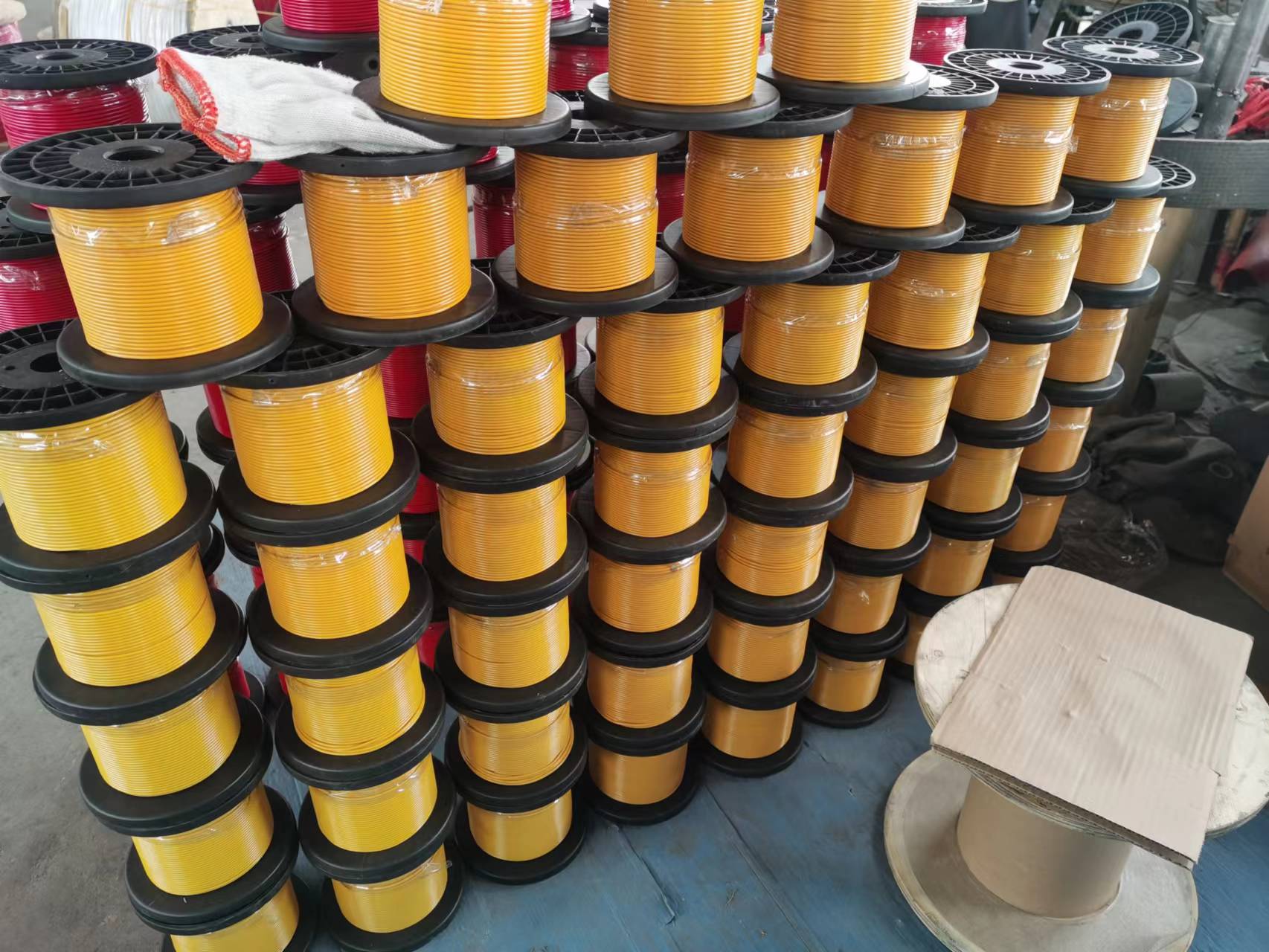

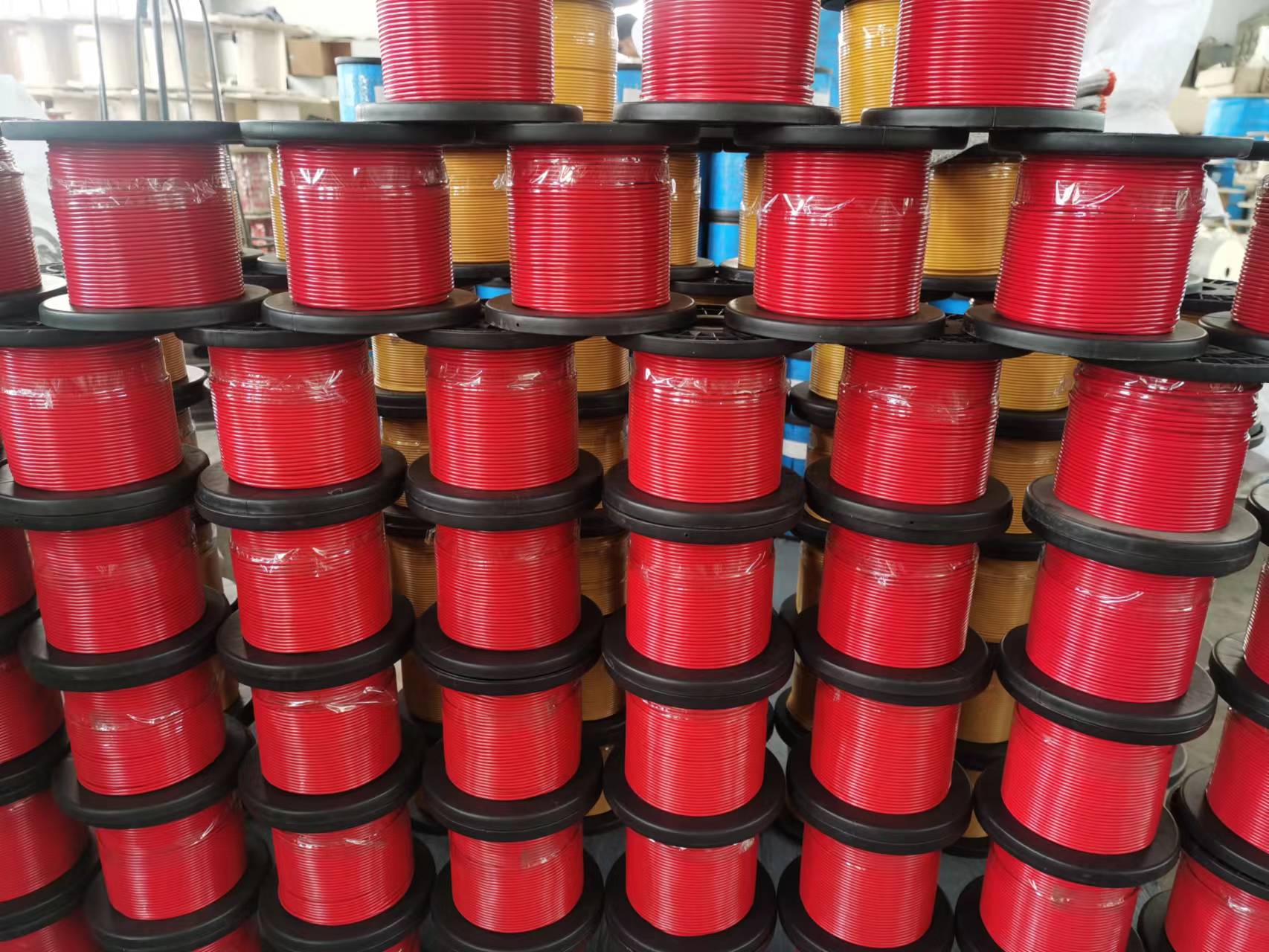

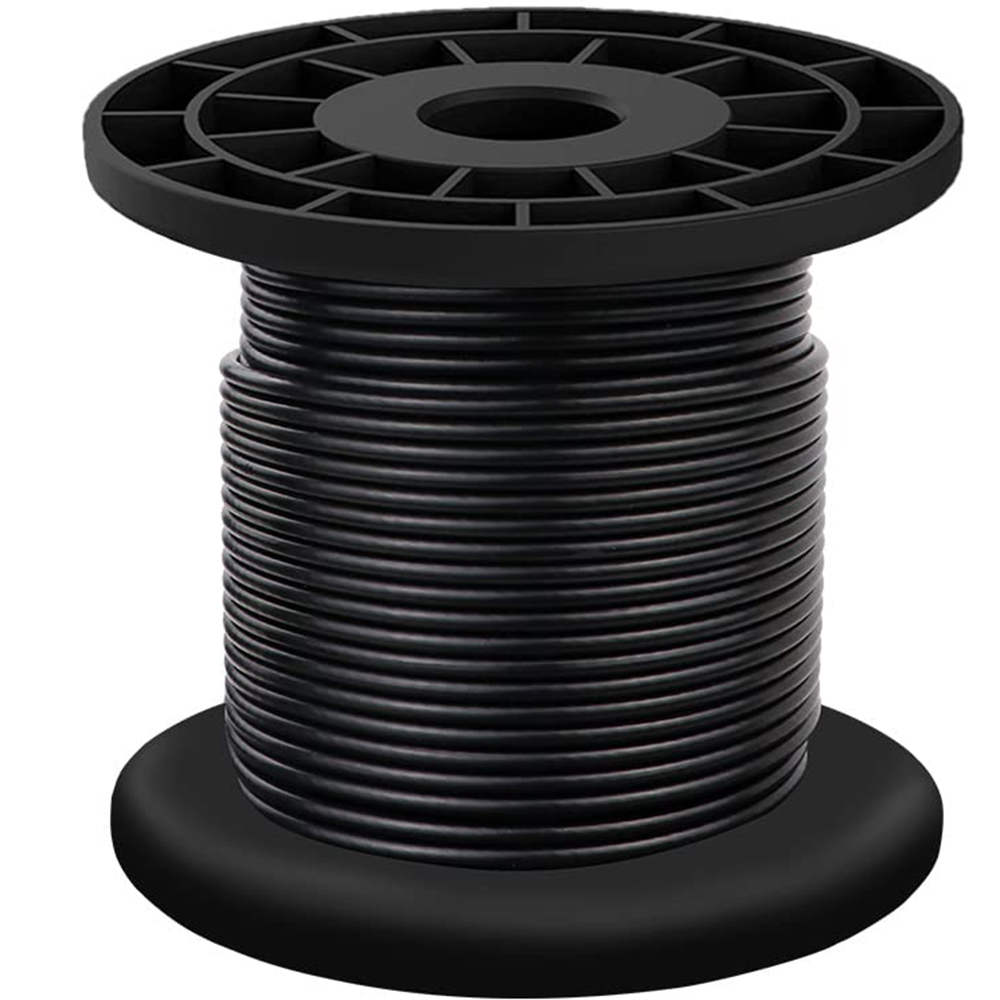

7x7 PVC/PP/PE Cable with Coating Steel Wire Rope
-The wire rope can be coated by extrusion method with various materials such as PA,PP,PE,PVC,etc.According to customers' requirements of the material,the color and the final rope diameter.

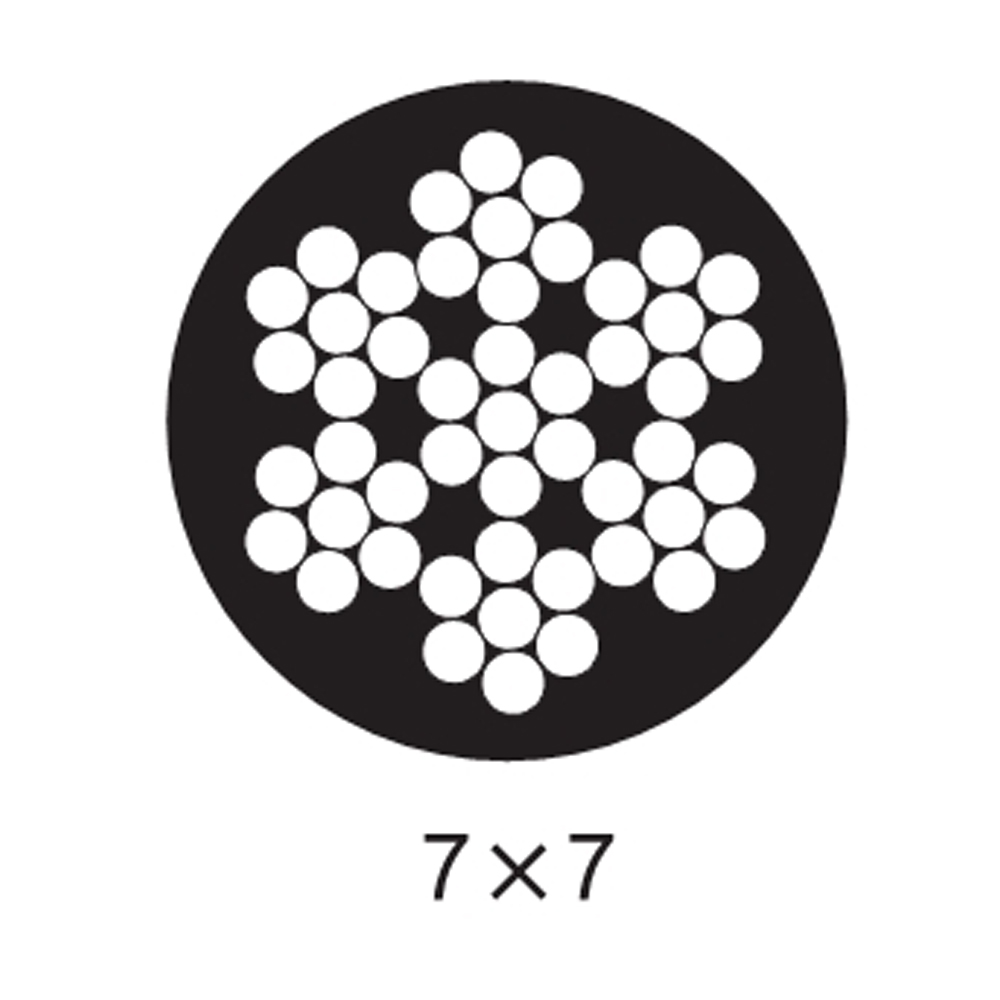

-7x7 PVC/PP/PE
-Inner Cable Diameter 3/64" to 3/16"
-Outer Cover Diameter 1/16" to 5/16"
Detail Information
| 7x7 PVC/PP/PE | ||||||||
| Diameter (mm) | Unit Weight | Breaking Strenght (Ib) | ||||||
| Inner Cable | Outer Cover | Inner Cable | Coating | Total | ||||
| Lb/1000' | kg/1000' | Lb/1000' | kg/1000' | Lb/1000' | kg/1000' | |||
| 3/64" | 1/16" | 4.20 | 1.91 | 0.84 | 0.38 | 5.04 | 2.29 | 270.00 |
| 3/64" | 5/64" | 4.20 | 1.91 | 1.93 | 0.87 | 6.13 | 2.78 | 270.00 |
| 1/16" | 3/32" | 7.50 | 3.40 | 2.40 | 1.09 | 9.90 | 4.49 | 480.00 |
| 1/16" | 1/8" | 7.50 | 3.40 | 5.78 | 2.62 | 13.28 | 6.02 | 480.00 |
| 3/32" | 1/8" | 16.00 | 7.26 | 3.40 | 1.54 | 19.40 | 8.80 | 920.00 |
| 3/32" | 5/32" | 16.00 | 7.26 | 7.72 | 3.50 | 23.72 | 10.76 | 920.00 |
| 3/32" | 3/16" | 16.00 | 7.26 | 13.02 | 5.90 | 29.02 | 13.16 | 920.00 |
| 1/8" | 5/32" | 28.50 | 12.93 | 4.34 | 1.97 | 32.84 | 14.90 | 1700.00 |
| 1/8" | 3/16" | 28.50 | 12.93 | 9.64 | 4.37 | 38.14 | 17.30 | 1700.00 |
| 3/16" | 1/4" | 62.00 | 28.12 | 13.50 | 6.12 | 75.50 | 34.24 | 3700.00 |
| 3/16" | 5/16" | 62.00 | 28.12 | 30.82 | 13.98 | 92.82 | 42.10 | 3700.00 |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.

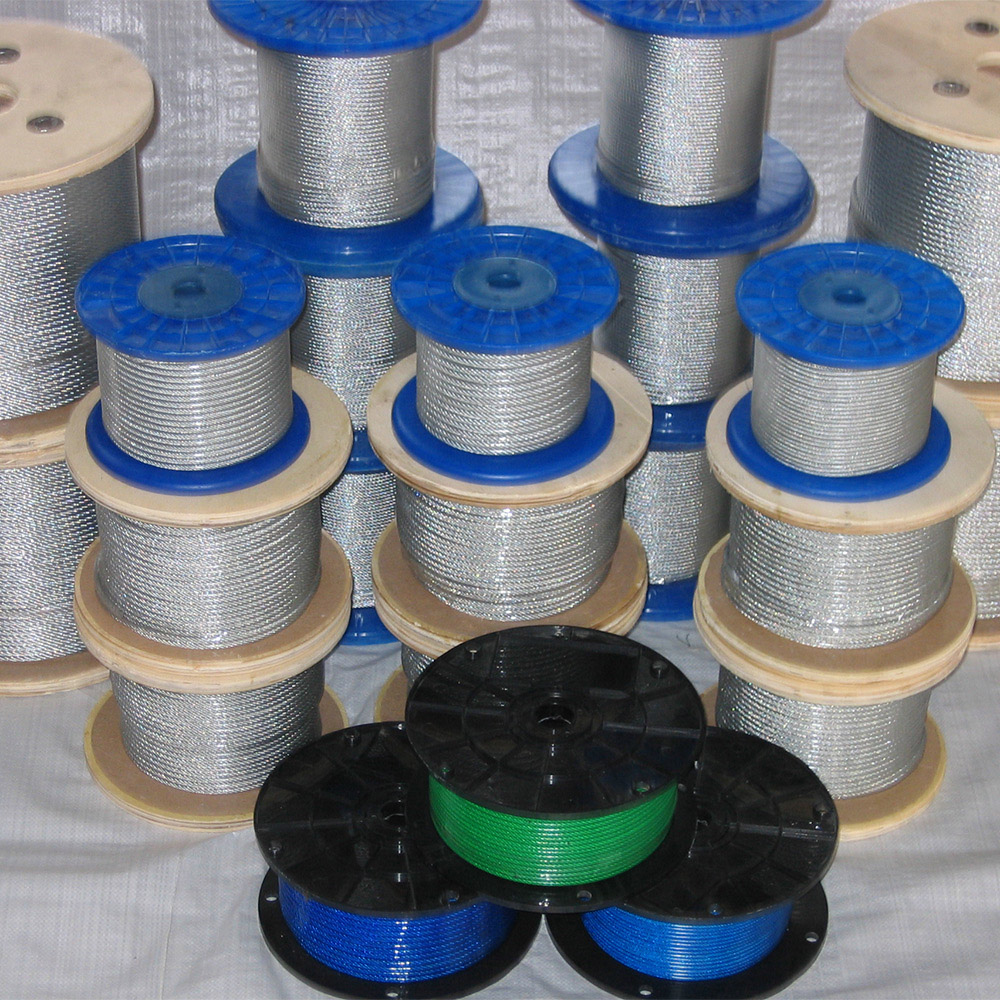

-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
PVC/Nylon coated cable is a steel wire rope covered with a durable PVC or nylon layer, providing enhanced corrosion resistance, abrasion protection, and electrical insulation. Common constructions include 7×7 and 7×19, with diameters ranging from 2 mm to 12 mm. The coating improves handling, reduces wear, and offers a smooth surface for safer operation. Widely used in marine, construction, automotive, and industrial control applications, these cables are ideal for rigging, lifting, guide lines, and mechanical control systems, combining strength, flexibility, and long service life.
