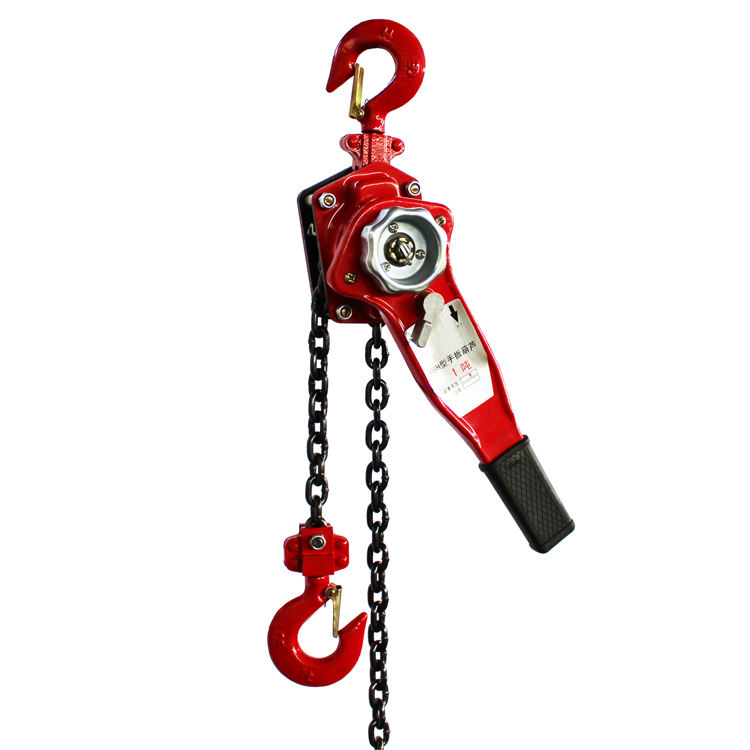

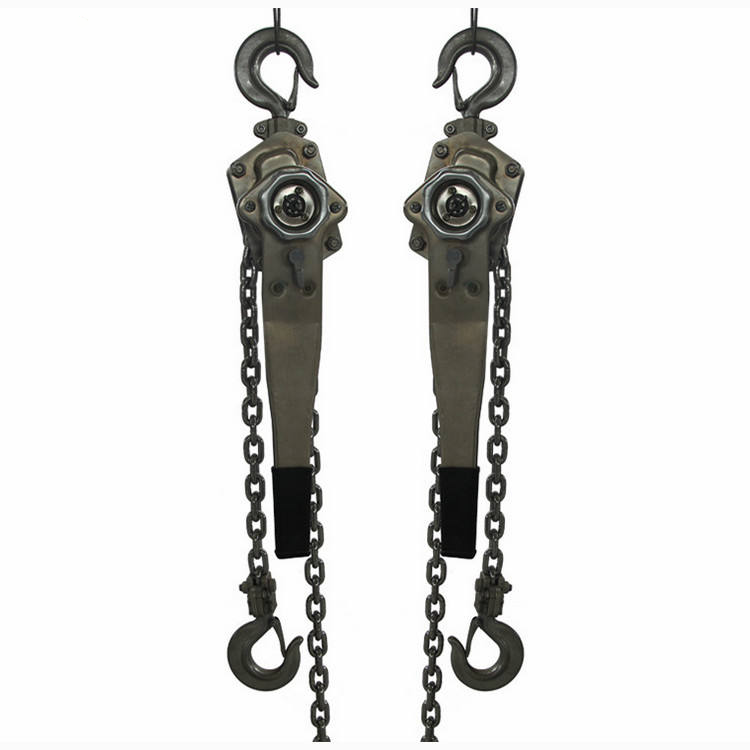

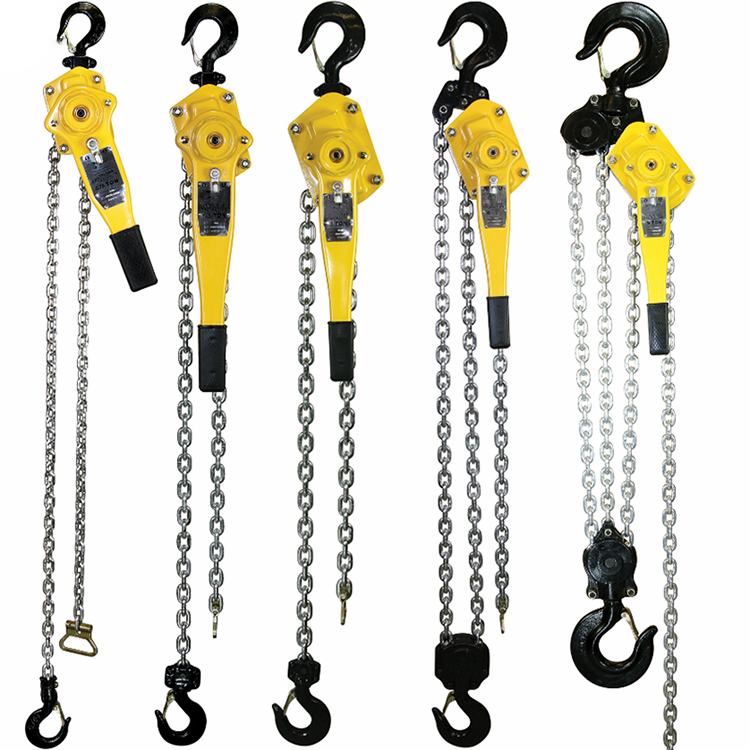

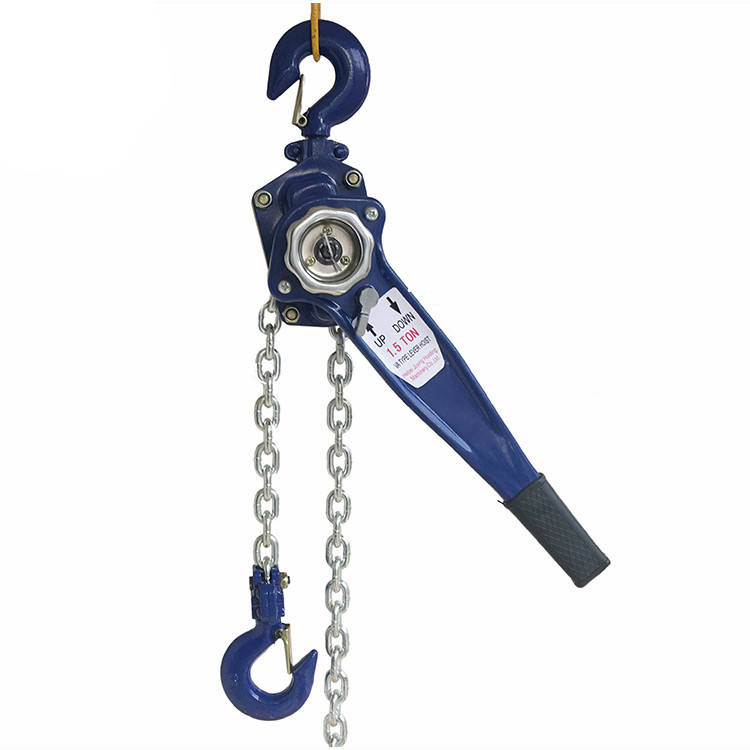

Lifting Lever Hand Block Chain Pulley Meters Wrench Pull Lift Manual Chain Hoist
Introduction:
The rated lifting capacity of the endless chain lever block is 750kg,1500kg,3000kg,6000kg,9000kg.it is widely used in factories,mines,construction areas,docks,and transport conditions.it is the ideal tool for equipment installation,object fixing,banding and towing,especially suitable for towing of random angle and working in scanty place,open air and place without power supply.
Detail Information
| Model | VA 0.5T | VA 0.75t | VA 1T | VA 1.5T | VA 2T | VA 3.0T | VA 6.0T | |
| Capacity(t) | 0.5T | 0.75 | 1 | 1.5 | 2 | 3 | 6 | |
| Standard lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running test load(t) | 0.75 | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 9 | |
| No.of falls of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 2 | |
| Load chain diameter(mm) | 5 | 6 | 6 | 8 | 8 | 10 | 10 | |
| Dimension(mm) | A | 102 | 148 | 148 | 176 | 176 | 195 | 195 |
| B | 80 | 87.5 | 87.5 | 102 | 102 | 109 | 109 | |
| C | 95 | 135 | 135 | 157 | 157 | 210 | 253 | |
| Net weight(kg) | 3.5 | 7 | 7.5 | 11 | 12 | 19 | 32 | |
| Packing(L*W*H)(cm) | 37*14*17 | 37*14*17 | 37*14*17 | 52*14*18 | 52*14*18 | 55*16*21 | 55*16*21 | |
Introduction:
The rated lifting capacity of the endless chain lever block is 750kg,1500kg,3000kg,6000kg,9000kg.it is widely used in factories,mines,construction areas,docks,and transport conditions.it is the ideal tool for equipment installation,object fixing,banding and towing,especially suitable for towing of random angle and working in scanty place,open air and place without power supply.
Features:
1.The stroller mechanism.
2.Quenched and tempered hooks are safe even when accidentally overloaded.
3.Shock-resistant gear cover and brake cover locking out dust and rain.
4.Bolted rubber grip assures safe operation.
5.Extraordinary braking force,easy release,and the finest anti-rust treatment.
6.The brake mechanism is designed to avoid seizing.
7.The chain stopper protects the body.
8.A special surface-treated ,rust resistant load chain.
9.Super strong load chain for heavy duty use.
