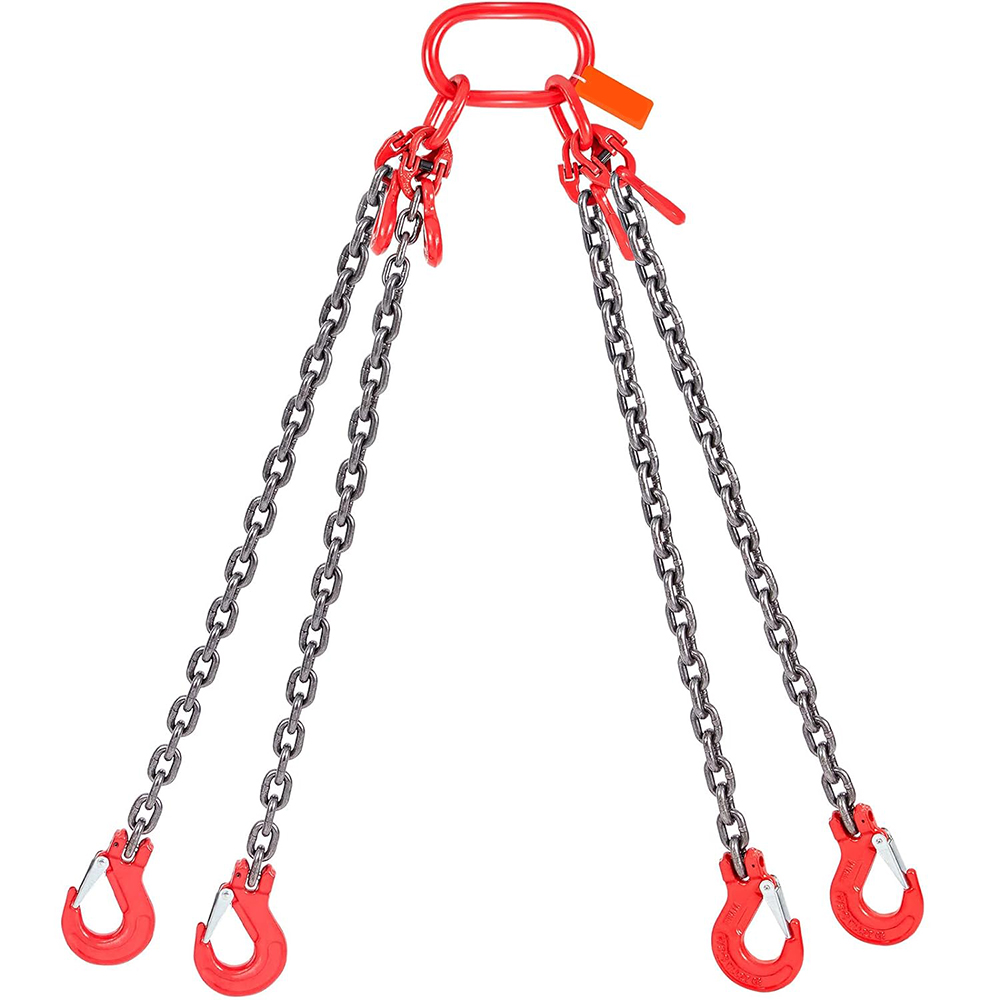

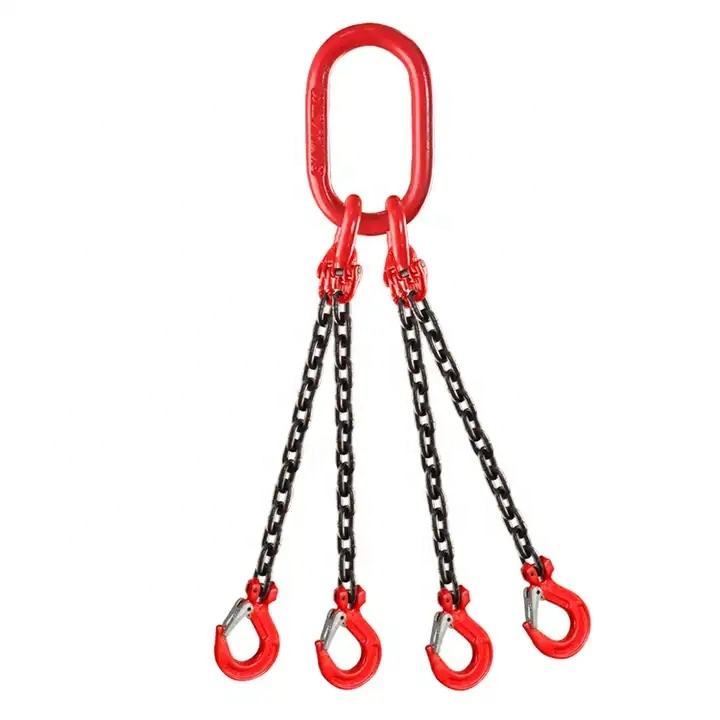

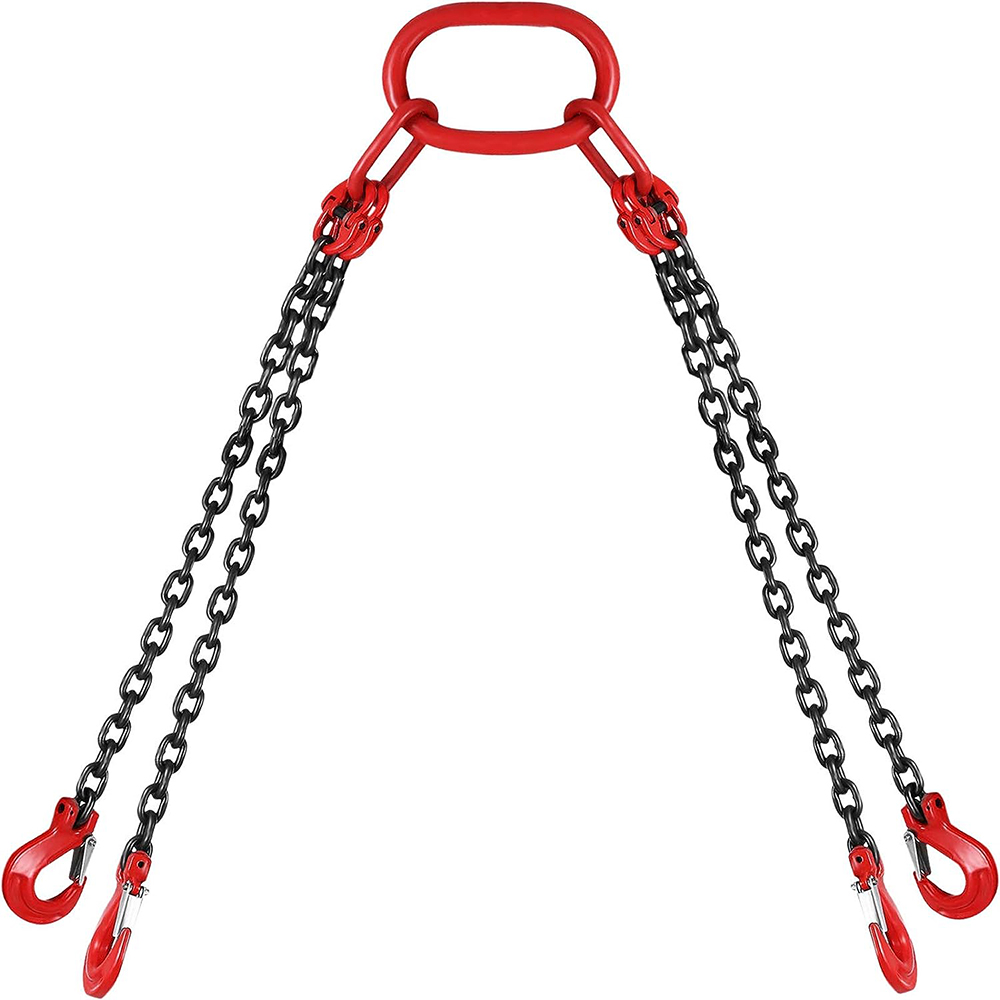

G80 Lift Chain Sling with 4 Legs Safety Grab Hook 5T Capacity
Safety factor:4:1
Surface treatment:polishing,black,plastic coating,galvanized,painted .
Standard: EN818-4
Detail Information

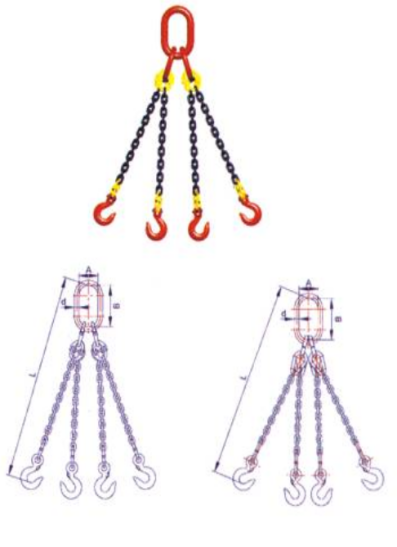

| ART.NO | Diameter of the chain (mm) | Woking Load Limit (T) α ≤ 45° 45 < α ≤ 60° | a x bx d Master link (mm) | Weight/M (KG) | Chain Weight (kg/M) | |
| 1111121 | 6 | 2.1 | 1.5 | 80×150×20 | 7.33 | 0.79 |
| 1111122 | 8 | 3.1 | 2.2 | 90×160×24 | 12.21 | 1.38 |
| 1111123 | 10 | 5.2 | 3.7 | 100×190×28 | 23.42 | 2.2 |
| 1111124 | 12 | 7.3 | 5.2 | 100×190×28 | 33.77 | 3.1 |
| 1111125 | 14 | 10.5 | 7.5 | 120×230×34 | 40.54 | 4.13 |
| 1111126 | 16 | 12.6 | 9 | 135×250×38 | 53.51 | 5.63 |
| 1111127 | 18 | 16.8 | 12 | 140×270×42 | 64.47 | 6.85 |
| 1111128 | 20 | 21 | 15 | 160×310×46 | 79.88 | 8.6 |
| 1111129 | 22 | 25.2 | 18 | 180×330×52 | 150.42 | 10.2 |
| 1111130 | 24 | 29.4 | 21 | 180×330×52 | 155.75 | 12.78 |
| 1111131 | 26 | 35.7 | 25.5 | 180×330×56 | 253.27 | 14.87 |
| 1111132 | 30 | 46.2 | 33 | 210×410×62 | 268.64 | 19.6 |
| 1111133 | 34 | 60.9 | 43.5 | 210×420×76 | 409.22 | 22.7 |
| ART.NO | Diameter of the chain (mm) | Woking Load Limit (T) α ≤ 45° 45 < α ≤ 60° | a x bx d Master link (mm) | Weight/M (KG) | Chain Weight (kg/M) | |
| 1111141 | 6 | 2.35 | 1.68 | 75×135×18 | 5.79 | 0.79 |
| 1111142 | 8 | 4.2 | 3 | 90×160×22 | 9.66 | 1.38 |
| 1111143 | 10 | 6.61 | 4.72 | 100×190×28 | 18.47 | 2.2 |
| 1111144 | 13 | 11.13 | 7.95 | 110×200×32 | 26.34 | 3.8 |
| 1111145 | 16 | 16.38 | 11.7 | 140×260×35 | 32.04 | 5.63 |
| 1111146 | 20 | 23.52 | 16.8 | 160×350×50 | 41.66 | 8.6 |
| 1111147 | 22 | 31.5 | 23.52 | 190×350×50 | 119.3 | 10.2 |
| 1111148 | 26 | 44.5 | 31.8 | 200×400×60 | 196.99 | 14 |
| 1111149 | 32 | 66.15 | 47.25 | 250×460×70 | 411.6 | 22.29 |
Safety factor:4:1
Surface treatment:polishing,black,plastic coating,galvanized,painted .
Standard: EN818-4
Features:

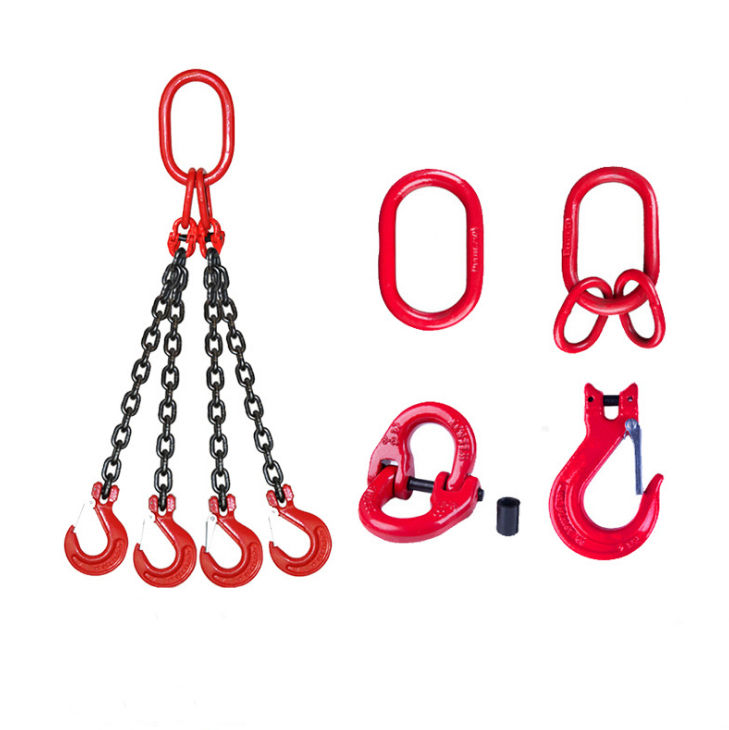

Our all-inclusive chain sling system for connecting, shortening and lifting in grade 80. our sling system is designed to improve and make your lifting quickly and as easy as possible!
The components are made from special quenched and tempered alloy steel, to guarantee the high strength,low weight, anti-abrasive, long life.
All lifting components are uniformly marked with equivalent chain size, grade, manufacture's designation and name for positive identification.
Chain Slings & Components G80 are heavy-duty lifting assemblies made from high-strength alloy steel, designed for industrial and construction applications. They comply with international standards such as EN 818-4 and ISO 3077, ensuring reliable performance, safety, and traceable load ratings. G80 chain slings are rated for lifting, hoisting, and load securing tasks, with a high safety factor and excellent fatigue resistance. Key features include superior tensile strength, wear and abrasion resistance, heat-treated durability, and compatibility with hooks, master links, and other lifting accessories, making them ideal for cranes, material handling, and rigging operations in harsh working environments.
