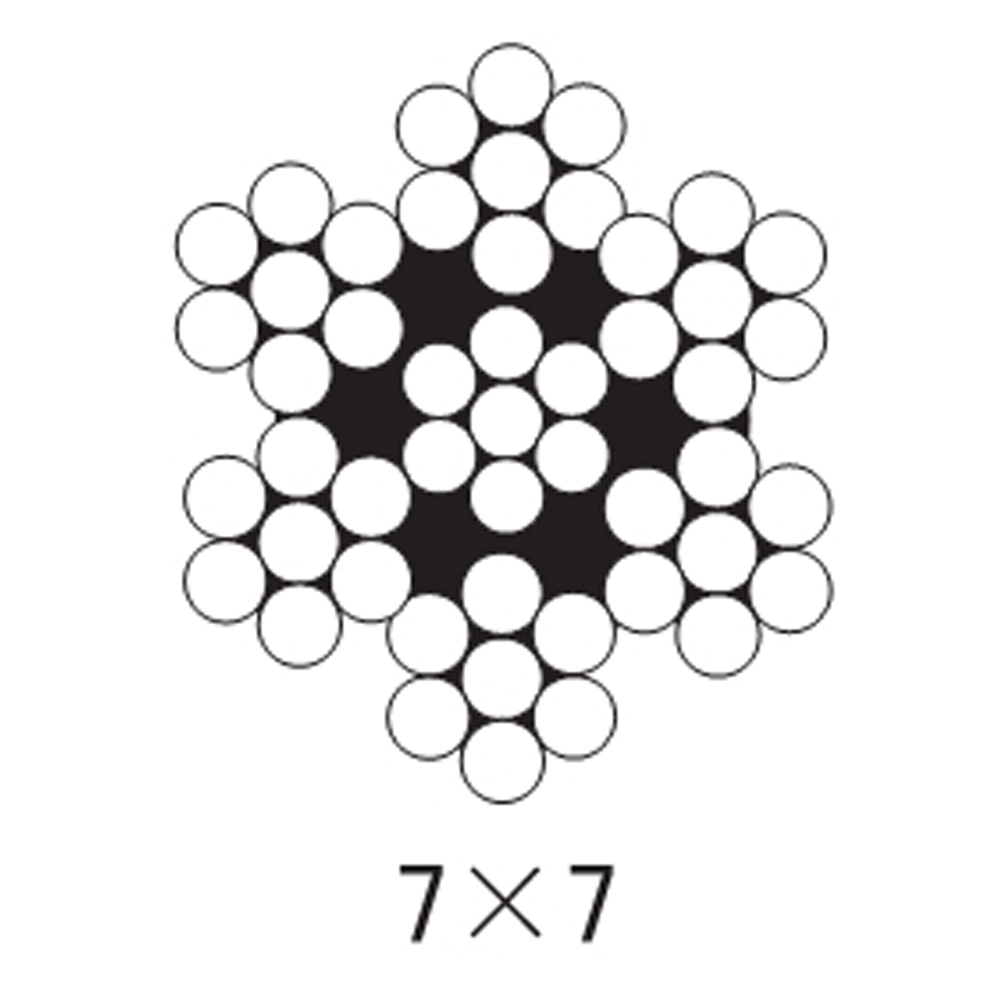

7x7 Window Regulator Cable Steel Cable Wire Rope

General Information of Wire Cable

 -Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.

 -Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.

 -Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.

 -TENSILE STRENGTH OF STEEL WIRE:

   1470 N/mm²(=150Kgf/mm²)

   1570 N/mm²(=160Kgf/mm²)

   1770 N/mm² (=180Kgf/mm²)

   1960 N/mm² (=200Kgf/mm²)

   2160 N/mm² (=220Kgf/mm²)

 -Improved Plow Steel(IPS)

 -Extra Improved Plow Steel(EIPS)

Construction and Application

1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.

2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.

3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.

4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.

5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.

6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC

7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.

Control cable is a precision-engineered type of steel wire rope designed for accurate motion control and mechanical transmission. Typically constructed in 7×7 or 7×19 configurations, it offers a balance of flexibility and tensile strength. Diameters generally range from 0.5 mm to 8 mm, depending on the required load and movement accuracy. Made from galvanized or stainless steel, control cables are widely used in automotive systems, aircraft controls, industrial machinery, and medical equipment. Their smooth operation, fatigue resistance, and consistent dimensional stability make them ideal for applications requiring precise, reliable, and long-lasting cable performance.
