K6×7+IWS Conveyor Belt Cord Wire Rope Cable
-Conveyor Belt Cord

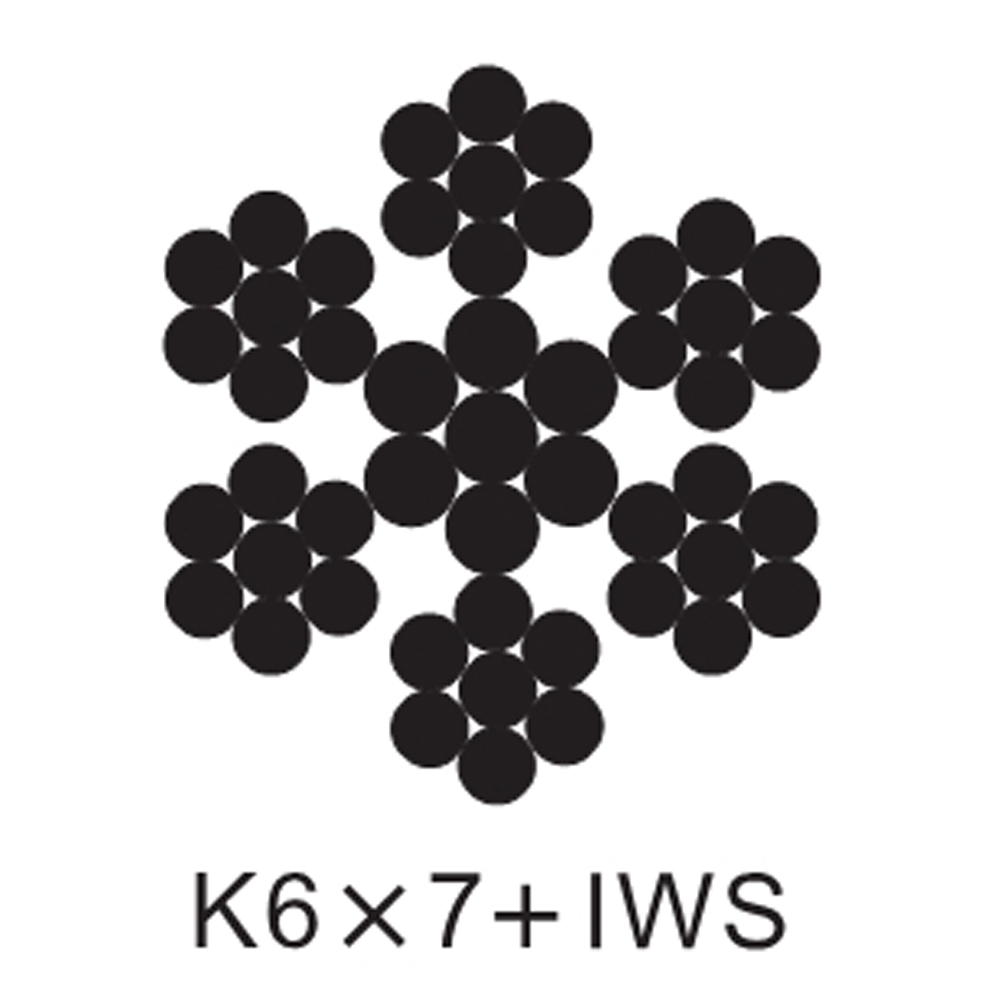

-K6×7+IWS
-Diameter 2.5mm to 5.9mm
-It is made from galvanized steel wire rope as the frame of conveyor belt with high tensile strength,good flexibility,and low elongation.
Detail Information
| K6×7+IWS | ||||
Diameter (mm) | Min.Breaking Load (Kg) | Approx.Weight (Kg/100m) | ||
| II | Ⅲ | IV | ||
| 2.50 | 541 | 561 | 592 | 2.40 |
| 2.70 | 653 | 684 | 714 | 2.90 |
| 2.90 | 765 | 786 | 816 | 3.40 |
| 3.10 | 898 | 969 | 1020 | 3.80 |
| 3.30 | 1051 | 1102 | 1163 | 4.40 |
| 3.50 | 1163 | 1224 | 1306 | 4.90 |
| 3.70 | 1296 | 1347 | 1449 | 5.50 |
| 3.90 | 1429 | 1510 | 1612 | 6.30 |
| 4.10 | 1561 | 1653 | 1776 | 6.80 |
| 4.30 | 1714 | 1816 | 1939 | 7.50 |
| 4.50 | 1857 | 1969 | 2112 | 8.10 |
| 4.70 | 2000 | 2122 | 2296 | 8.70 |
| 4.90 | 2194 | 2316 | 2459 | 9.50 |
| 5.10 | 2388 | 2469 | 2622 | 10.40 |
| 5.30 | 2571 | 2663 | 2806 | 11.10 |
| 5.50 | 2806 | 2908 | 3031 | 12.10 |
| 5.70 | 2908 | 3020 | 3143 | 13.00 |
| 5.90 | 3061 | 3235 | 3316 | 14.10 |
| Tensile Strength Grade (GB/T12753-2002) | ||||
| Wire Diameter (mm) | Tensile Strength (MPa) | |||
| I | Ⅱ | Ⅲ | IV | |
| 0.20~0.40 | 2160 | 2260 | 2360 | 2460 |
| >0.4~0.60 | 2060 | 2160 | 2260 | 2360 |
| >0.60~0.90 | 1960 | 2060 | 2160 | 2260 |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.
-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Conveyor belt cordis a high-strength steel cable used as the tensile member in steel cord conveyor belts, ensuring excellent load-bearing capacity and durability. Typically constructed in 7×7 or 7×19 configurations with diameters ranging from 1.5 mm to 12 mm, the cords are made from high-carbon or galvanized steel for superior adhesion and corrosion resistance. They are widely applied in mining, cement, ports, and bulk material handling industries. Featuring uniform tension, minimal elongation, and high fatigue resistance, conveyor belt cords provide reliable performance in long-distance and heavy-duty conveying systems.
