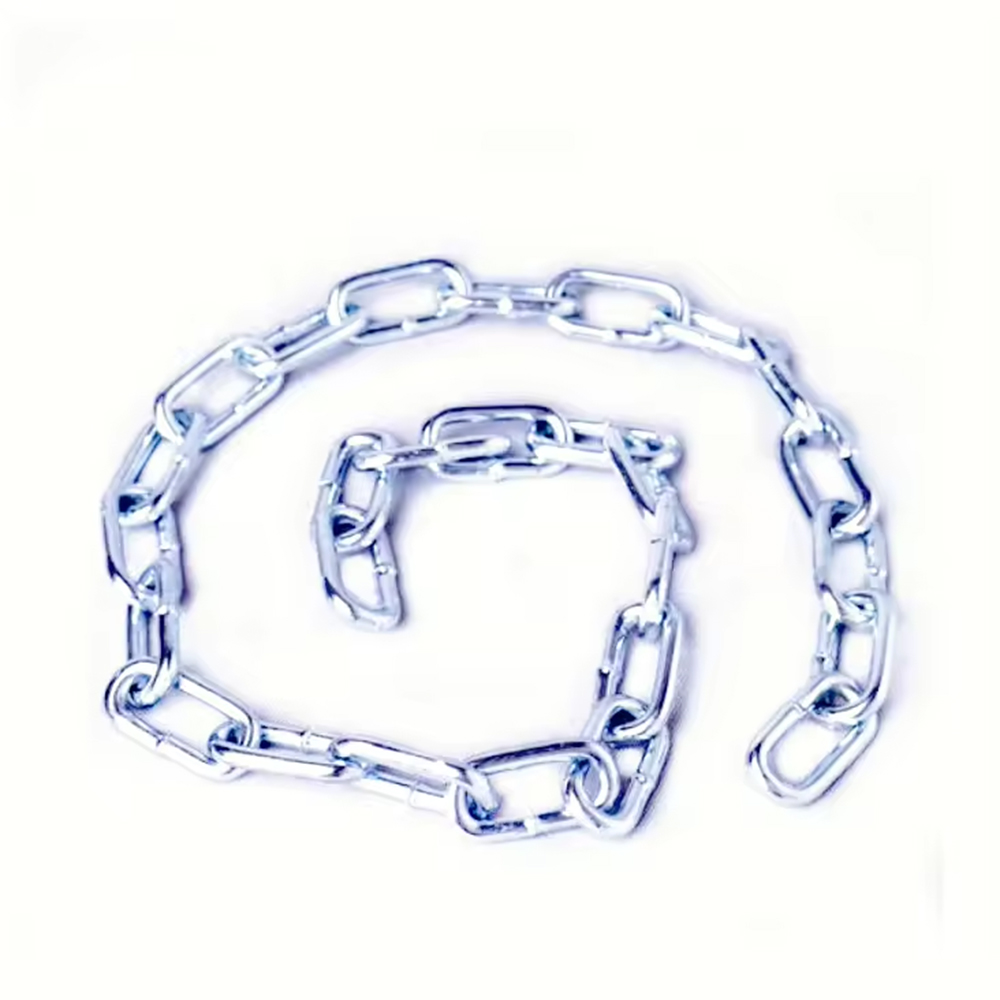

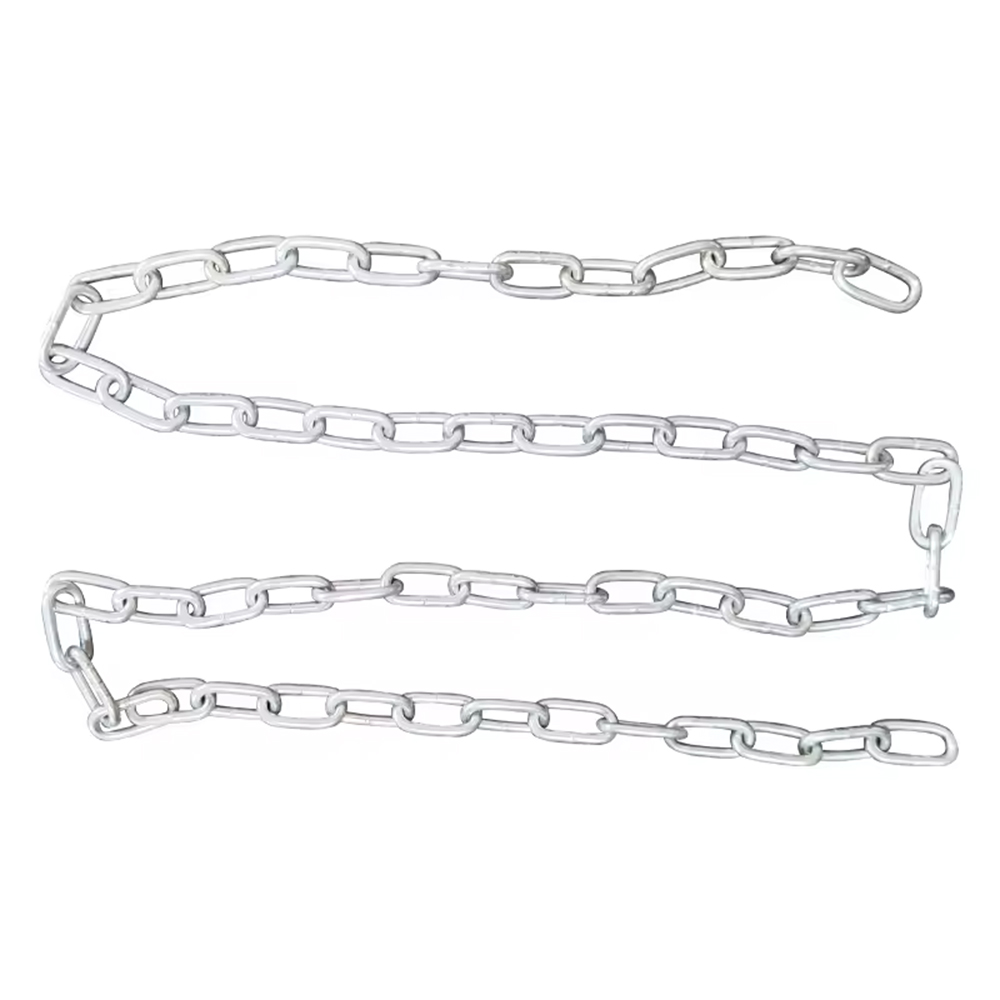

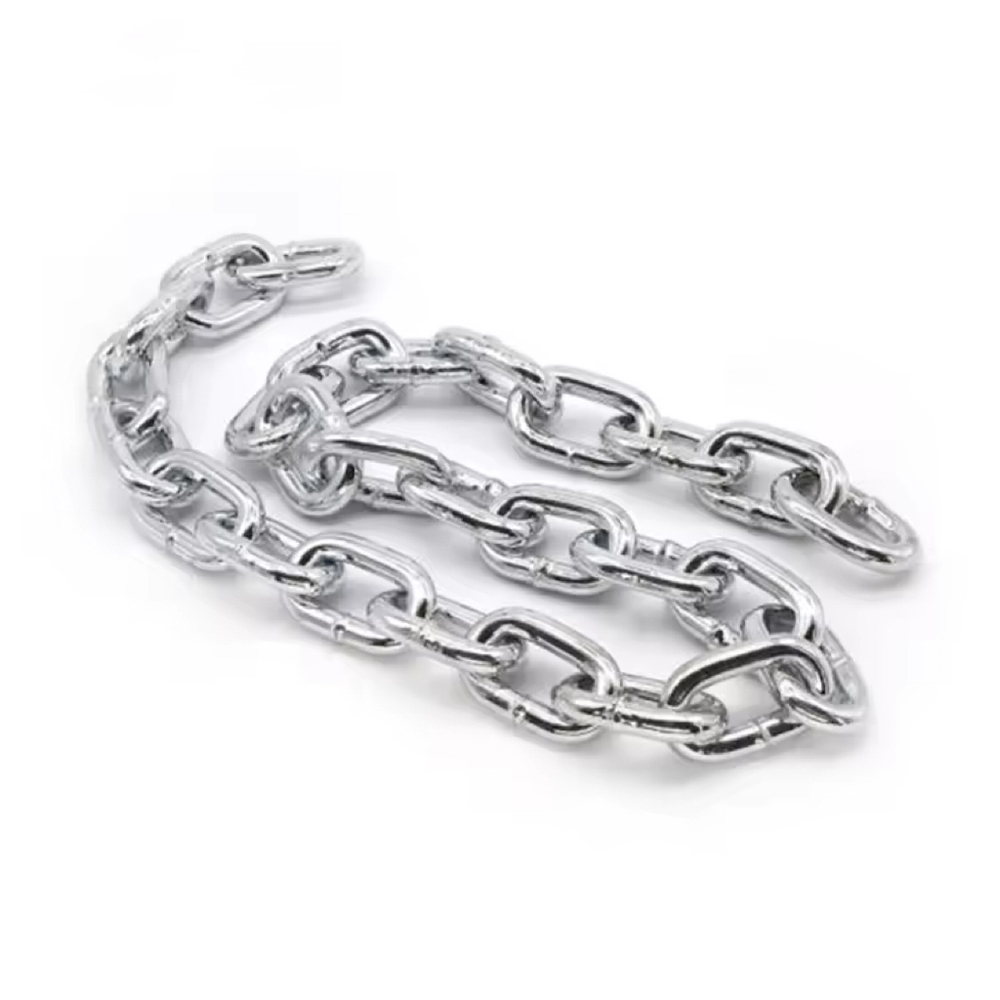

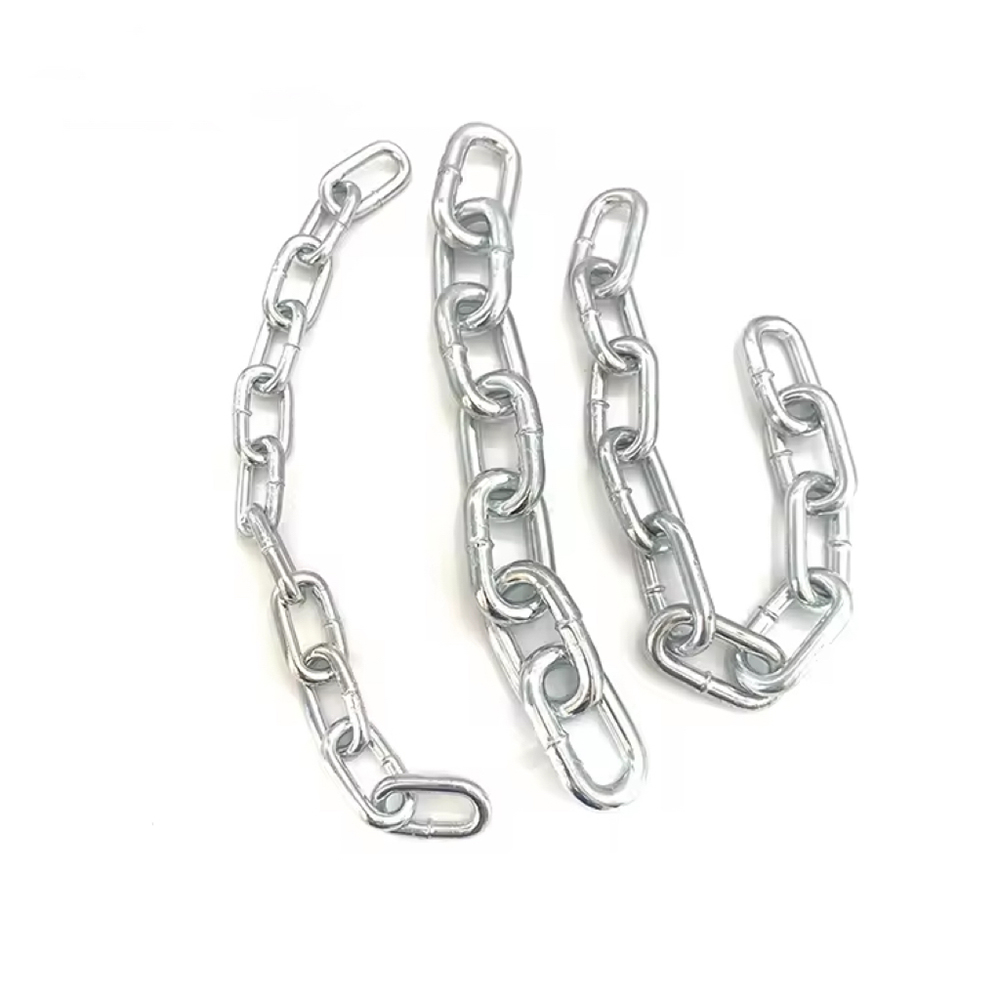

Galvanized Carbon Steel DIN764 Medium Welded Link Chain

-Material: Carbon steel

-Other materials available: Stainless steel, Alloy steel, Plastic, Self-color etc.

-Surface treatment: Primary color, Electric galvanizing, Hot galvanizing, Blackening, Plastic spraying, Dipping paint, etc.

-Diameter: 4mm to 33mm

-Standard: DIN764

-Other standards available: ISO, EN, BS, JIS, ASTM

-Product marking: Required by clients

Inquiry

Detail Information

G-DIN764 500

DIAMETER		INSIDE LENGTH		INSIDE WIDTH	OUTSIDE WIDTH	LENGTH PER11 LINKS		PROOF LOAD	BREAKING LOAD	UNIT WEIGHT
MM	TOLERANCE	MM	+ /-MM	MM	MM	MM	+ /-MM	KG	N	KG/100M
4	±0.2	16	0.30	5	14	176	1.6/0.9	400	7000	31.3
			0.20
5	±0.2	18	0.40	7	18.2	198	1.8/1.0	680	11800	51.4
			0.20
6	±0.2	21	0.50	8	21.5	231	2.0/1.1	850	16500	74
			0.20
8	±0.2	28	0.50	11	29	308	2.2/1.2	1680	32000	131.5
			0.30
10	±0.3	35	0.60	14	36	385	2.7/1.5	2630	50000	200
			0.30
12	±0.3	42	0.60	16	41	462	3.2/1.8	3680	70000	298
			0.30
13	±0.4	45	0.70	18	47	495	3.5/2.0	4200	80000	350
			0.40
14	±0.45	49	0.75	20	48	539	3.8/2.0	4830	92000	406
			0.45
16	±0.5	56	0.90	22	58	616	4.3/2.5	6700	125000	520
			0.50
18	±0.8	63	1.00	24	65	693	4.7/2.8	8400	160000	650
			0.50
20	±1.0	70	1.10	27	72	770	5.4/3.2	10000	200000	820
			0.60
23	±1.2	80	1.30	31	83	880	6.2/3.5	13000	250000	1100
			0.70
26	±1.3	91	1.50	35	94	1001	7.0/4.0	16000	320000	1400
			0.80
28	±1.4	98	1.60	36	101	1078	8.0/4.5	18000	360000	1650
			0.90
30	±1.5	105	1.70	39	108	1155	8.5/4.7	20250	390000	1900
			0.90
33	±1.7	115	1.90	43	119	1265	9.5/5.0	25000	425000	2250
			1.00

-Material: Carbon steel

-Other materials available: Stainless steel, Alloy steel, Plastic, Self-color etc.

-Surface treatment: Primary color, Electric galvanizing, Hot galvanizing, Blackening, Plastic spraying, Dipping paint, etc.

-Diameter: 4mm to 33mm

-Standard: DIN764

-Other standards available: ISO, EN, BS, JIS, ASTM

-Product marking: Required by clients

Main products are：

-Regular Steel Link chains

-Common Welding Chains and Unwelding Chain

-Grade: G30/G43/G70

Standards:

* Ordinary mild steel link chain,

* ASTM80 standard link chain,

* NACM90/M96/M2003/M2010 Standard link chain,

* USA Standard chain with hooks,

* Australian standard link chain,

* DIN5685A/C SHORT/LONG link chain,

* Din763 long link chain,

* Din766 short link chain,

* DIN764 link chain,

* Norwegian standard link chain,

* Korean standard link chain,

* USA standard double loop chain,

* DIN5686 knotted chain.

* High Tensile Chains

* Stainless Chains 304,304L,316,316L

* Knotted Chains and Animal Chains

Commercial Chainis generally made from low-carbon steel or stainless steel and produced according to ASTM and ISO standards for dimensional consistency and tensile strength. It is designed for light to medium-duty applications where high precision or certified lifting performance is not required. Surface finishes such as zinc plating or galvanization provide corrosion resistance and extended service life. With moderate strength and good flexibility, Commercial Chain is widely used in agriculture, marine, fencing, and general-purpose binding or securing tasks. Its cost-effectiveness, durability, and versatility make it suitable for both indoor and outdoor environments.
