Elevator Wire Rope 6×24+FC 6×37+FC Compensation Rope Steel Rope Wire
-It has the character of high safety,reliability and is applied to high-speed passenger-cargo elevator.It is produced with high quality fiber core(sisal) & lubricant grease to ensure the features of lubrication and anti-fatigue.
-The rope has the features of good flexibility,good preforming,accorate rope diameter,good ovality,good stability and low elongation to ensure smooth operation.
Compensation Rope
-JIS G 3525

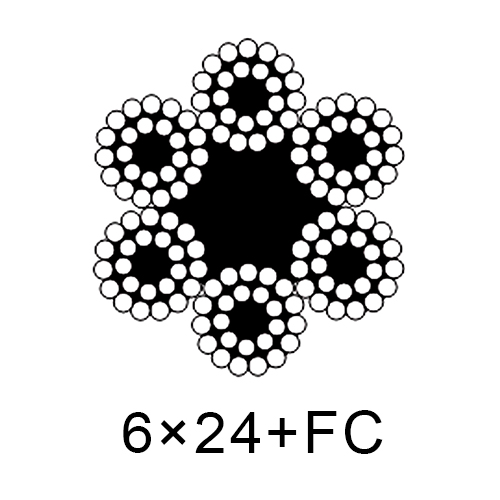

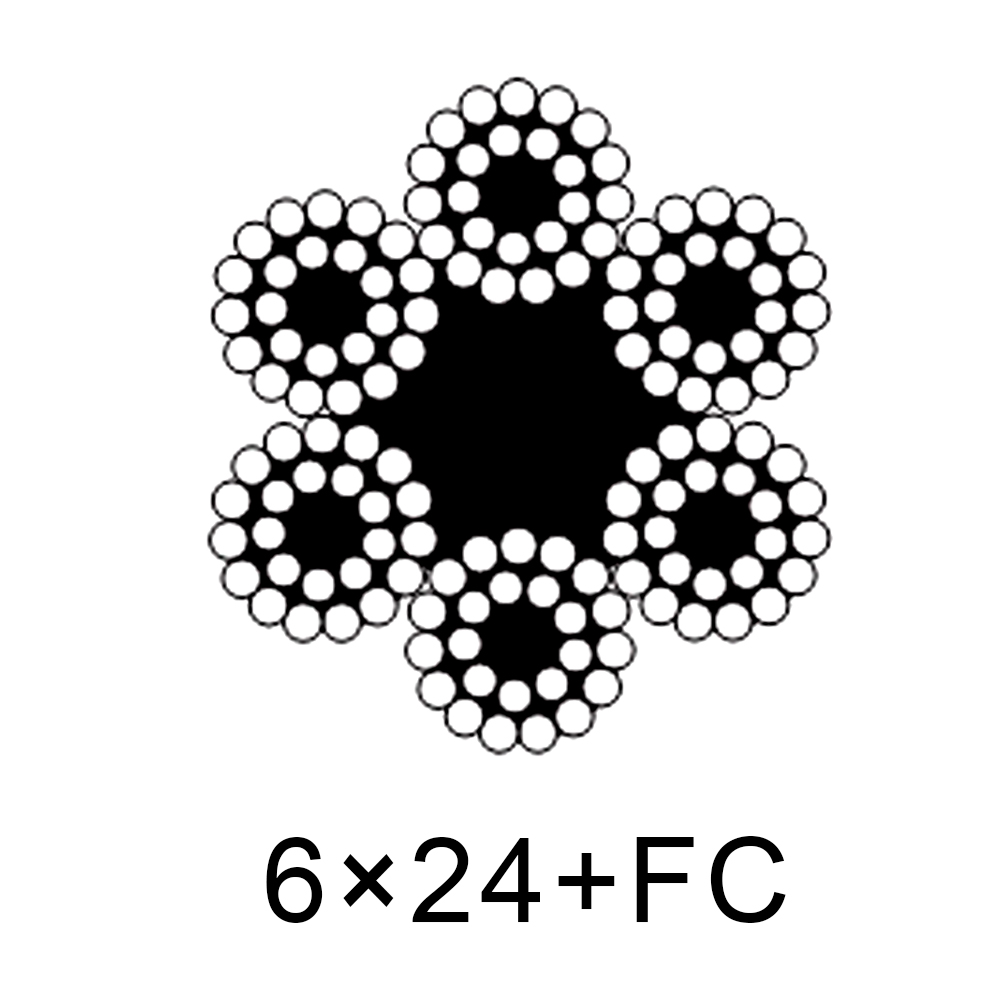

6×24+FC-8mm
6×24+FC-10mm
6×24+FC-12mm

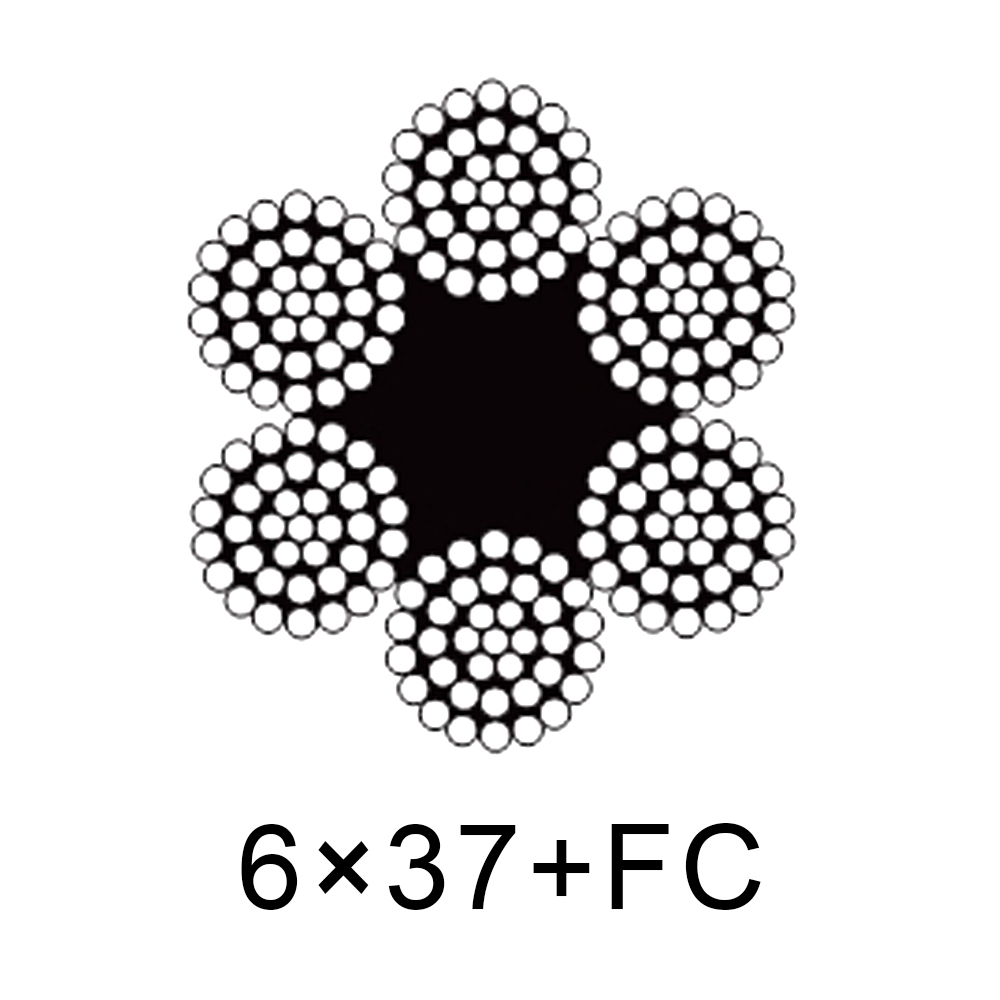

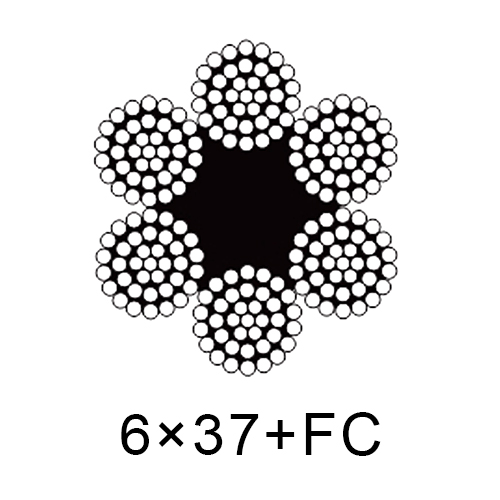

6×37+FC-14mm
6×37+FC-16mm
6×37+FC-18mm
8×Fi(25)+FC-16mm
Detail Information
| Spec | Construction & Size | Balance of Diamete | Tension Strength | Minimum Breaking Load | |
| (%) | (Mpa) | (KN) | |||
Compensation Rope | JIS G 3525 | 6×24+FC-8mm | 0-10 | Grade A | 31.6 |
| 6×24+FC-10mm | 0-7 | Grade A | 49.3 | ||
| 6×24+FC-12mm | 0-7 | Grade A | 71.0 | ||
| 6×37+FC-14mm | 0-7 | Grade A | 104.0 | ||
| 6×37+FC-16mm | 0-7 | Grade A | 136.0 | ||
| 6×37+FC-18mm | 0-7 | Grade A | 172.0 | ||
| 8×Fi(25)+FC-16mm | 0-7 | Grade A | 123.0 |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.
-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Elevator wire rope is a specialized steel wire rope designed for vertical lifting applications in elevators, hoists, and escalators. Manufactured to standards such as ISO 4344 and EN 12385-5, common constructions include 6×19, 8×19, and 8×25 with fiber or steel cores. Diameters typically range from 6 mm to 16 mm. Made from high-tensile galvanized steel, it offers excellent flexibility, wear resistance, and stable traction. Elevator wire rope ensures smooth, quiet operation and reliable safety performance, making it ideal for passenger elevators, freight lifts, and high-rise building applications where precision and durability are critical.
