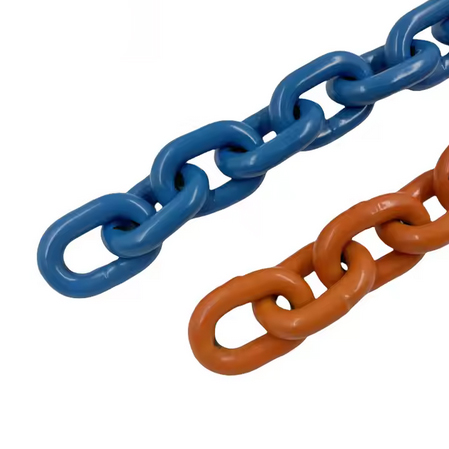

G80 High Strength EN818-2 Standard Color Painted Lifting Chain
Material: High-quality alloy steel
Surface treatment: Self-color, Polishing, Blackened, Painted, Plastic coating, Hot-dip galvanize, Electro-galvanized, etc
Diameter: 6mm to 32m
Quality Grade: G80、G100
Product marking: Required by clients
Package：Reels/bags/plastic bucket/steel drum
Detail Information

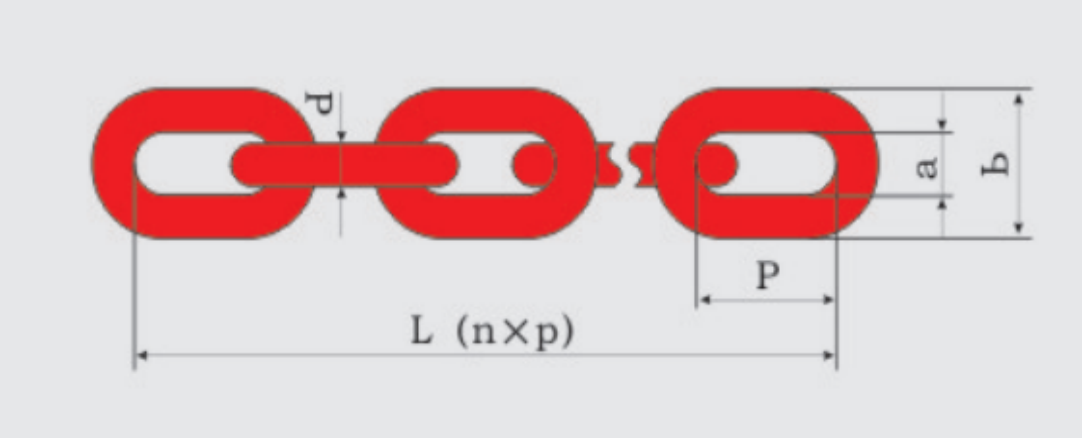

Dia d mm | Pitch p mm | Inside min. a | Outside max. b | Weight kg/m | Working Load Limit t | Manuf. Proof Force kN | Min Breaking Force kN |
| 6 | 18 | 7.8 | 22.2 | 0.8 | 1.12 | 28.3 | 45.2 |
| 7 | 21 | 9.5 | 25.9 | 1.1 | 1.5 | 38.5 | 61.6 |
| 8 | 24 | 10.4 | 29.6 | 1.4 | 2 | 50.3 | 80.4 |
| 10 | 30 | 13 | 37 | 2.2 | 3.15 | 78.5 | 126 |
| 13 | 39 | 16.9 | 48.5 | 3.8 | 5.3 | 133 | 212 |
| 16 | 48 | 20.8 | 59.2 | 5.7 | 8.0 | 201 | 322 |
| 19 | 57 | 24.7 | 70.3 | 8.0 | 11.2 | 284 | 454 |
| 22 | 66 | 28.6 | 81.4 | 10.8 | 15.0 | 380 | 608 |
| 26 | 78 | 33.8 | 96.2 | 15.2 | 21.2 | 531 | 849 |
| 32 | 96 | 41.6 | 118 | 23.0 | 31.5 | 804 | 1280 |
Material: High-quality alloy steel
Surface treatment: Self-color, Polishing, Blackened, Painted, Plastic coating, Hot-dip galvanize, Electro-galvanized, etc
Diameter: 6mm to 32m
Quality Grade: G80、G100
Product marking: Required by clients
Package：Reels/bags/plastic bucket/steel drum
STEEL LINK CHAIN
SPECIFICATION:
1)Standerd: EN standard,ASTM/NACM standard, DIN standard,UK standard.
2)Grade: G100 G80 G70 G43 G30 and commercial Link Chain
3)Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.

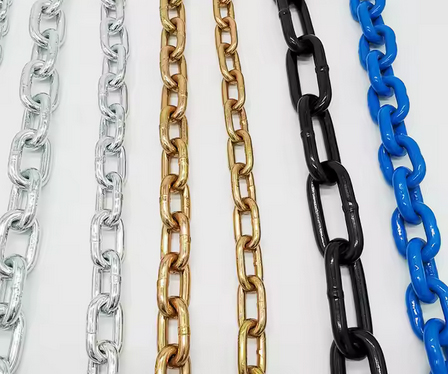

4)Surface :Self color,Zinc plated,Hot dip galv,Powder Coated,Painted.
5)Packing: PP/Gunny bag or cartons on pallet,steel drums on pallets,plasticdrums on pallet,wooden case or according to customers requirement.
High Tensile Chains G80 and G100are made from high-grade alloy steel, heat-treated for maximum strength and durability. They comply with international standards such as EN 818-2, ISO 3077, and ASME B30.9, ensuring reliable load-bearing performance. G80 chains are rated for heavy-duty lifting and rigging, while G100 offers even higher strength for demanding industrial applications. These chains are commonly used in construction, shipping, mining, and material handling for lifting, towing, and securing heavy loads. Key features include exceptional tensile strength, wear resistance, fatigue resistance, and high safety margins under extreme working conditions.
