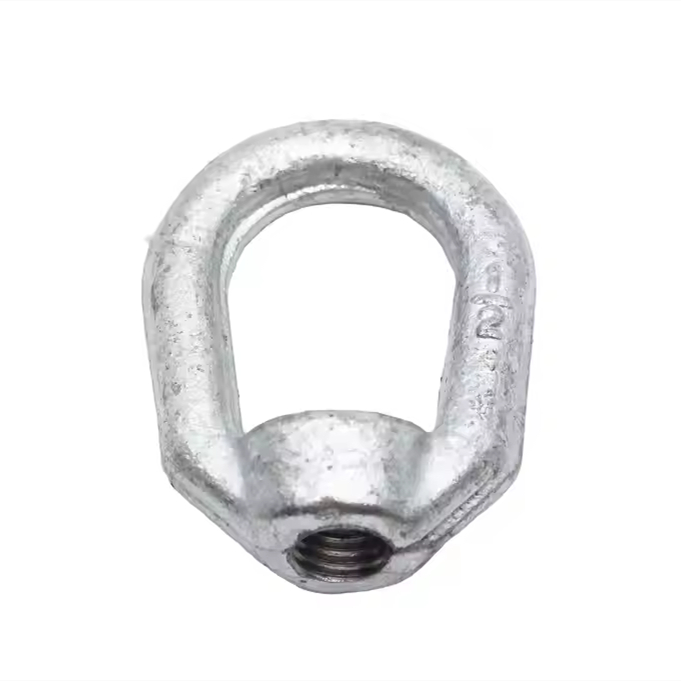

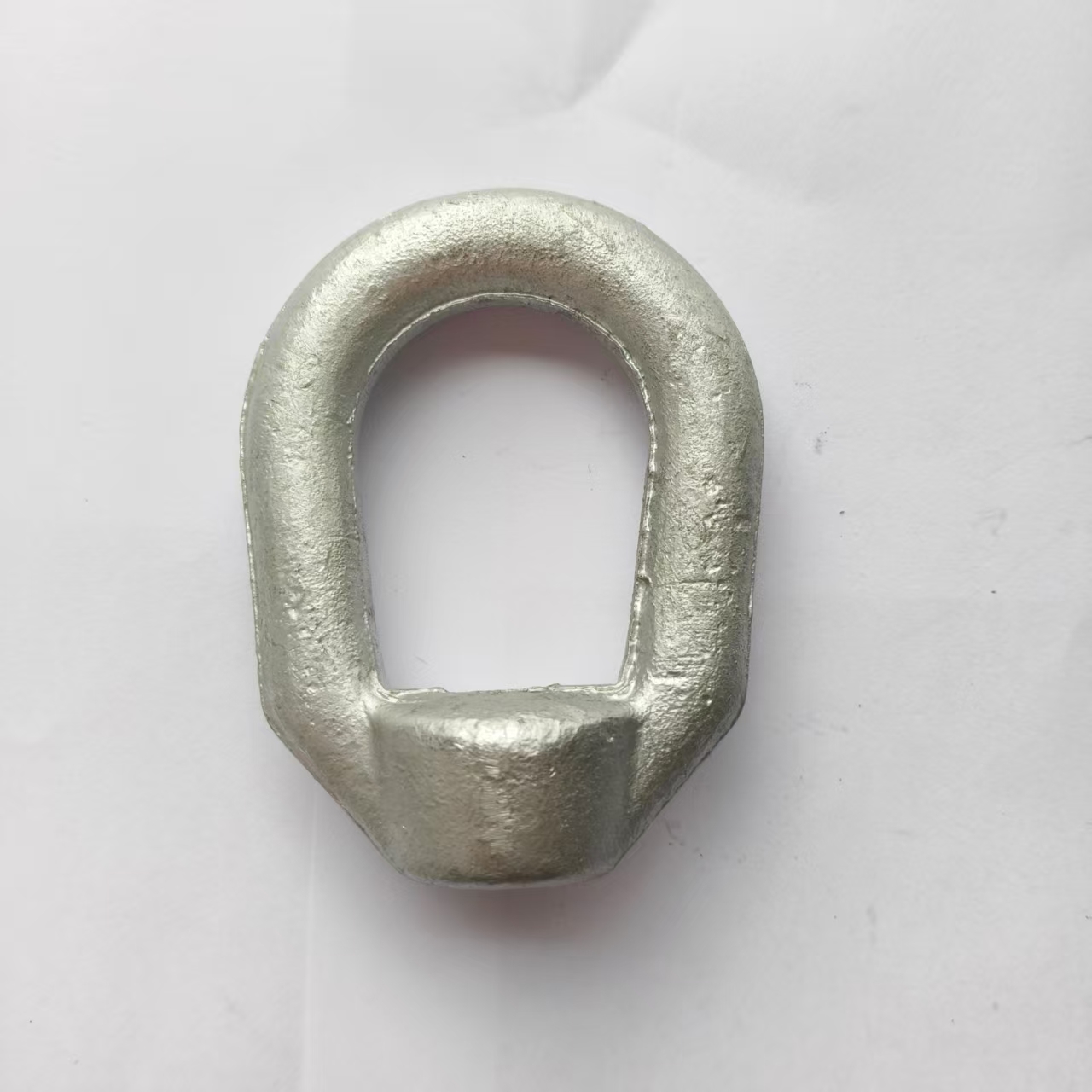

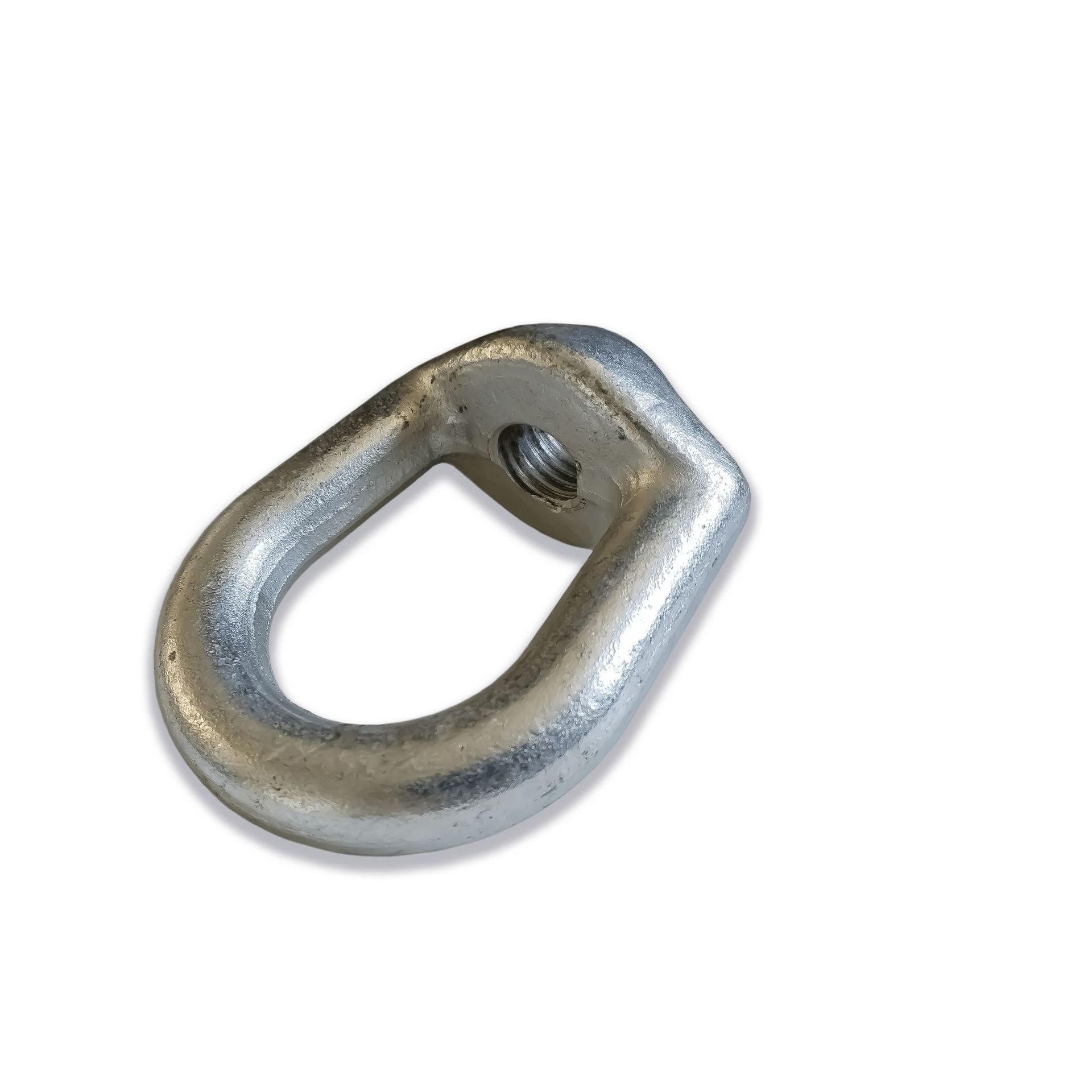

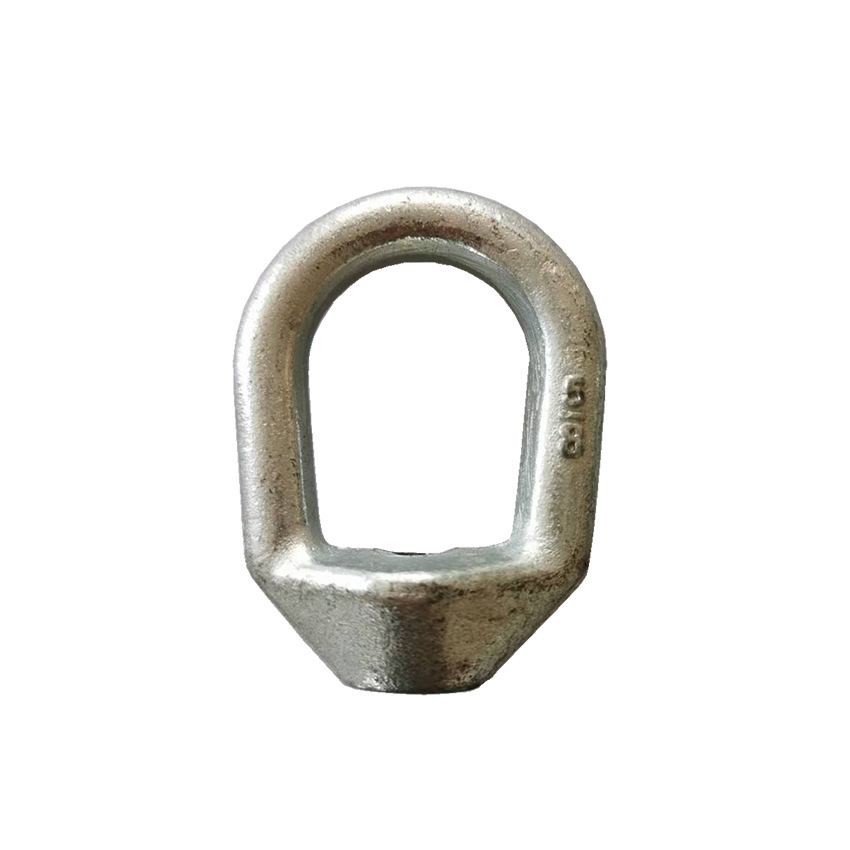

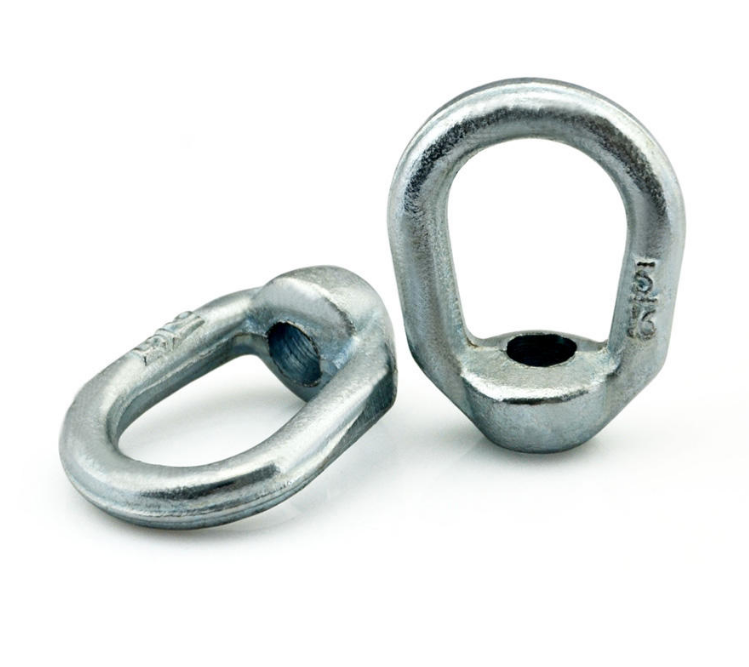

Forged Lifting Eye Nuts G400 Heavy Duty Forged Eye Ring Nut or Eye Bolt
EYE NUTS G-400
Main standards:DIN580,DIN582,JIS1168,JIS1169,G-291,G-277,G-275,G-279
Material: 45# Carbon Steel.
Craft: Drop forged steel-quenched and tempered
Finish: Hot dip galvanized.
M.B.S. is 5 times of Wl L.
Seryice: OEM or ODM.
Certifications:ISO9001,CE,BV,SGS
Application: connecting, lifting,Chain fittings, Marine hardware fittings
Also Available in Alloy steel, Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished etc.
Detail Information
Size (in) | W.L.L (Lbs) | Dimensions(in) | Weight Each (kg/pc) | ||||||
| A | B | C | D | E | F | G | |||
| 1/4 | 520 | 1-1/4 | 3/4 | 1-1/16 | 2-1/32 | 1/2 | 1/4 | 1-11/16 | 0.0409 |
| 3/8 | 1250 | 1-5/8 | 1 | 1-1/4 | 3/4 | 9/16 | 5/16 | 2-1/16 | 0.0818 |
| 1/2 | 2250 | 2 | 1-1/4 | 1-1/2 | 1 | 1-3/16 | 3/8 | 2-112 | 0.1273 |
| 5/8 | 3600 | 2-1/2 | 1-1/2 | 2 | 1-3/16 | 1 | 1/2 | 3-3/16 | 0.2636 |
| 3/4 | 5200 | 3 | 1-3/4 | 2-3/8 | 1-3/8 | 1-1/8 | 5/8 | 3-7/8 | 0.4545 |
| 7/8 | 7200 | 3-1/2 | 2 | 2-5/8 | 1-5/8 | 1-5/16 | 3/4 | 4-5/16 | 0.7727 |
| 1 | 10000 | 4 | 2-1/4 | 3-1/16 | 1-7/8 | 1-9/16 | 7/8 | 5 | 1.2500 |
| 11/4 | 15500 | 4-1/2 | 2-1/2 | 3-1/2 | 1-15/16 | 1-7/8 | 1 | 5-3/4 | 1.7500 |
| 13/8 | 18500 | 5 | 2-3/4 | 3-3/4 | 2 | 2 | 1-1/8 | 6-1/4 | 2.2727 |
| 11/2 | 22500 | 5-5/8 | 3-1/8 | 4 | 2-3/8 | 2-1/4 | 1-1/4 | 63/4 | 3.0455 |
| 2 | 40000 | 7 | 4 | 6-1/4 | 4 | 3-3/8 | 1-1/2 | 10 | 8.5000 |
EYE NUTS G-400
Main standards:DIN580,DIN582,JIS1168,JIS1169,G-291,G-277,G-275,G-279
Material: 45# Carbon Steel.
Craft: Drop forged steel-quenched and tempered
Finish: Hot dip galvanized.
M.B.S. is 5 times of Wl L.
Seryice: OEM or ODM.
Certifications:ISO9001,CE,BV,SGS
Application: connecting, lifting,Chain fittings, Marine hardware fittings
Also Available in Alloy steel, Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished etc.
Related Standards:
U.S. G209, G210, G2130, G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
