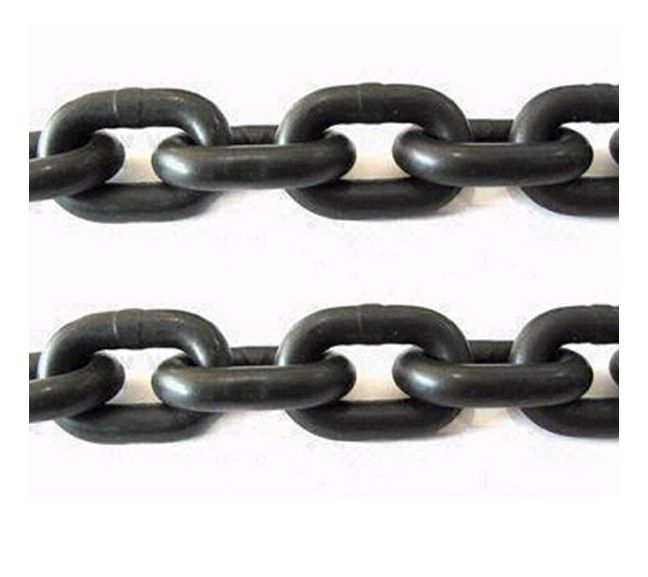

Alloy Steel Metal Black Fishing Chains Lifting Sling G80 Long Link Chain Marine Boat Welded Anchor Chain


Material: High-quality alloy steel

Surface treatment: Self-color, Polishing, Blackened, Painted, Plastic coating, Hot-dip galvanize, Electro-galvanized, etc

Special anti abrasion treatment

Quality Grade: G80

Safety factor: Min 4

Product marking: Required by clients

In short-Mid-long link series



Detail Information

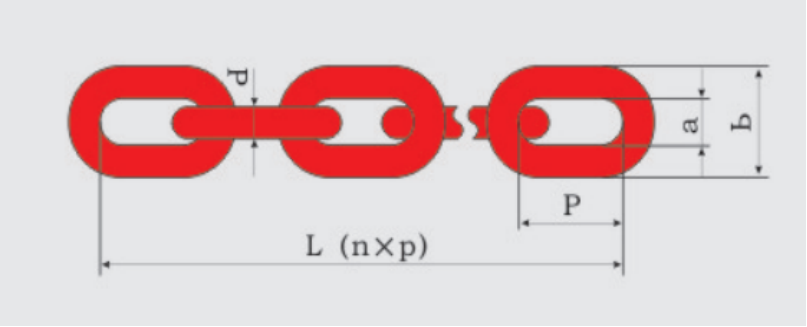

SHORT LINKSize dxp mmWidth mmWeight kg/mBreaking Load min. kN
Inside min. aOutside max. b
7x211025.51.0560
10x3014362.2125
13x3918.147.13.8214
16x4822.457.45.63320
19x5727.868.87.81450
20x6029728.52500
MID LINK10x4015371.9125
13x5219.548.53.31214
14x5018.549.54250
16x6424594.97320
19x7628.569.56.92450
22x8627749.5610
26x92318613.7850
LONG LINK7x451025.50.8260
9x5315351.36100
11x6318432.16152
13x8022512.93214
16x10026614.34320
19x10027686.31450
22x12037848.74610
28x1504410314.41980


Material: High-quality alloy steel

Surface treatment: Self-color, Polishing, Blackened, Painted, Plastic coating, Hot-dip galvanize, Electro-galvanized, etc

Special anti abrasion treatment

Quality Grade: G80

Safety factor: Min 4

Product marking: Required by clients

In short-Mid-long link series


STEEL LINK CHAIN

SPECIFICATION:

1)Standerd: EN standard,ASTM/NACM standard, DIN standard,UK standard.

2)Grade: G100 G80 G70 G43 G30 and commercial Link Chain

3)Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.

4)Surface :Self color,Zinc plated,Hot dip galv,Powder Coated,Painted.

5)Packing: PP/Gunny bag or cartons on pallet,steel drums on pallets,plasticdrums on pallet,wooden case or according to customers requirement.


High Tensile Chains G80 and G100are made from high-grade alloy steel, heat-treated for maximum strength and durability. They comply with international standards such as EN 818-2, ISO 3077, and ASME B30.9, ensuring reliable load-bearing performance. G80 chains are rated for heavy-duty lifting and rigging, while G100 offers even higher strength for demanding industrial applications. These chains are commonly used in construction, shipping, mining, and material handling for lifting, towing, and securing heavy loads. Key features include exceptional tensile strength, wear resistance, fatigue resistance, and high safety margins under extreme working conditions.
