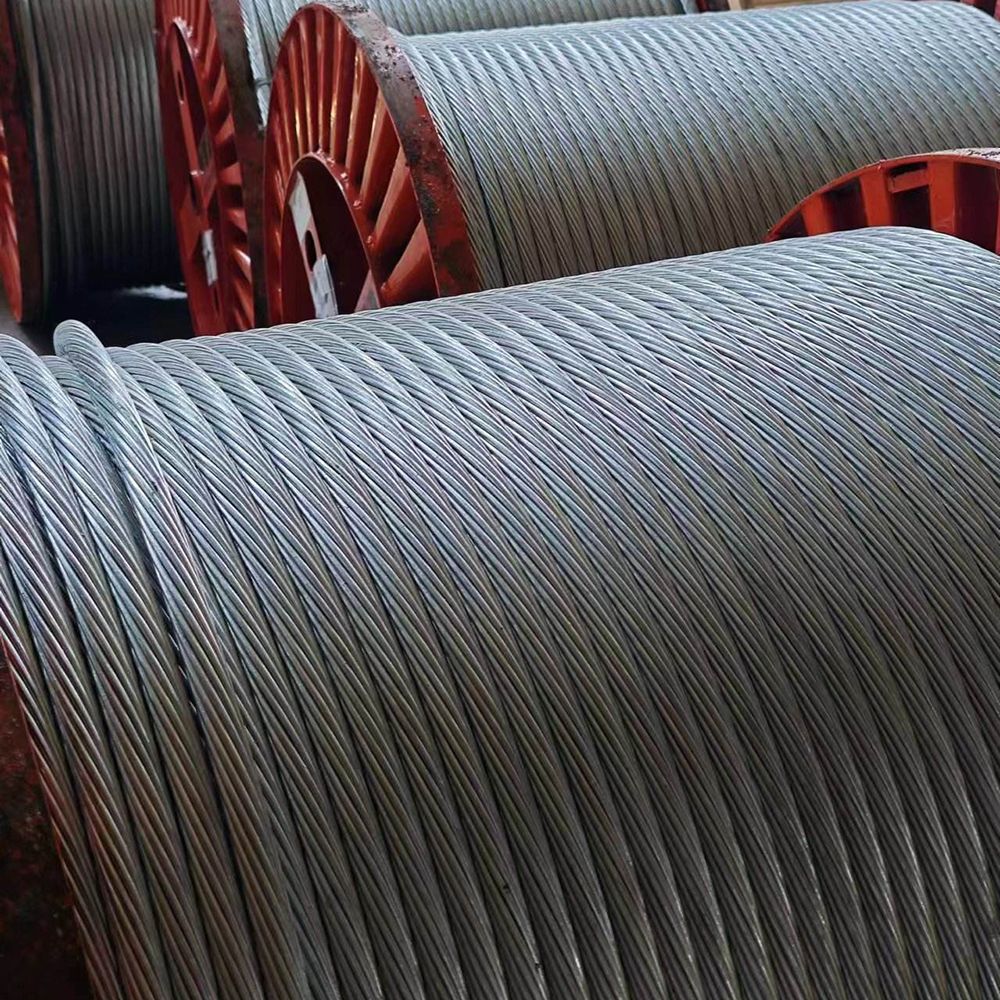

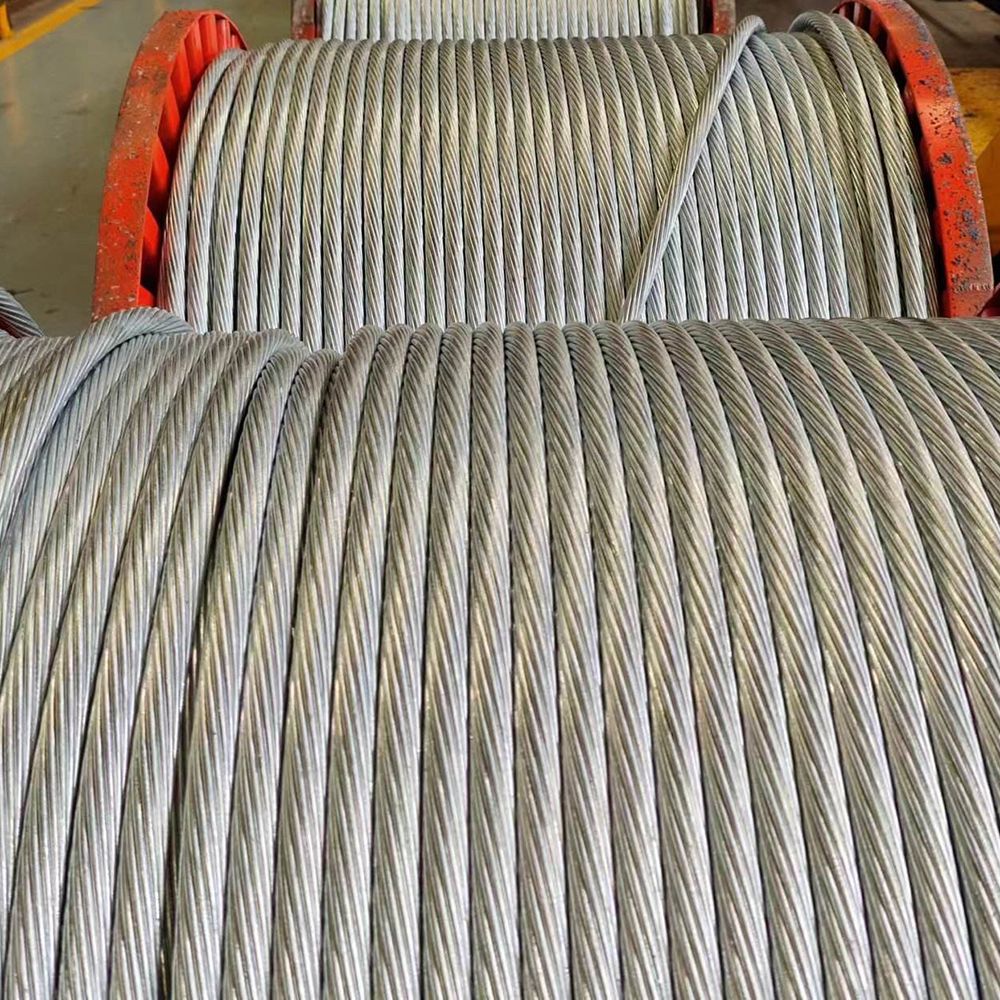

Galvanized Steel Wire 19 Strands for Overhead Power Lines Earth Wire Guy Strand Galvanized Steel Cable Messenger Wire
-It's applied in overhead cable for electric power and teleconmmunications purpose.Other applications such as underground cable.long distance overhead cable,etc.
-1x3
-1x7

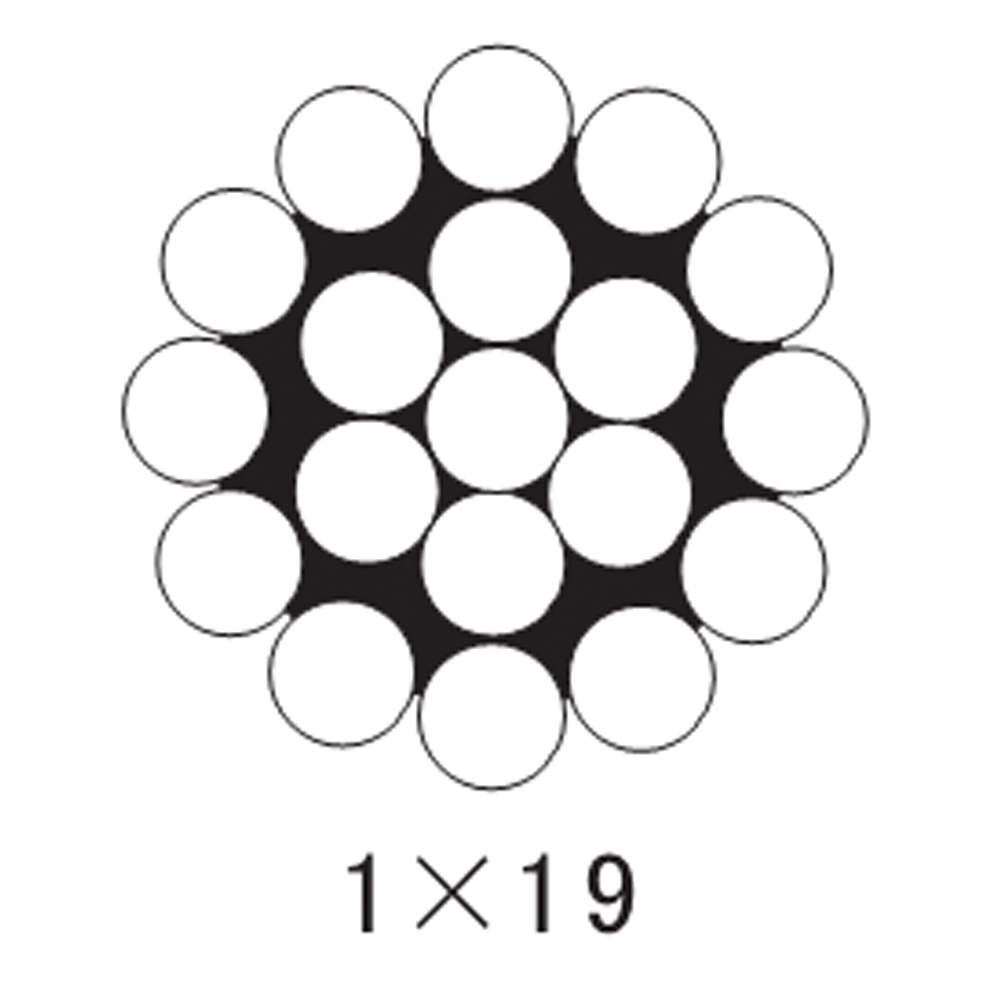

-1x19
Detail Information
Diameter inch | No.of Wire | (inch) | Min.Breaking Load(lbf) | Approx.Weight (Lb/100ft) | ||||
| General Grade | Common Grade | Open Hearth Grade | High Grade | Enhance Grade | ||||
| 1/8" | 7 | 0.041 | --- | 540 | 910 | 1330 | 1830 | 3.20 |
| 5/32 | 7 | 0.052 | --- | 870 | 1470 | 2140 | 2940 | 5.10 |
| 3/16 | 7 | 0.062 | --- | 1150 | 1900 | 2850 | 3990 | 7.30 |
| 3/16 | 7 | 0.065 | 2400 | --- | --- | --- | --- | 8.00 |
| 7/32 | 3 | 0.104 | --- | 1400 | 2340 | 3500 | 4900 | 8.80 |
| 7/32 | 7 | 0.072 | --- | 1540 | 2560 | 3850 | 5400 | 9.80 |
| 1/4 | 3 | 0.120 | 3150 | 1860 | 3040 | 4730 | 6740 | 11.70 |
| 1/4 | 3 | 0.120 | 4500 | --- | --- | --- | --- | 11.70 |
| 1/4 | 7 | 0.080 | --- | 1900 | 3150 | 4750 | 6650 | 12.10 |
| 9/32 | 3 | 0.130 | --- | 2080 | 3380 | 5260 | 7500 | 13.70 |
| 9/32 | 7 | 0.093 | 4600 | 2570 | 4250 | 6400 | 8950 | 16.40 |
| 5/16 | 3 | 0.145 | 6500 | 2490 | 4090 | 6350 | 9100 | 17.10 |
| 5/16 | 7 | 0.104 | --- | 3200 | 5350 | 8000 | 11200 | 20.50 |
| 5/19 | 7 | 0.109 | 6000 | --- | --- | --- | --- | 22.50 |
| 3/8 | 3 | 0.165 | 8500 | 3330 | 5560 | 8360 | 11800 | 22.00 |
| 3/8 | 7 | 0.120 | 11500 | 4250 | 6950 | 10800 | 15400 | 27.30 |
| 7/16 | 7 | 0.145 | 18000 | 5700 | 9350 | 14500 | 20800 | 39.90 |
| 1/2 | 7 | 0.165 | 25000 | 7400 | 12100 | 18800 | 26900 | 51.70 |
| 1/2 | 19 | 0.100 | --- | 7620 | 12700 | 19100 | 26700 | 50.40 |
| 9/16 | 7 | 0.188 | --- | 9600 | 15700 | 24500 | 35000 | 67.10 |
| 9/16 | 19 | 0.113 | --- | 9640 | 16100 | 24100 | 33700 | 63.70 |
| 5/8 | 7 | 0.207 | --- | 11600 | 19100 | 29600 | 42400 | 81.30 |
| 5/8 | 19 | 0.125 | --- | 11000 | 18100 | 28100 | 40200 | 79.60 |
-Hot Dipped Galv. high tensile Class A/C Cable Guy Grounding messenger Galvanized Steel Wire Strands.
-Standards:YB/T183-2000,ASTMA475, ASTMB498,BS183,BS443,BS4565, IEC888;
-Zinc Coated Steel Wires Strand(ASTM A 457)
-Packaging: waterproof plastic film, wooden drum, steel drum or can as customers' requirements
-Delivery: 5-15 days according to order quantity.
Galvanized guy strand is manufactured according to ASTM A475 or IEC 60888 standards, consisting of 7-wire or 19-wire steel strands coated with zinc for corrosion protection. It is primarily used for utility poles, communication towers, and structural supports. Featuring high tensile strength, excellent weather resistance, and long service life, galvanized guy strand provides stable tension and reliability in outdoor and high-load environments.
