8mm 6xWS(31)+IWRC 6xWS(36)+IWRC Rope Wire Galvanized and Stainless Steel Wire Rope
-General Purpose Rope

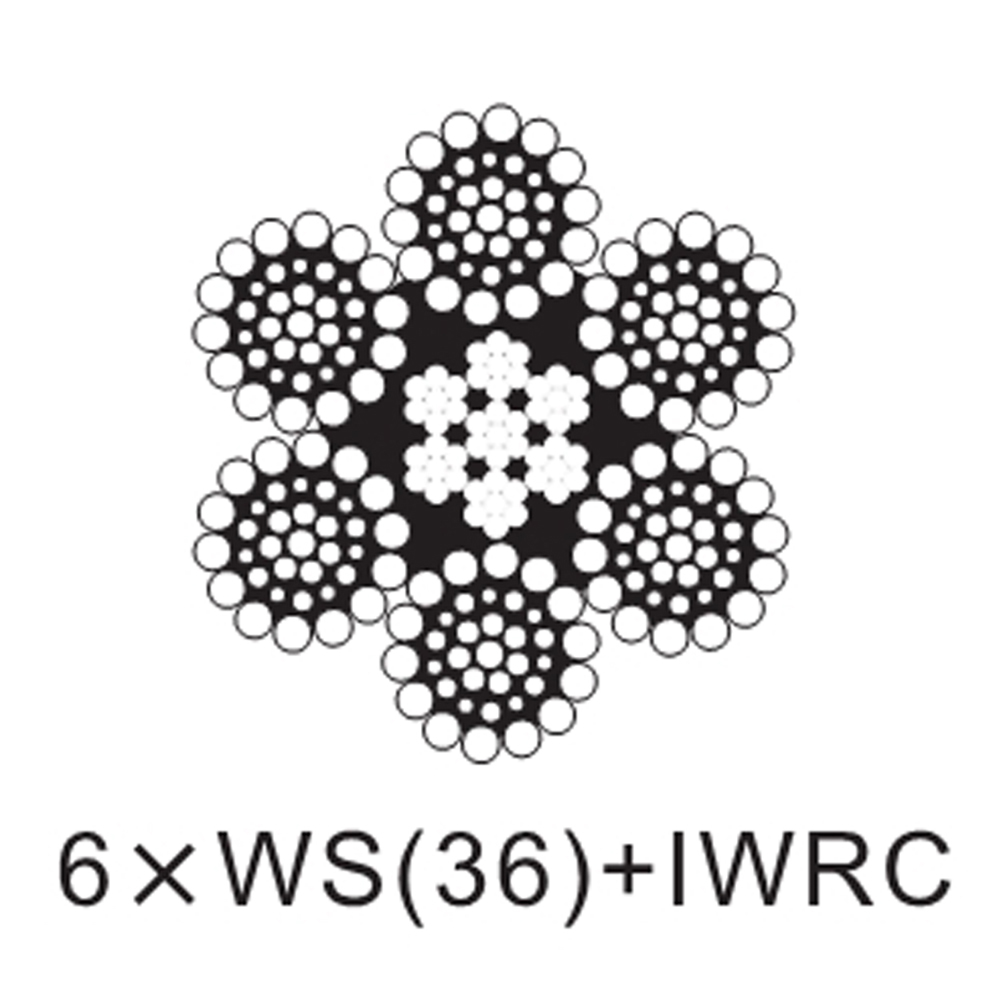

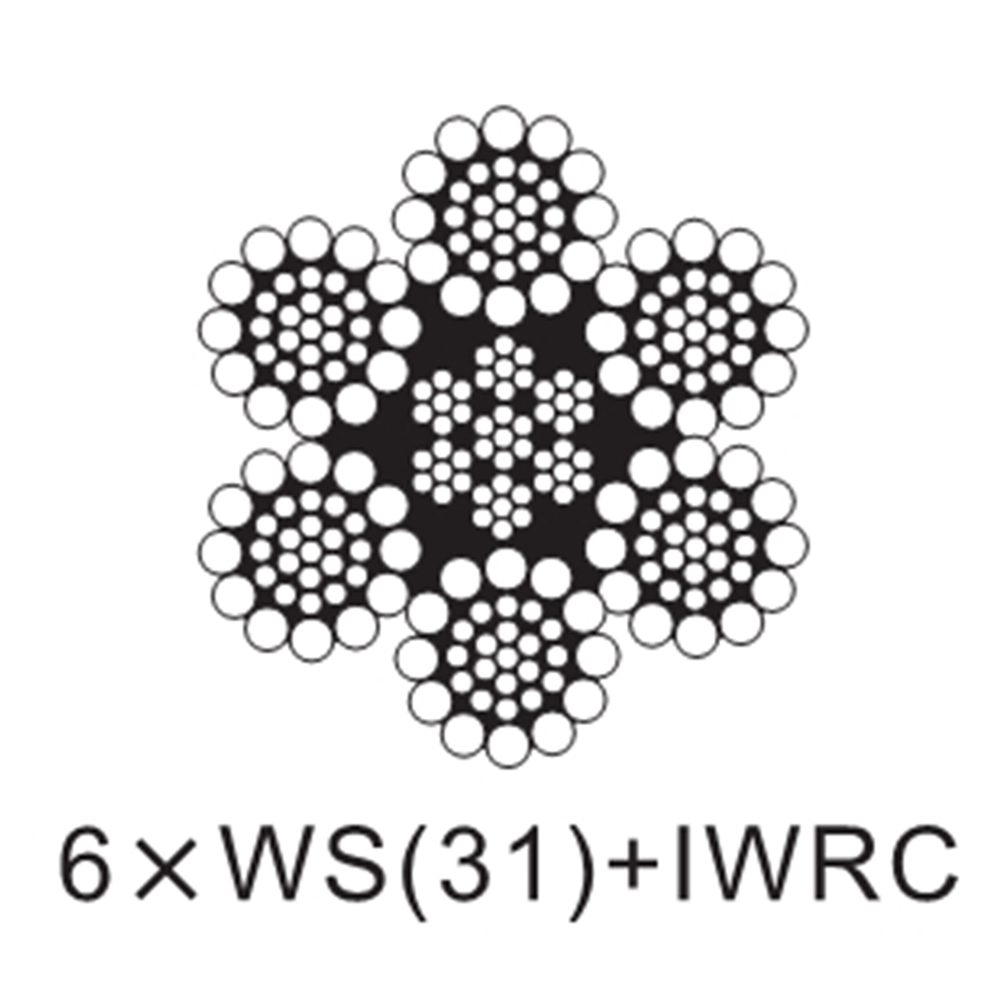

-6xWS(31)+IWRC / 6xWS(36)+IWRC
-Diameter 8mm to 32mm
-Usage:Well Drilling,Hoist,General Industry,Crane,Construction,Machine,Mine Lifting,High-furnace Hoisting,Oil Drilling,Cable Car,Excavator,Marine
Detail Information
Diameter (mm) | GB/T 20118-2006/GB8918-2006 | EN 12385-4 | ||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | |||
| 1670N/Mmm² | 1770N/Mmm² | 1770N/Mmm² | 1960N/Mmm² | |||
| 8 | 38.00 | 40.30 | 26.80 | 40.30 | 44.70 | 26.20 |
| 9 | 48.20 | 51.00 | 33.90 | 51.00 | 56.50 | 33.10 |
| 10 | 59.50 | 63.00 | 41.80 | 63.00 | 69.80 | 40.90 |
| 11 | 72.00 | 76.20 | 50.60 | 76.20 | 84.40 | 49.50 |
| 12 | 85.60 | 90.70 | 60.20 | 90.70 | 100.00 | 58.90 |
| 13 | 100.00 | 106.00 | 70.60 | 106.00 | 118.00 | 69.10 |
| 14 | 117.00 | 124.00 | 81.90 | 124.00 | 137.00 | 80.20 |
| 16 | 152.00 | 161.00 | 107.00 | 161.00 | 179.00 | 105.00 |
| 18 | 193.00 | 204.00 | 135.00 | 204.00 | 226.00 | 133.00 |
| 20 | 238.00 | 252.00 | 167.00 | 252.00 | 279.00 | 164.00 |
| 22 | 288.00 | 305.00 | 202.00 | 305.00 | 338.00 | 198.00 |
| 24 | 342.00 | 363.00 | 241.00 | 363.00 | 402.00 | 236.00 |
| 26 | 402.00 | 426.00 | 283.00 | 426.00 | 472.00 | 276.00 |
| 28 | 466.00 | 494.00 | 328.00 | 494.00 | 547.00 | 321.00 |
| 32 | 609.00 | 645.00 | 428.00 | 645.00 | 715.00 | 419.00 |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.

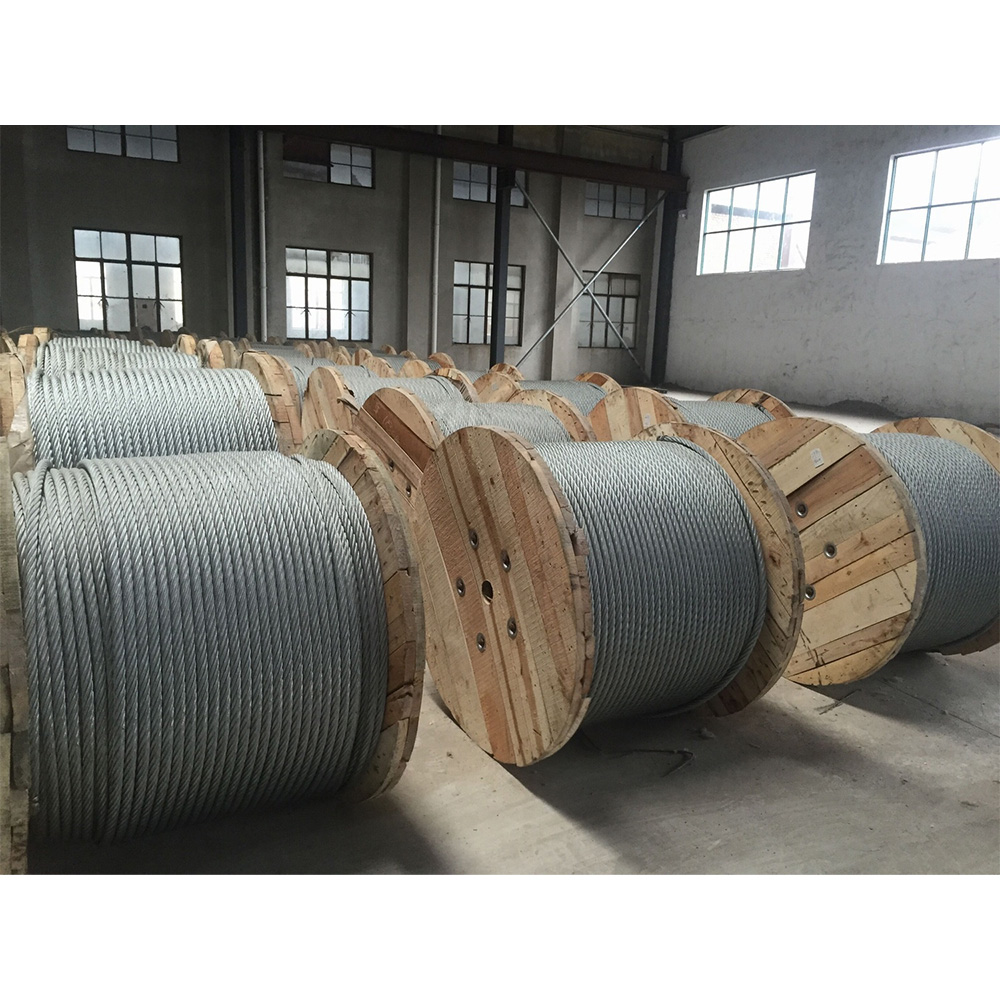

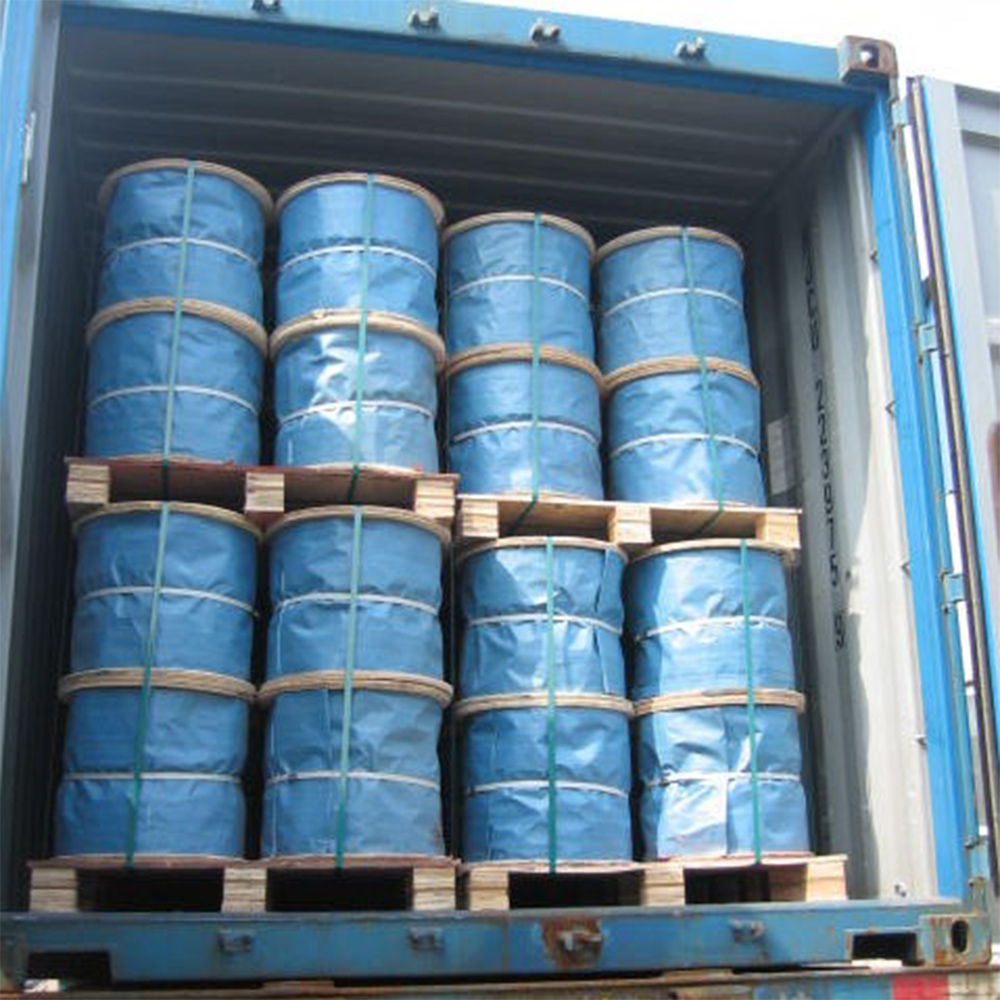

-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
General Purpose Rope is a versatile and durable solution designed for a wide range of industrial, marine, and general utility applications. Manufactured according to international standards such as ISO 2408, it offers excellent strength, flexibility, and resistance to wear and corrosion. The rope is typically made from high-quality galvanized or stainless steel wires, ensuring consistent performance under various load and environmental conditions. It is available in multiple constructions, including 6×19, 6×36, and 7×19, to meet different requirements for tensile strength and flexibility. Ideal for lifting, towing, rigging, and securing loads, General Purpose Rope combines safety, reliability, and long service life, making it an essential component in construction, transportation, agriculture, and marine industries.We can provide small batch supply and testing of various specifications and diameter standards ,providing high-quality products with high cost performance for all kinds of customers.
