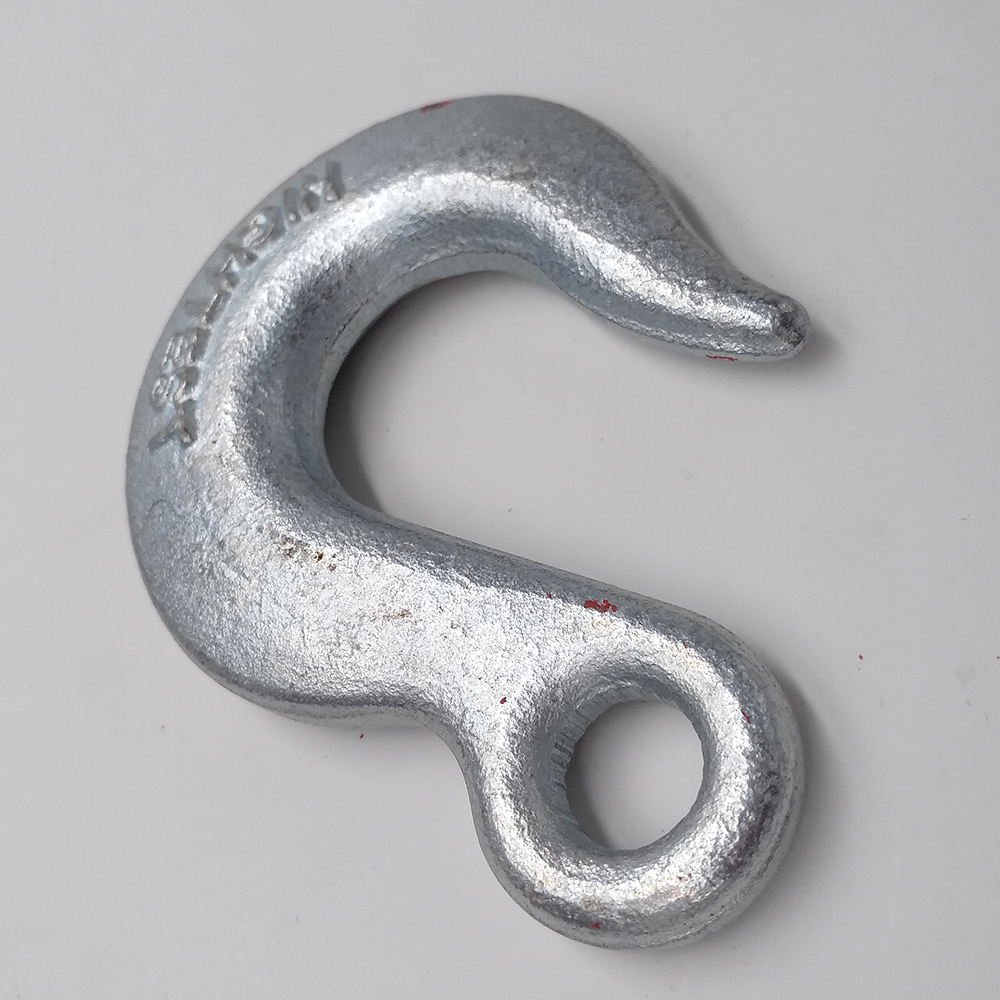

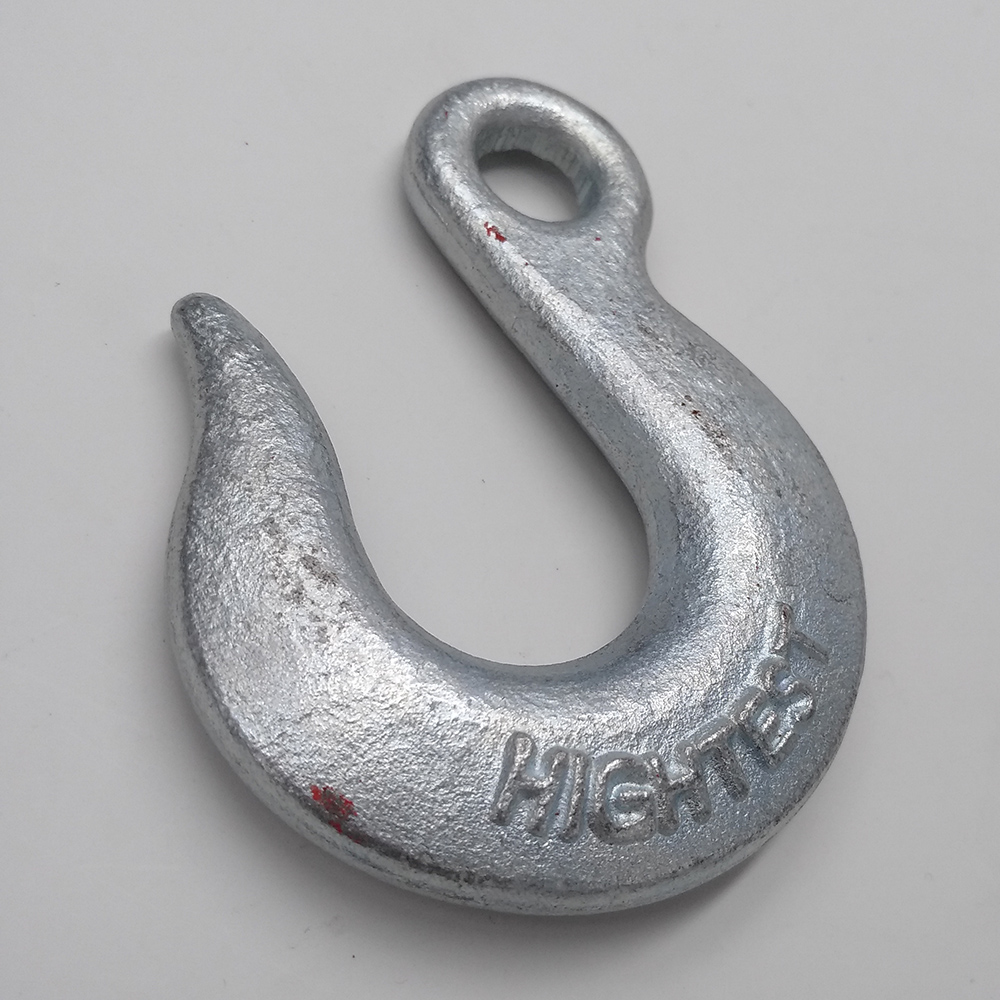

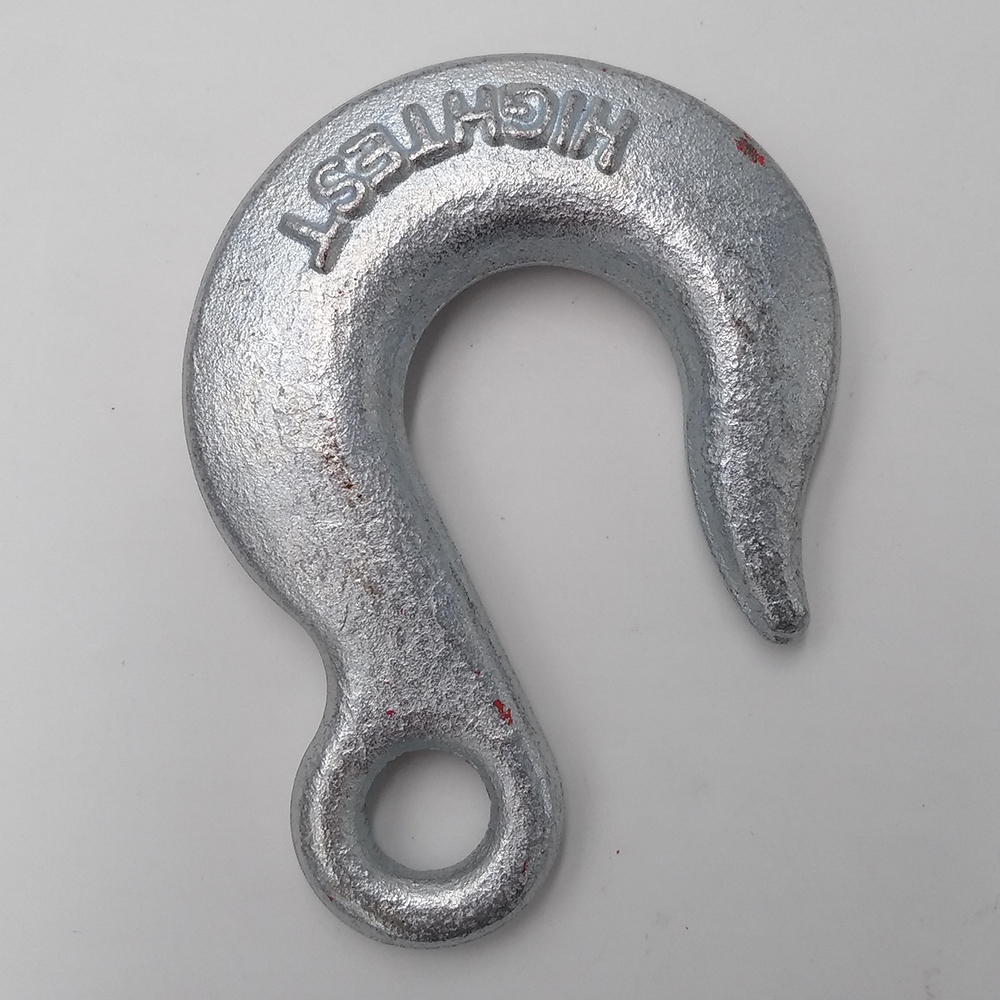

5/16" Galvanized Hook H324/A324 U.S. Standard Hook Forged Forged Lifting Hook Eye Slip Hook Heavy Duty Grab Hook
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Eye Slip Hook
-Standard:U.S. Type
-Technology: Drop forged
-Quenched and Tempered
-Ultimate load is 4 time WLL
-Application:Lifting Fittings
-Usage:Lifting and connecting
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information
| Chain SIZE（inch） | W.L.L(lbs） | I.L.(inch） | N.W.(LBS) |
| 1/4" | 1950 | 2.56 | 0.4 |
| 5/16" | 2875 | 2.95 | 0.7 |
| 3/8" | 4000 | 3.36 | 1 |
| 7/16" | 5000 | 3.88 | 1.6 |
| 1/2" | 6500 | 4.28 | 2.4 |
| 5/8" | 9250 | 5.22 | 4 |
| 3/4" | 12500 | 5.8 | 6.5 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Eye Slip Hook
-Standard:U.S. Type
-Materials : Carbon and Alloy Steel
H-324 Forged Carbon Steel
A-324 Forged Alloy steel
-Size of Chain: 1/4" to 3/4"
-Surface Treatment : Galvanized
-Also Available in Stainless steel AISI304 AISI316,Polished,Hot Dipped Galvanized, Electro Galvanized, Painted,Self-color etc.
-Technology: Drop forged
-Quenched and Tempered
-Ultimate load is 4 time WLL
-Application:Lifting Fittings
-Usage:Lifting and connecting
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Other related products:

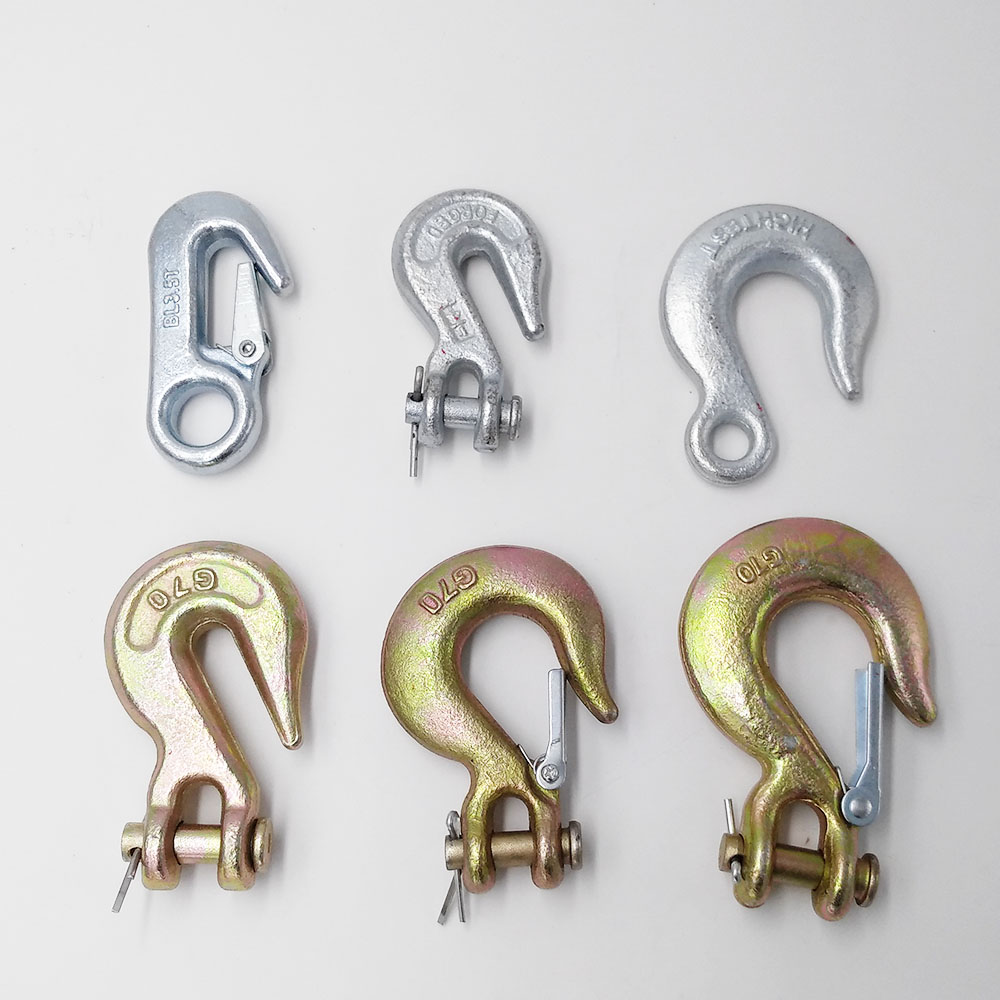

Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
