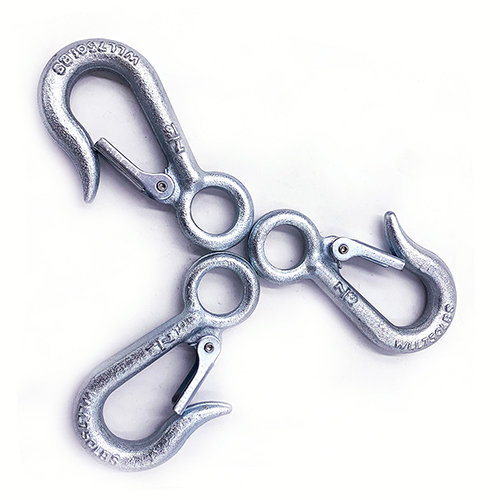

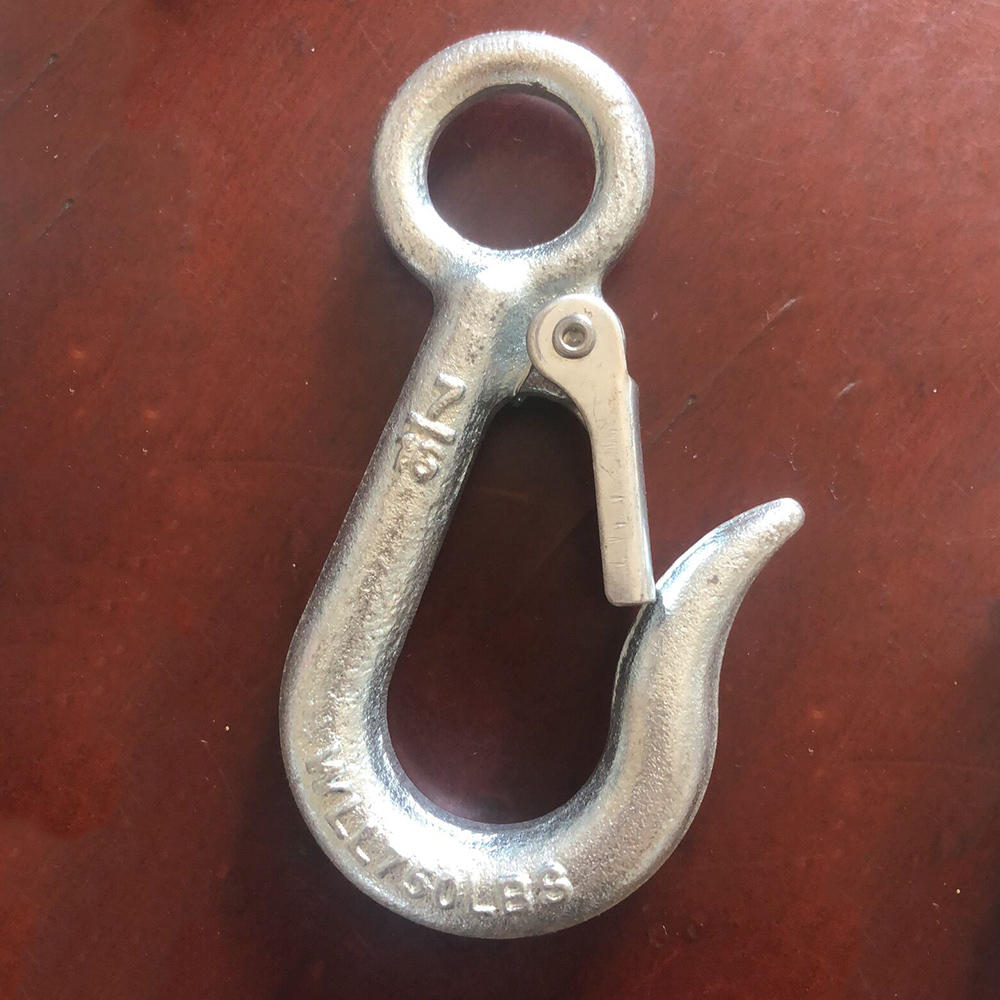

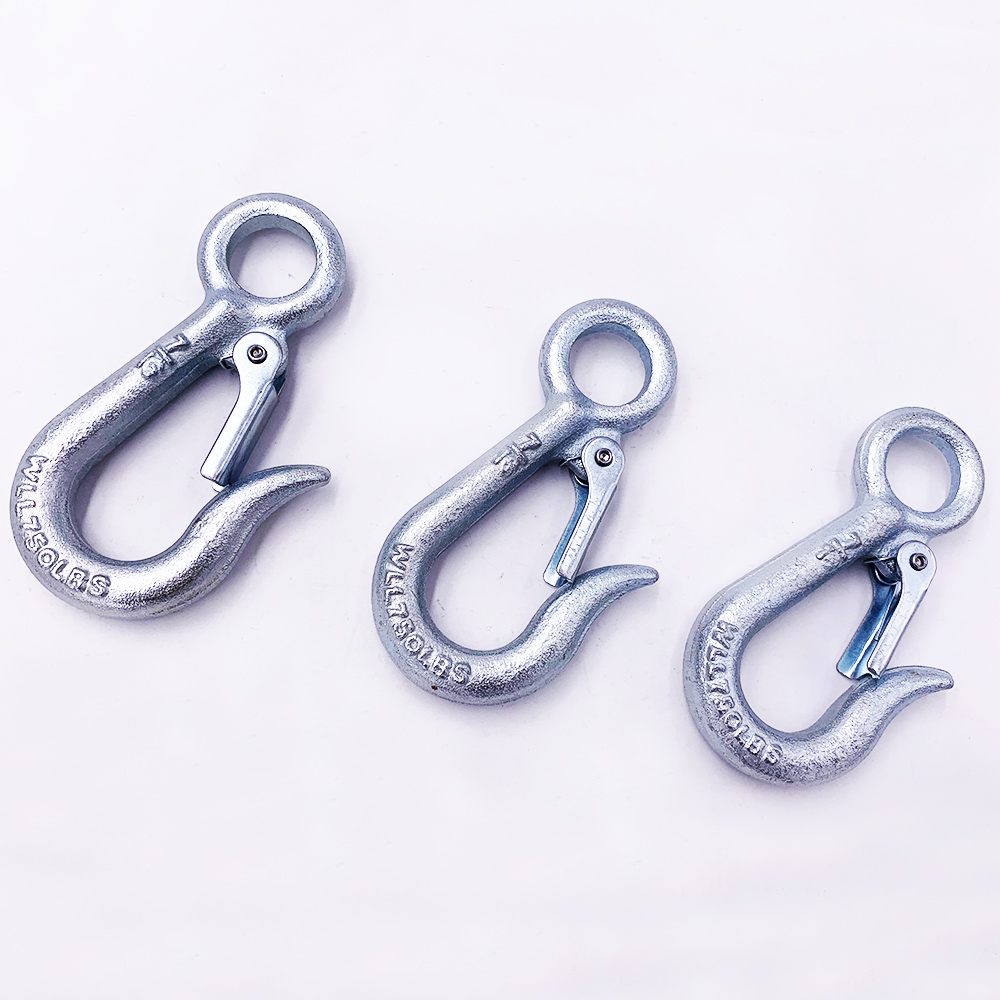

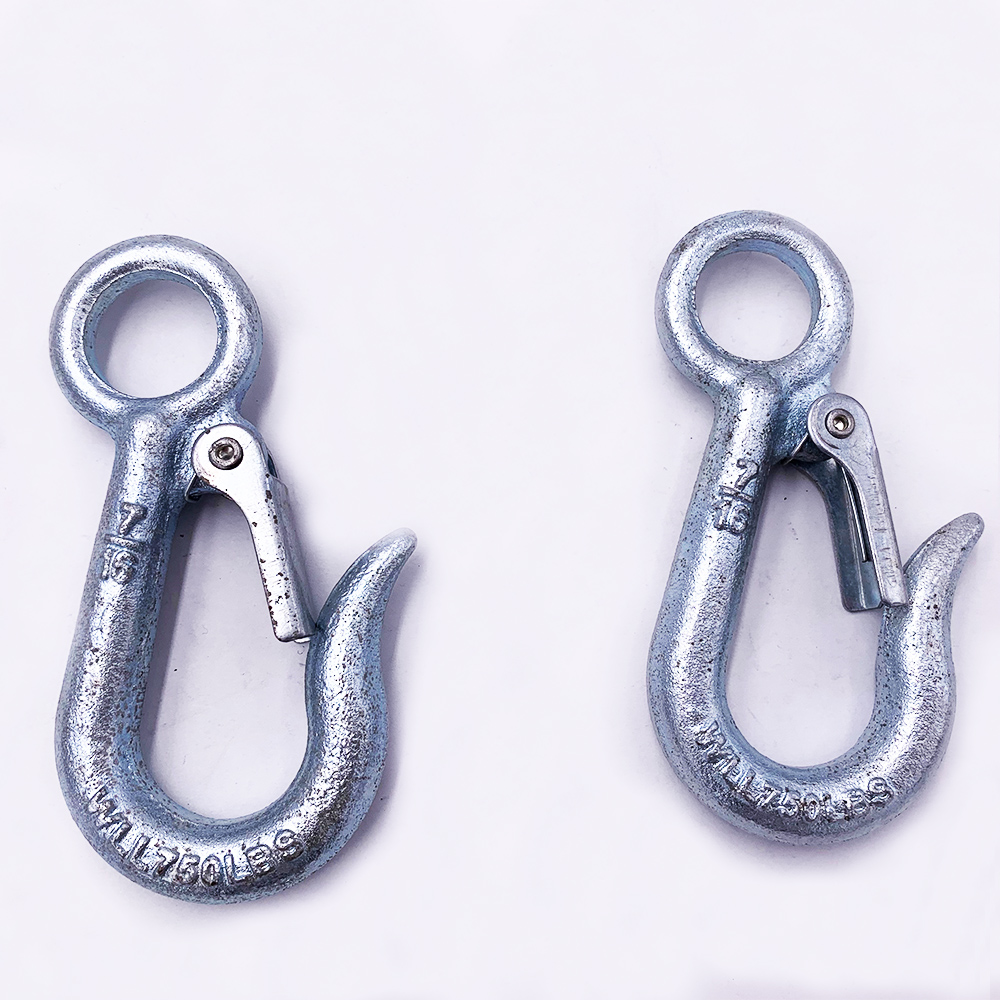

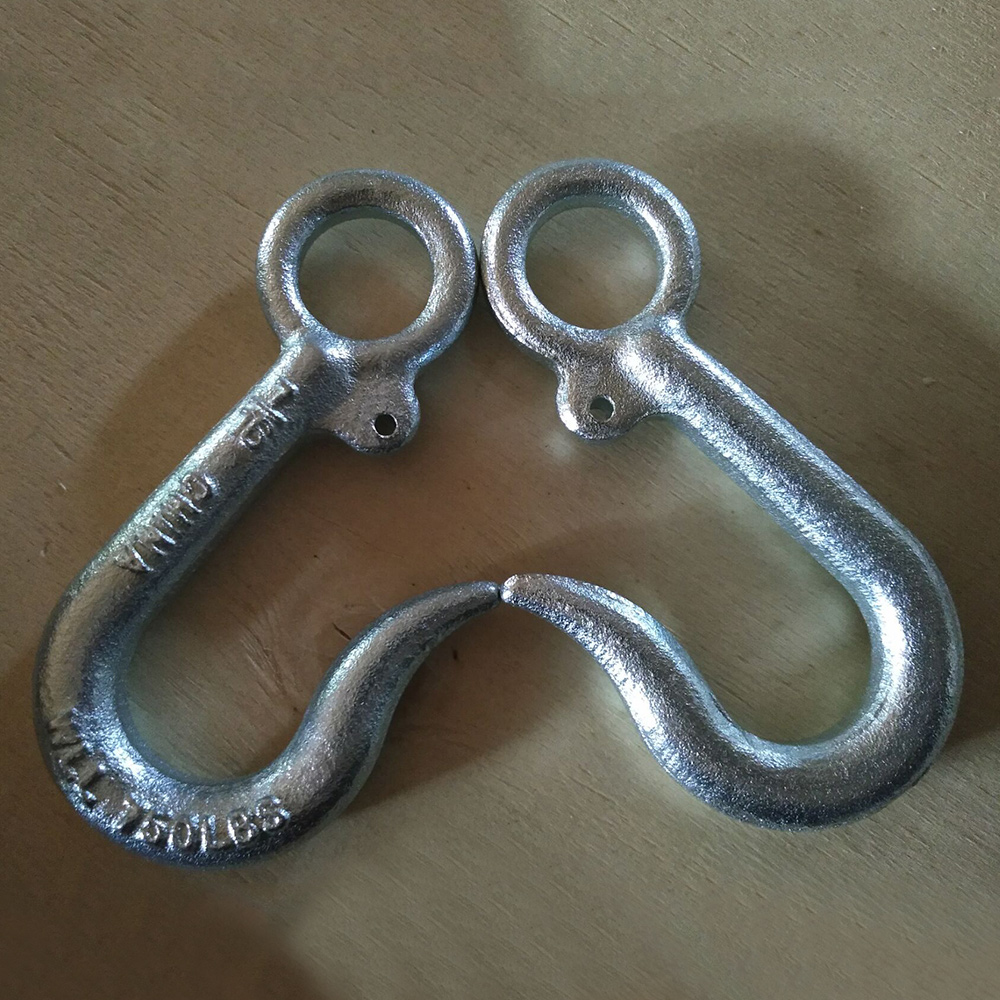

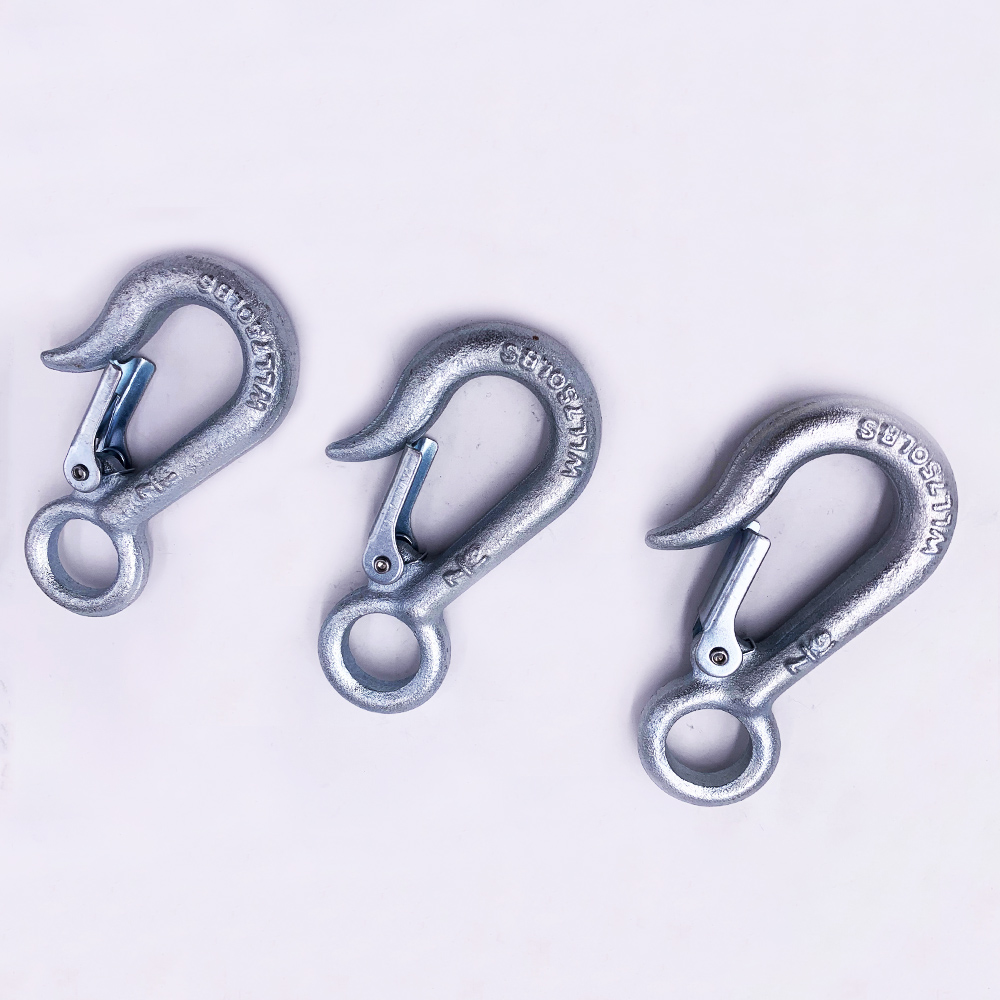

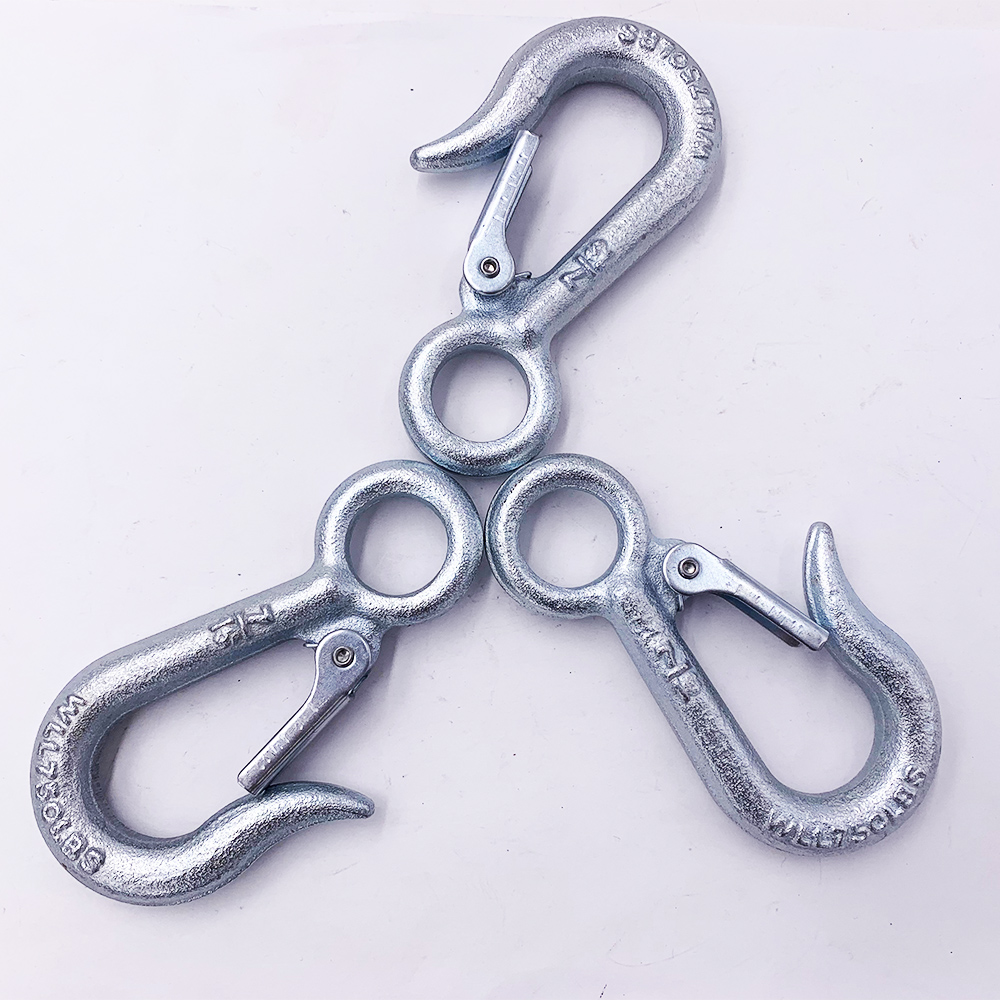

U.S. Type Forged Carbon Steel Snap Hooks Working Load Limit 1000lbs Lifting Grab Hooks 7/16" Galvanized Eye Hook
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:U.S. Type Shackle
-Standard:US Type
-Material:Carbon steel
-Size: 7/16",9/16"
-Surface Treatment:Galvanized
-Quenched and Tempered
-Ultimate load is 4 times WLL
-Technology:Drop forged
-Application:Lifting fitting
-Usage:Lifting and connecting
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information
| Hook Size (in) | Working Load Limit (Lbs) | Inside Diam of Eye (in) | Throat Opening (in) | Lenght overall (in) | Weight per100pcs (Ibs) |
| 7/16 | 750 | 3/4 | 3/4 | 3 15/16 | 24.00 |
| 9/16 | 1,000 | 1 1/8 | 1 3/16 | 4 3/4 | 50.00 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:U.S. Type Shackle
-Standard:US Type
-Material:Carbon steel
-Size: 7/16",9/16"
-Surface Treatment:Galvanized
-Also Available in Alloy steel, Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished,Hot Dipped -Galvanized, Electro Galvanized etc.
-Quenched and Tempered
-Ultimate load is 4 times WLL
-Technology:Drop forged
-Application:Lifting fitting
-Usage:Lifting and connecting
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
