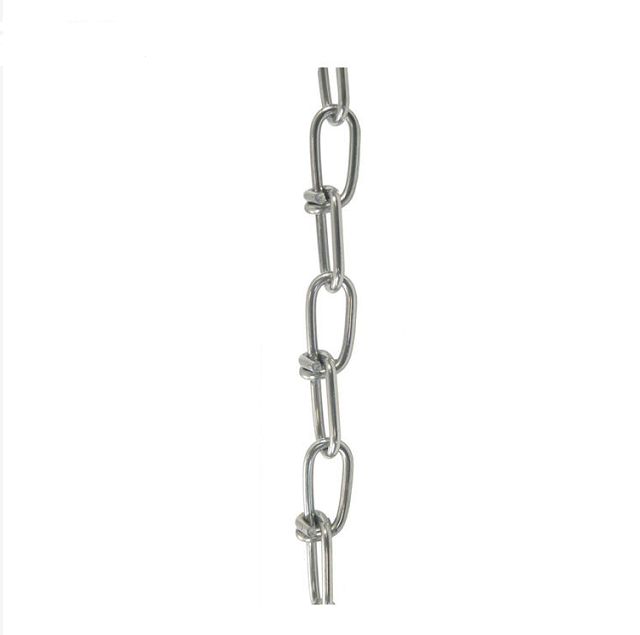

DIN5686 Weldless Knotted Chain Double Loop Link Chain Zinc Plated Chains
Material: Carbon steel, Stainless steel
Surface treatment: Black, Yellow, Green, Zinc, Self color, Polished
U.S.A Standard: 5-6/0
DIN5686: 14-55
Standard: U.S.A Standard, DIN5686
Product marking: Required by clients
Detail Information
| DIN5686 | TRADE SIZE | DIAMETER | INSIDE LENGTH | OUTSIDE LENGTH | BREAKING LOAD | UNIT WEIGHT |
| MM | MM | MM | KG | KG/100M | ||
| 14 | 1.4 | 21.0 | 6.5 | 16 | 4.2 | |
| 16 | 1.6 | 23.0 | 7.0 | 22 | 6.0 | |
| 20 | 1.8 | 26.0 | 8.0 | 30 | 7.3 | |
| 22 | 2.0 | 28.0 | 9.0 | 40 | 9.0 | |
| 25 | 2.2 | 31.0 | 10.0 | 50 | 11.0 | |
| 27 | 2.5 | 35.0 | 11.0 | 70 | 14.0 | |
| 30 | 2.8 | 39.0 | 12.5 | 90 | 17.0 | |
| 32 | 3.1 | 41.0 | 14.0 | 120 | 21.0 | |
| 35 | 3.4 | 44.0 | 15.0 | 140 | 26.0 | |
| 40 | 3.8 | 46.0 | 17.0 | 160 | 34.0 | |
| 45 | 4.2 | 50.0 | 19.0 | 170 | 41.0 | |
| 50 | 4.6 | 55.0 | 20.5 | 180 | 50.0 | |
| 55 | 5.0 | 60.0 | 22.5 | 190 | 57.0 |
Material: Carbon steel, Stainless steel
Surface treatment: Black, Yellow, Green, Zinc, Self color, Polished
U.S.A Standard: 5-6/0
DIN5686: 14-55
Standard: U.S.A Standard, DIN5686
Product marking: Required by clients
STEEL LINK CHAIN
SPECIFICATION:
1)Standerd: EN standard,ASTM/NACM standard, DIN standard,UK standard.
2)Grade: G100 G80 G70 G43 G30 and commercial Link Chain
3)Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.
4)Surface :Self color,Zinc plated,Hot dip galv,Powder Coated,Painted.

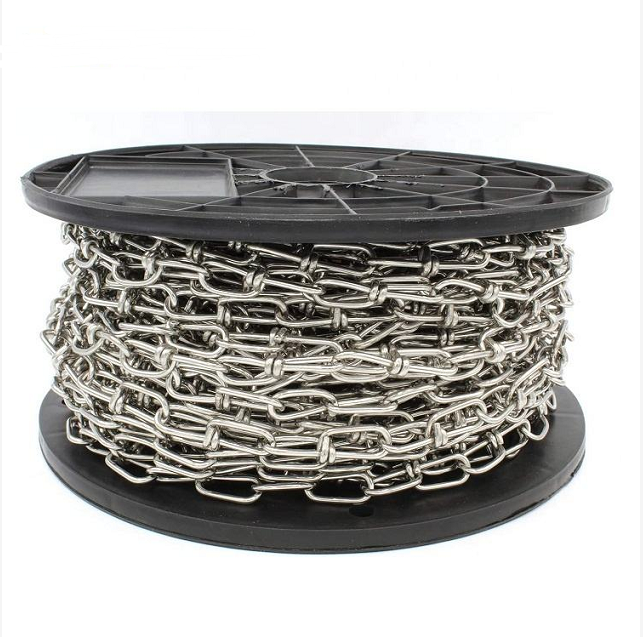

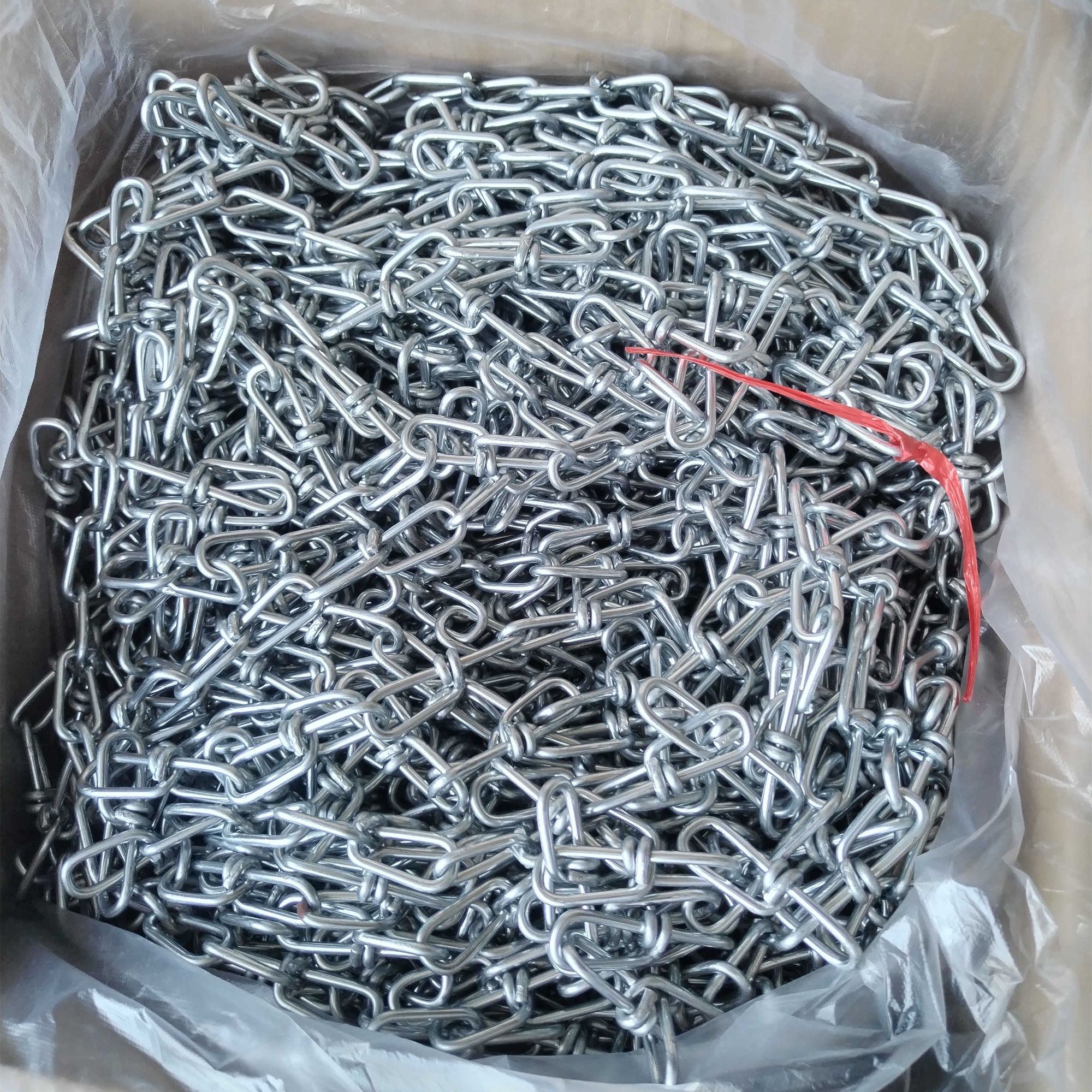

5)Packing: PP/Gunny bag or cartons on pallet,steel drums on pallets,plasticdrums on pallet,wooden case or according to customers requirement.

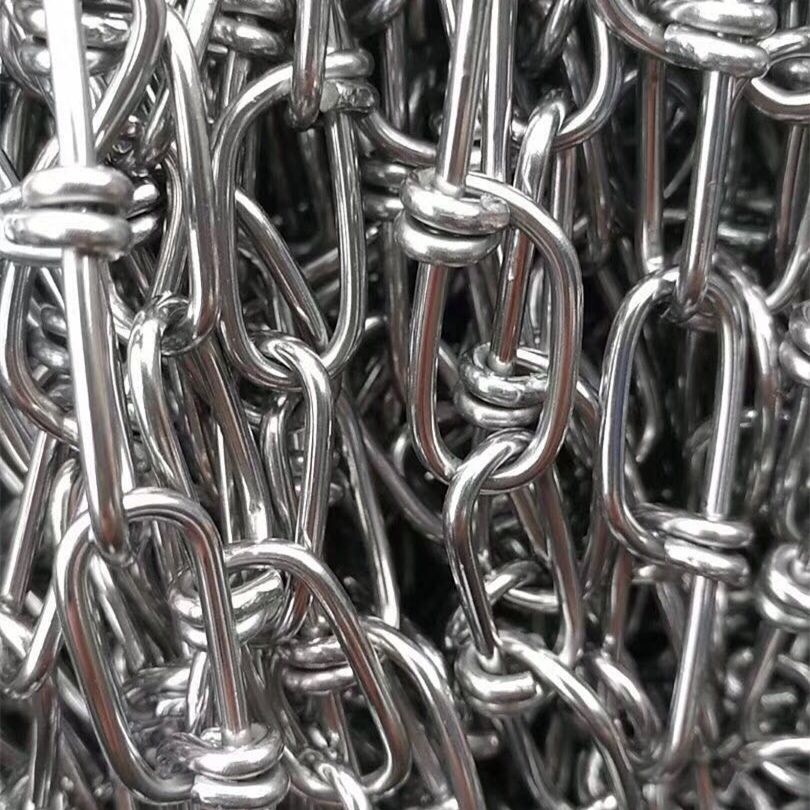

Knotted Chain is typically made from low-carbon steel, stainless steel, or brass, offering good strength and flexibility. The chain features a unique knotted design formed through precision bending and welding, which prevents tangling and enhances smooth operation. It is produced according to standards such as DIN 5686 and ISO 1835, ensuring consistent quality and mechanical performance. Knotted chains are commonly zinc-plated or polished for corrosion resistance. Known for their moderate tensile strength, rust protection, and decorative appearance, they are widely used in lighting fixtures, animal leashes, and general household or industrial applications.
