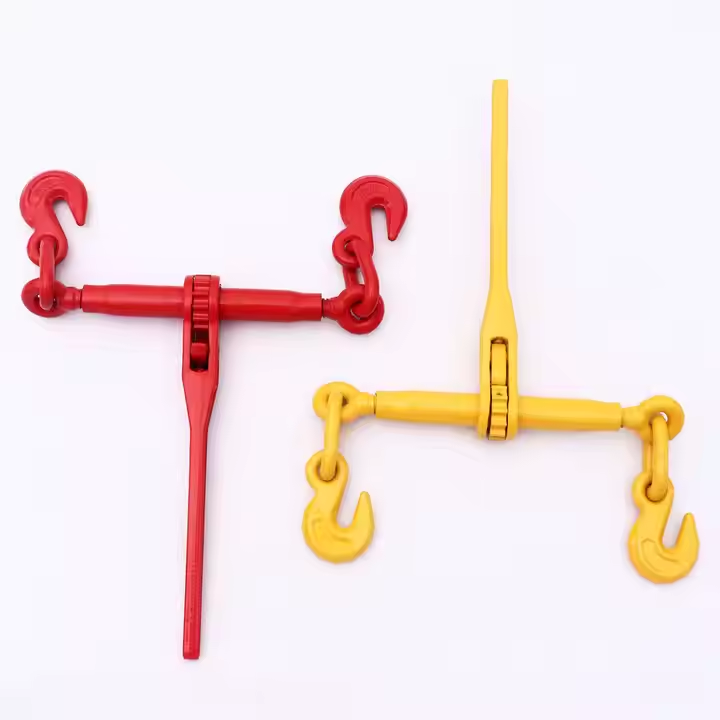

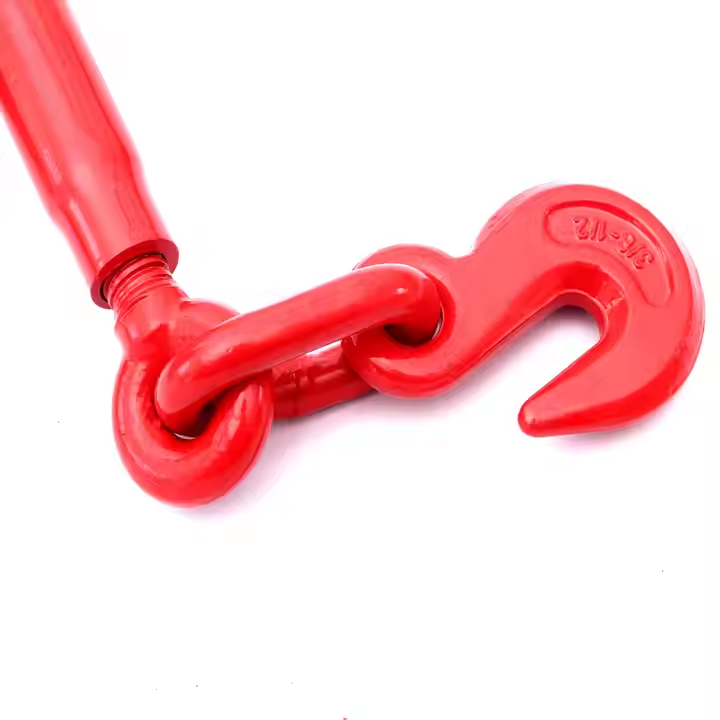

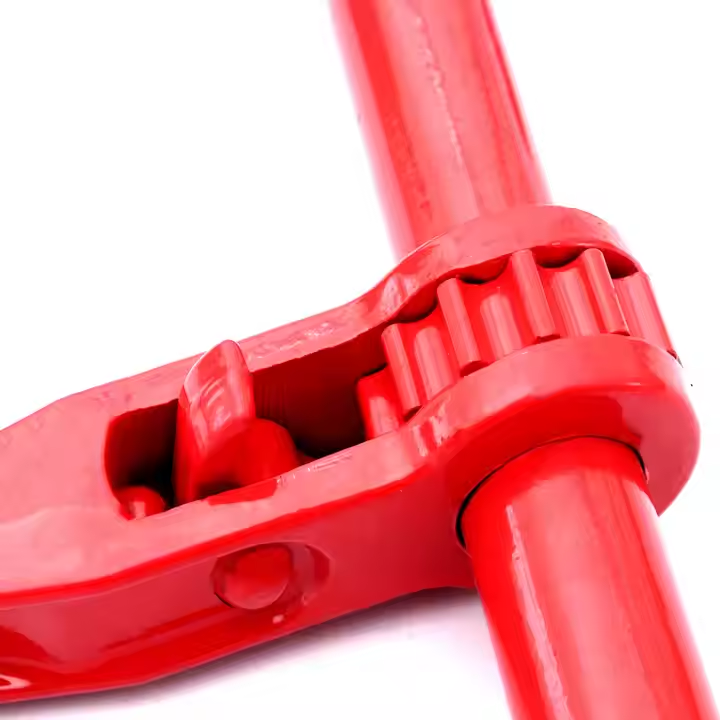

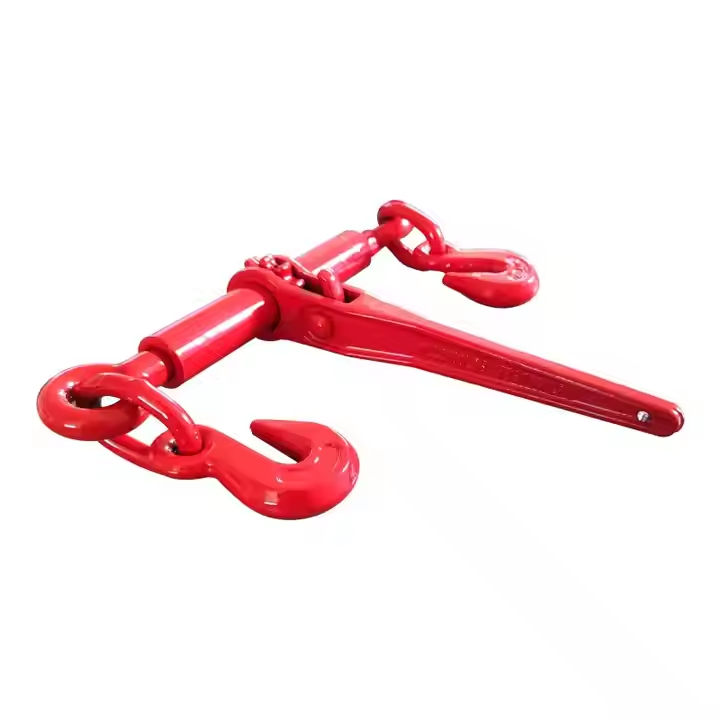

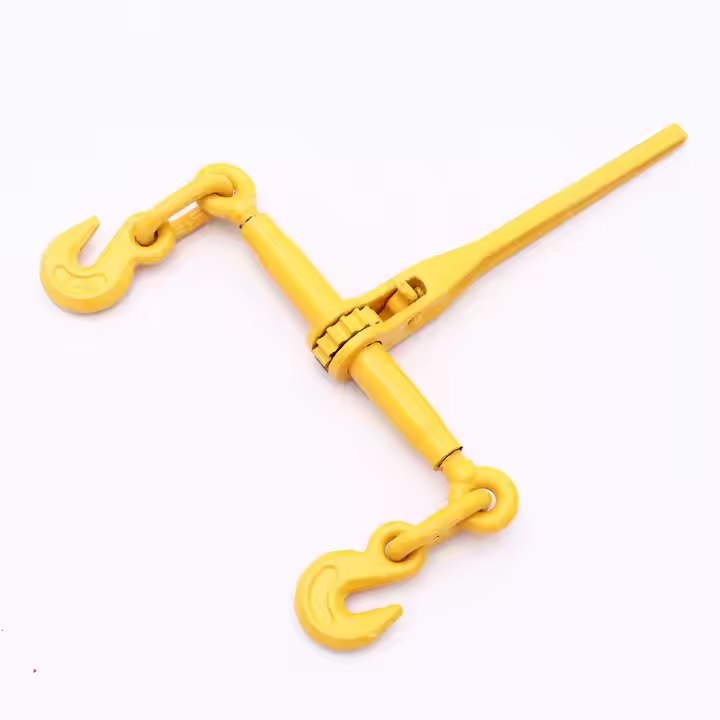

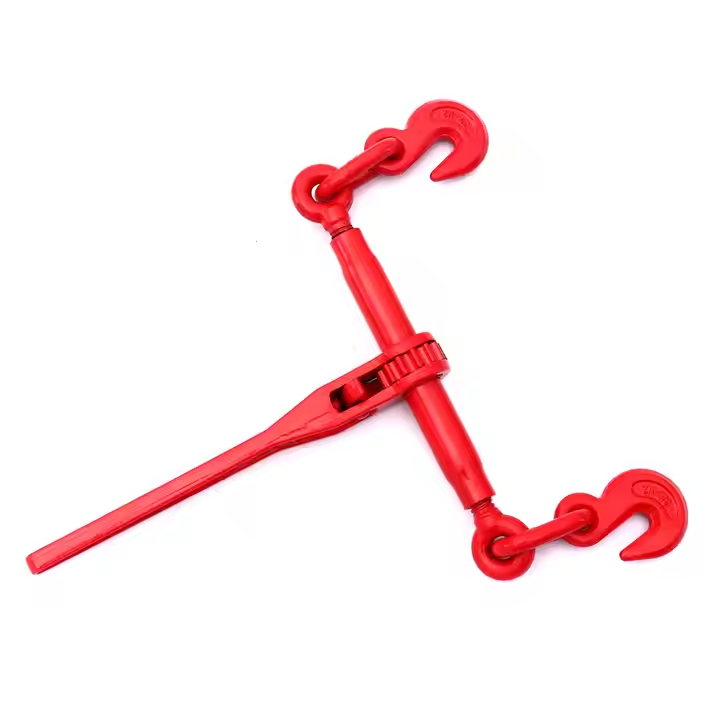

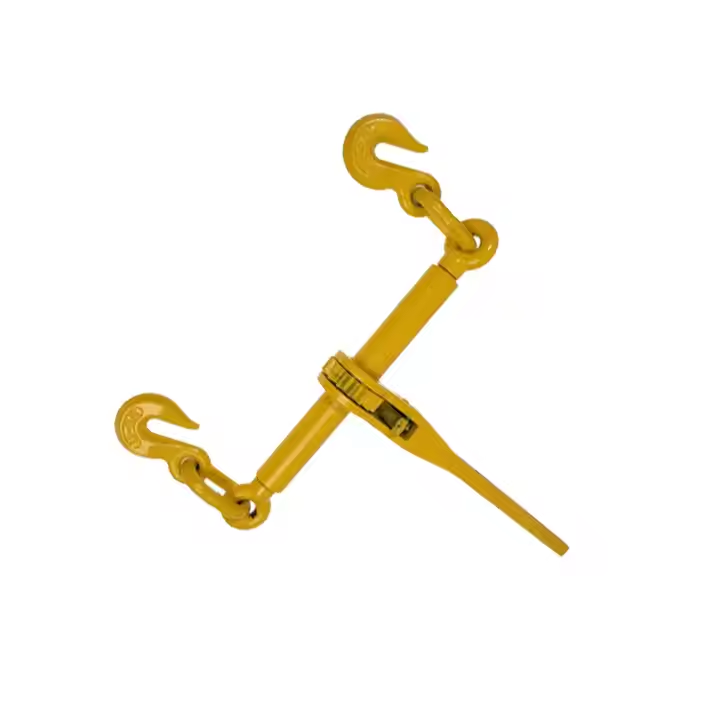

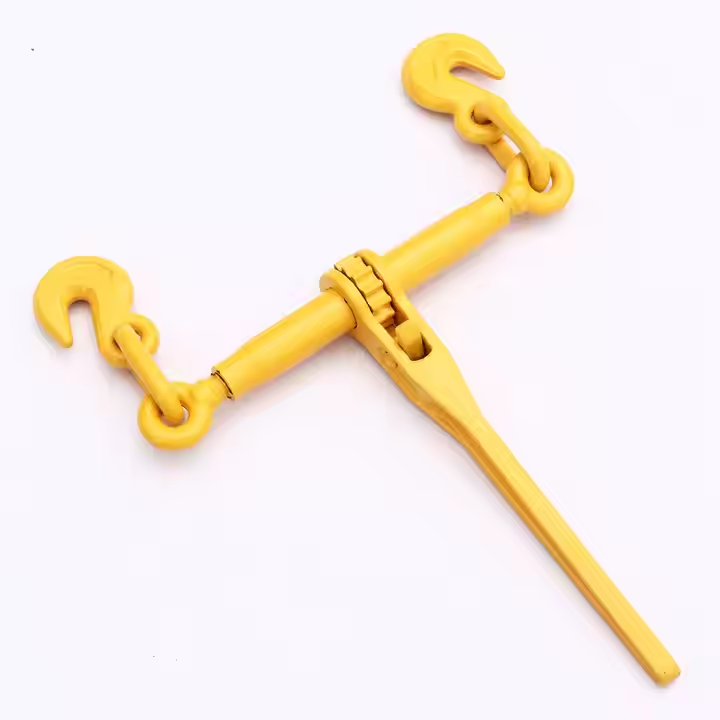

High Quality G70 G80 3/8" Drop Forged Alloy Ratchet Type Load Binder Molding EN12195-3
Size: 1/4"-5/16", 5/16"-3/8", 3/8"-1/2", 1/2"-5/8"
WLL: 2,600-13,000lbs
MBS: 9,200-46,000lbs
Handle: drop forged
Surface: powder coated
Certifications:ISO9001,CE,BV,SGS
Material:Carbon steel, 45# steel, Q235B, HRB400
Application: Forging, machining,hot-rolling, cold-drawing, stamping
Surface Treatment:Shot blasting, Polishing, Galvanizing, Black oxidation treatment, Customized
Detail Information
Size (in) | W.L.L (lbs) | Proof Load (lbs) | Min Ultimate Load (lbs) | Kg/pc | Handle Length | Dimensions(in) | ||||||
| A | B | D | E | E1 | F1 | F1 | ||||||
| 1/4-5/16 | 2200 | 4400 | 7800 | 1.600 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.62 | 17.79 | 0.35 |
| 5/16-3/8 | 5400 | 10800 | 19000 | 4.773 | 13.42 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 0.51 |
| 5/16-3/8 | 6600 | 10800 | 19800 | 4.891 | 13.42 | 13.92 | 1.30 | 2.60 | 22.64 | 30.64 | 25.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 5.864 | 13.92 | 13.92 | 1.30 | 2.60 | 24.13 | 32.13 | 27.04 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 6.536 | 13.92 | 13.92 | 1.30 | 2.60 | 26.45 | 34.45 | 30.07 | 0.74 |
Size: 1/4"-5/16", 5/16"-3/8", 3/8"-1/2", 1/2"-5/8"
WLL: 2,600-13,000lbs
MBS: 9,200-46,000lbs
Handle: drop forged
Surface: powder coated
Certifications:ISO9001,CE,BV,SGS
Material:Carbon steel, 45# steel, Q235B, HRB400
Application: Forging, machining,hot-rolling, cold-drawing, stamping
Surface Treatment:Shot blasting, Polishing, Galvanizing, Black oxidation treatment, Customized
Related Standards:
U.S. G209, G210, G2130, G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
