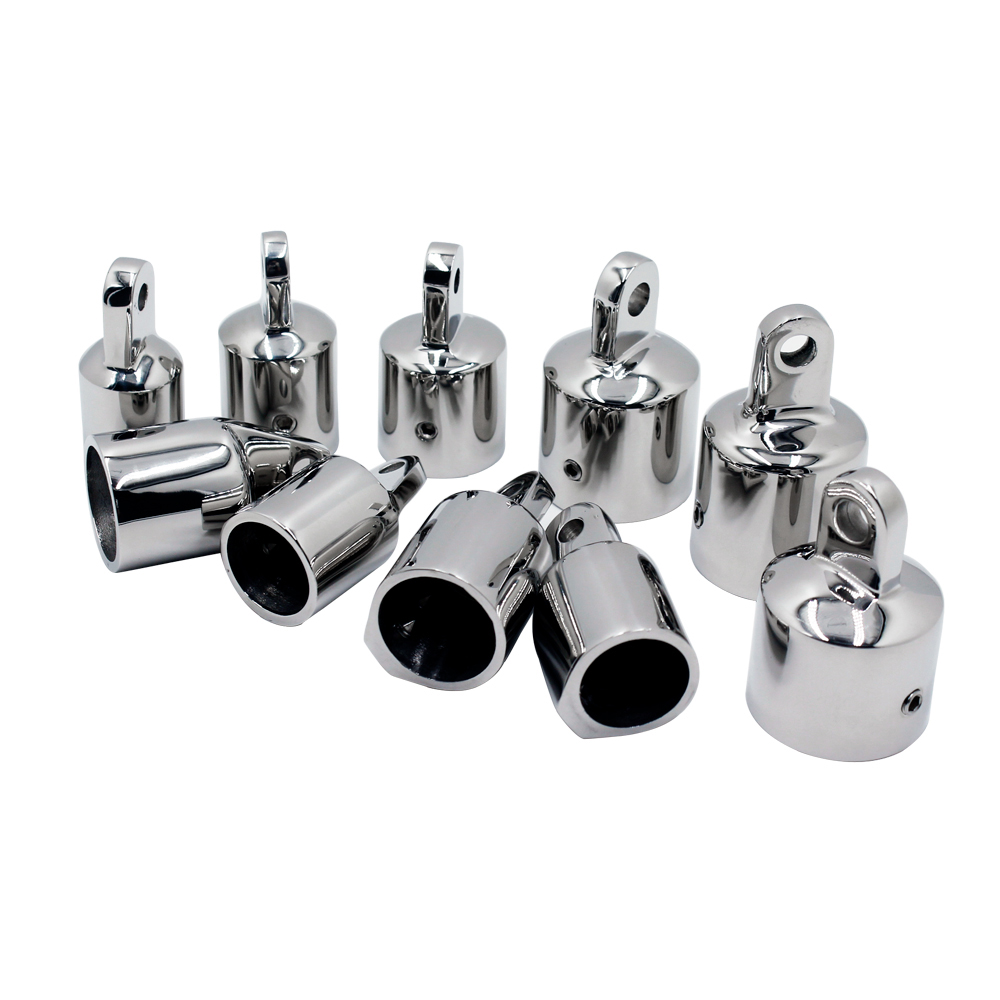

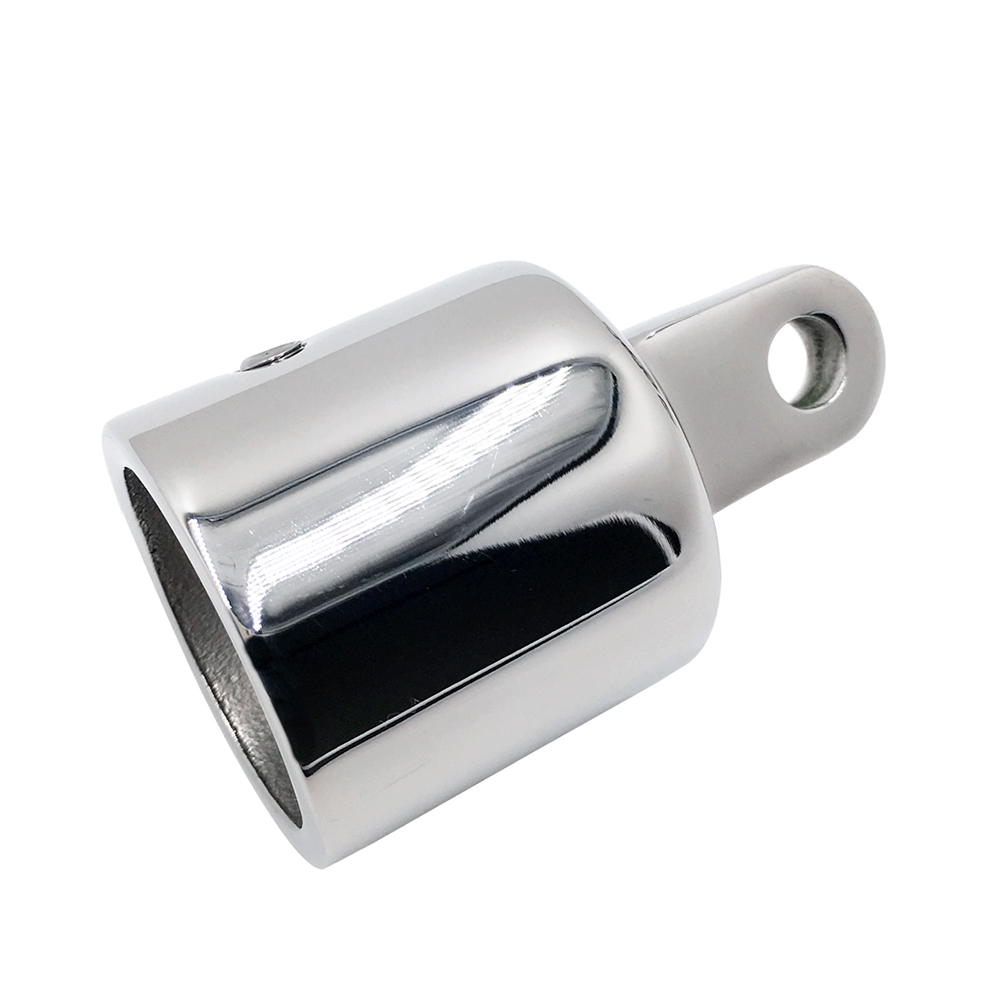

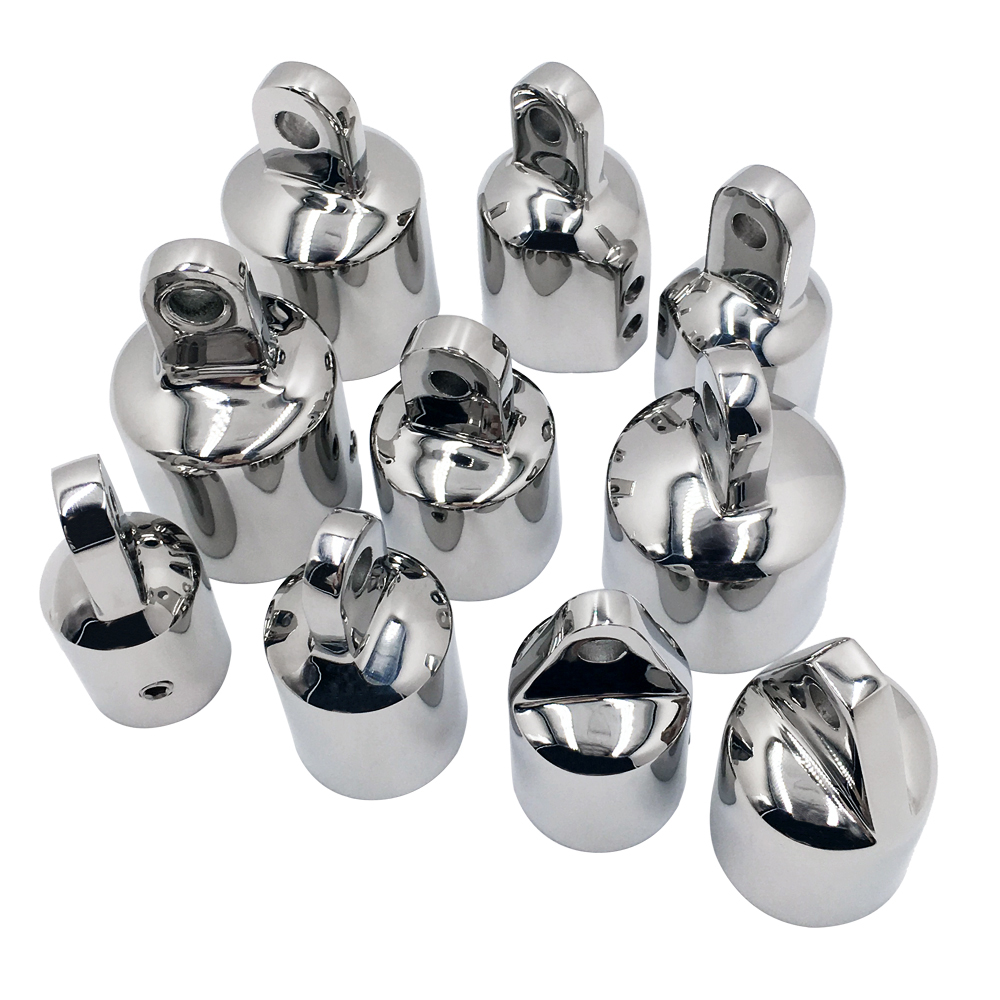

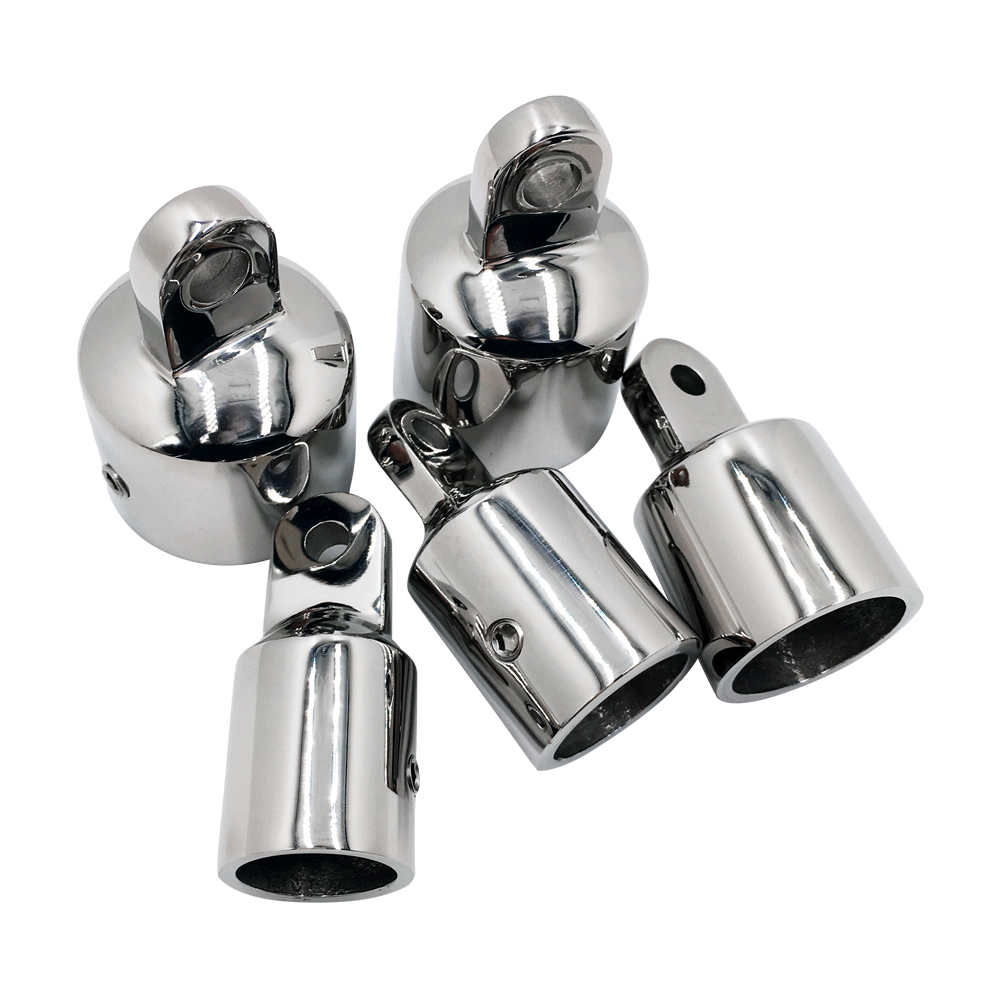

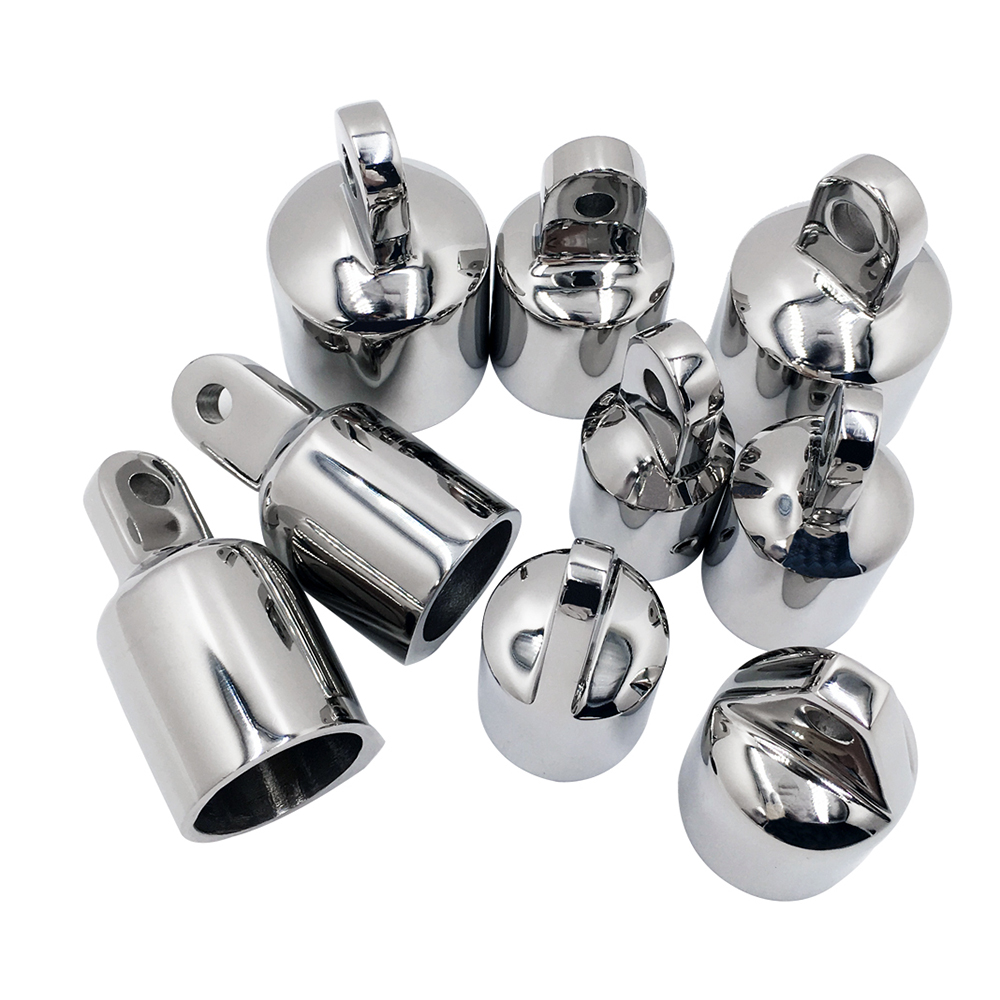

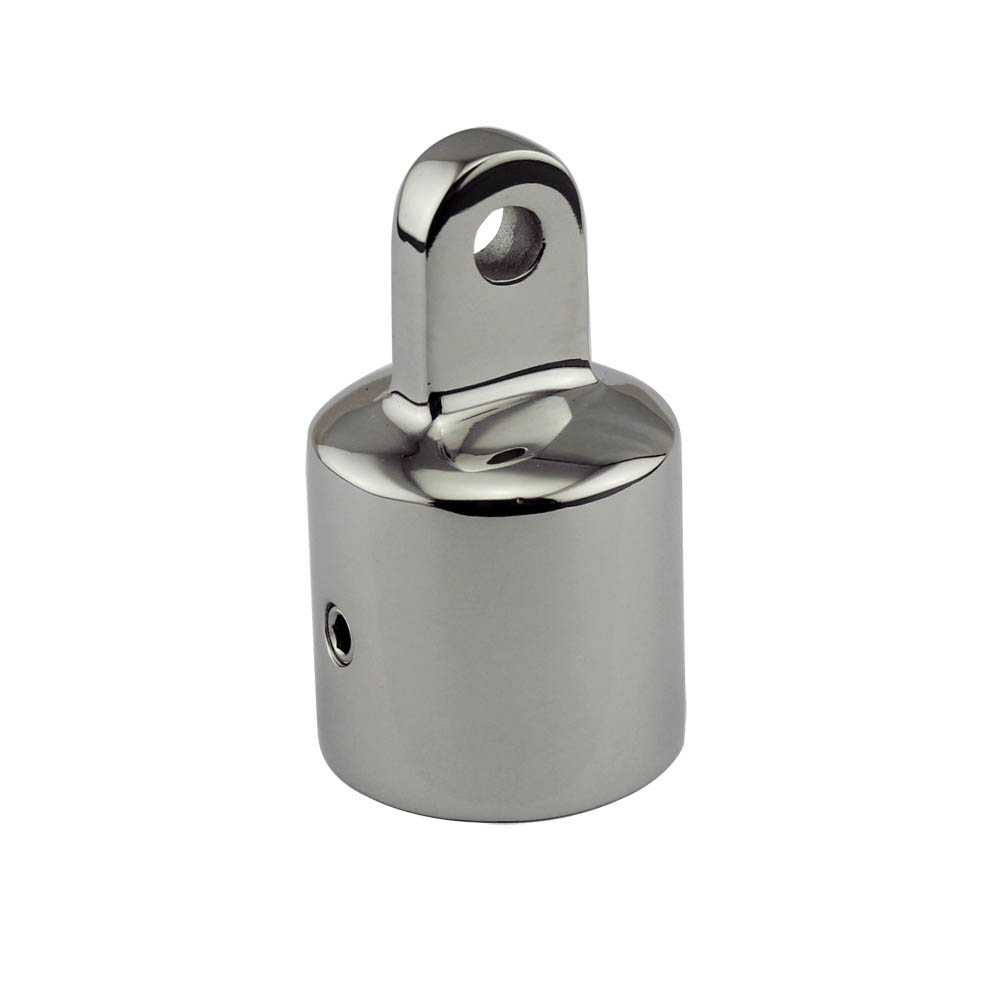

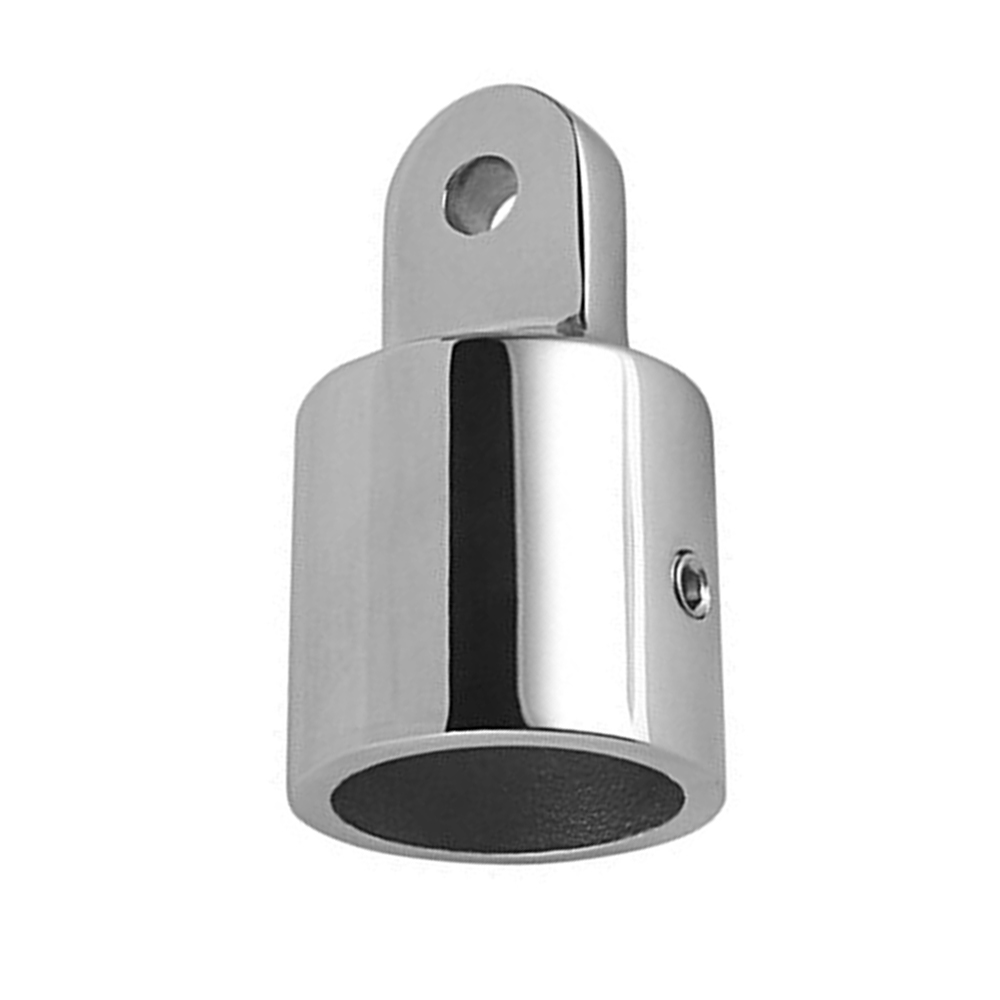

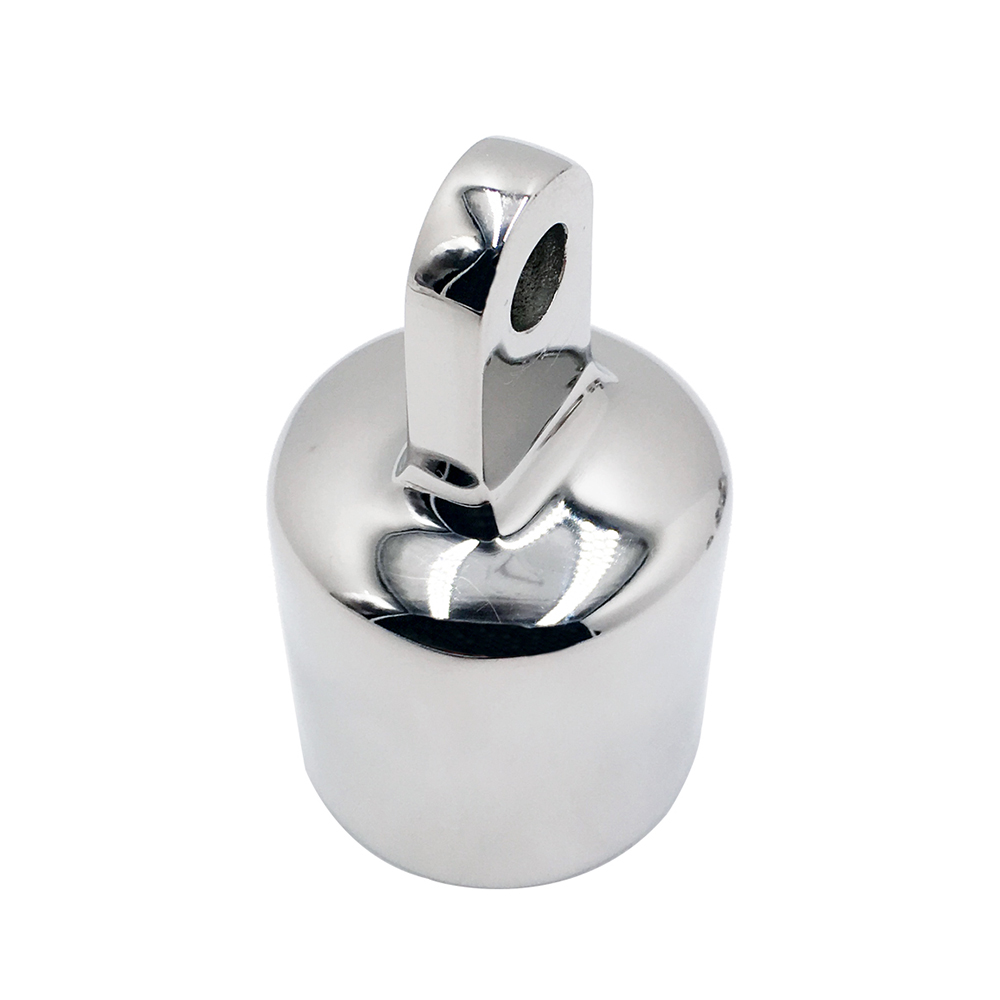

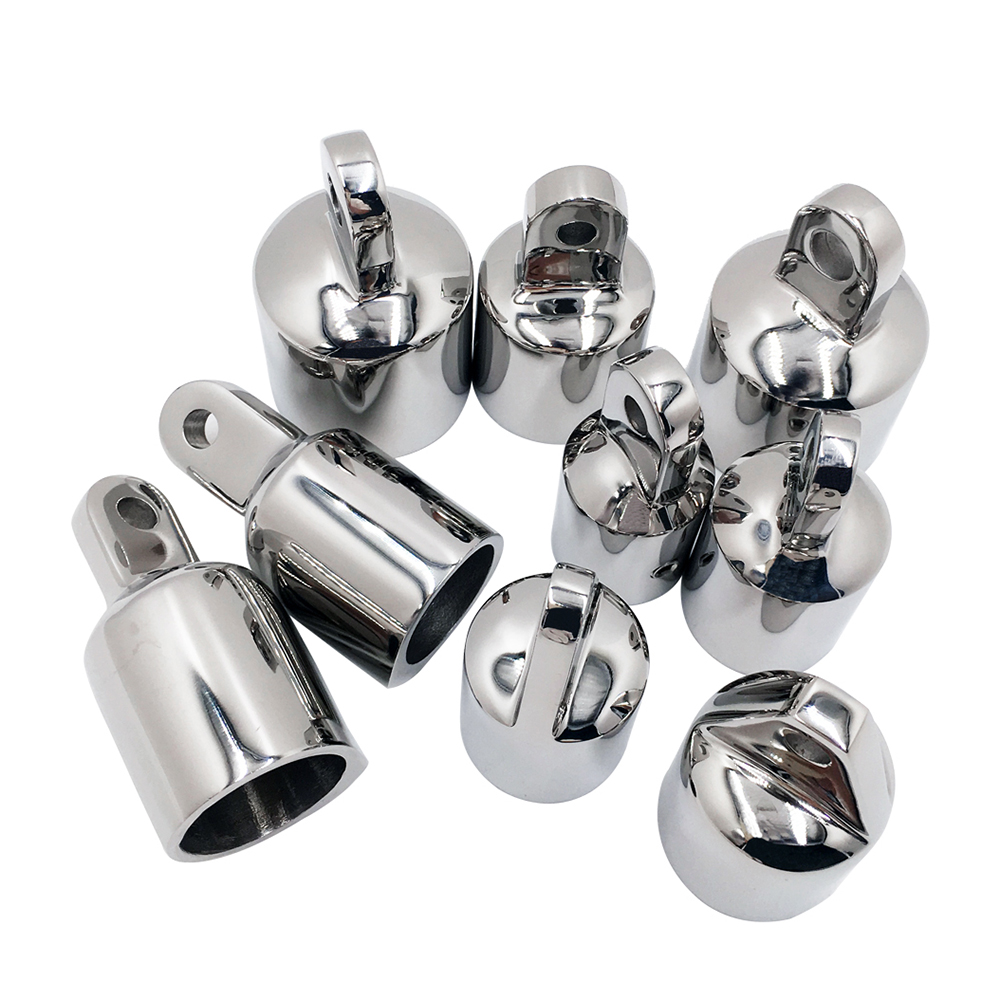

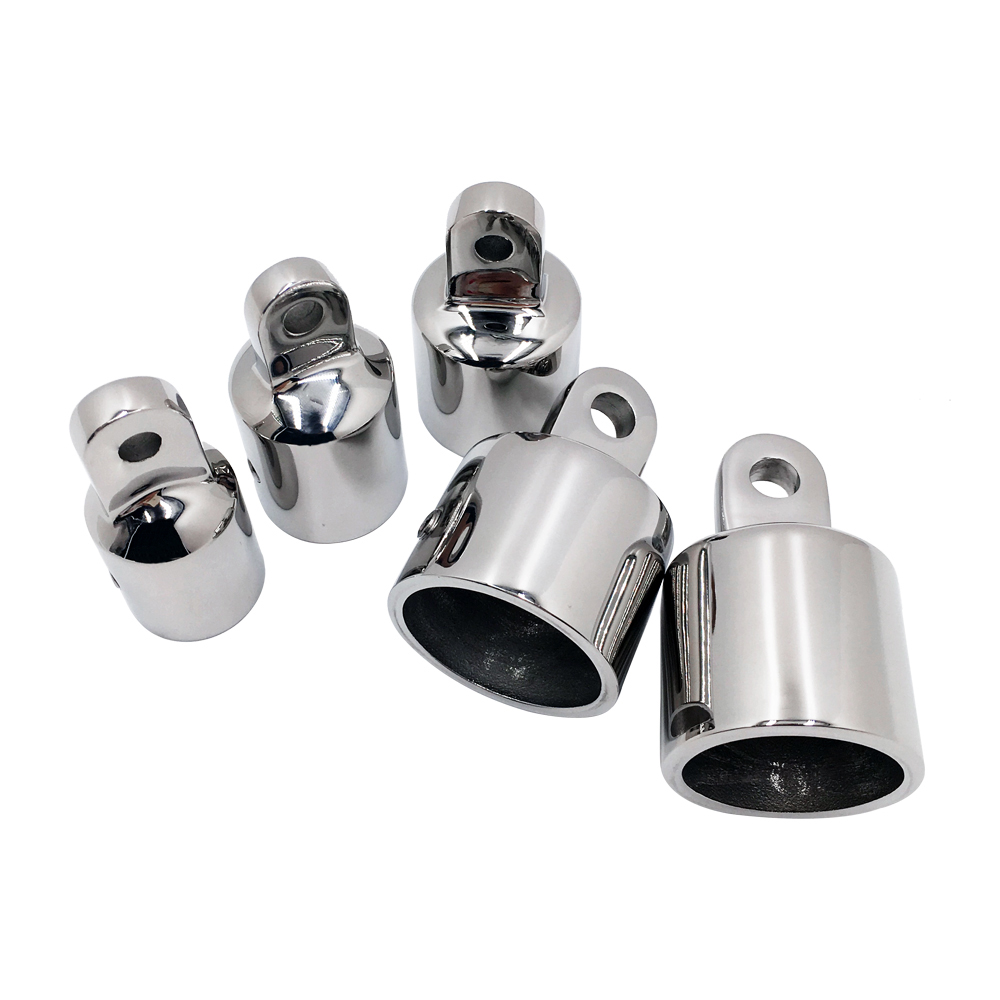

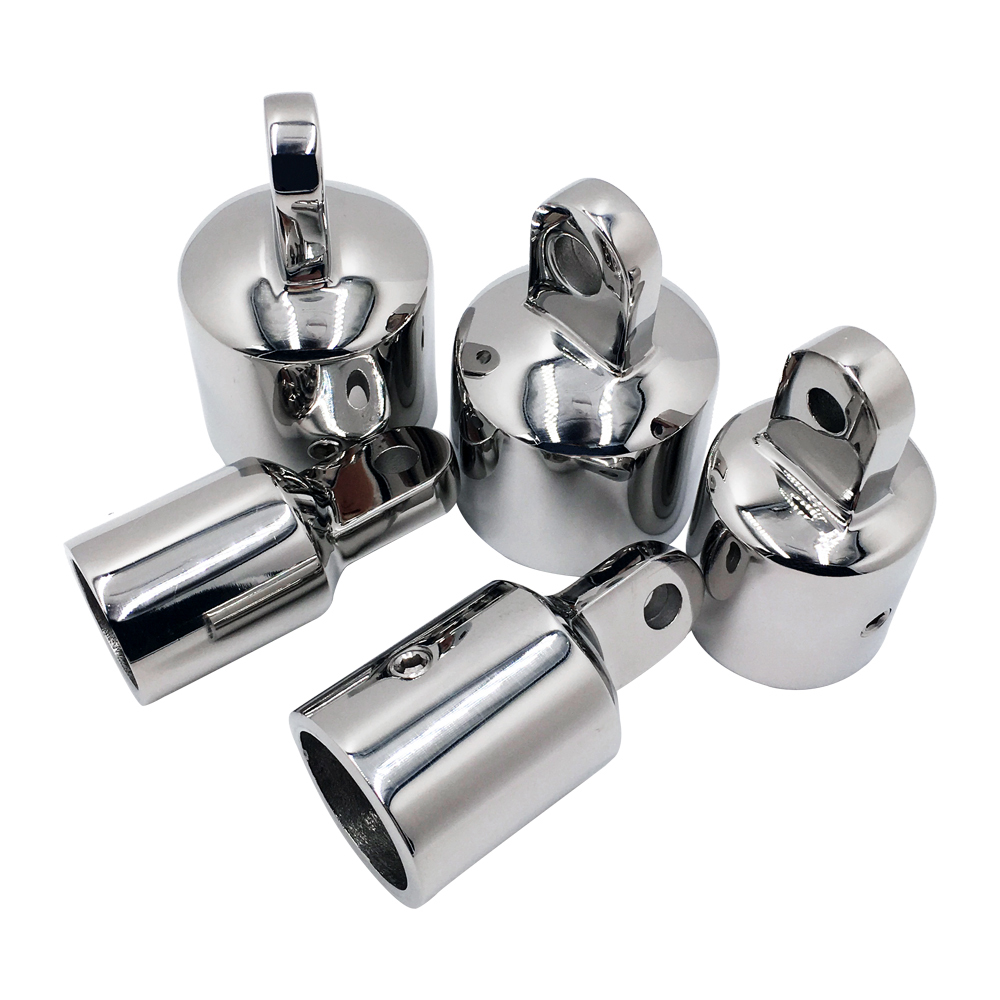

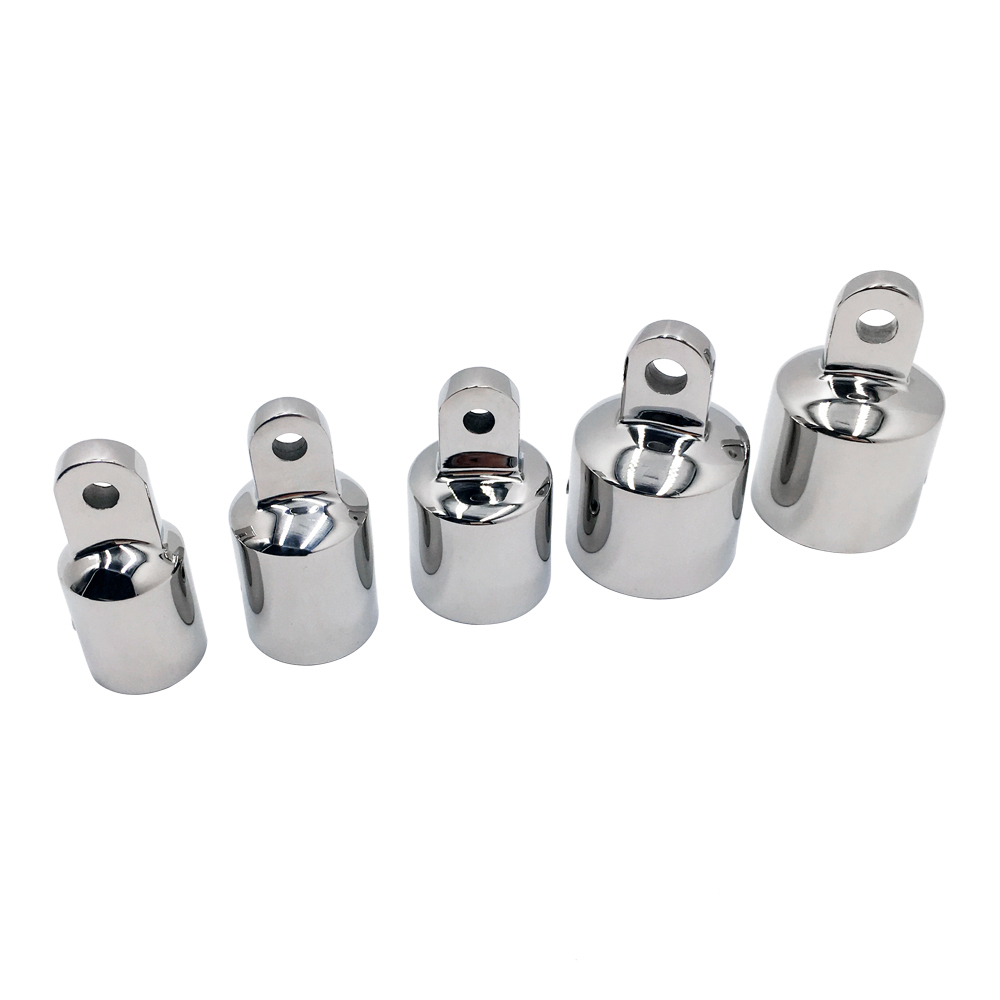

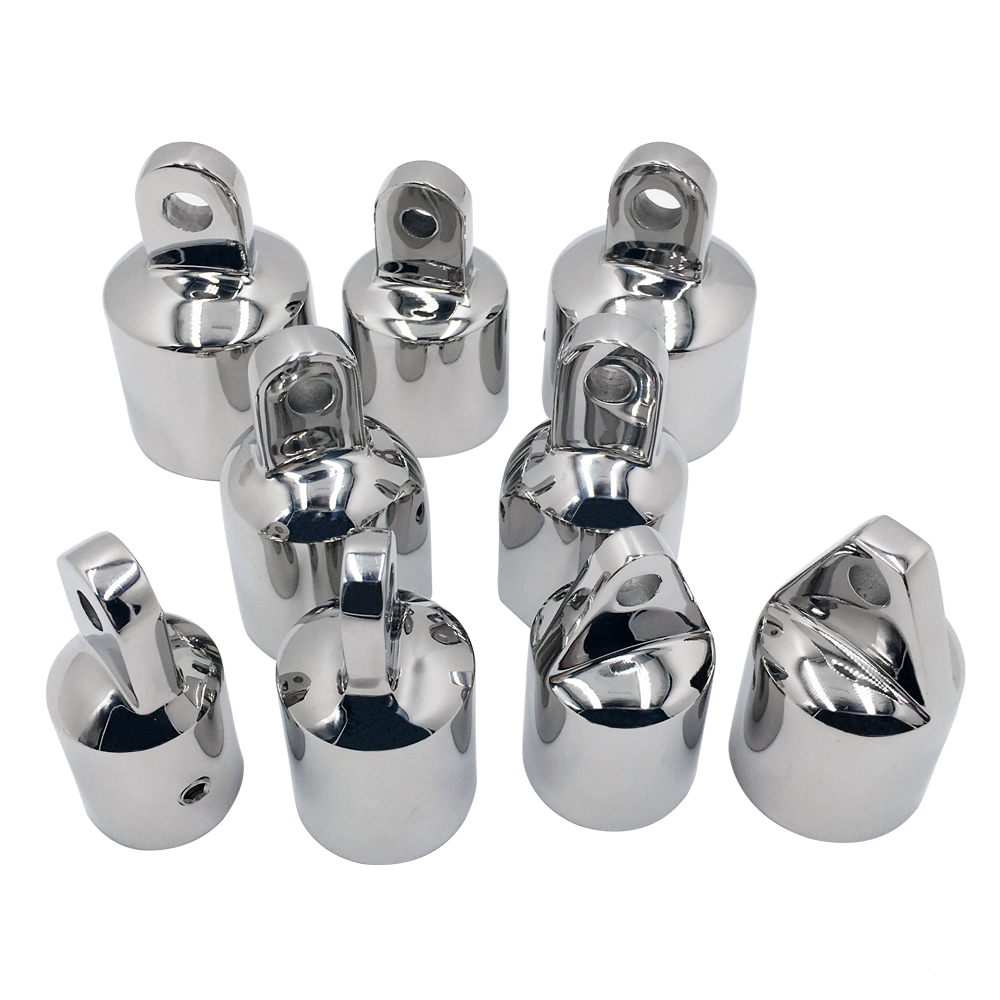

Top Cap (Eye End Top Cap)
Place of Origin:China
Brand Name:CHONGHONG
Product Name:Top Cap
Material:Stainless Steel AISI316
Size:19mm to 32mm
Surface treatment:Mirror Polished
Color:Silver
Technology:Precision casting
Application:Boat Accessories
Packaging:Carton or as per customer's requirements
Related Type:Jaw Slide w-Boat Pin & Cam Clamp,Jaw Slide,Jaw Slide with Boat Pin,Eye End Top Cap,Heavy-Duty End Top Cap,Square Inside Eye End,Top Slide,Double Set Screw Jaw Slide,other Standard or Nonstandard Type etc.
Notes:Special specifications and marks can be made according to customers requirements.
Detail Information
| ITEM NO. | Size | A mm | B mm | C mm | D mm | E mm |
| CH009-001-3/4" | 19mm | 19.5 | 25 | 55 | 6.5 | 7 |
| CH009-001-20 | 20mm | 20.5 | 26.5 | 55 | 6.5 | 7 |
| CH009-001-7/8" | 22mm | 22.5 | 28.8 | 58 | 6.5 | 7 |
| CH009-001-1" | 25mm | 25.8 | 31.8 | 56 | 6.5 | 7 |
| CH009-001-30 | 30mm | 30.8 | 37.5 | 61 | 6.5 | 7.2 |
| CH009-001-1 1/4" | 32mm | 32.8 | 39.6 | 61 | 6.5 | 7.2 |
Place of Origin:China
Brand Name:CHONGHONG
Product Name:Top Cap
Material:Stainless Steel AISI316
Size:19mm to 32mm
Surface treatment:Mirror Polished
Color:Silver
Technology:Precision casting
Application:Boat Accessories
Packaging:Carton or as per customer's requirements
Related Type:Jaw Slide w-Boat Pin & Cam Clamp,Jaw Slide,Jaw Slide with Boat Pin,Eye End Top Cap,Heavy-Duty End Top Cap,Square Inside Eye End,Top Slide,Double Set Screw Jaw Slide,other Standard or Nonstandard Type etc.
Notes:Special specifications and marks can be made according to customers requirements.
