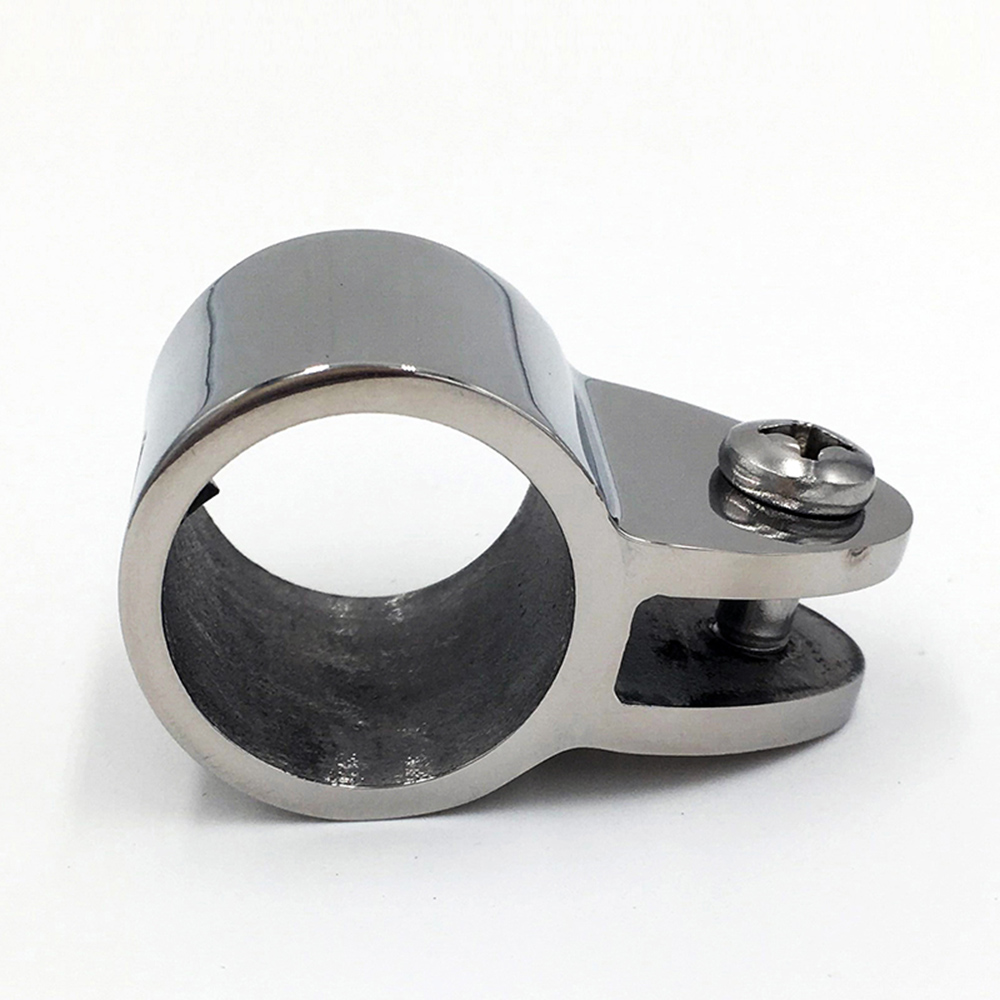

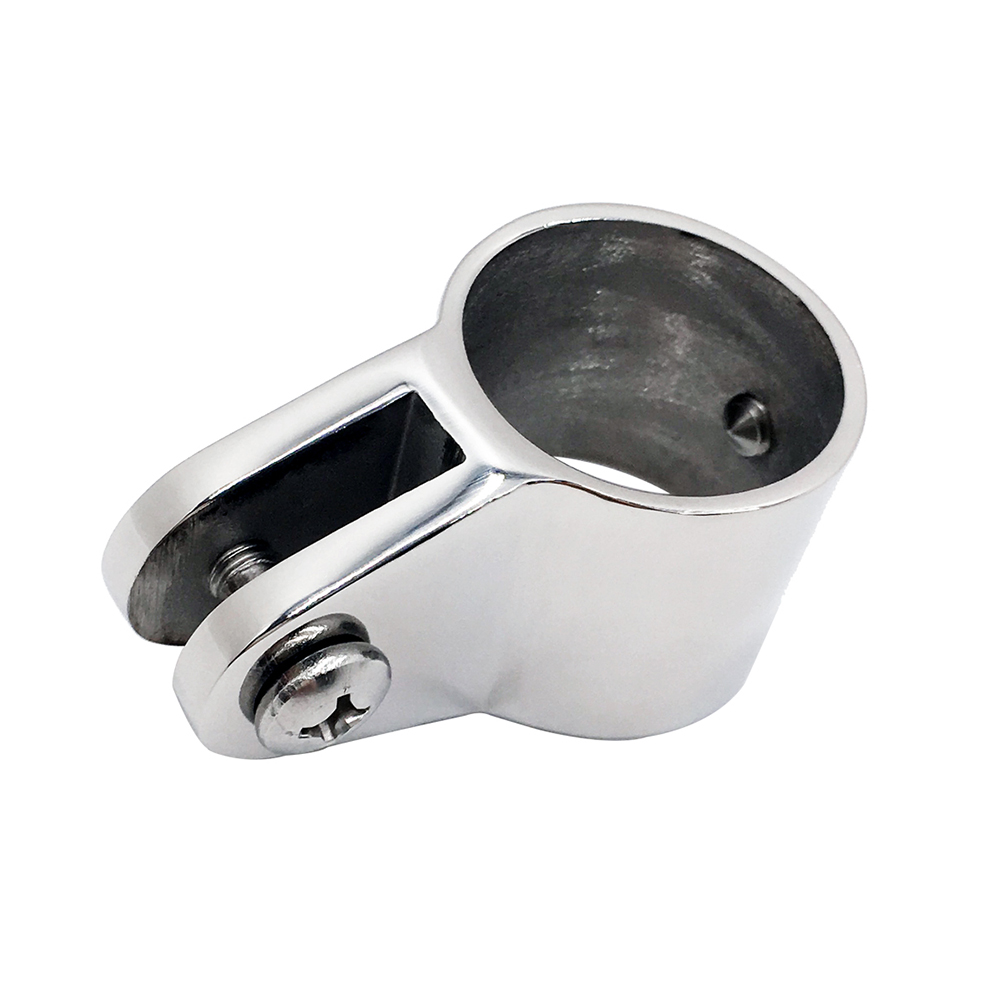

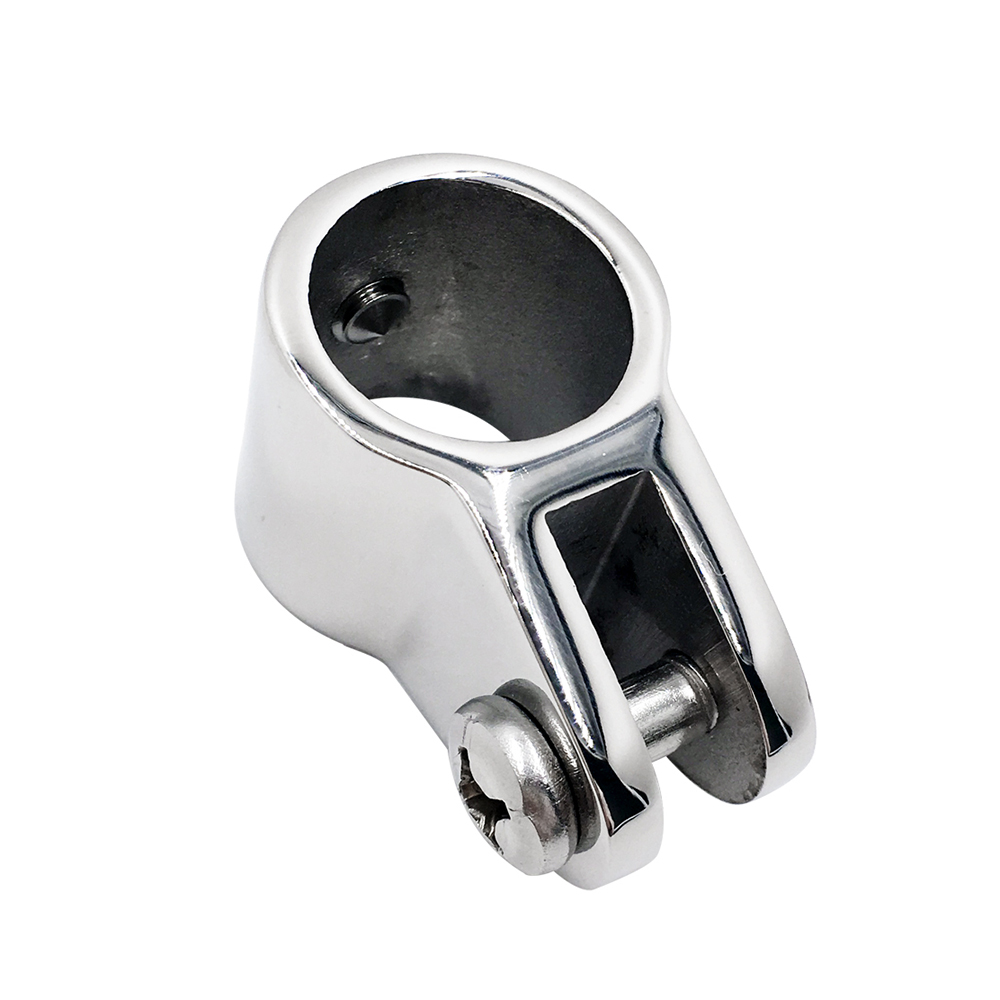

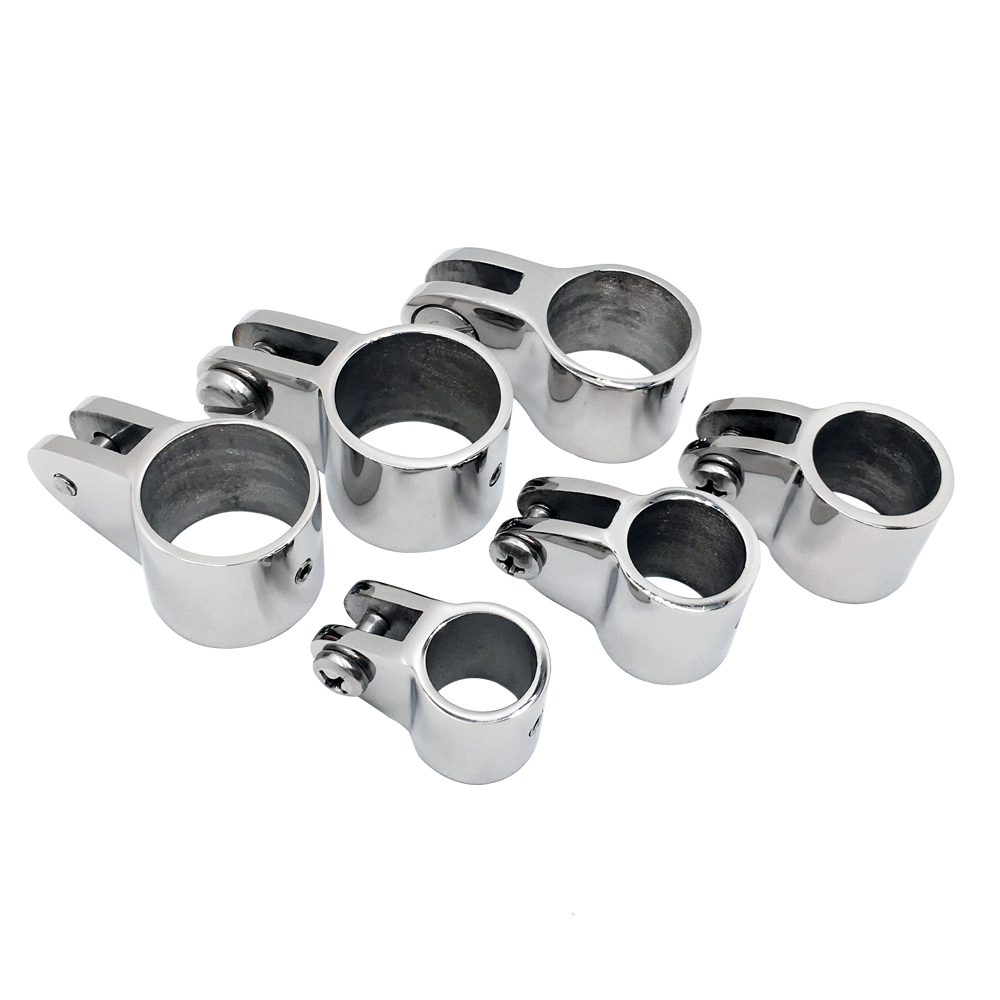

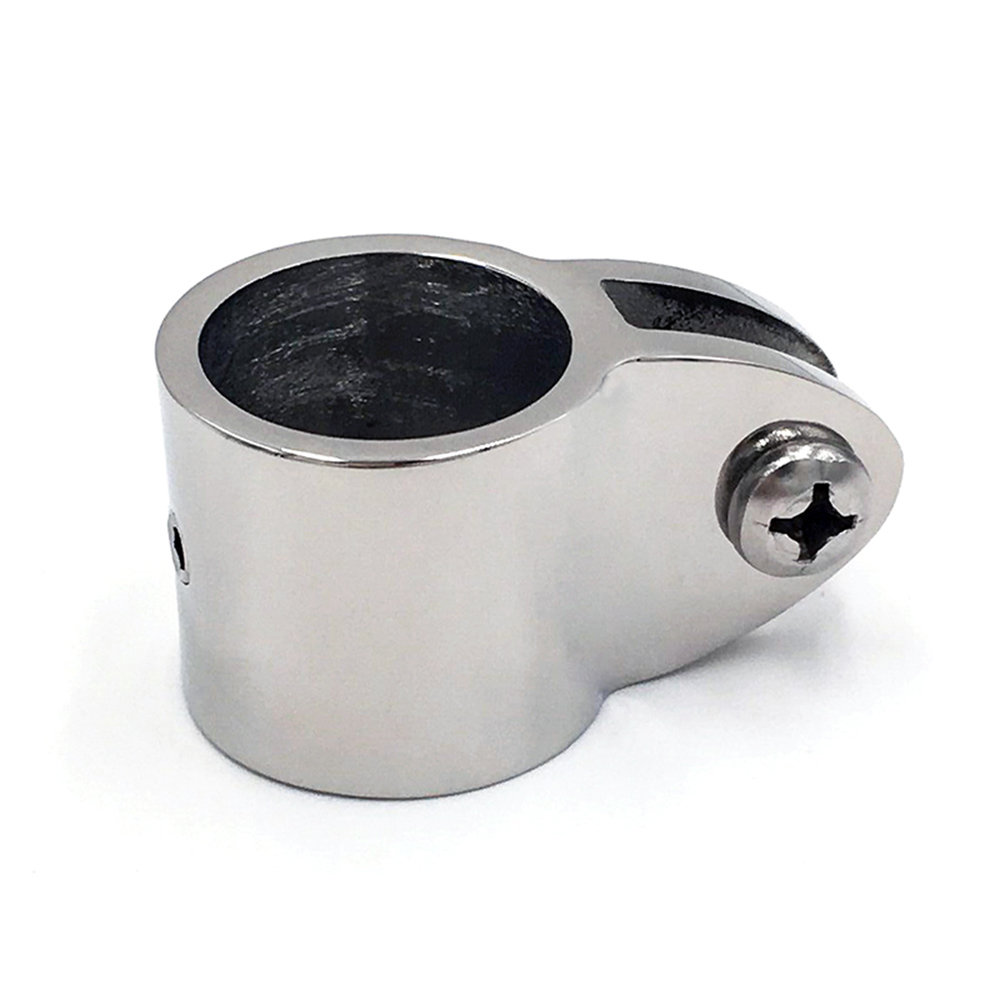

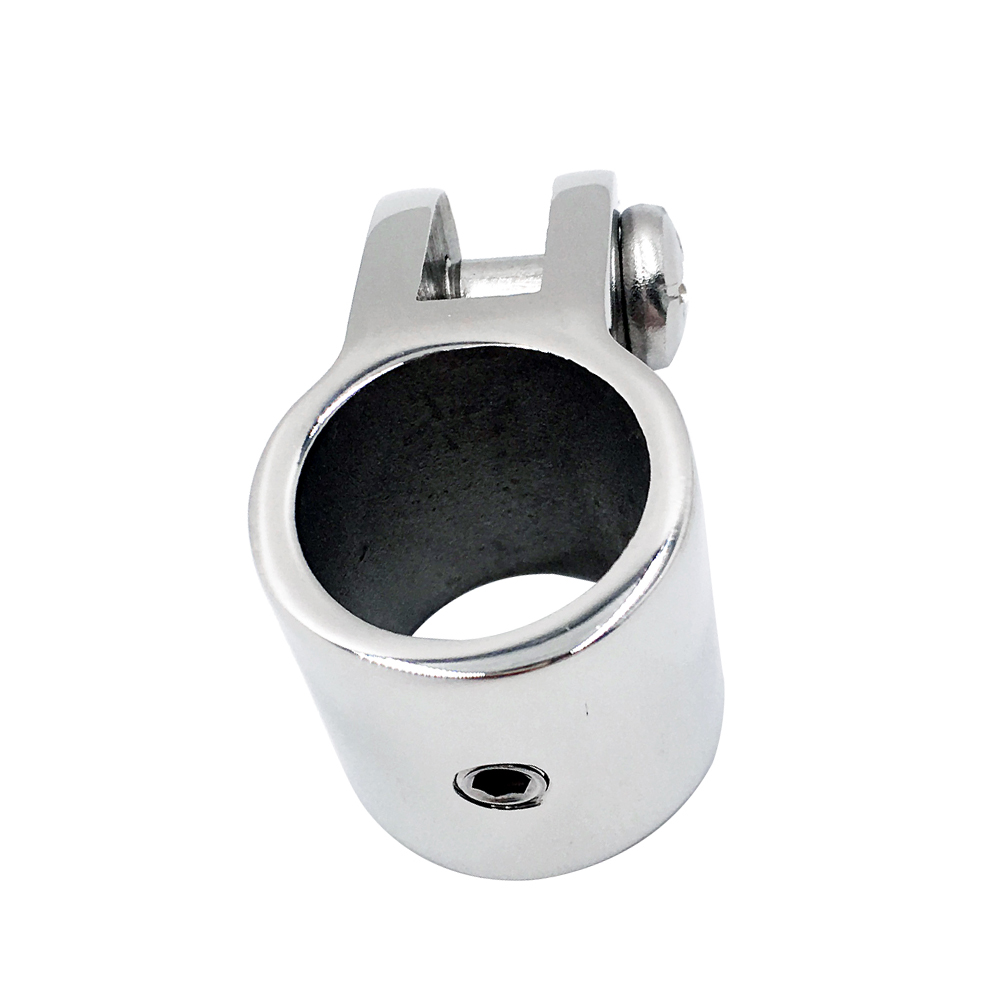

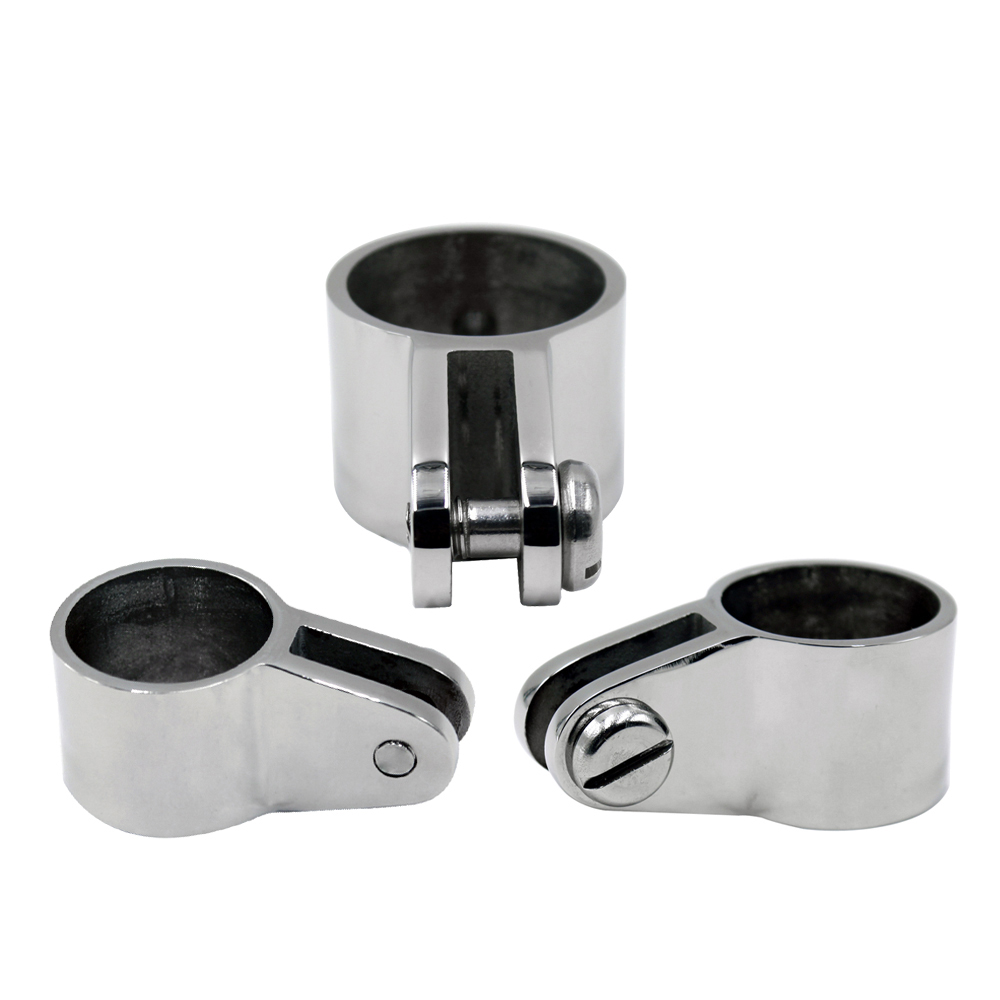

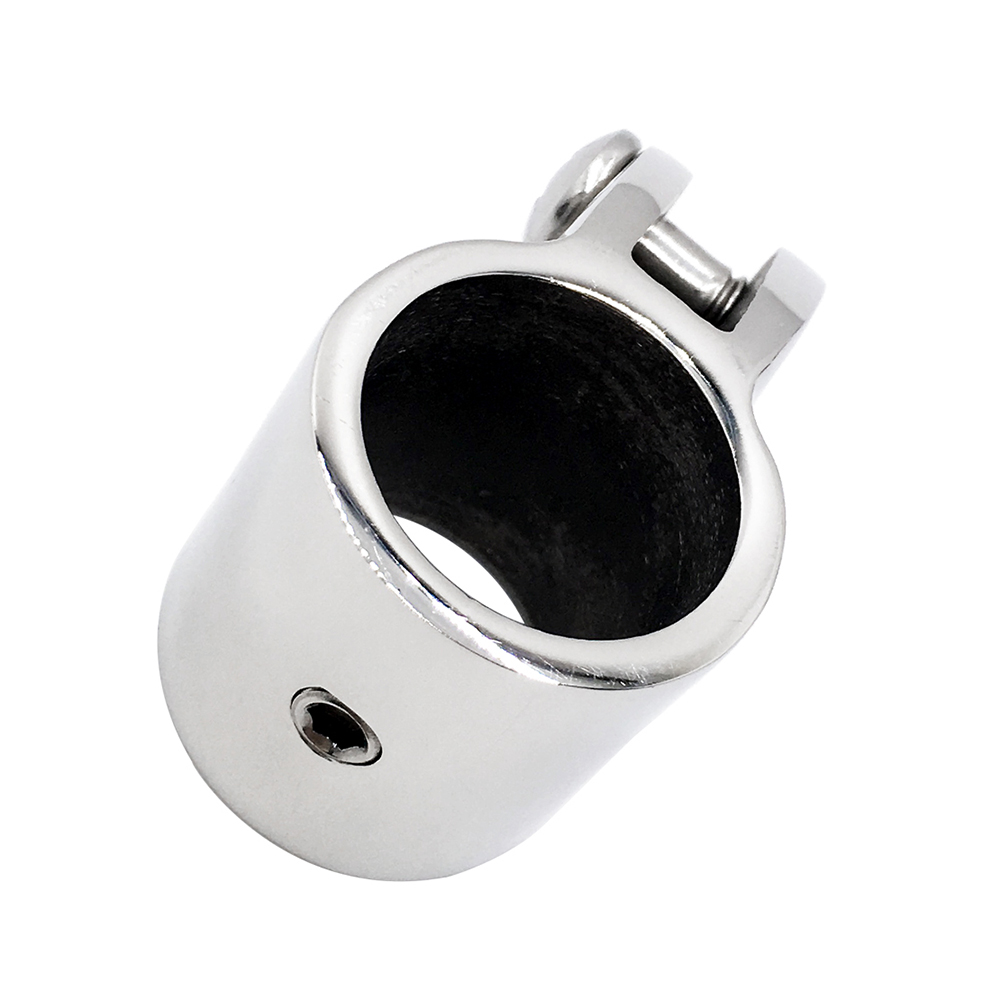

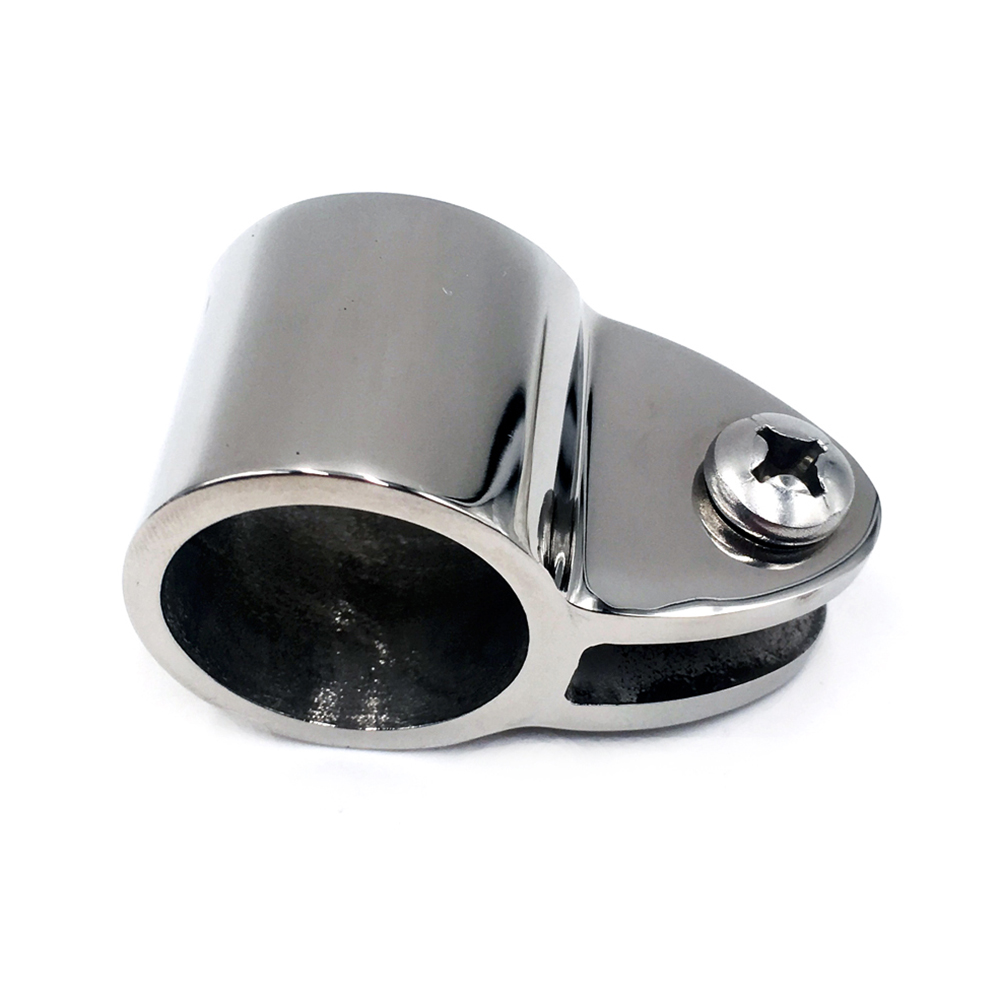

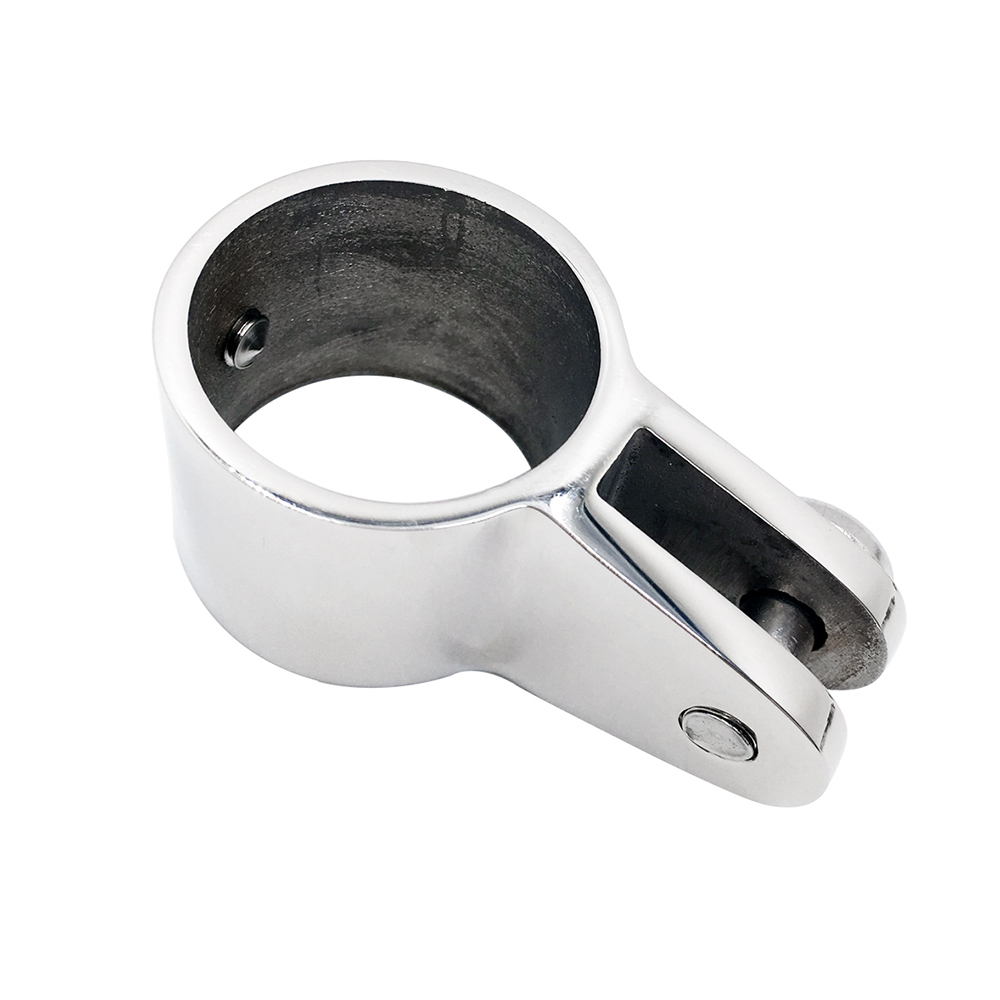

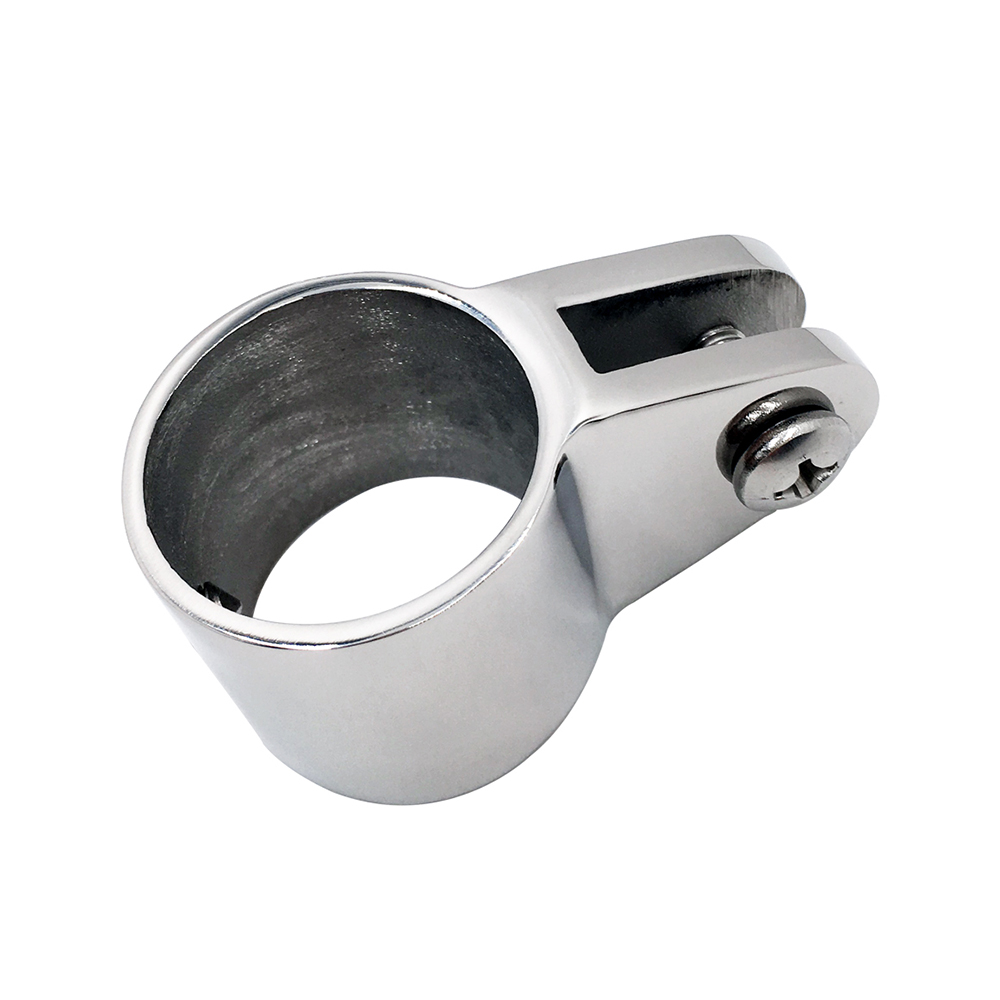

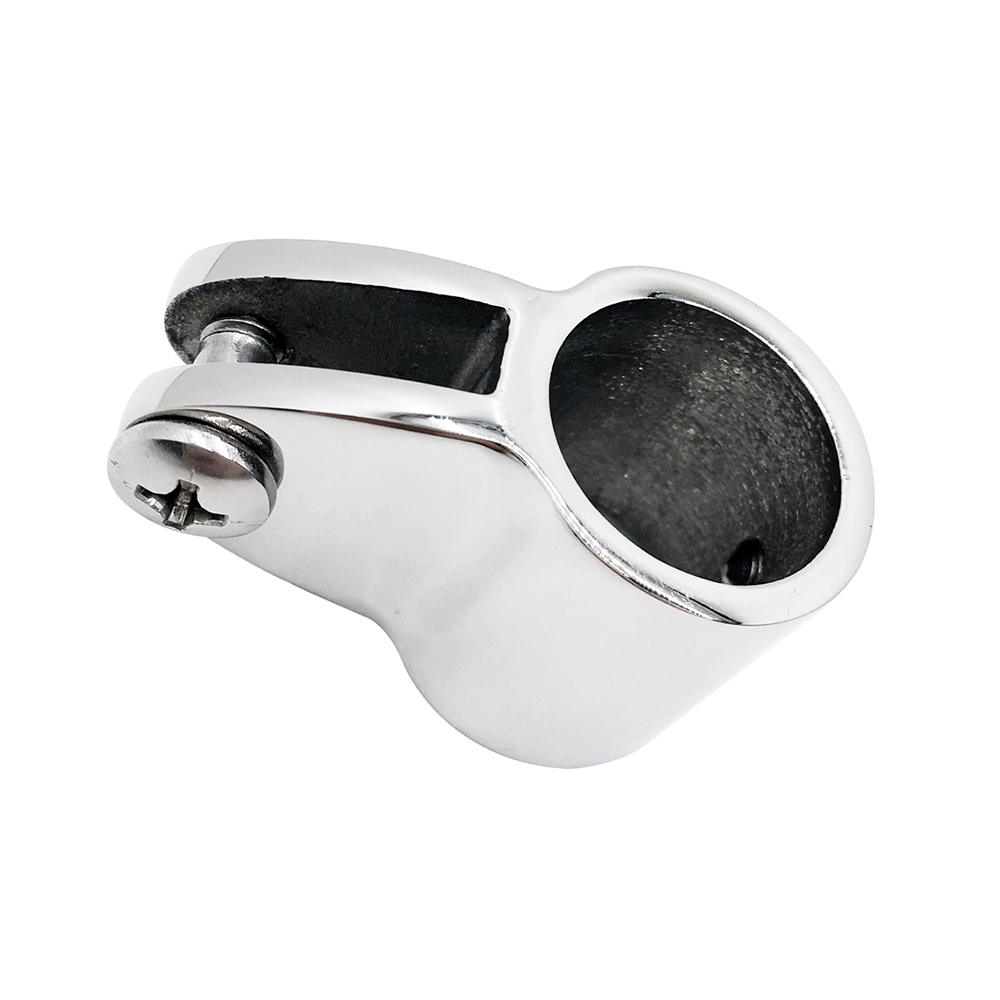

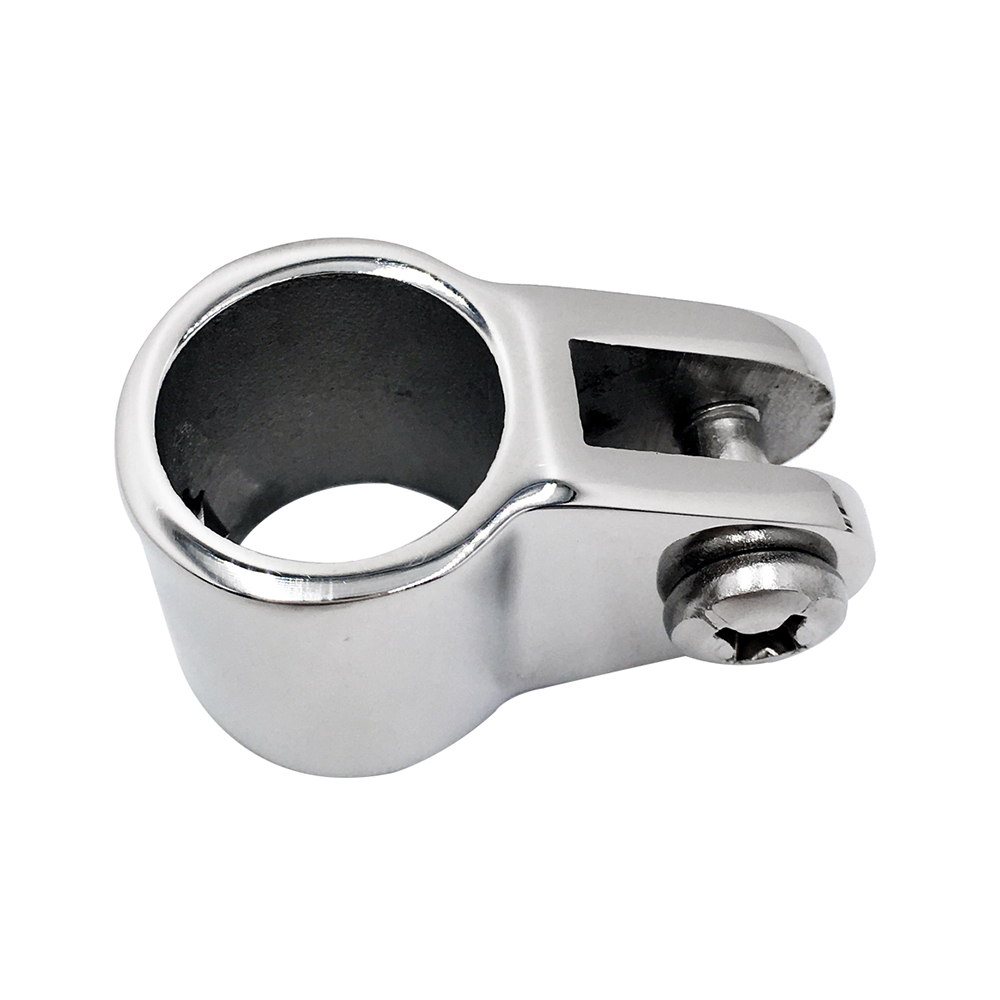

Top Cap (Top Slide)
Place of Origin:China
Brand Name:CHONGHONG
Product Name:Top Cap
Material:Stainless Steel AISI316
Size:19mm to 32mm
Surface treatment:Mirror Polished
Color:Silver
Technology:Precision casting
Application:Boat Accessories
Packaging:Carton or as per customer's requirements
Related Type:Jaw Slide w-Boat Pin & Cam Clamp,Jaw Slide,Jaw Slide with Boat Pin,Eye End Top Cap,Heavy-Duty End Top Cap,Square Inside Eye End,Top Slide,Double Set Screw Jaw Slide,other Standard or Nonstandard Type etc.
Notes:Special specifications and marks can be made according to customers requirements.
Detail Information
| ITEM NO. | Size | A mm | B mm | C mm | D mm | E mm | F mm |
| CH010-001-3/4" | 19mm | 19.6 | 25 | 25 | 7.5 | 16.5 | 6.2 |
| CH010-001-20 | 20mm | 20.4 | 25 | 25 | 7.5 | 16.5 | 6.2 |
| CH010-001-7/8" | 22mm | 22.5 | 28 | 28 | 7.8 | 16.5 | 6.2 |
| CH010-001-1" | 25mm | 25.8 | 28.5 | 28.5 | 8 | 16.5 | 6.2 |
| CH010-001-30 | 30mm | 30.8 | 29 | 29 | 7.6 | 17.5 | 6.2 |
| CH010-001-1 1/4" | 32mm | 32.8 | 30 | 30 | 8 | 17.5 | 6.2 |
Place of Origin:China
Brand Name:CHONGHONG
Product Name:Top Cap
Material:Stainless Steel AISI316
Size:19mm to 32mm
Surface treatment:Mirror Polished
Color:Silver
Technology:Precision casting
Application:Boat Accessories
Packaging:Carton or as per customer's requirements
Related Type:Jaw Slide w-Boat Pin & Cam Clamp,Jaw Slide,Jaw Slide with Boat Pin,Eye End Top Cap,Heavy-Duty End Top Cap,Square Inside Eye End,Top Slide,Double Set Screw Jaw Slide,other Standard or Nonstandard Type etc.
Notes:Special specifications and marks can be made according to customers requirements.
