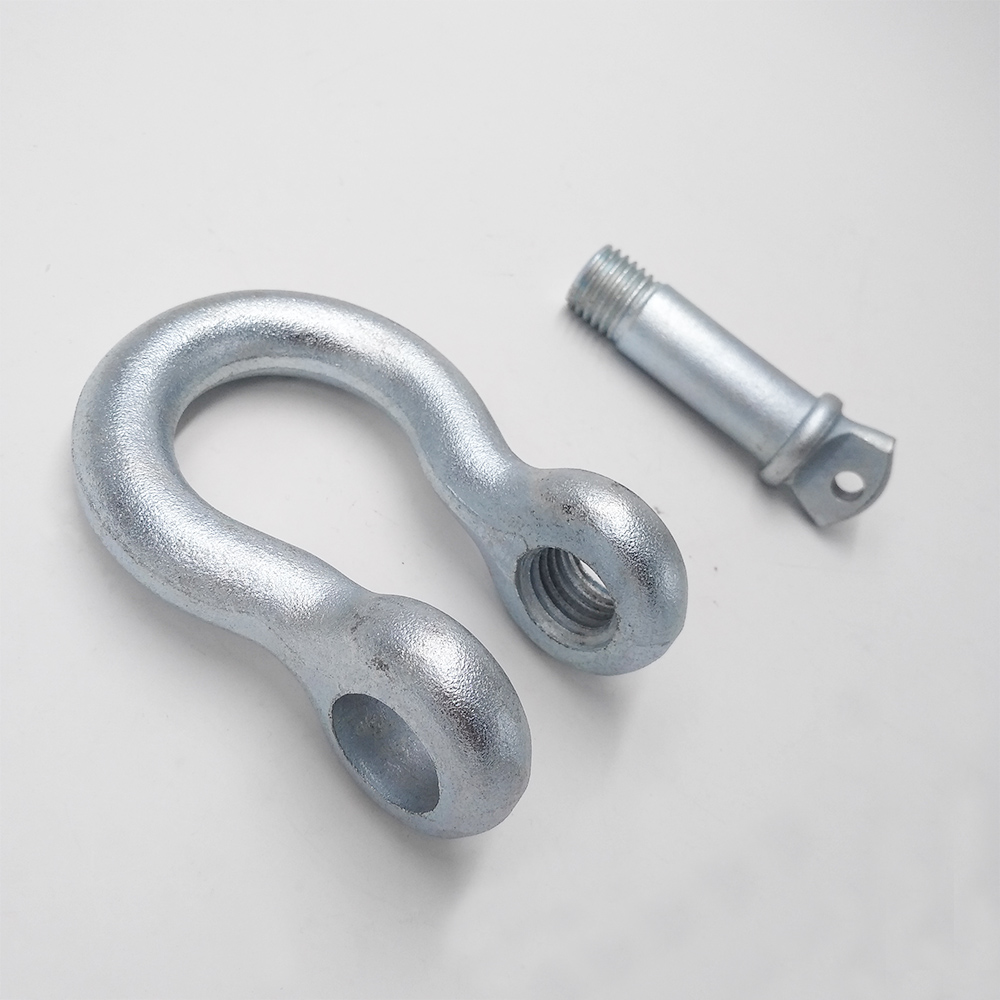

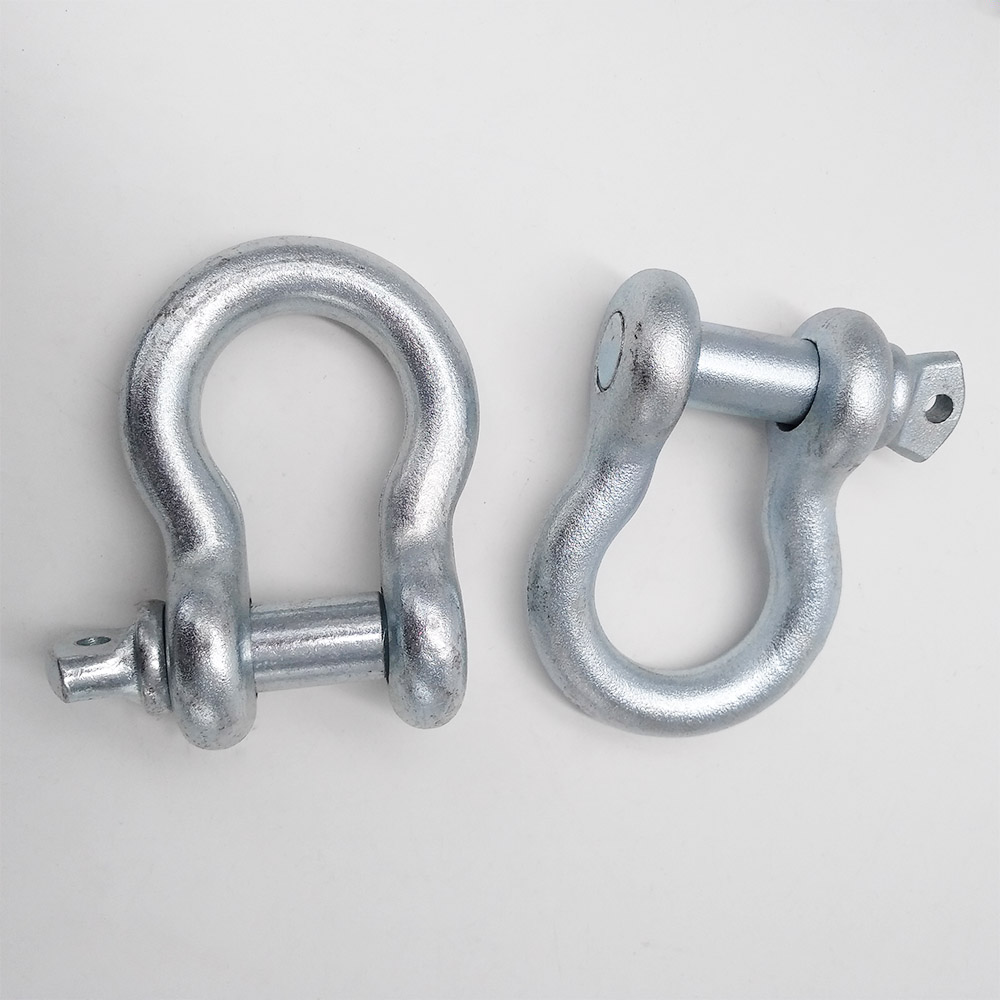

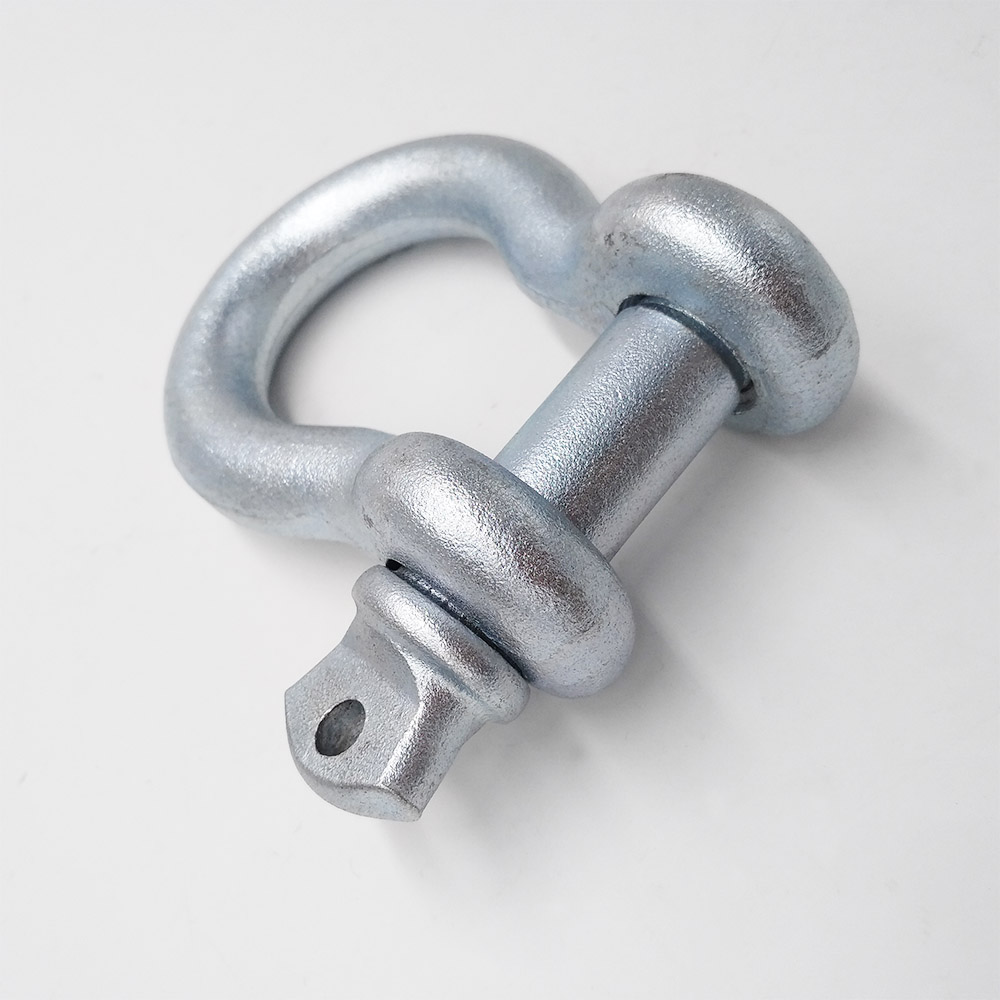

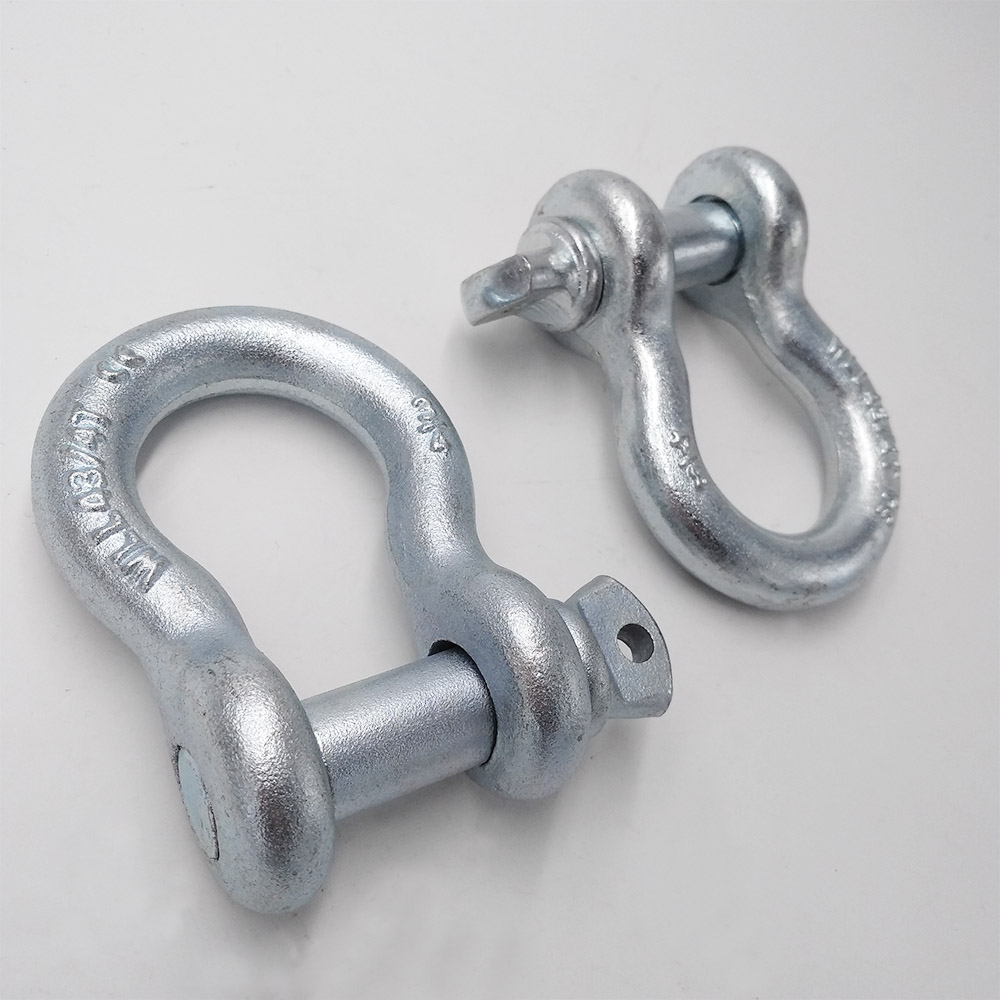

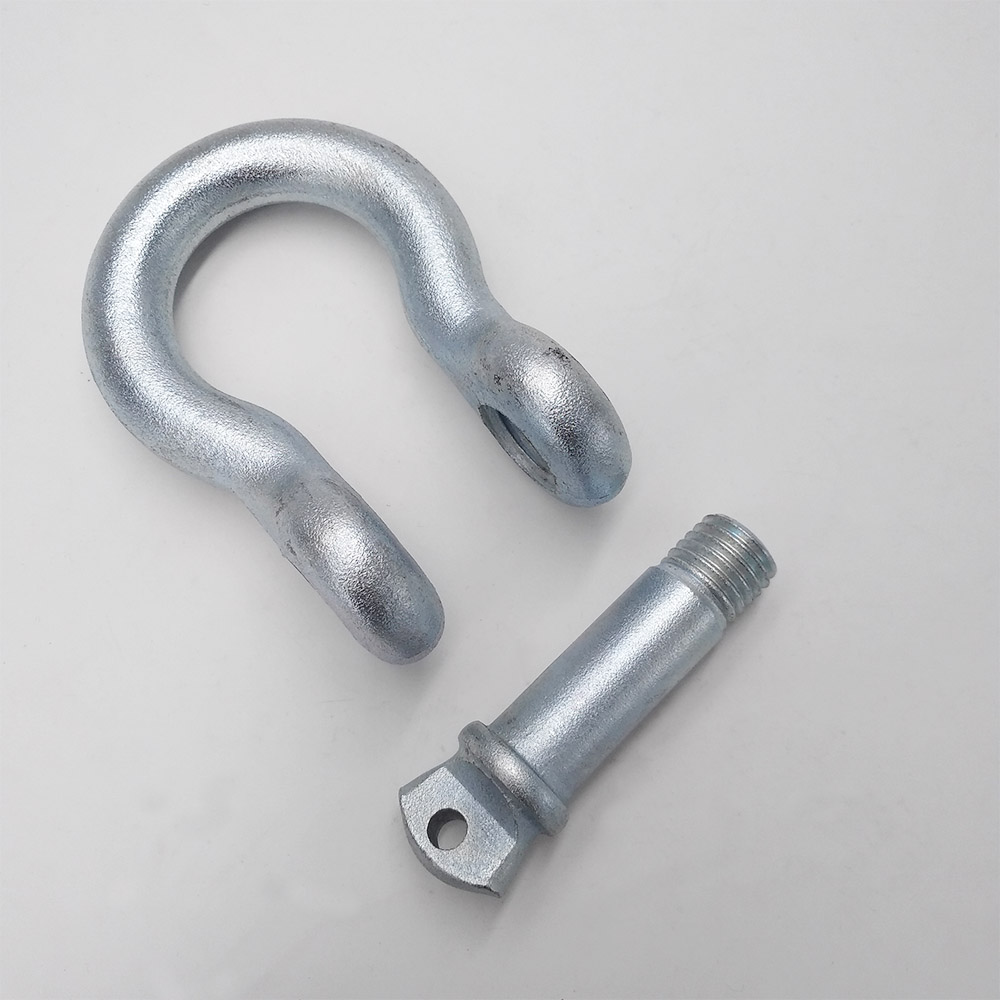

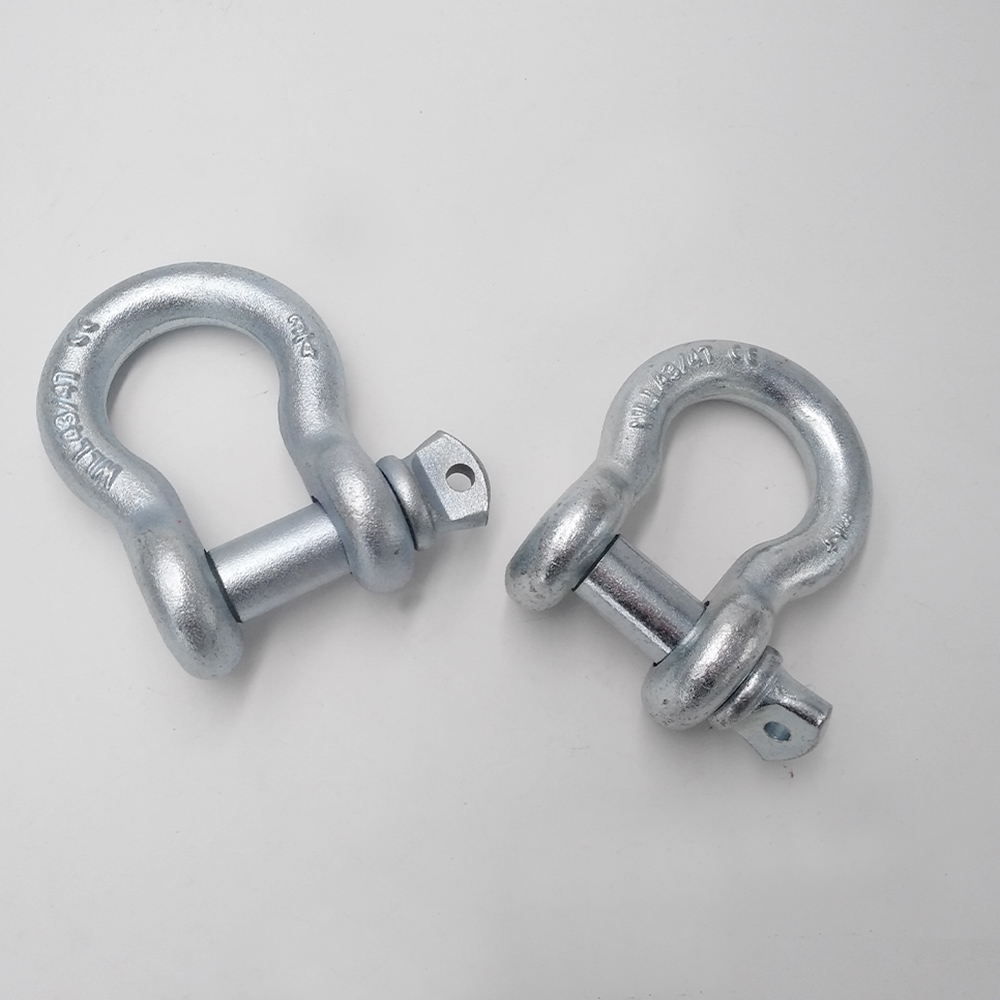

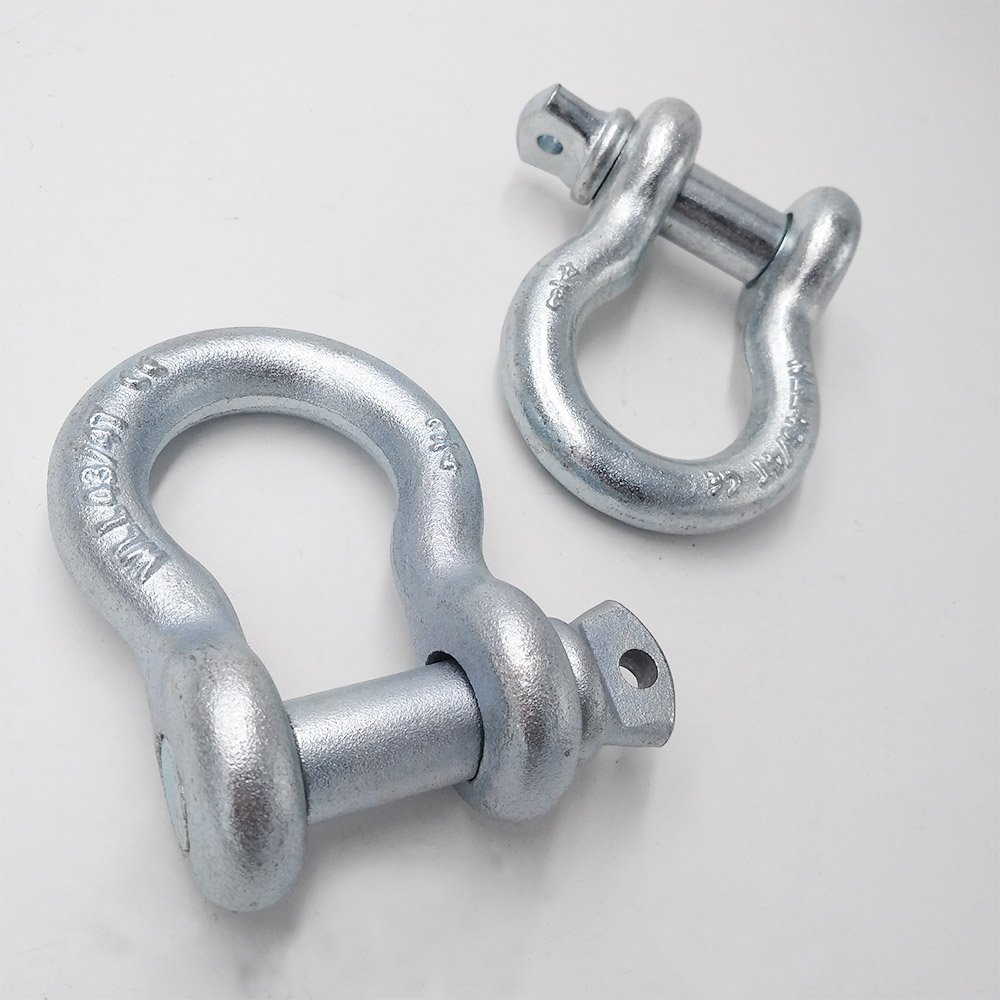

1/2" Bow Shackle U.S. Standard G209 Shackle Electric Galvanized Anchor Shackle
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Bow Shackle
-Standard:U.S. G209
-Material:Carbon steel
-Size:3/16 to 2 1/2 Inch
-Surface treatment:Electro Galvanized
-Also Available in Alloy steel, Stainless steel 304 or 316,High polished, Mirror Polished,Color Painted, Hot Dipped Galvanized, Self colored or other etc.
-Application:Lifting Fittings
-Usage:Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information
| Size | WLL(tons) | WLL(lbs) | Throat Opening | Pin Diameter | Approx.Weight(lbs) |
| 3/16" | 1/3 | 726 | 0.38" | 0.25" | 0.06 |
| 1/4" | 1/2 | 1100 | 0.47" | 0.31" | 0.1 |
| 5/16" | 3/4 | 1650 | 0.53" | 0.38" | 0.19 |
| 3/8" | 1 | 2200 | 0.66" | 0.44" | 0.31 |
| 7/16" | 1-1/2 | 3300 | 0.75" | 0.50" | 0.38 |
| 1/2" | 2 | 4400 | 0.81" | 0.63" | 0.72 |
| 5/8" | 3-1/4 | 7150 | 1.06" | 0.75" | 1.37 |
| 3/4" | 4-3/4 | 10450 | 1.25" | 0.88" | 2.35 |
| 7/8" | 6-1/2 | 14300 | 1.44" | 1.00" | 3.62 |
| 1" | 8-1/2 | 18700 | 1.69" | 1.13" | 5.03 |
| 1-1/8" | 9-1/2 | 20900 | 1.81" | 1.25" | 7.41 |
| 1-1/4" | 12 | 26400 | 2.03" | 1.38" | 9.5 |
| 1-3/8" | 13-1/2 | 29700 | 2.25" | 1.50" | 13.53 |
| 1-1/2" | 17 | 37400 | 2.38" | 1.63" | 17.2 |
| 1-3/4" | 25 | 55000 | 2.88" | 2.00" | 27.78 |
| 2" | 35 | 77000 | 3.25" | 2.25" | 45 |
| 2-1/2" | 55 | 12000 | 4.13" | 2.75" | 85.75 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Bow Shackle
-Standard:U.S. G209
-Material:Carbon steel
-Size:3/16 to 2 1/2 Inch
-Surface treatment:Electro Galvanized
-Also Available in Alloy steel, Stainless steel 304 or 316,High polished, Mirror Polished,Color Painted, Hot Dipped Galvanized, Self colored or other etc.
-Application:Lifting Fittings
-Usage:Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Related Standards:
U.S. G209, G210, G2130, G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
