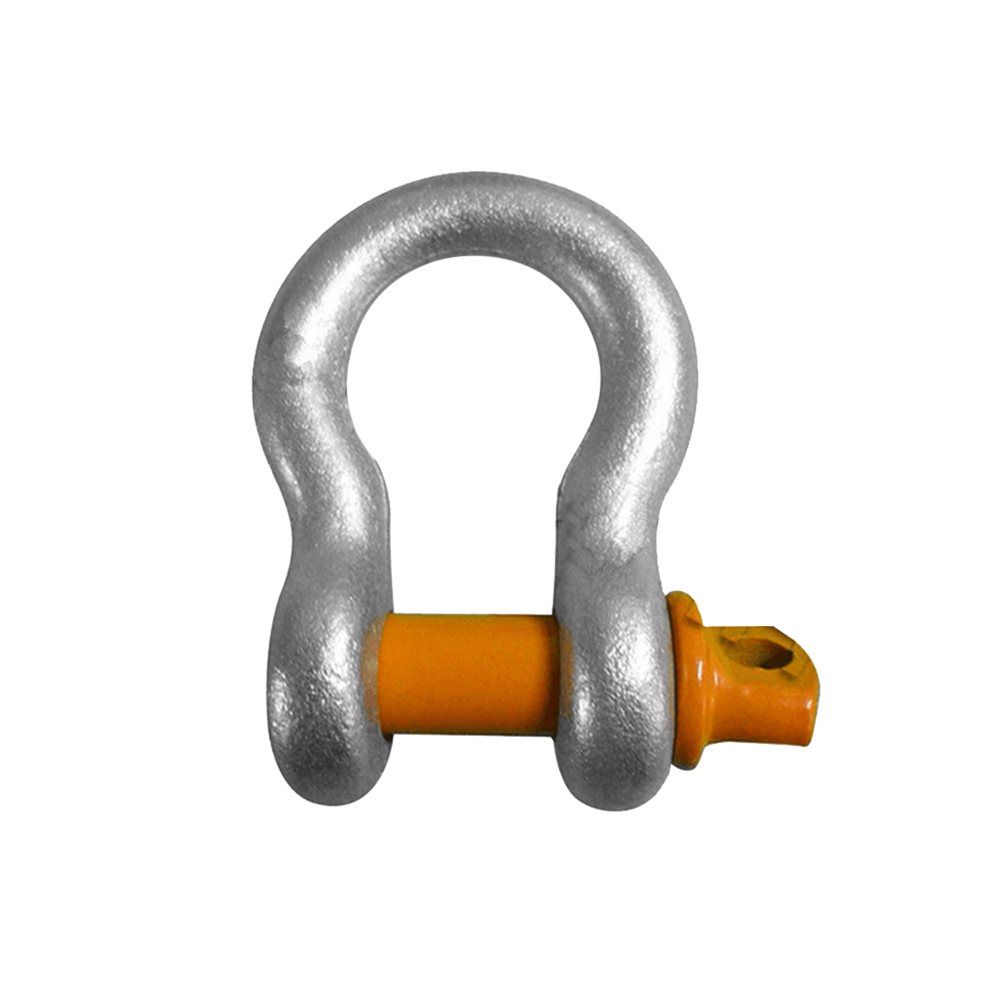

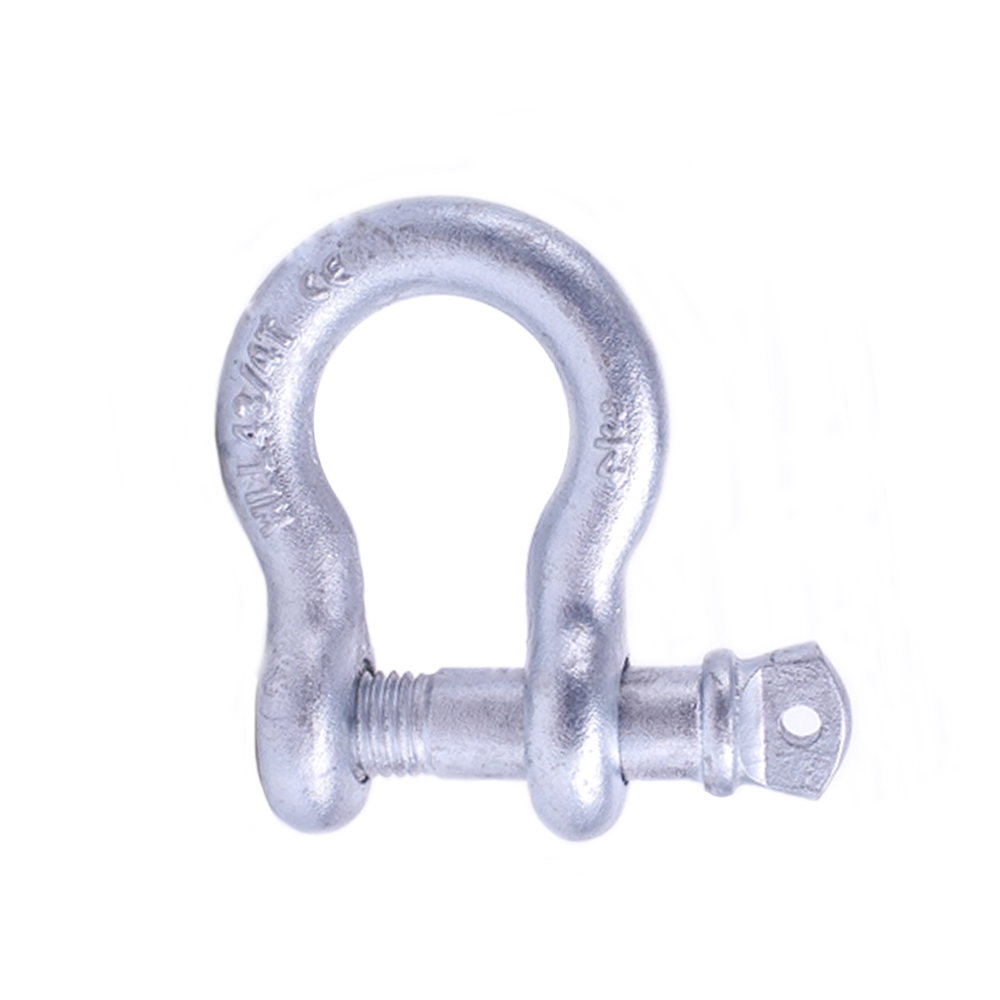

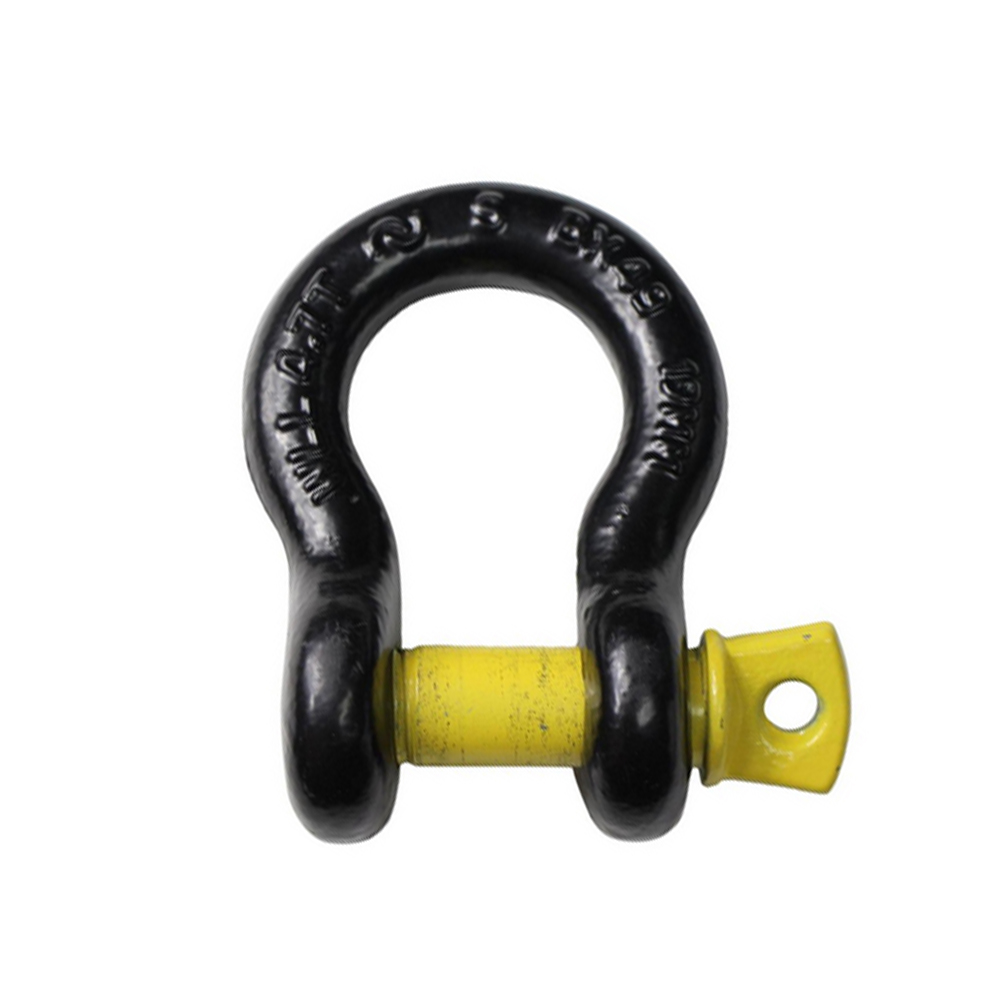

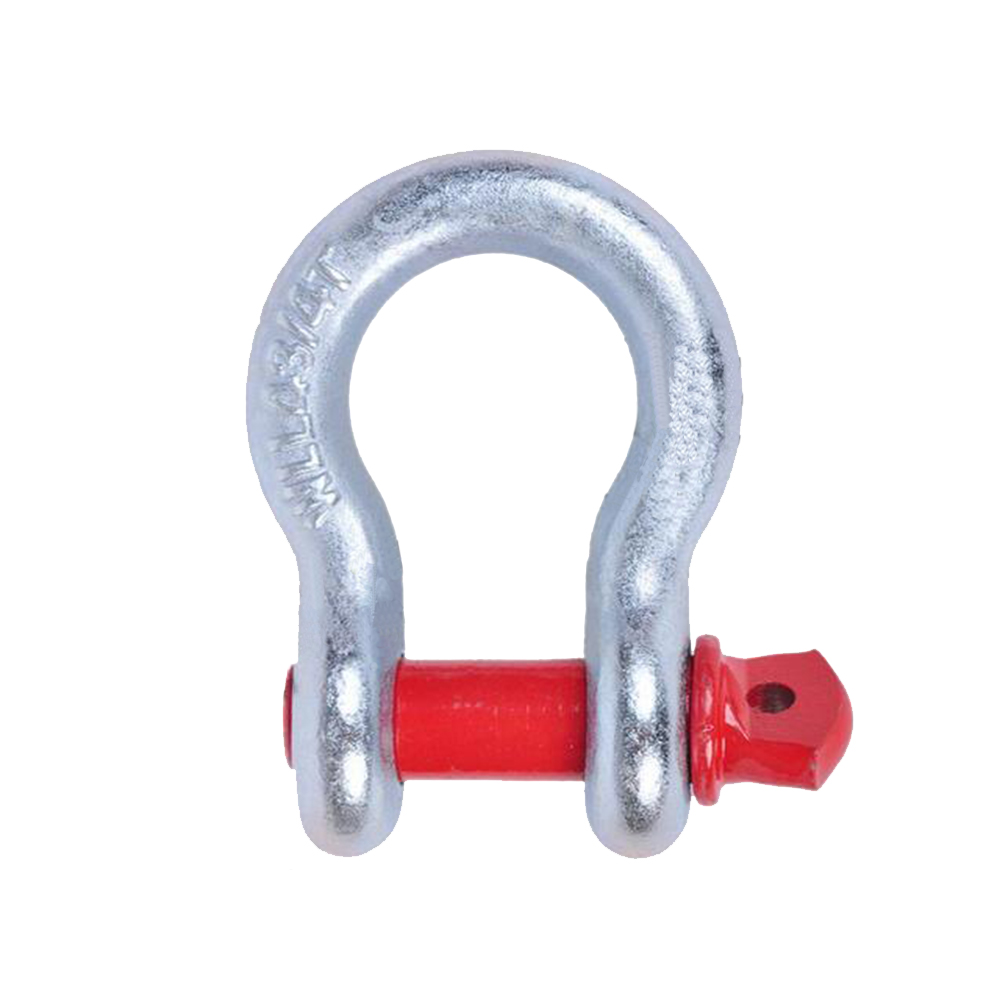

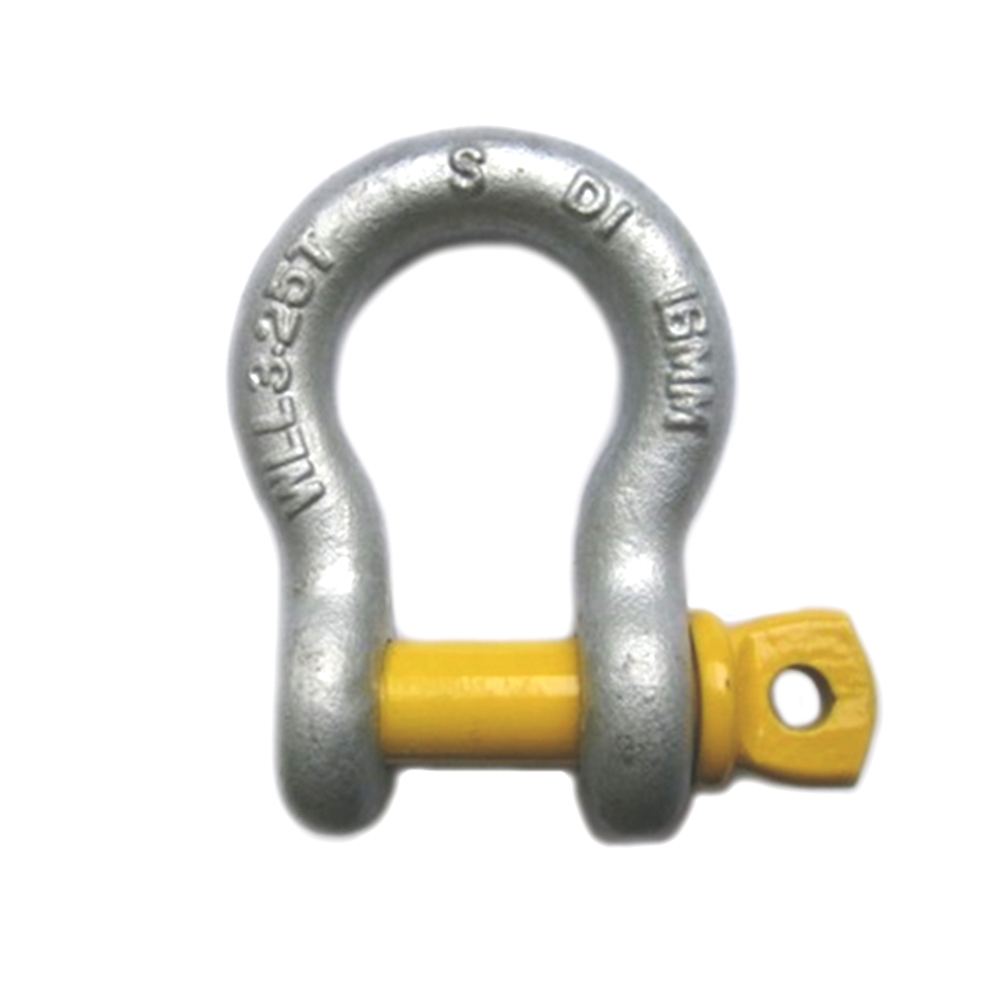

AS2741 Standard Bow Shackle High Strength Grade S Forged In Plastic Australian Shackle with Screw Pin Galvanized Forged Anchor Shackle
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Bow Shackle with Screw Pin
-Standard:Australian Standard,AS2741
-Material:Carbon steel
-Size: 6-63mm
-Surface Treatment:In plastic
-Also Available in Alloy steel,Hot Dipped Galvanized, Electro Galvanized,Stainless steel 304 or 316,High polished ,Color Painted, or Self colored etc.
-Body Forged Carbon Steel,and pin Forged Alloy Steel.
Detail Information

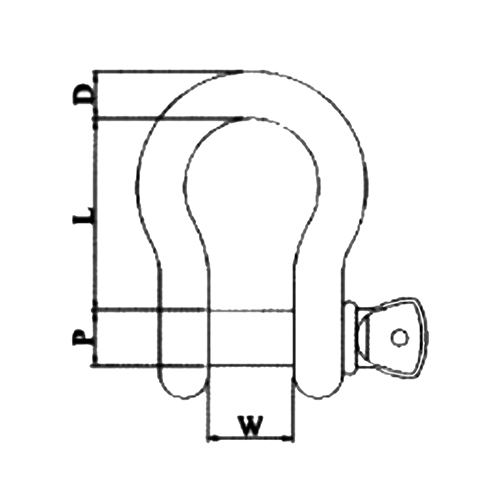

| Dimensions(mm) | |||||
| Size（mm） | W.L.L(tons.) | D | L | P | W |
| 6 | 0.5 | 6 | 29 | 8 | 12 |
| 8 | 0.75 | 8 | 31 | 10 | 15 |
| 10 | 1 | 10 | 37 | 11 | 17 |
| 11 | 1.5 | 11 | 43 | 13 | 18 |
| 13 | 2 | 13 | 48 | 16 | 21 |
| 16 | 3.2 | 16 | 61 | 19 | 28 |
| 19 | 4.7 | 19 | 72 | 22 | 32 |
| 22 | 6.5 | 22 | 84 | 25 | 37 |
| 25 | 8.5 | 25 | 95 | 29 | 42 |
| 29 | 9.5 | 29 | 108 | 32 | 46 |
| 32 | 12 | 32 | 119 | 35 | 52 |
| 35 | 13.5 | 35 | 133 | 38 | 57 |
| 38 | 17 | 38 | 146 | 41 | 60 |
| 44 | 25 | 44 | 178 | 51 | 73 |
| 51 | 35 | 51 | 197 | 57 | 83 |
| 63 | 55 | 63 | 267 | 70 | 105 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Bow Shackle with Screw Pin
-Standard:Australian Standard,AS2741
-Material:Carbon steel
-Size: 6-63mm
-Surface Treatment:In plastic
-Also Available in Alloy steel,Hot Dipped Galvanized, Electro Galvanized,Stainless steel 304 or 316,High polished ,Color Painted, or Self colored etc.
-Body Forged Carbon Steel,and pin Forged Alloy Steel.
-Quenched & Tempered.
-Test Load is 2.2 times the Working Load Limit.
-Ultimate Load is 5 times the Working Load Limit.
-Technology:Drop forged
-Application:Wire Rope Fittings
-Usage:Lifting and connecting
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Related Standards:
U.S. G209, G210, G2130, G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
