Marine Anchor Drop Forged Shackle DIN82101 Standard Form a Dee Shackle Galvanized Shackle with Collar Pin
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name:Galvanized Shackle
-Standard:DIN82101 Form A
-Material:Carbon steel
-Size:0.1mm to 25mm
-Surface:Galvanized or Hot dip galvanized or self colored
-Color:Silver
-Technology:Drop forged
Detail Information

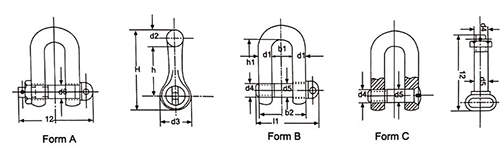

| Product Code | Form | Zul.Be lastung | b1 | b2 | d1 | d2 | d3 | d4 | d5 | d6 | H | h1 | h | l1 | l2 | d5 | Weight/pc kg | |||||
| A | B | C | t | kn. | A | B | C | |||||||||||||||
| CHE01 | 0.1 | - | - | 0.1 | 1 | 7 | 15 | 4 | 5 | 10 | M5 | 5 | 5.3-0.1 | 28 | 15.5 | 18 | 24 | - | 5 | 0.013 | - | - |
| CHE02 | 0.16 | - | - | 0.16 | 1.6 | 8 | 18 | 5 | 6 | 12 | M6 | 6 | 6.4-0.1 | 33 | 18 | 21 | 28 | - | 6 | 0.024 | - | - |
| CHE03 | 0.25 | - | - | 0.25 | 2.5 | 11 | 25 | 7 | 8 | 16 | M8 | 8 | 8.4-0.2 | 44 | 24 | 28 | 38 | - | 8 | 0.045 | - | - |
| CHE04 | 0.4 | 0.4 | 0.4 | 0.4 | 4.0 | 14 | 31 | 8 | 10 | 20 | M10 | 10 | 10.5-0.3 | 55 | 30 | 35 | 45 | 58 | 10 | 0.090 | 0.085 | 0.10 |
| CHE05 | 0.6 | 0.6 | 0.6 | 0.63 | 6.3 | 17 | 39 | 10 | 12 | 24 | M12 | 12 | 13-0.5 | 66 | 36 | 42 | 53 | 66 | 12 | 0.107 | 0.165 | 0.18 |
| CHE06 | 1 | 1 | 1 | 1 | 10 | 21 | 49 | 13 | 15 | 32 | M16 | 16 | 17-0.5 | 88 | 49 | 57 | 64 | 80 | 16 | 0.36 | 0.34 | 0.39 |
| CHE07 | 1.6 | 1.6 | 1.6 | 1.6 | 16 | 27 | 63 | 17 | 19 | 40 | M20 | 20 | 21-0.5 | 110 | 61 | 71 | 85 | 100 | 20 | 0.75 | 0.72 | 0.80 |
| CHE08 | 2 | 2 | 2 | 2 | 20 | 30 | 70 | 19 | 21 | 44 | M22 | 22 | 23-0.5 | 121 | 67 | 78 | 93 | 110 | 22 | 1.00 | 0.96 | 1.08 |
| CHE09 | 2.5 | 2.5 | 2.5 | 2.5 | 25 | 33 | 78 | 21 | 23 | 48 | M24 | 24 | 25-0.5 | 132 | 73 | 85 | 103 | 122 | 24 | 1.32 | 1.25 | 1.40 |
| CHE10 | 3 | 3 | 3 | 3.15 | 31.5 | 33 | 90 | 24 | 26 | 64 | M27 | 27 | 23-0.5 | 150 | 83.5 | 97 | 120 | 140 | 27 | 1.85 | 1.75 | 2.00 |
| CHE11 | 4 | 4 | 4 | 4 | 40 | 42 | 100 | 27 | 29 | 60 | M30 | 30 | 31-0.5 | 165 | 91 | 106 | 130 | 150 | 30 | 2.50 | 2.40 | 2.70 |
| CHE12 | 5 | 5 | 5 | 5 | 50 | 47 | 111 | 30 | 33 | 72 | M36 | 36 | 37-0.5 | 198 | 111 | 129 | 144 | 172 | 36 | 4.00 | 3.80 | 4.30 |
| CHE13 | 6 | 6 | 6 | 6.3 | 63 | 53 | 126 | 34 | 37 | 78 | M39 | 39 | 40-0.5 | 215 | 119.5 | 139 | 160 | 190 | 39 | 5.40 | 5.20 | 5.80 |
| CHE14 | 8 | 8 | 8 | 8 | 80 | 60 | 142 | 38 | 41 | 90 | M49 | 49 | 46-0.5 | 248 | 139.5 | 162 | 182 | 217 | 49 | 7.90 | 7.60 | 8.50 |
| CHE15 | 10 | 10 | 10 | 10 | 100 | 66 | 155 | 42 | 45 | 96 | M48 | 48 | 50-1 | 264 | 147 | 171 | 200 | 235 | 48 | 10.0 | 9.70 | 10.80 |
| CHE16 | 12 | 12 | 12 | 12.5 | 125 | 73 | 173 | 47 | 50 | 104 | M52 | 52 | 54-1 | 286 | 158 | 184 | 216 | 254 | 52 | 13.50 | 13.00 | 14.00 |
| CHE17 | 16 | 16 | 16 | 16 | 160 | 81 | 193 | 52 | 55 | 120 | M60 | 60 | 62-1 | 330 | 185 | 215 | 245 | 285 | 60 | 19.20 | 19.10 | 20.50 |
| CHE18 | 20 | 20 | 20 | 20 | 200 | 90 | 214 | 58 | 61 | 136 | M68 | 68 | 70-1 | 374 | 211 | 245 | 270 | 311 | 68 | 28.00 | 27.50 | 29.50 |
| CHE19 | 25 | - | 25 | 25 | 250 | 100 | 226 | 63 | 67 | 144 | M72 | 72 | 74-1 | 396 | 221 | 257 | 324 | 371 | 72 | 34.00 | - | 36.00 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name:Galvanized Shackle
-Standard:DIN82101 Form A
-Material:Carbon steel
-Size:0.1mm to 25mm
-Surface:Galvanized or Hot dip galvanized or self colored
-Color:Silver
-Technology:Drop forged
-Safety Factor:4:1
-Application:Lifting fittings
-Usage:lifting, pullling and other usages.
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Related Standards:
U.S. G209, G210, G2130, G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
