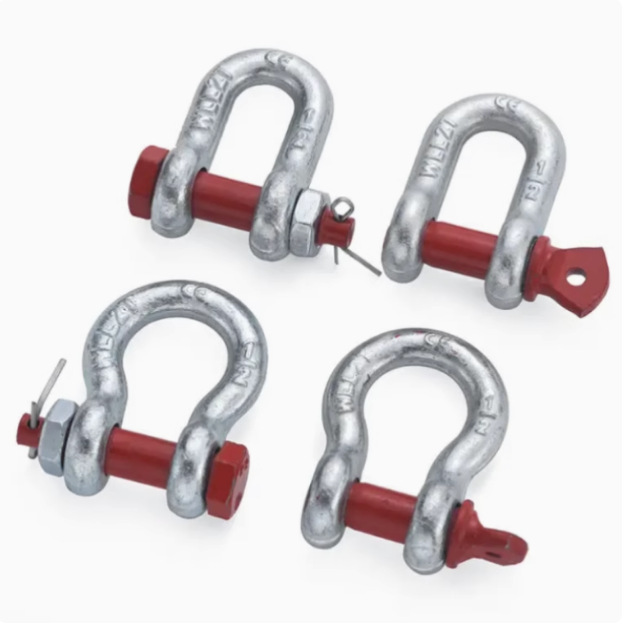

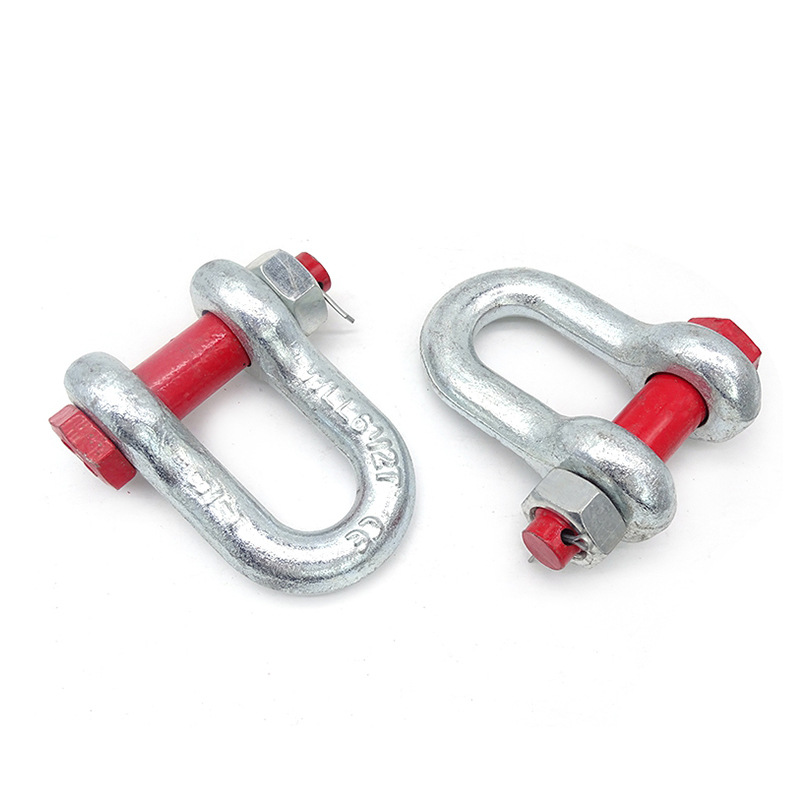

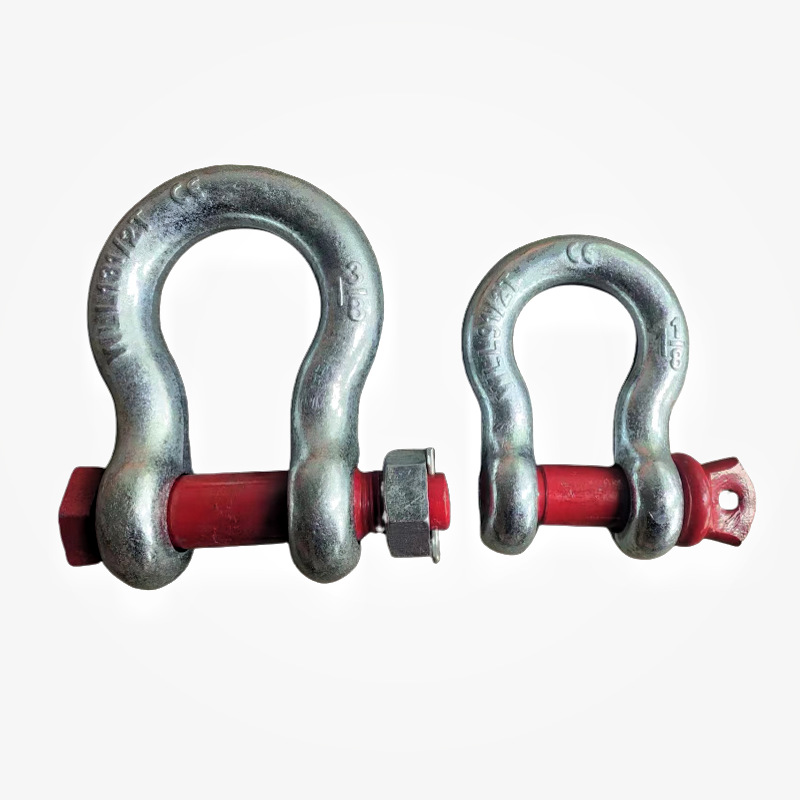

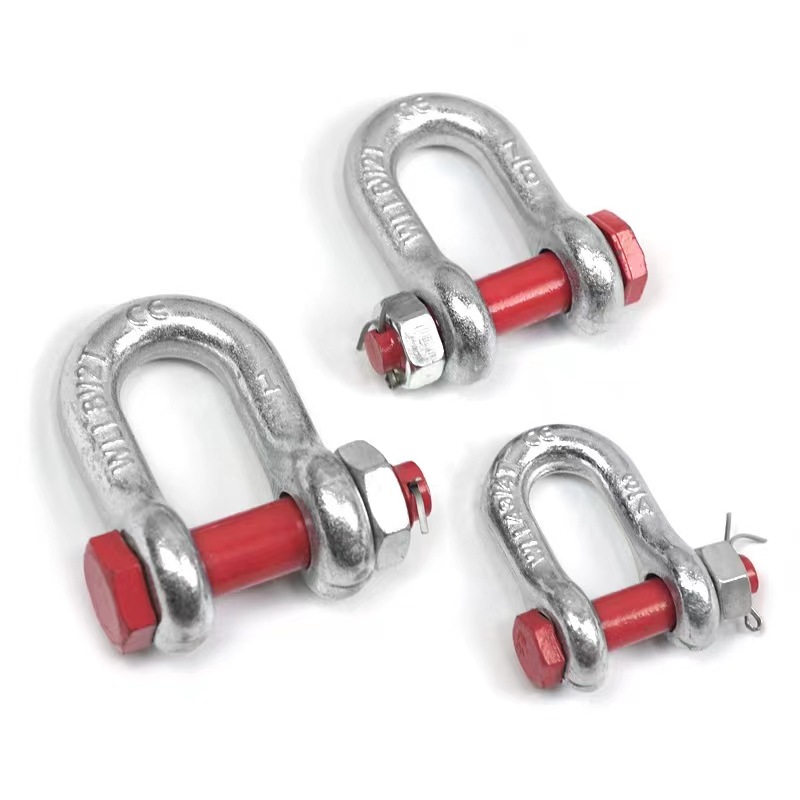

U.S. Type Drop Forged G-2150 Safety Bolt Anchor Chain Shackle Hot Diped Galvanized D Shackles
Safety factor 6:1
US type high tensile forged shackle Anchor Chain Shackles
Screw pin and round pin chain sahckles meet the requirements of U.S. federal specification
RR-C-271 Type IVB, Class 2, Grade A.
Working load limit permanently shown on every shackle
Forged ,Quenched and Tempered with alloy pins.
Finish:Galvanized or Hot Dip Galvanized or self colored.
Maximum proof load is 2.2 times working load limit.
Minimum Ultimate load is 6 times working load limit.
Also Available in Alloy steel, Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished etc.
Detail Information
| Weight Each (kg) | Nominal Size (in.) | Working Load Limit (t) A | Dimensions(mm) | ||||||||||
| B | C | D | E | F | G | H | L | M | P | P | |||
| 3/16 | 1/3 | 9.65 | 6.35 | 22.40 | 4.85 | 15.20 | 14.20 | 37.30 | 24.90 | 32.77 | |||
| 0.06 | 1/4 | 1/2 | 11.90 | 7.85 | 28.70 | 6.35 | 19.80 | 15.50 | 19.05 | 46.70 | 32.50 | 15.49 | 39.62 |
| 0.10 | 5/16 | 3/4 | 13.50 | 9.65 | 31.00 | 7.85 | 21.30 | 19.10 | 25.40 | 53.00 | 37.30 | 19.05 | 46.23 |
| 0.15 | 3/8 | 1 | 16.80 | 11.20 | 36.60 | 9.65 | 26.20 | 23.10 | 30.99 | 63.00 | 45.20 | 23.11 | 55.12 |
| 0.22 | 7/16 | 11/2 | 19.10 | 12.70 | 42.90 | 11.20 | 29.50 | 26.90 | 36.09 | 74.00 | 51.50 | 41.15 | 63.75 |
| 0.34 | 1/2 | 2 | 20.60 | 16.00 | 47.80 | 12.70 | 33.30 | 30.20 | 41.04 | 83.50 | 58.50 | 45.97 | 71.12 |
| 0.67 | 5/8 | 31/4 | 26.90 | 19.10 | 60.50 | 16.00 | 42.90 | 38.10 | 50.80 | 106.00 | 74.50 | 58.67 | 89.66 |
| 1.14 | 3/4 | 43/4 | 31.80 | 22.40 | 71.50 | 19.10 | 51.00 | 46.00 | 60.45 | 126.00 | 89.00 | 69.85 | 103.38 |
| 1.74 | 7/8 | 61/2 | 36.60 | 25.40 | 84.00 | 22.40 | 58.00 | 53.00 | 71.37 | 148.00 | 102.00 | 81.03 | 119.63 |
| 2 .52 | 1 | 81/2 | 42.90 | 28.70 | 95.50 | 25.40 | 68.50 | 60.50 | 81.03 | 167.00 | 119.00 | 93.73 | 134.87 |
| 3.45 | 1-1/8 | 91/2 | 46.00 | 31.80 | 108.00 | 28.70 | 74.00 | 68.50 | 90.93 | 190.00 | 131.00 | 103.12 | 149.86 |
| 4.90 | 1-1/4 | 12 | 51.50 | 35.10 | 119.00 | 31.80 | 82.50 | 76.00 | 100.08 | 210.00 | 146.00 | 115.06 | 165.35 |
| 6.24 | 1-3/8 | 131/2 | 57.00 | 38.10 | 133.00 | 35.10 | 92.00 | 84.00 | 111 25 | 233.00 | 162.00 | 127.00 | 183 13 |
| 8.39 | 1-1/2 | 17 | 60.50 | 41.40 | 146.00 | 38.10 | 98.50 | 92.00 | 122.17 | 254.00 | 175.00 | 136.05 | 196 34 |
| 14.20 | 1-3/4 | 25 | 73.00 | 51.00 | 178.00 | 44.50 | 127.00 | 106.00 | 146.05 | 313.00 | 225.00 | 162.05 | 229.87 |
| 21.20 | 2 | 35 | 82.50 | 57.00 | 197.00 | 51.00 | 146.00 | 122.00 | 171.45 | 348.00 | 253.00 | 184.15 | 264.41 |
| 38.60 | 2-1/2 | 55 | 105.00 | 70.00 | 330.00 | 66.50 | 184.00 | 145.00 | 203.20 | 453.00 | 327.00 | 238.25 | 344.42 |
| 56.00 | 3 | 85 | 127.00 | 82.50 | 368.00 | 76.00 | 200.00 | 165.00 | 215.90 | 546.00 | 365.00 | 279.40 | 419.10 |
| 3-1/2 | 120 | 133.00 | 95.50 | 267.00 | 92.00 | 229.00 | 203.00 | 626.00 | 419.00 | 482.60 | |||
| 4 | 150 | 140.00 | 108.00 | 372.00 | 104.00 | 254.00 | 229.00 | 653.00 | 468.00 | 501.65 | |||
Safety factor 6:1
US type high tensile forged shackle Anchor Chain Shackles
Screw pin and round pin chain sahckles meet the requirements of U.S. federal specification
RR-C-271 Type IVB, Class 2, Grade A.
Working load limit permanently shown on every shackle
Forged ,Quenched and Tempered with alloy pins.
Finish:Galvanized or Hot Dip Galvanized or self colored.
Maximum proof load is 2.2 times working load limit.
Minimum Ultimate load is 6 times working load limit.
Also Available in Alloy steel, Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished etc.
Related Standards:
U.S. G209, G210, G2130, G2150 Type Shackle, European Dee and Bow Type Shackle, JIS Dee and Bow Type Shackle, Australia Type Shackles, Large D Type Shackle, Twist Type Shackle, Stamped D Type Shackle, Halyard Type Shackle with Key Pin, Headboard Type Shackle with Captive Pin, Plate Type Shackle, Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
