RR-W-410 6x24+7FC 6x12+7FC Ungalvanized Wire Rope
-Specification:RR-W-410
-Ungalvanized Wire Rope
-Improved Plow Steel (IPS)

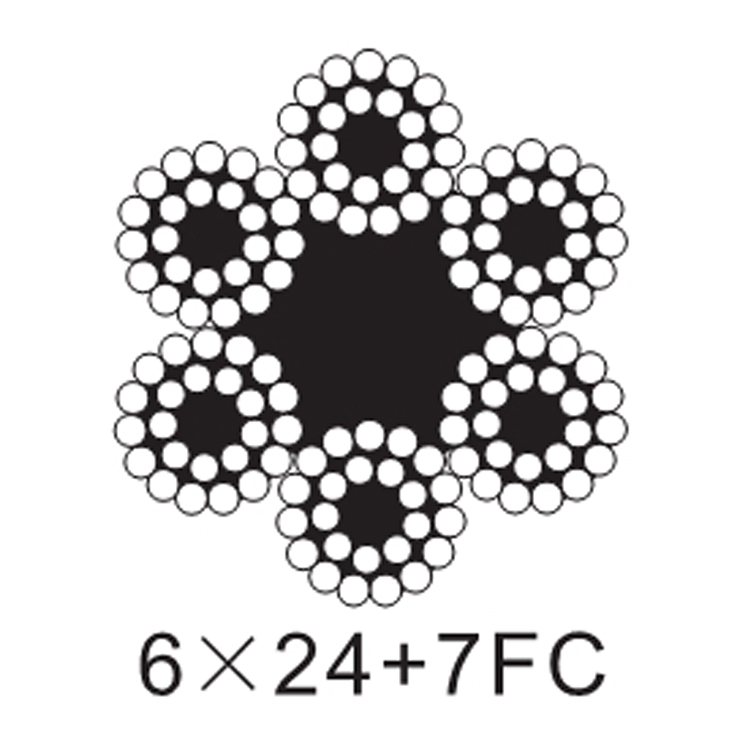

-6x24+7FC Diameter:3/8" to 1"

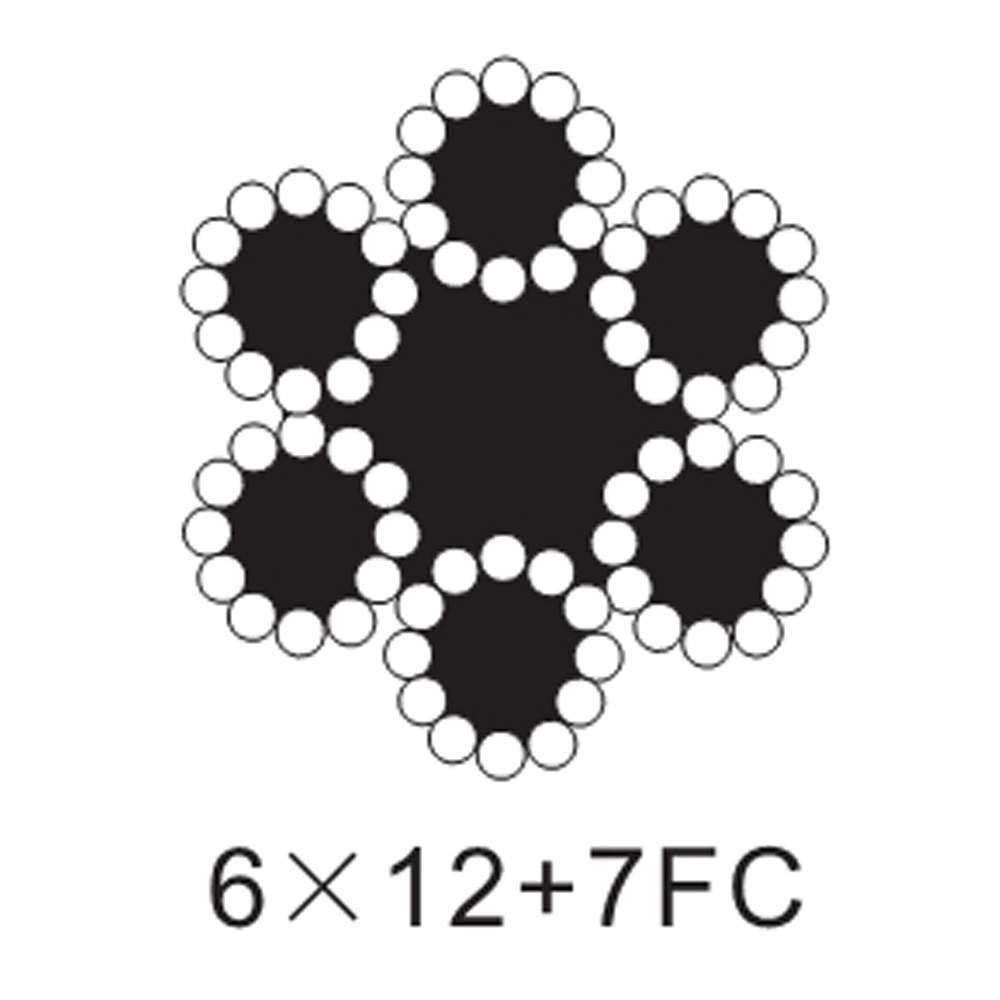

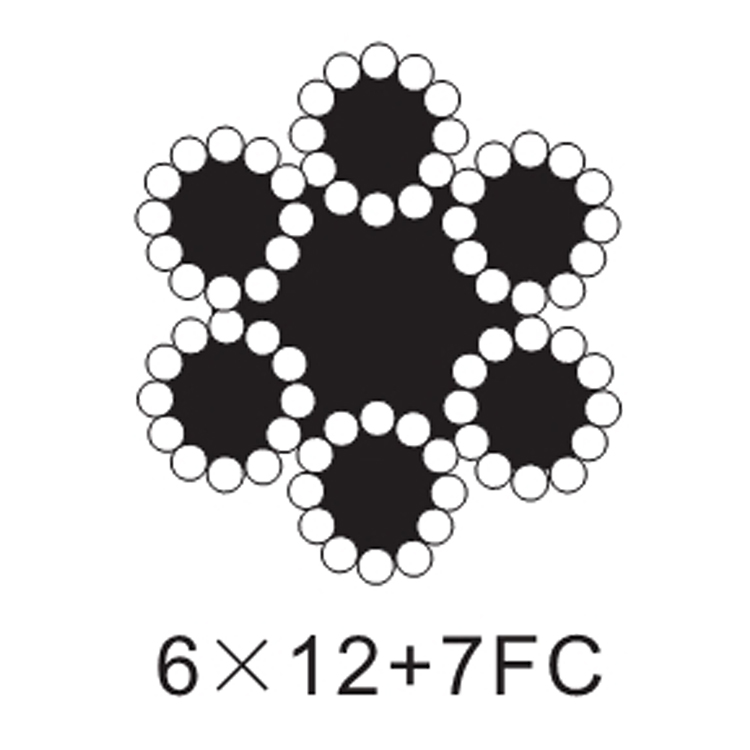

-6x12+7FC Diameter:3/8" to 7/8"
Detail Information
6×24+7FC,6×12+7FC | |||||
| Diameter(mm) | Approx.Weight | Min.Breaking Strength | Acceptance Breaking Strength | ||
| Nominal(minimum) | Nominal(Maximum) | ||||
| in | in | Ib/1000' | Kg/1000' | Ib | Ib |
| 6×24+7FC,ungalvanized | |||||
| 3/8" | 0.394 | 194 | 88 | 9540 | 9300 |
| 7/16" | 0.459 | 264 | 120 | 12900 | 12600 |
| 1/2" | 0.525 | 344 | 156 | 16800 | 16380 |
| 9/16" | 0.591 | 437 | 198 | 21200 | 20700 |
| 5/8" | 0.656 | 540 | 244 | 26000 | 25400 |
| 3/4" | 0.788 | 780 | 352 | 37200 | 36200 |
| 13/16" | 0.853 | 910 | 413 | 43600 | 42600 |
| 7/8" | 0.919 | 1060 | 480 | 50400 | 49200 |
| 1" | 1.050 | 1380 | 626 | 65600 | 64000 |
| 6×12+7FC,ungalvanized | |||||
| 3/8" | 0.394 | 140 | 64 | 6400 | - |
| 1/2" | 0.525 | 250 | 114 | 11400 | - |
| 9/16" | 0.591 | 320 | 144 | 15100 | - |
| 5/8" | 0.656 | 390 | 178 | 18700 | - |
| 3/4" | 0.788 | 560 | 255 | 26900 | - |
| 7/8" | 0.919 | 770 | 348 | 36300 | - |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.

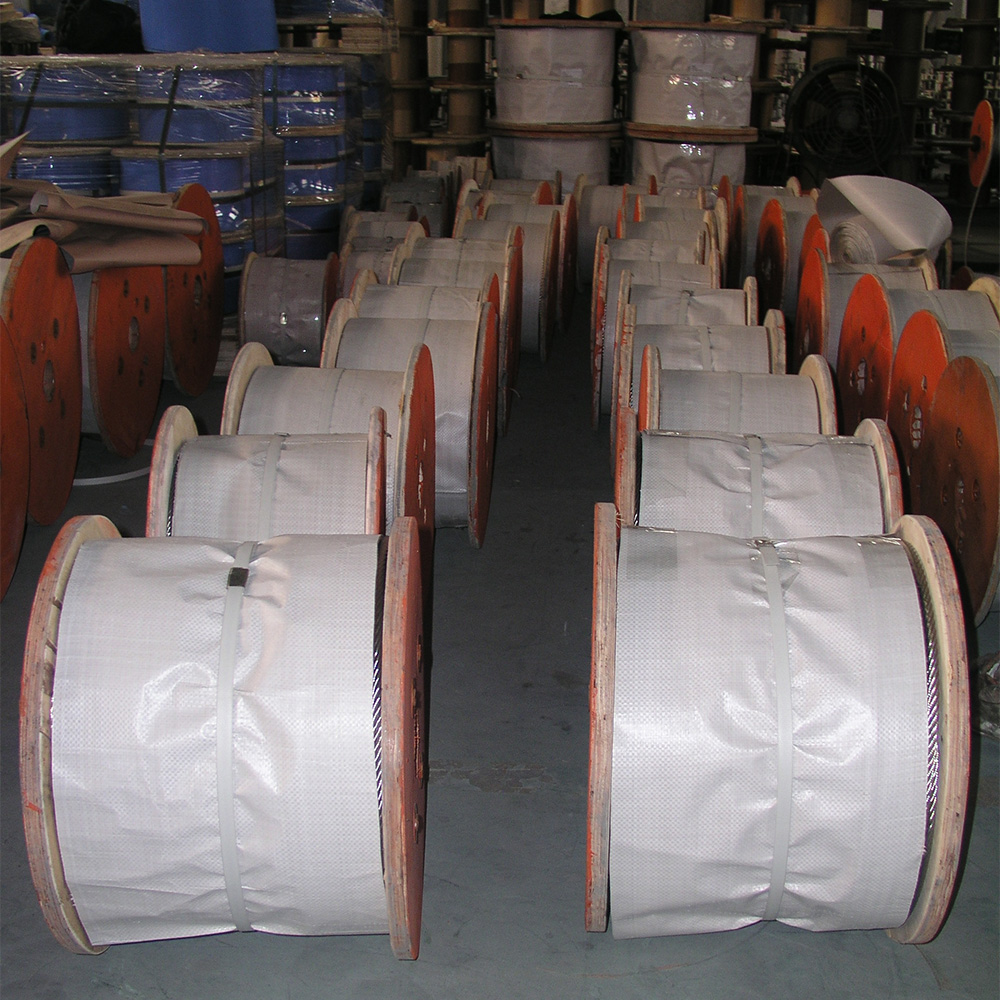

-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Steel wire ropes manufactured to specification RR-W-410 are designed for general-purpose and heavy-duty applications, ensuring high strength, flexibility, and durability. This U.S. federal standard covers various rope constructions such as 6×19, 6×37, and 7×19, with fiber or independent wire rope cores. Made from high-carbon galvanized or stainless steel, RR-W-410 ropes meet strict requirements for tensile strength, lay direction, and coating quality. They are widely used in cranes, winches, hoisting, towing, and rigging operations, providing reliable performance in demanding industrial, marine, and construction environments.We strictly follow the standard production process and link control to ensure the delivery of customer-satisfied quality, especially for the main markets of the United States and South America.
