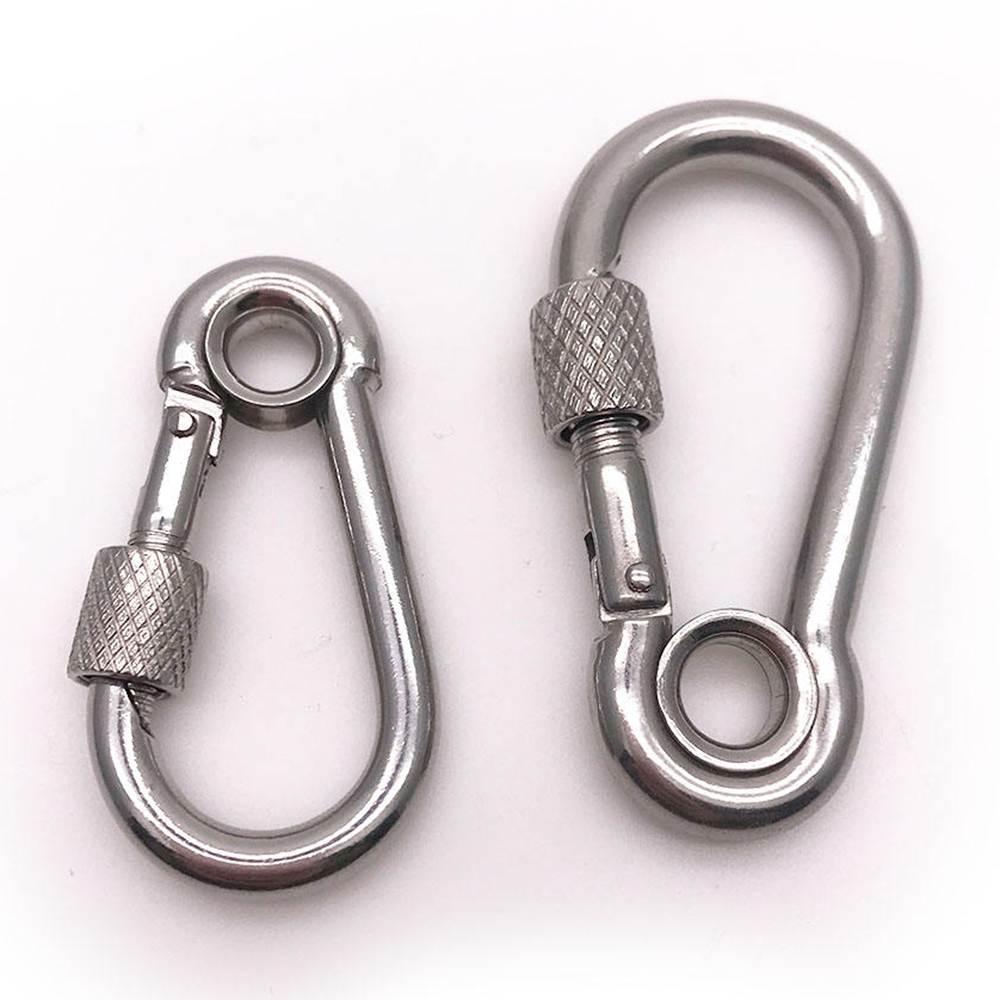

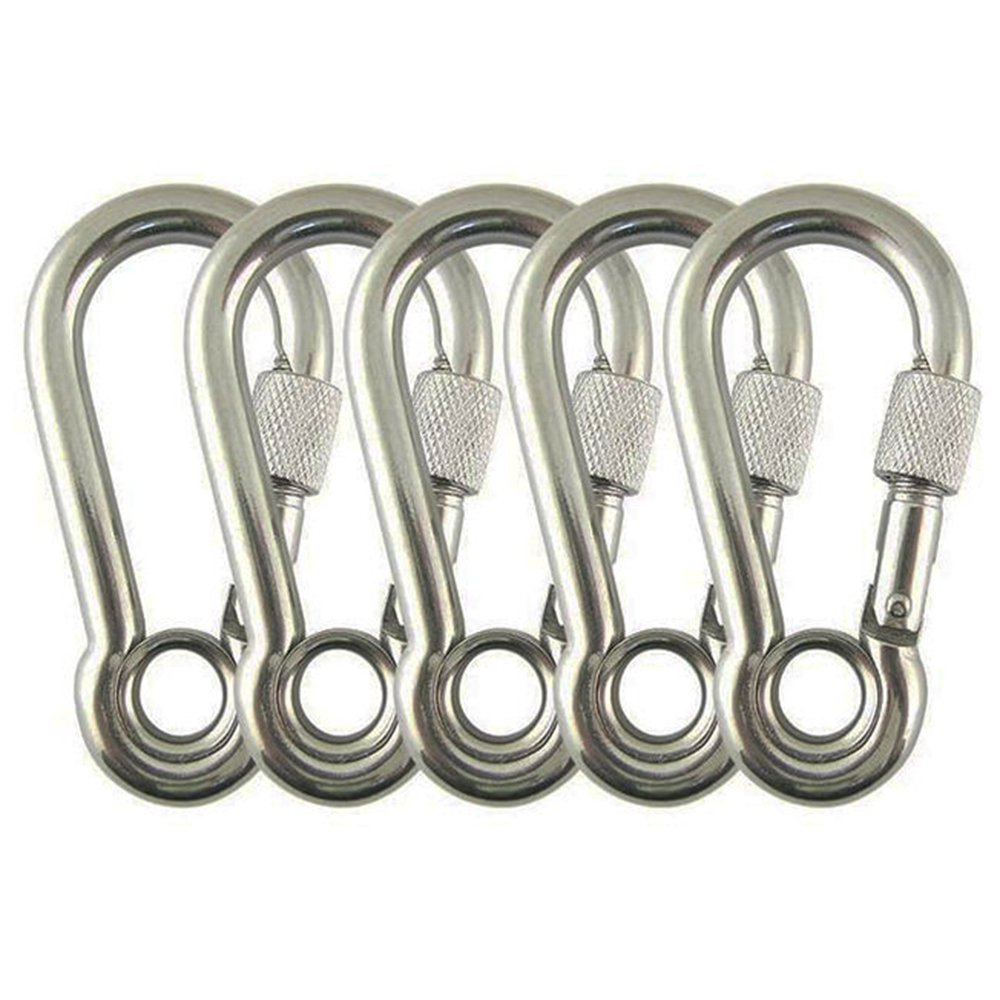

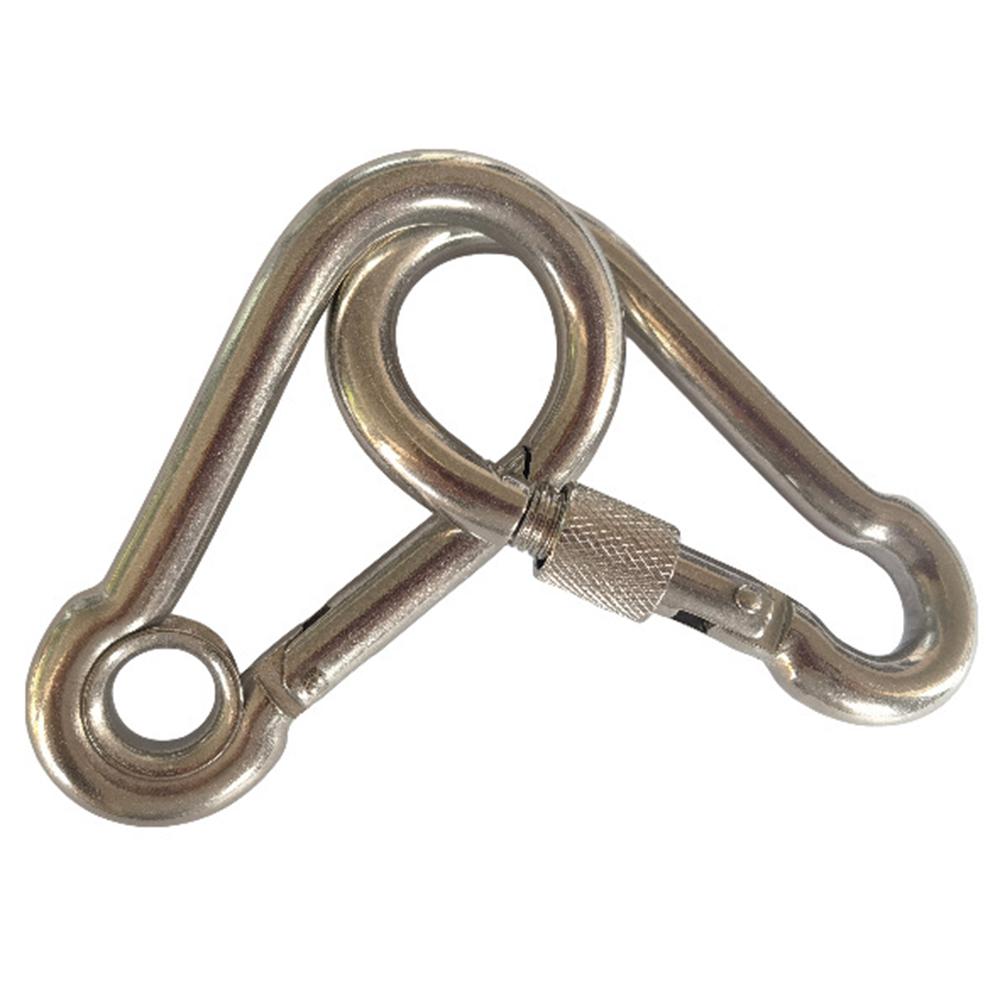

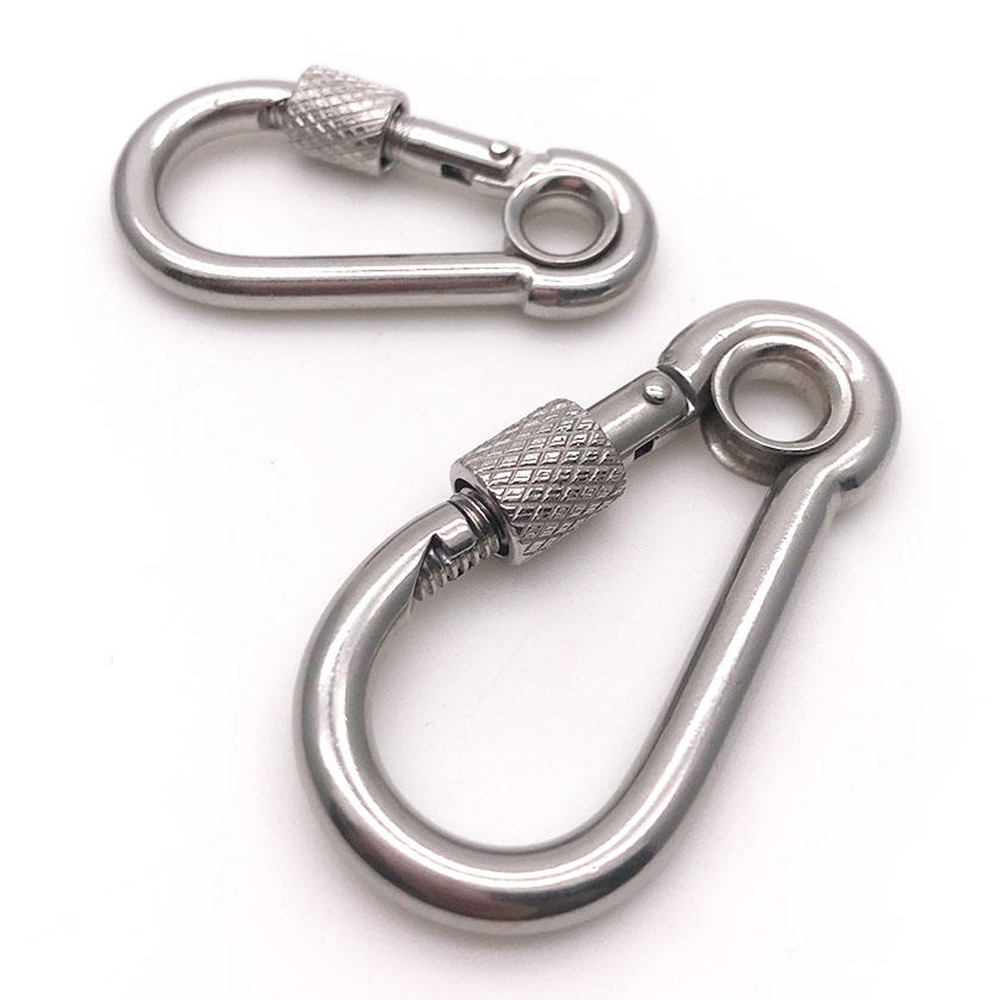

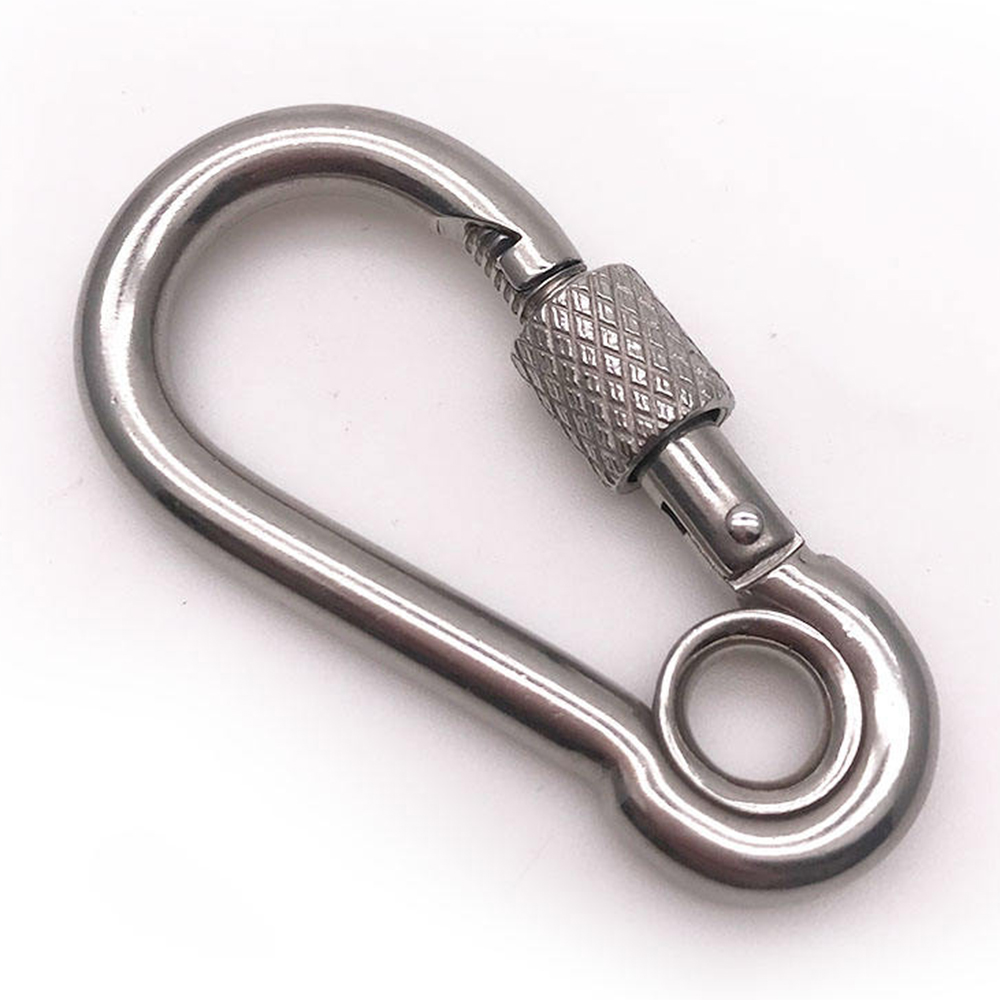

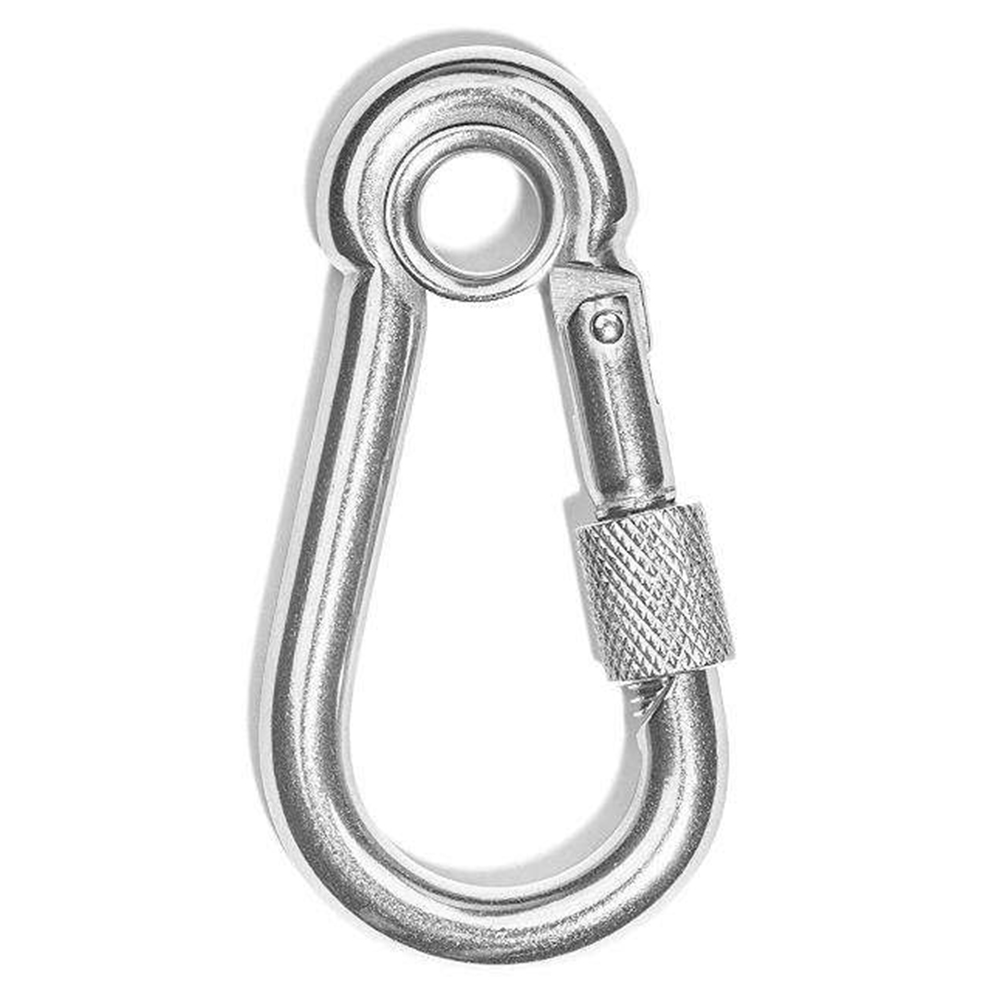

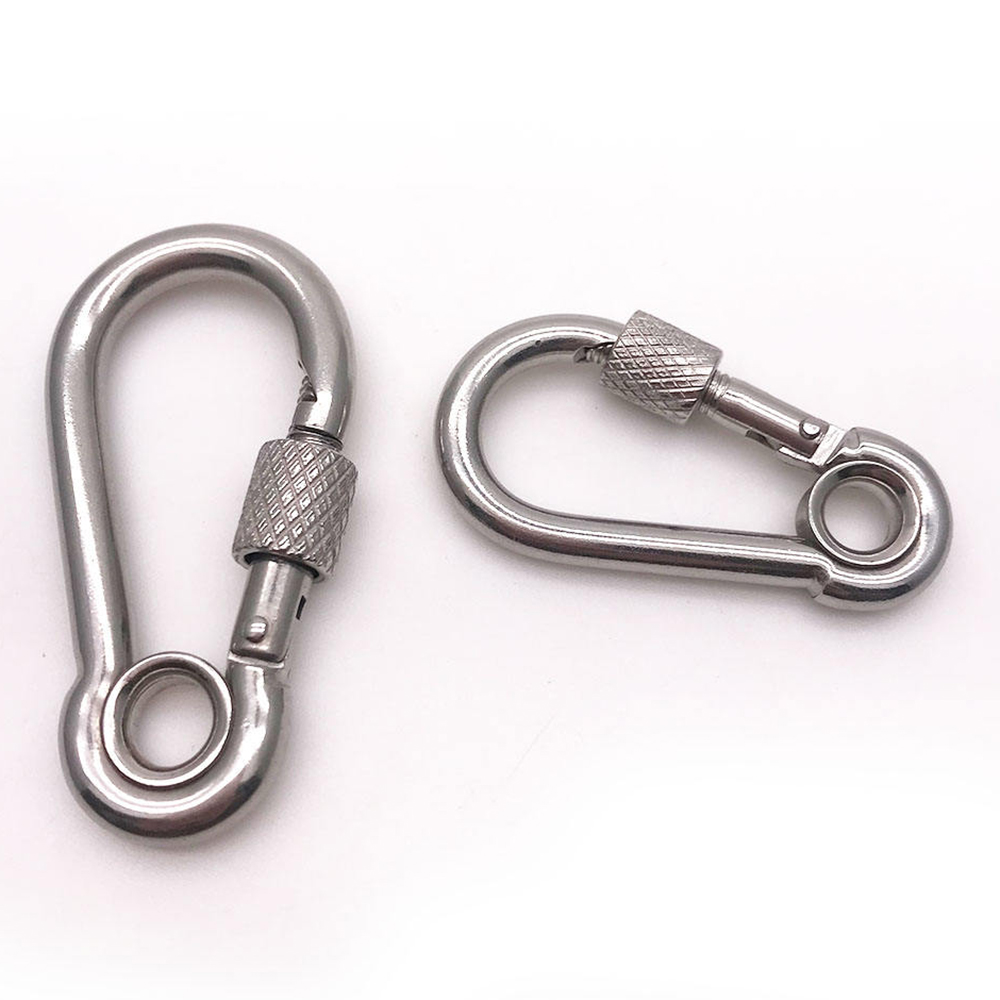

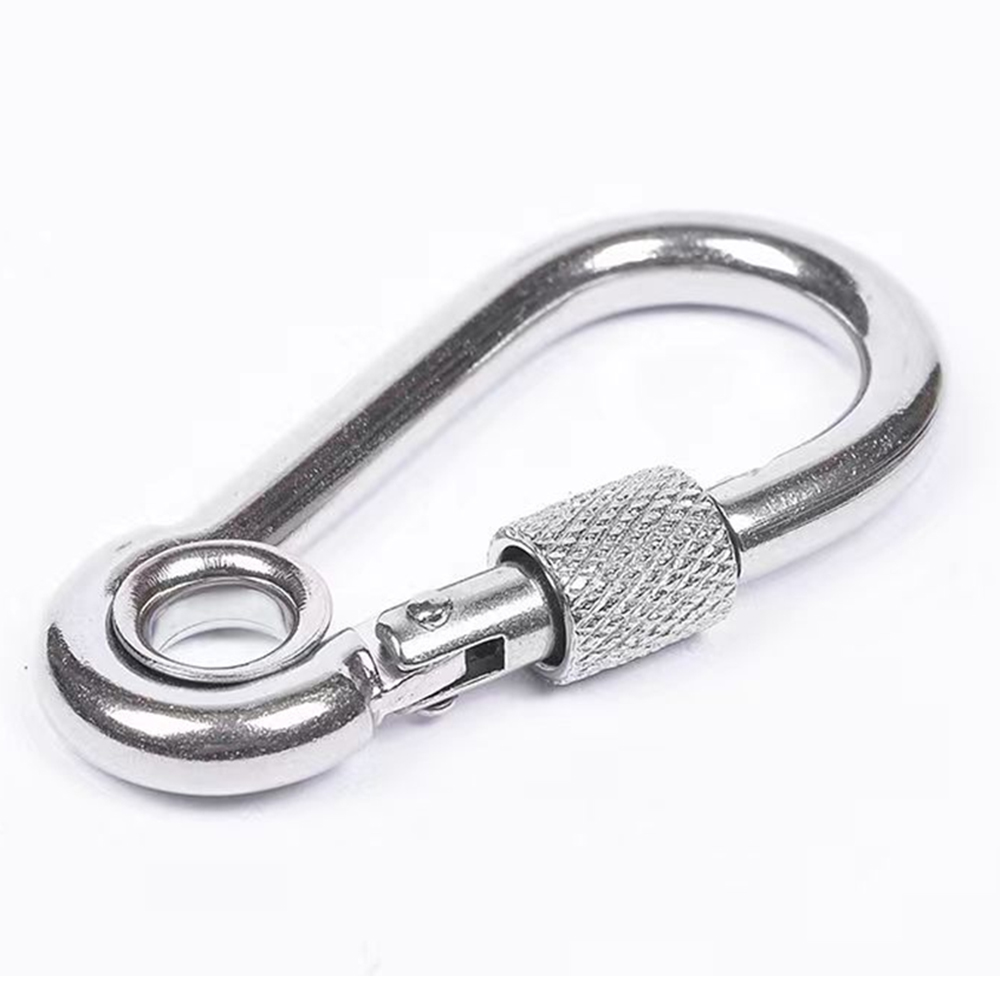

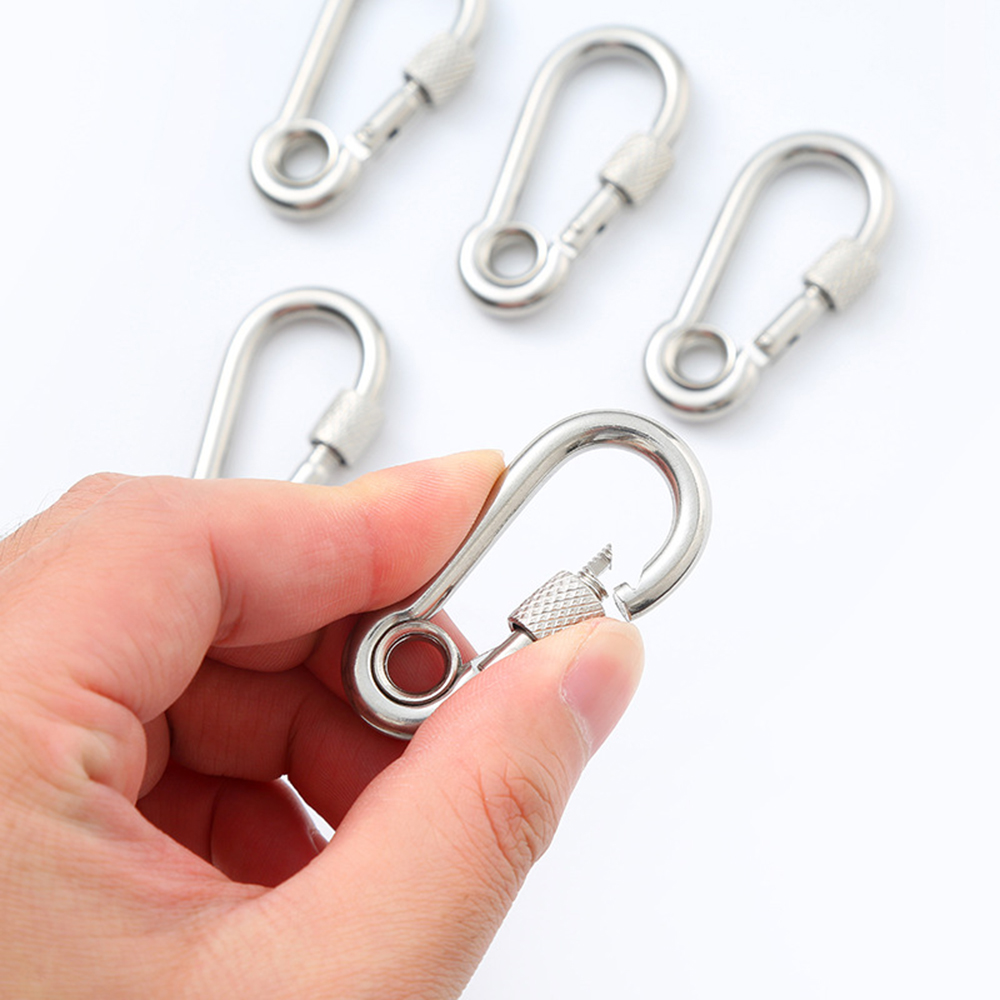

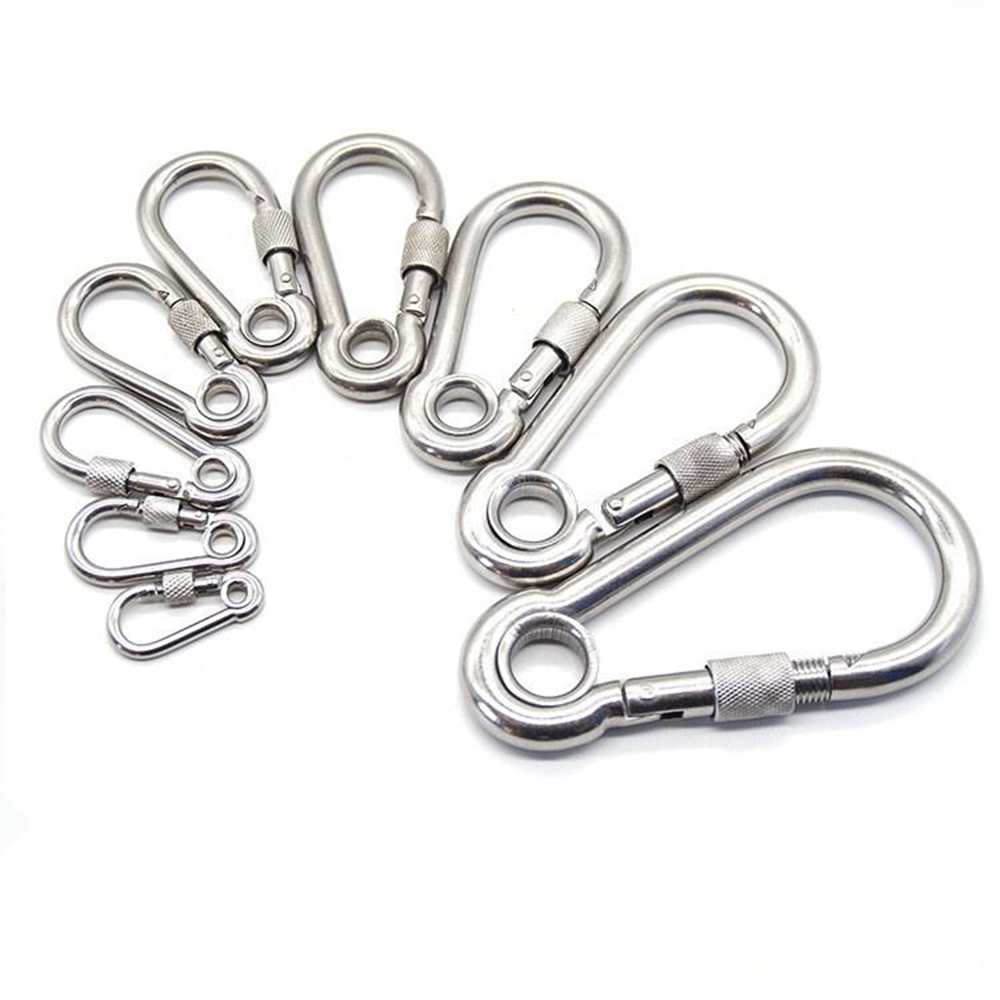

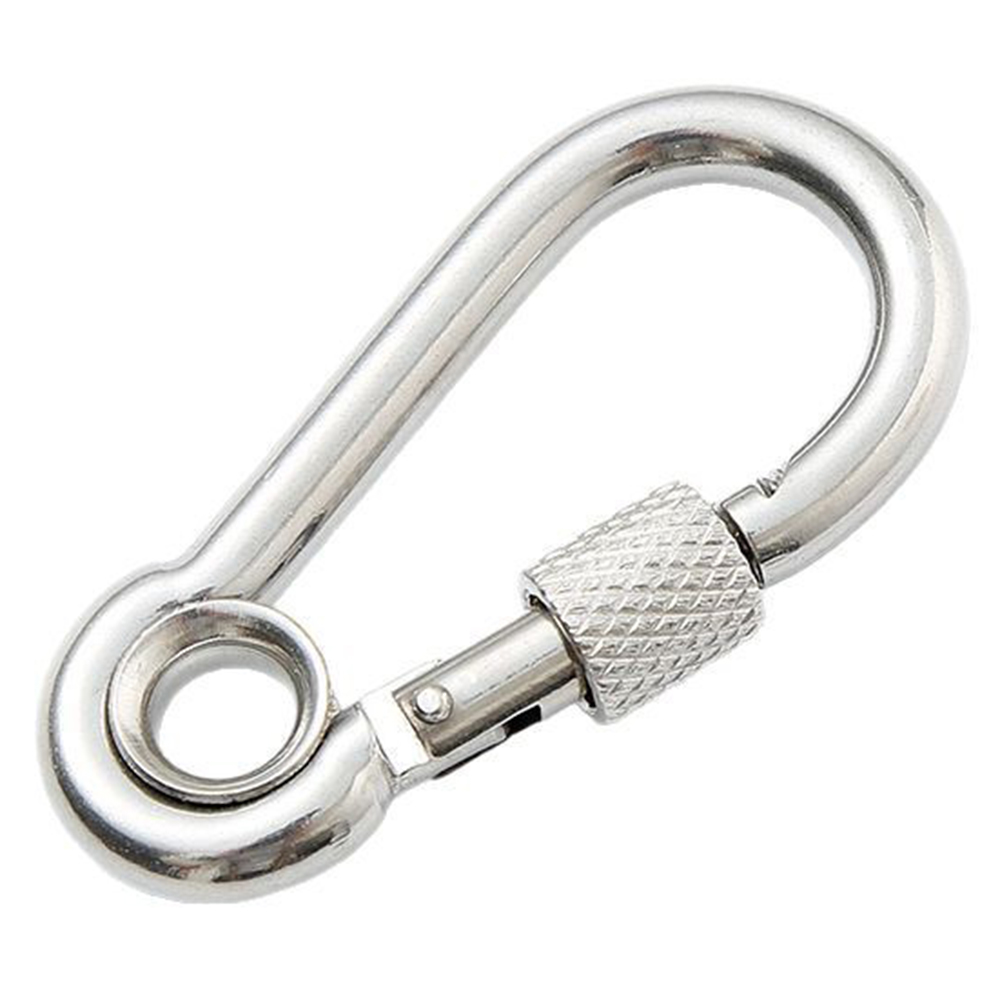

Din5299 Snap Hooks with Eyelet and Screw Stainless Steel 304/316 Pear Shaped Spring Hook Carabiner
SNAP HOOK
-STAINLESS STEEL AISI316
-STAINLESS STEEL AISI304
-ZINC PLATED
-Types: With Eyelet, with Screw, with eyelet and screw
Detail Information

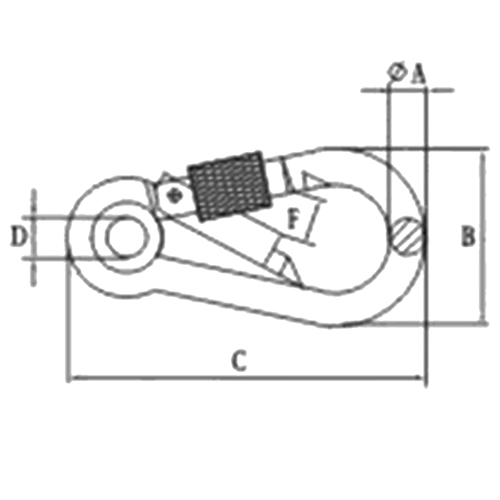

| SIZE (mm) | Ø A (mm) | B (mm) | C (mm) | D (mm) | F (mm) | WLL (LBS) |
| 5X50 | 5 | 25 | 50 | 5 | 7 | 100 |
| 6X60 | 6 | 30 | 60 | 5 | 8 | 140 |
| 7X70 | 7 | 35 | 70 | 7 | 8 | 200 |
| 8X80 | 8 | 40 | 80 | 10 | 9 | 250 |
| 9X90 | 9 | 45 | 90 | 10 | 10 | 280 |
| 10X100 | 10 | 50 | 100 | 13 | 11 | 400 |
| 11X120 | 11 | 57 | 120 | 13 | 16 | 500 |
| 12X140 | 12 | 67 | 140 | 15 | 19 | 600 |
| 13X160 | 13 | 74 | 160 | 17 | 25 | 700 |
| 14X180 | 14 | 86 | 180 | 17 | 35 | 900 |
SNAP HOOK
-STAINLESS STEEL AISI316
-STAINLESS STEEL AISI304
-ZINC PLATED
-Types: With Eyelet, with Screw, with eyelet and screw
-Material: Stainless steel304/316, Zinc Plated, Plain, Black Oxide, etc.
-Surface Finish: Highly Polished.
-Standards:Snap Hooks DIN5299 form C, Snap Hooks With Eyelet DIN5299 form A, Snap Hooks With Screw DIN5299 form D, Snap Hooks With Eyelet and Scew DIN5299 and other customized types.
-Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
-Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
Carabiner Hooks & Quick Links Series include a wide range of connectors such as spring snap hooks, screw-lock carabiners, delta links, and chain repair links. They are commonly made from stainless steel, carbon steel, or zinc alloy, with surface treatments like polishing or galvanization for enhanced corrosion resistance. Manufactured according to DIN and ISO standards, these products ensure reliable strength and safety. Widely used in outdoor sports, marine, construction, industrial rigging, and safety equipment, they provide secure, quick, and reusable connections. Features include high load capacity, easy operation, and durability in harsh environments.
