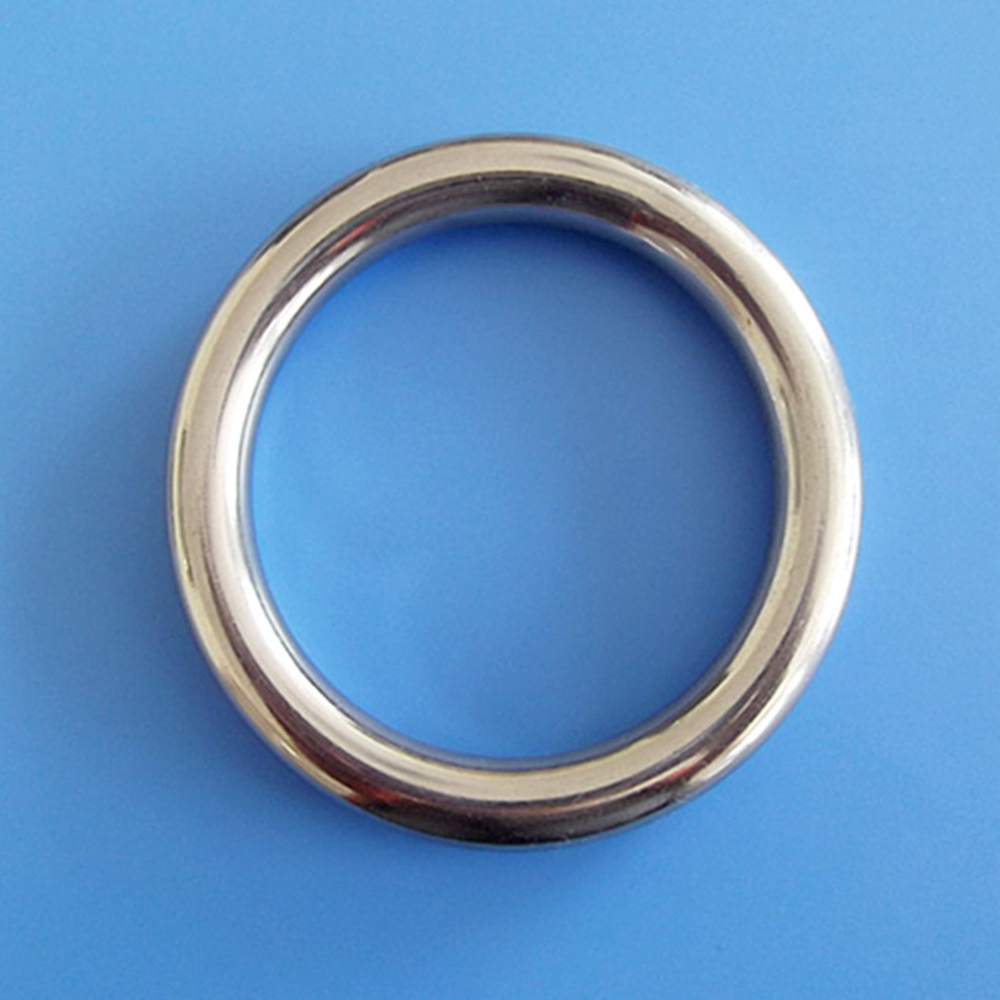

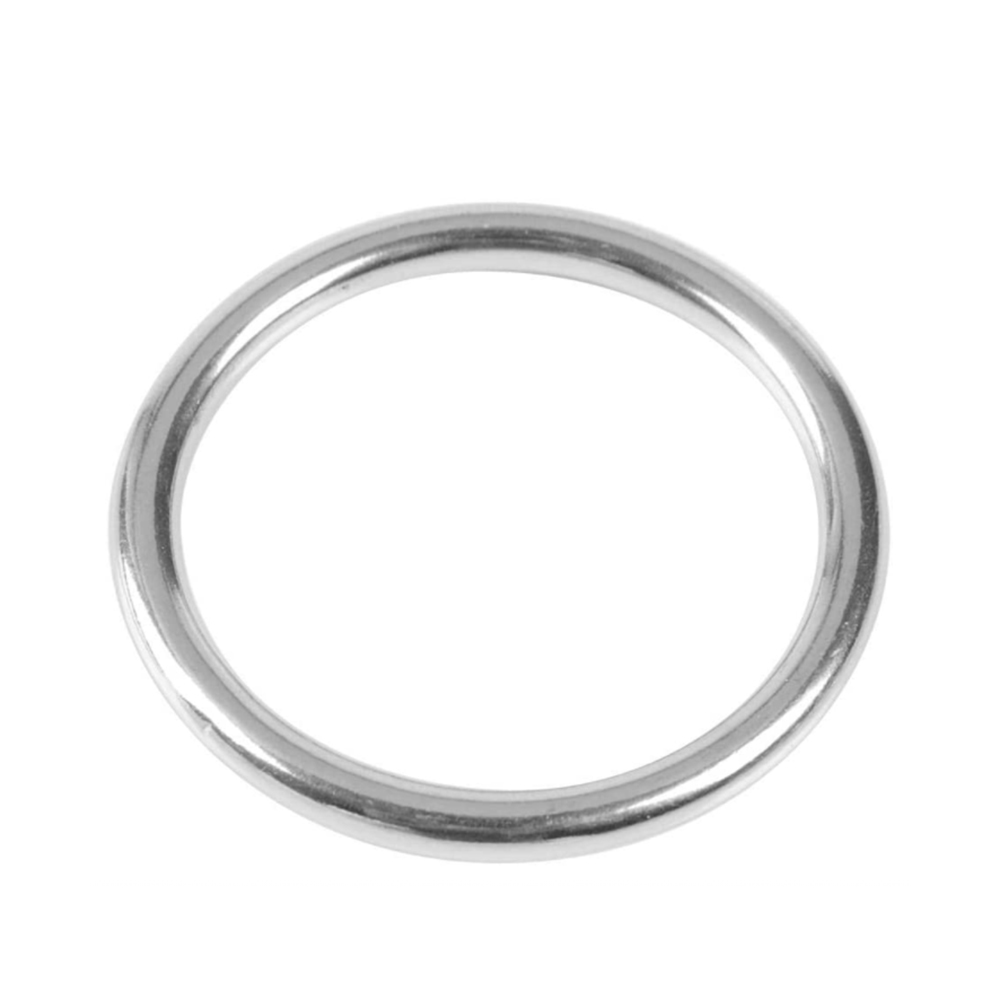

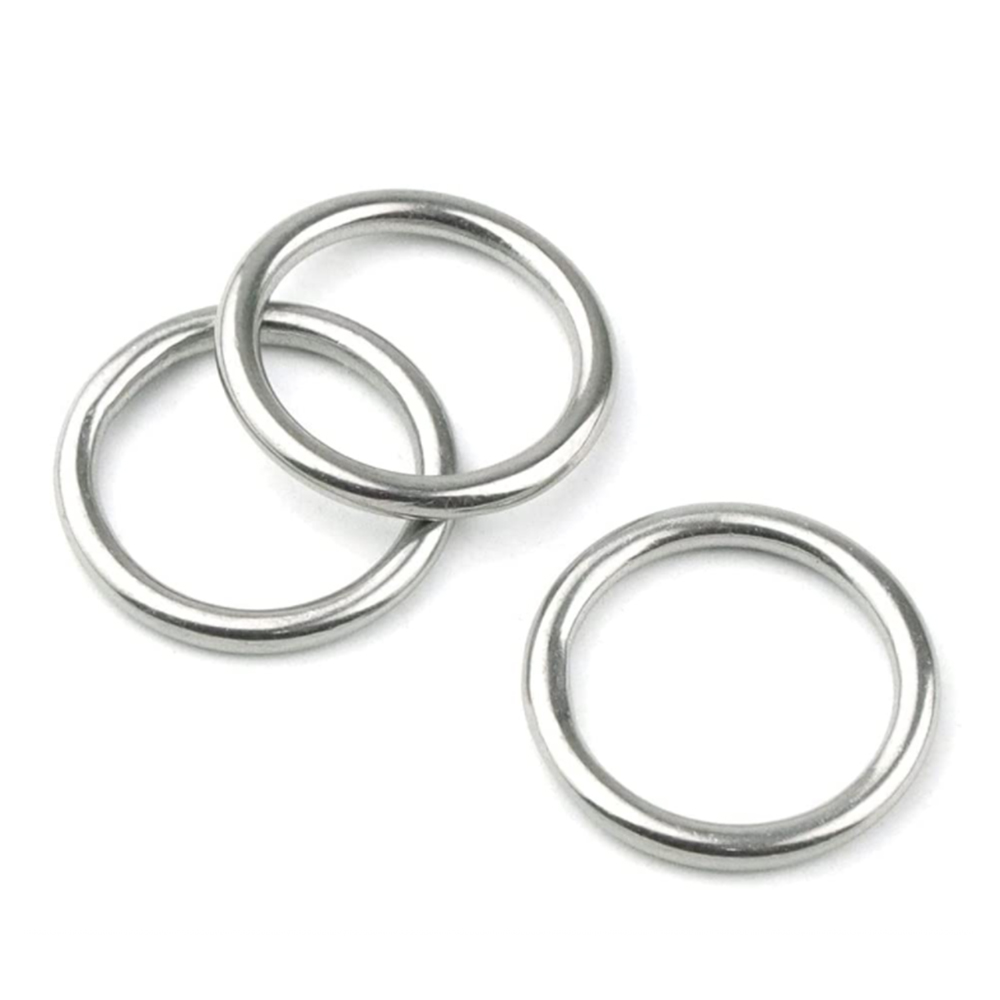

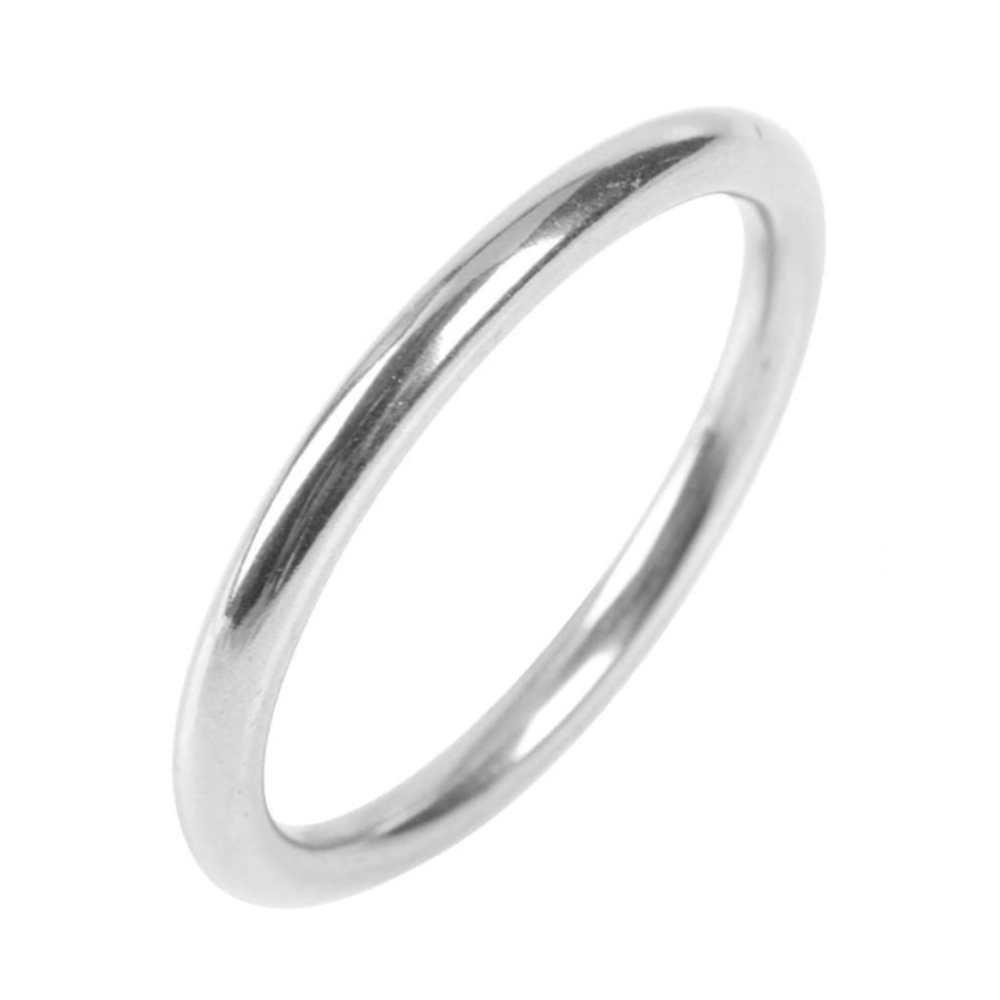

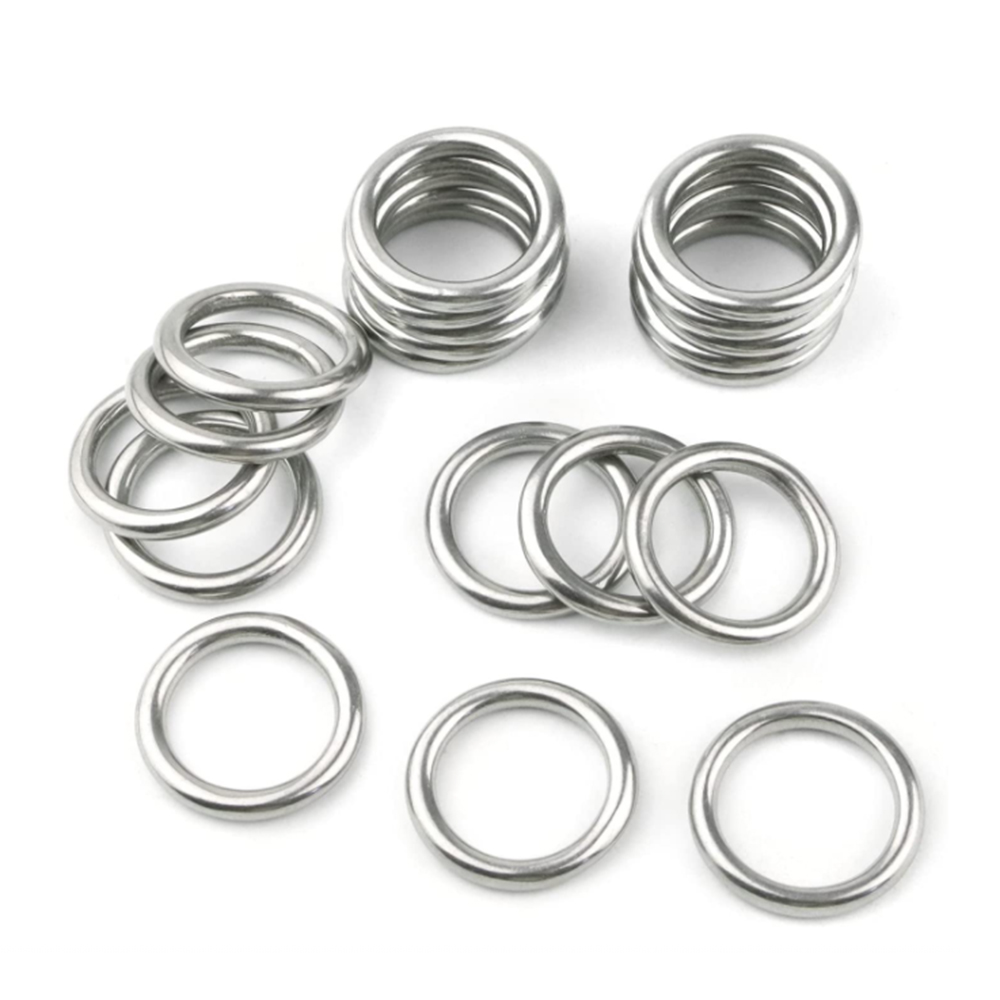

Seamless Welding O-Ring 304 316 Stainless Steel Rings Multi-Purpose Metal O Ring for Camping Belt Dog Leashes Luggage Accessories
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name:Welded O Ring
-Material:Stainless steel AISI 316/304
-Size:3x10mm to 13x160mm
-Surface treatment:Polished
-Color:Silver
-Shape:Round
-Technology:Welded
-Application:Suitable for dog chains, pendant crafts, hardware, camping belts, seat belts, luggage straps, backpacks or other craft items.
-Packaging: Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information
| Round ring | ||||||||
| SIZE(mm) | φD(mm) | L(mm) | B.L. (kgs) | SIZE(mm) | φD(mm) | L(mm) | B.L. (kgs) | |
| 3×10 | 3 | 10 | 650 | 9×30 | 9 | 30 | 6200 | |
| 3×15 | 3 | 15 | 650 | 9×50 | 9 | 50 | 6200 | |
| 3×20 | 3 | 20 | 650 | 9×60 | 9 | 60 | 6200 | |
| 3×25 | 3 | 25 | 650 | 9×65 | 9 | 65 | 6200 | |
| 3×30 | 3 | 30 | 650 | 9×70 | 9 | 70 | 6200 | |
| 3×35 | 3 | 35 | 650 | 9×80 | 9 | 80 | 6200 | |
| 3×40 | 3 | 40 | 650 | 9×90 | 9 | 90 | 6200 | |
| 4×20 | 4 | 20 | 1000 | 10×40 | 10 | 40 | 8500 | |
| 4×25 | 4 | 25 | 1000 | 10×50 | 10 | 50 | 8500 | |
| 4×30 | 4 | 30 | 1000 | 10×55 | 10 | 55 | 8500 | |
| 4×35 | 4 | 35 | 1000 | 10×60 | 10 | 60 | 8500 | |
| 4×40 | 4 | 40 | 1000 | 10×65 | 10 | 65 | 8500 | |
| 5×20 | 5 | 20 | 2000 | 10×70 | 10 | 70 | 8500 | |
| 5×25 | 5 | 25 | 2000 | 10×75 | 10 | 75 | 8500 | |
| 5×30 | 5 | 30 | 2000 | 10×80 | 10 | 80 | 8500 | |
| 5×35 | 5 | 35 | 2000 | 10×90 | 10 | 90 | 8500 | |
| 5×40 | 5 | 40 | 2000 | 10×100 | 10 | 100 | 8500 | |
| 5×45 | 5 | 45 | 2000 | 10×120 | 10 | 120 | 8500 | |
| 5×50 | 5 | 50 | 2000 | 10×140 | 10 | 140 | 8500 | |
| 5×60 | 5 | 60 | 2000 | 12×60 | 12 | 60 | 10000 | |
| 5×65 | 5 | 65 | 2000 | 12×65 | 12 | 65 | 10000 | |
| 6×25 | 6 | 25 | 2700 | 12×70 | 12 | 70 | 10000 | |
| 6×30 | 6 | 30 | 2700 | 12×75 | 12 | 75 | 10000 | |
| 6×35 | 6 | 35 | 2700 | 12×80 | 12 | 80 | 10000 | |
| 6×40 | 6 | 40 | 2700 | 12×90 | 12 | 90 | 10000 | |
| 6×45 | 6 | 45 | 2700 | 12×100 | 12 | 100 | 10000 | |
| 6×50 | 6 | 50 | 2700 | 12×110 | 12 | 110 | 10000 | |
| 6×55 | 6 | 55 | 2700 | 12×120 | 12 | 120 | 10000 | |
| 6×60 | 6 | 60 | 2700 | 12×140 | 12 | 140 | 10000 | |
| 6×80 | 6 | 80 | 2700 | 13×55 | 13 | 55 | 11500 | |
| 6×90 | 6 | 90 | 2700 | 13×60 | 13 | 60 | 11500 | |
| 7×40 | 7 | 40 | 3200 | 13×65 | 13 | 65 | 11500 | |
| 7×45 | 7 | 45 | 3200 | 13×70 | 13 | 70 | 11500 | |
| 7×50 | 7 | 50 | 3200 | 13×80 | 13 | 80 | 11500 | |
| 7×55 | 7 | 55 | 3200 | 13×90 | 13 | 90 | 11500 | |
| 7×60 | 7 | 60 | 3200 | 13×100 | 13 | 100 | 11500 | |
| 7×65 | 7 | 65 | 3200 | 13×120 | 13 | 120 | 11500 | |
| 8×30 | 8 | 30 | 5000 | 13×130 | 13 | 130 | 11500 | |
| 8×35 | 8 | 35 | 5000 | 13×140 | 13 | 140 | 11500 | |
| 8×40 | 8 | 40 | 5000 | 13×150 | 13 | 150 | 11500 | |
| 8×45 | 8 | 45 | 5000 | 13×160 | 13 | 160 | 11500 | |
| 8×50 | 8 | 50 | 5000 | |||||
| 8×55 | 8 | 55 | 5000 | |||||
| 8×60 | 8 | 60 | 5000 | |||||
| 8×65 | 8 | 65 | 5000 | |||||
| 8×70 | 8 | 70 | 5000 | |||||
| 8×75 | 8 | 75 | 5000 | |||||
| 8×80 | 8 | 80 | 5000 | |||||
| 8×90 | 8 | 90 | 5000 | |||||
| 8×100 | 8 | 100 | 5000 | |||||
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name:Welded O Ring
-Material:Stainless steel AISI 316/304
-Size:3x10mm to 13x160mm
-Surface treatment:Polished
-Color:Silver
-Shape:Round
-Technology:Welded
-Application:Suitable for dog chains, pendant crafts, hardware, camping belts, seat belts, luggage straps, backpacks or other craft items.
-Packaging: Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.

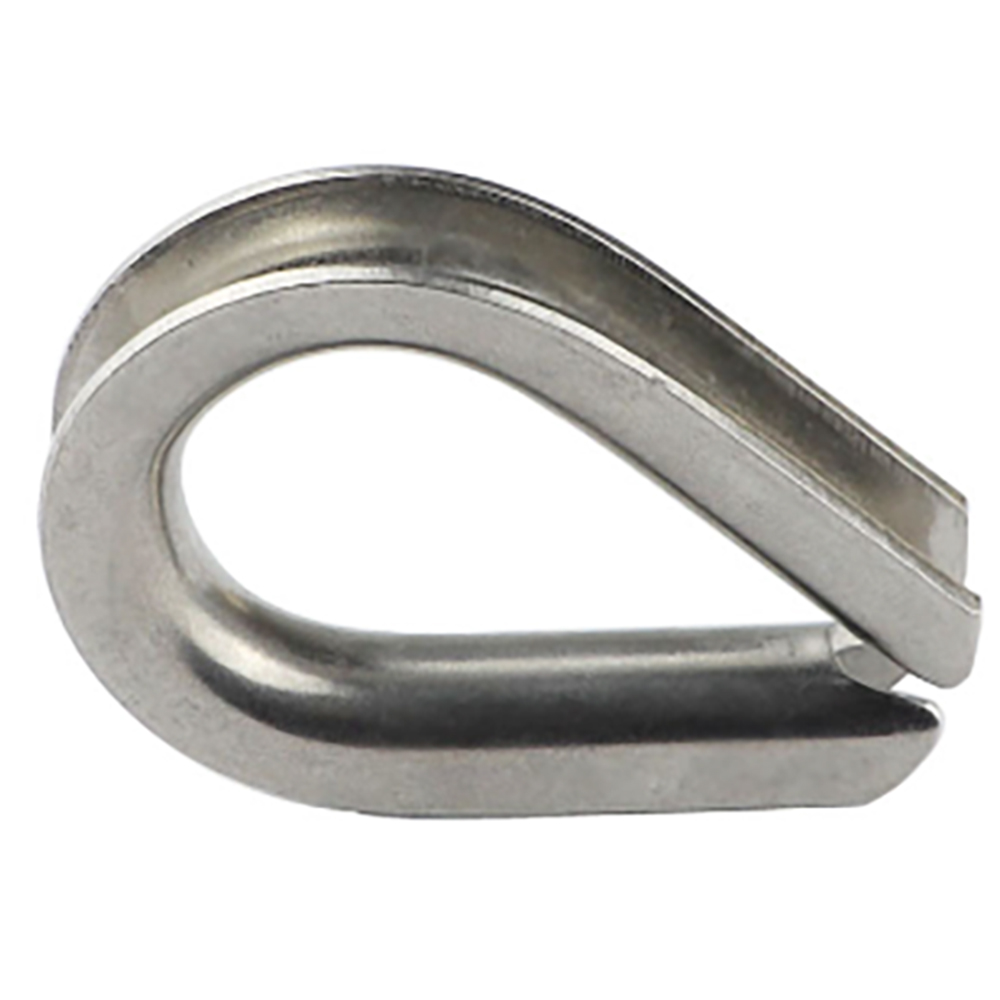

Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
