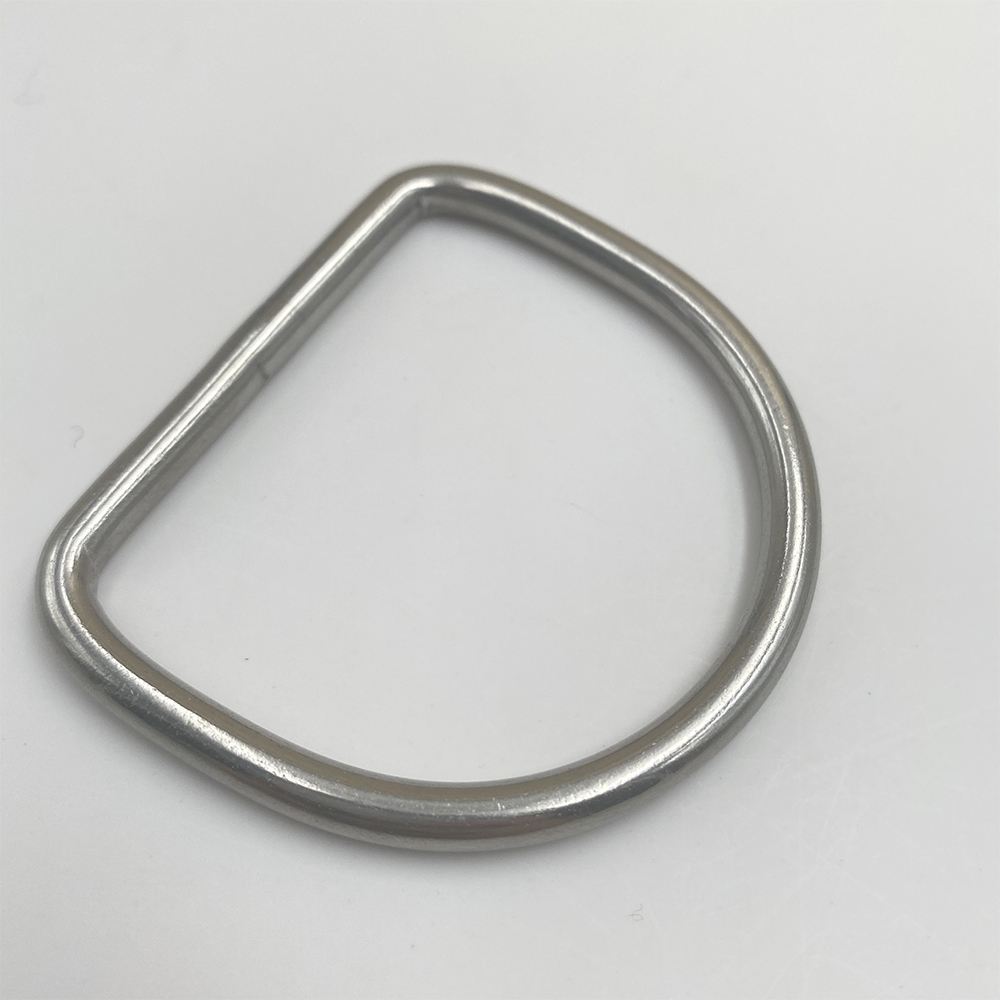

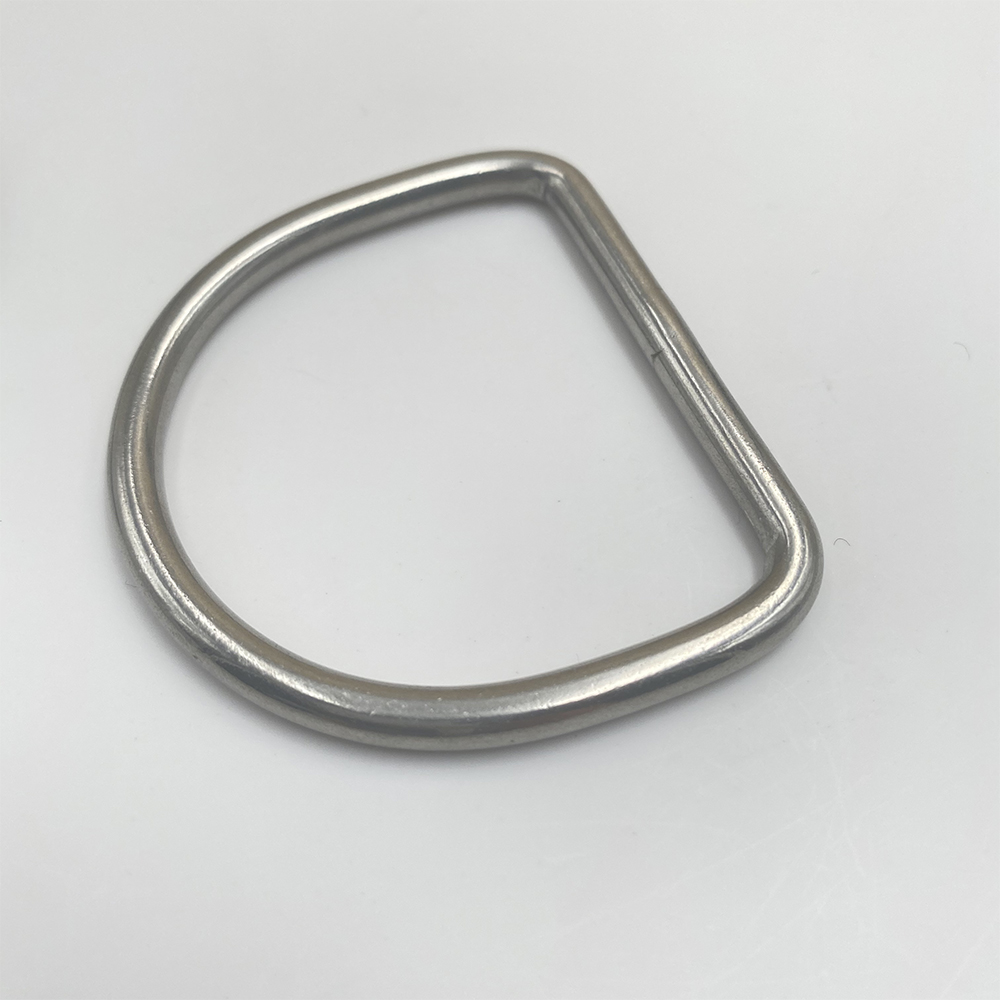

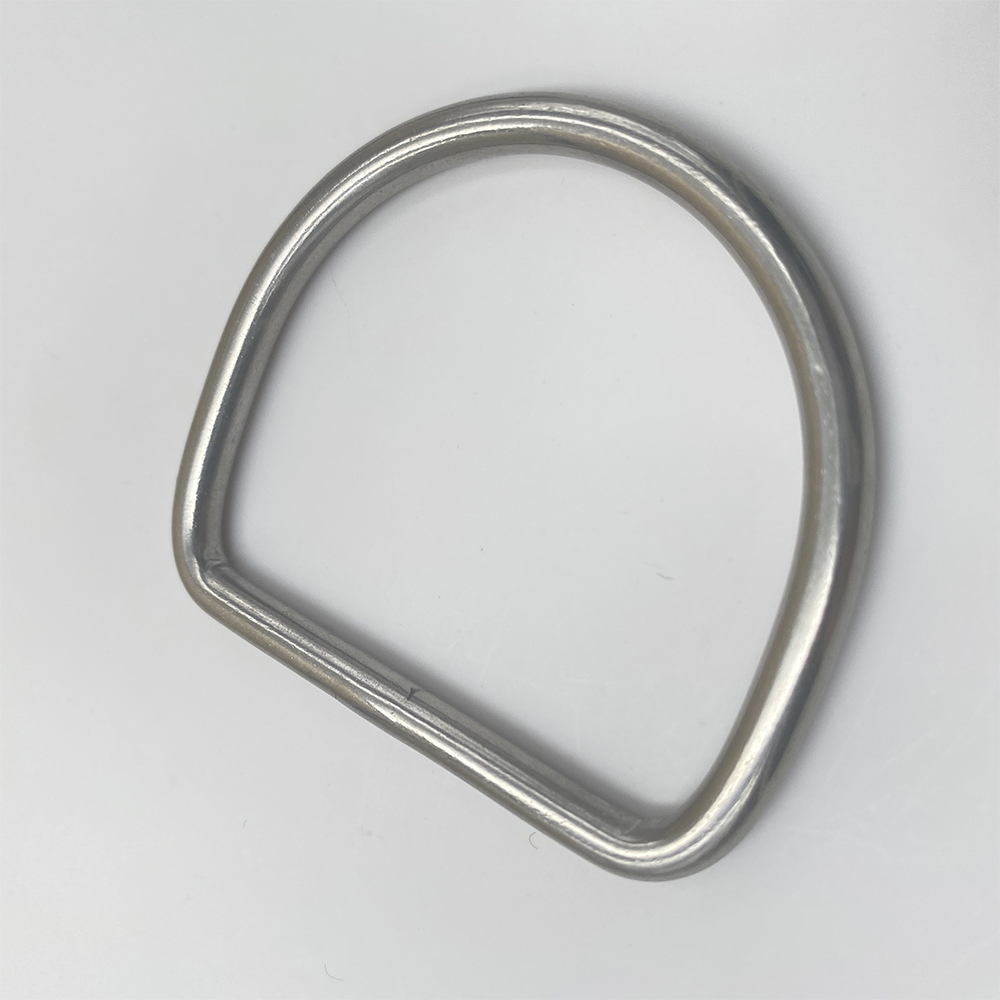

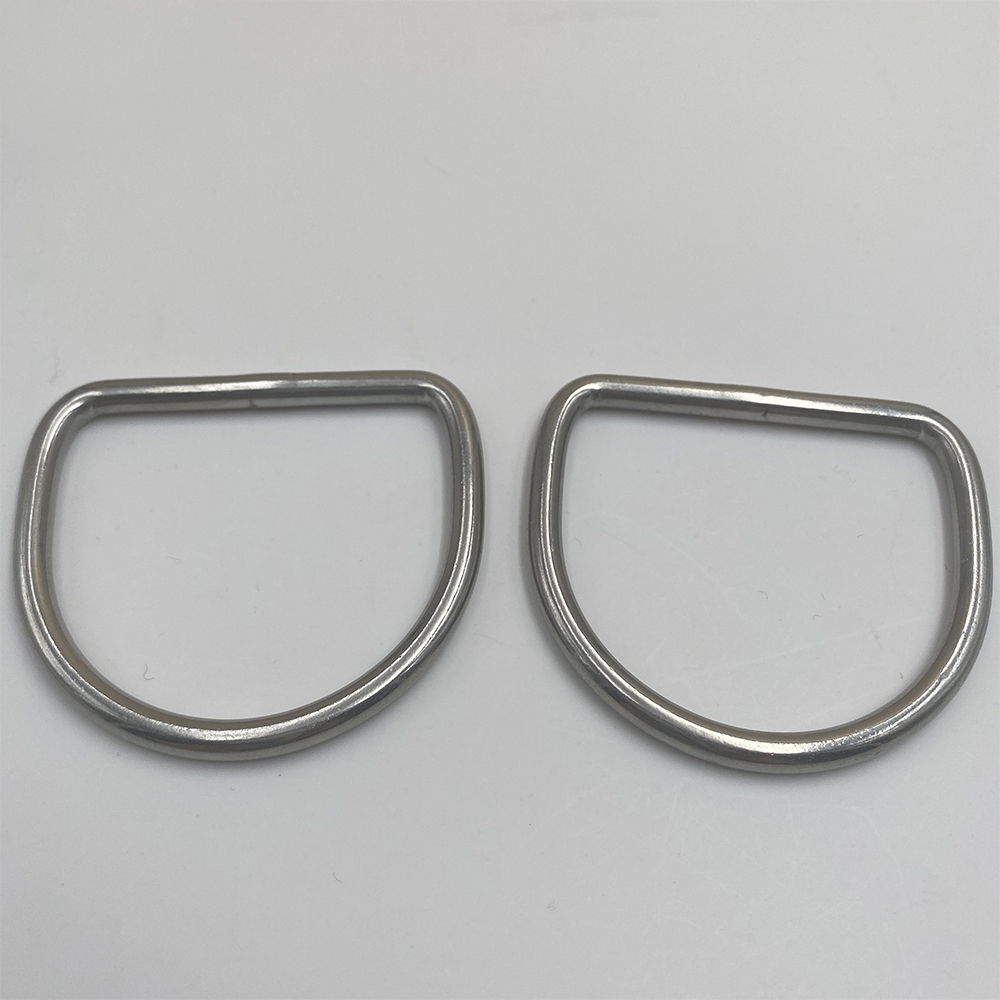

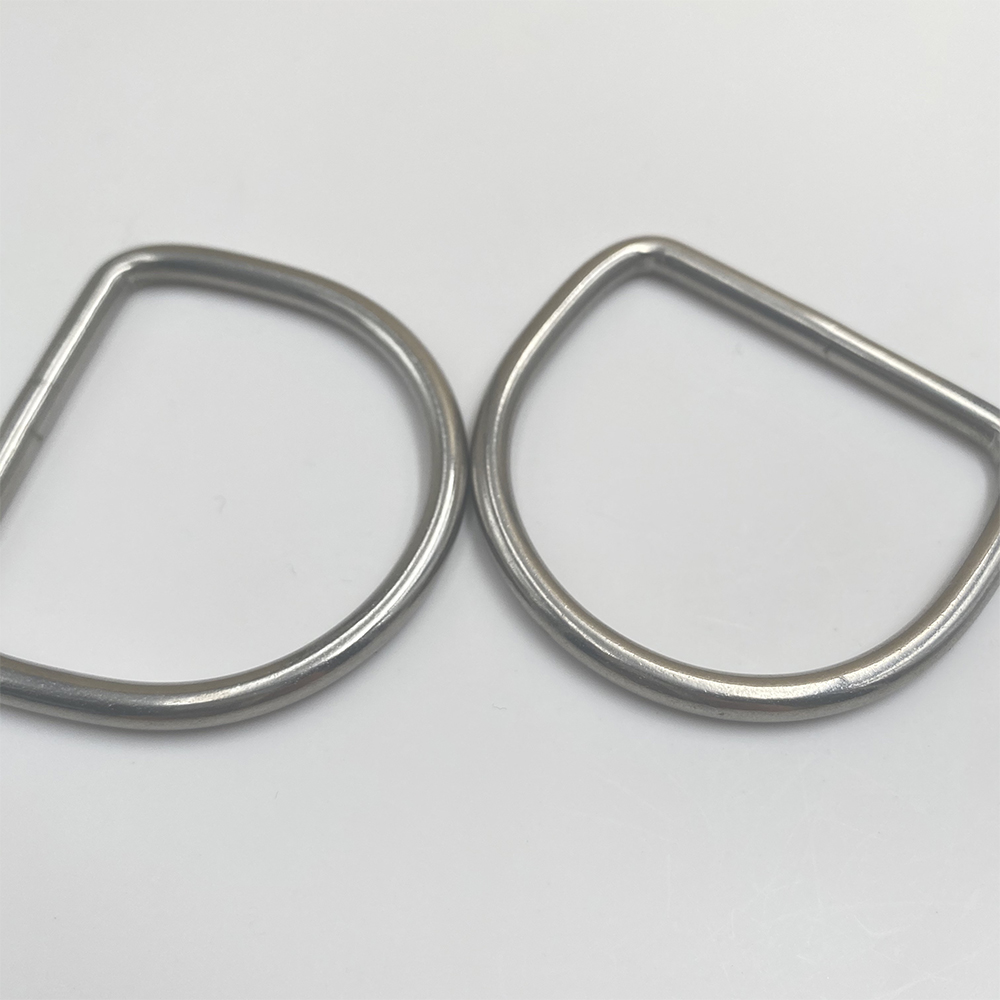

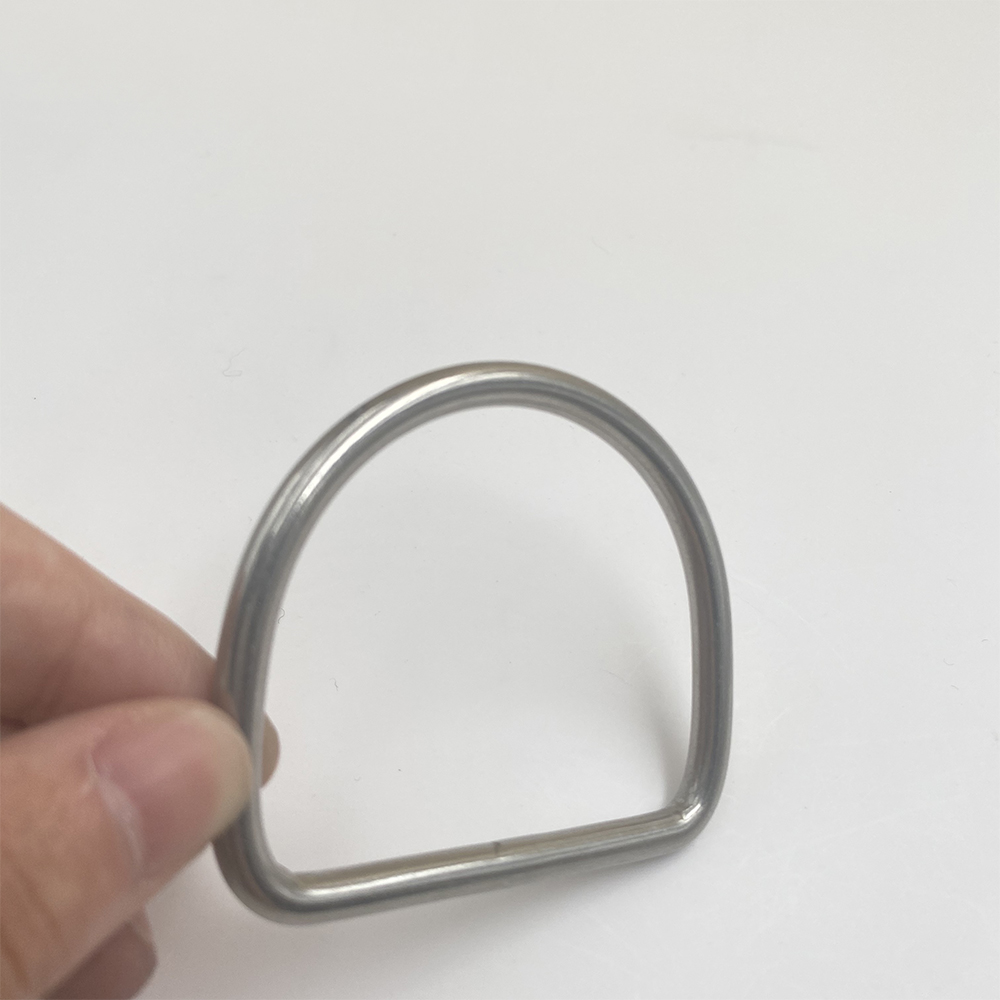

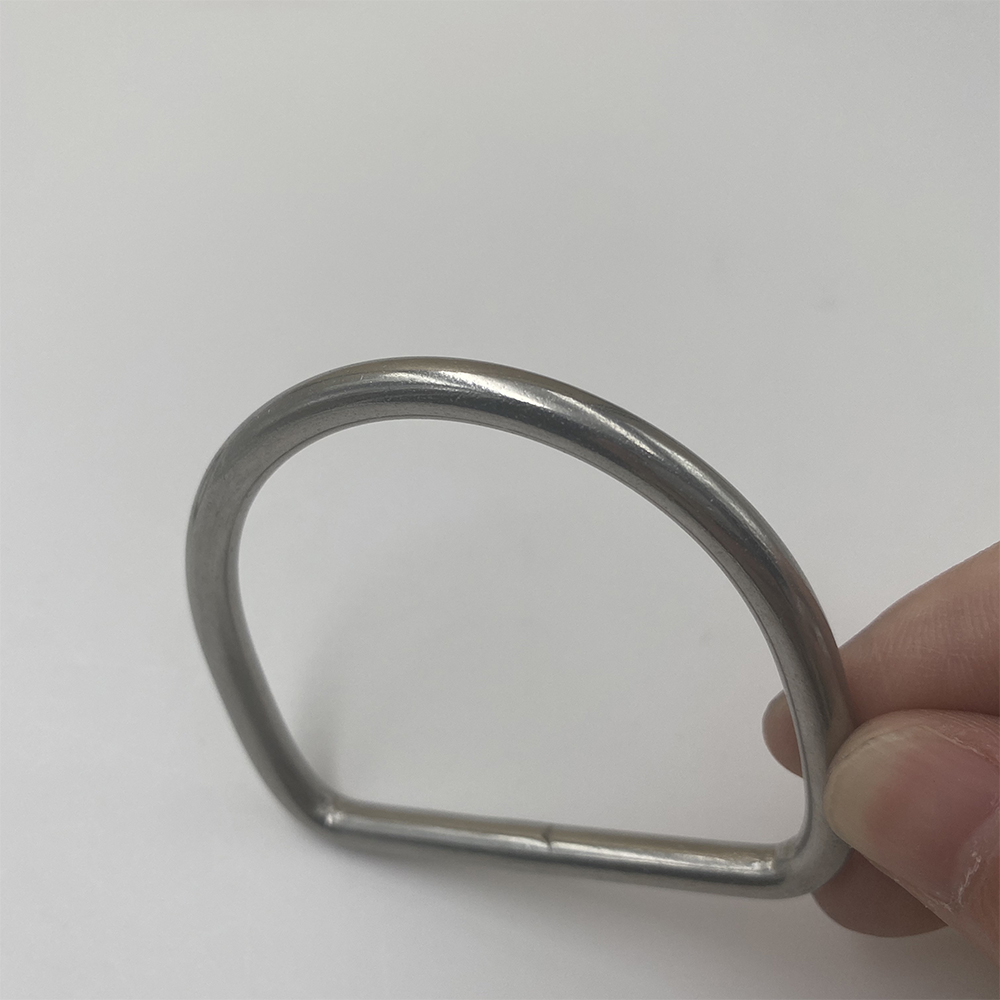

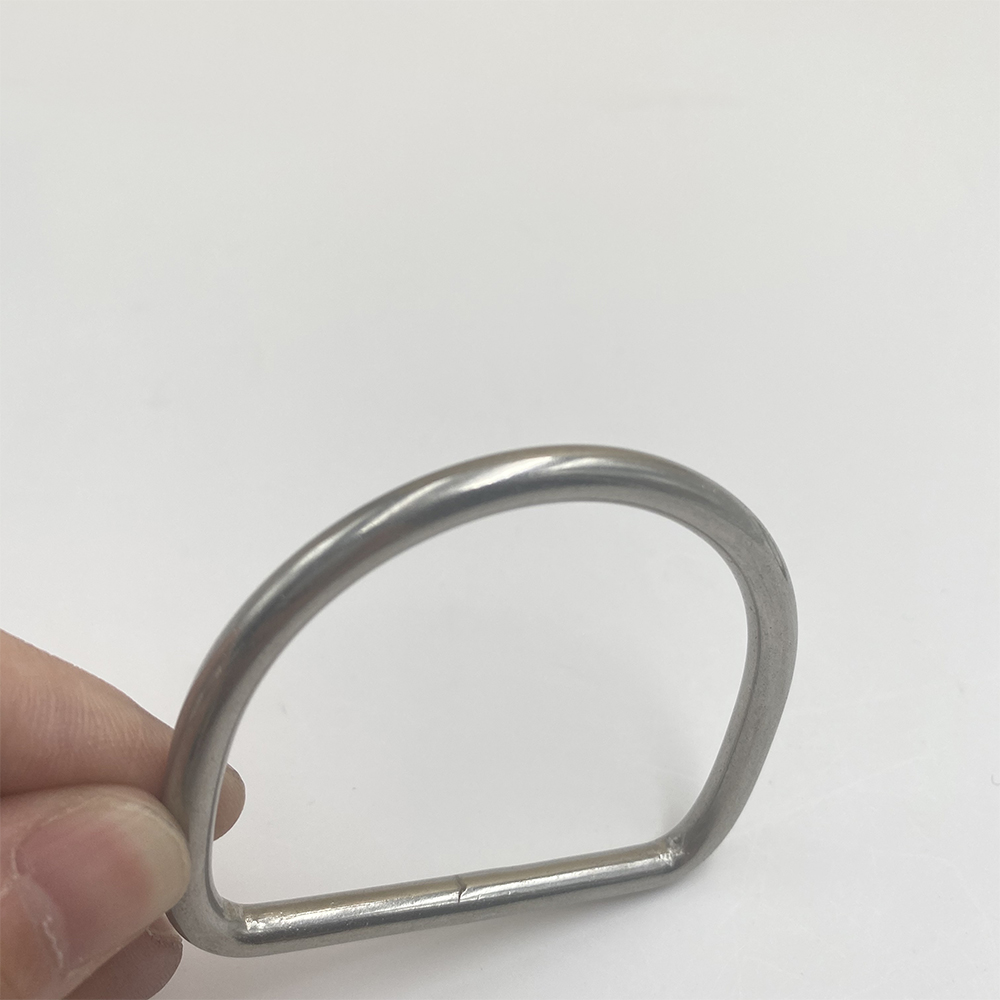

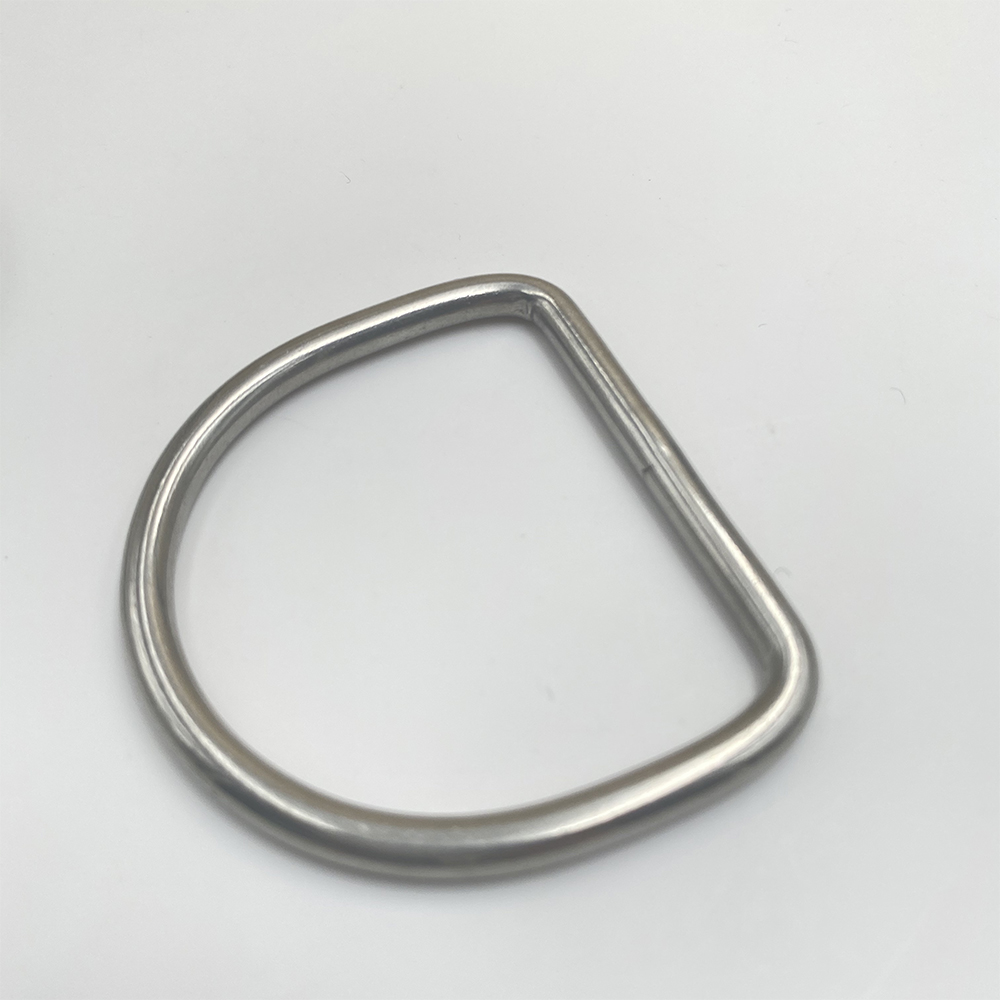

Welded Ring Stainless Steel AISI304/316 Smooth Welded D Ring Hardware Rigging Fittings D Ring
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Welded D Ring
-Material:Stainless Steel 304/316
-Size:3x15mm to 10x100mm
-Surface treatment:Polished
-Color:Silver
-Shape:D
-Technology:Welded
-Application:Hardware accessory
-Package:Polybag, carton or as per customer's requirements
-Note:Special specifications can also be produced according to drawing and sample.
Detail Information
| Dee ring | ||||
| SIZE(mm) | B(mm) | φD(mm) | L(mm) | B.L. (kgs) |
| 3×15 | 16 | 3 | 14 | 600 |
| 3×20 | 20 | 3 | 17 | 600 |
| 3×25 | 26 | 3 | 22 | 600 |
| 3×30 | 30 | 3 | 25 | 600 |
| 4×20 | 20 | 4 | 17 | 800 |
| 4×25 | 27 | 4 | 22 | 800 |
| 4×30 | 30 | 4 | 25 | 800 |
| 4×35 | 35 | 4 | 30 | 800 |
| 4×40 | 39 | 4 | 34 | 800 |
| 4×50 | 51 | 4 | 43 | 800 |
| 5×25 | 26 | 5 | 22 | 1000 |
| 5×30 | 30 | 5 | 25 | 1000 |
| 5×35 | 35 | 5 | 30 | 1000 |
| 5×40 | 39 | 5 | 34 | 1000 |
| 5×45 | 45 | 5 | 38 | 1000 |
| 5×50 | 52 | 5 | 43 | 1000 |
| 5×60 | 60 | 5 | 51 | 1000 |
| 6×25 | 26 | 6 | 22 | 1800 |
| 6×30 | 30 | 6 | 25 | 1800 |
| 6×35 | 35 | 6 | 30 | 1800 |
| 6×40 | 39 | 6 | 34 | 1800 |
| 6×45 | 45 | 6 | 38 | 1800 |
| 6×50 | 51 | 6 | 43 | 1800 |
| 6×55 | 55 | 6 | 47 | 1800 |
| 6×60 | 60 | 6 | 51 | 1800 |
| 6×70 | 70 | 6 | 60 | 1800 |
| 7×50 | 51 | 7 | 43 | 2200 |
| 8×45 | 45 | 8 | 38 | 2800 |
| 8×50 | 51 | 8 | 43 | 2800 |
| 8×55 | 55 | 8 | 47 | 2800 |
| 8×60 | 60 | 8 | 51 | 2800 |
| 8×65 | 65 | 8 | 55 | 2800 |
| 8×70 | 70 | 8 | 60 | 2800 |
| 8×75 | 75 | 8 | 64 | 2800 |
| 8×80 | 80 | 8 | 68 | 2800 |
| 9×60 | 60 | 9 | 52 | 3500 |
| 9×70 | 70 | 9 | 60 | 3500 |
| 10×50 | 50 | 10 | 43 | 5000 |
| 10×60 | 60 | 10 | 51 | 5000 |
| 10×65 | 65 | 10 | 55 | 5000 |
| 10×70 | 70 | 10 | 60 | 5000 |
| 10×80 | 80 | 10 | 68 | 5000 |
| 10×90 | 90 | 10 | 77 | 5000 |
| 10×100 | 102 | 10 | 87 | 5000 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Welded D Ring
-Material:Stainless Steel 304/316
-Size:3x15mm to 10x100mm
-Surface treatment:Polished
-Color:Silver
-Shape:D
-Technology:Welded
-Application:Hardware accessory
-Package:Polybag, carton or as per customer's requirements
-Note:Special specifications can also be produced according to drawing and sample.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
