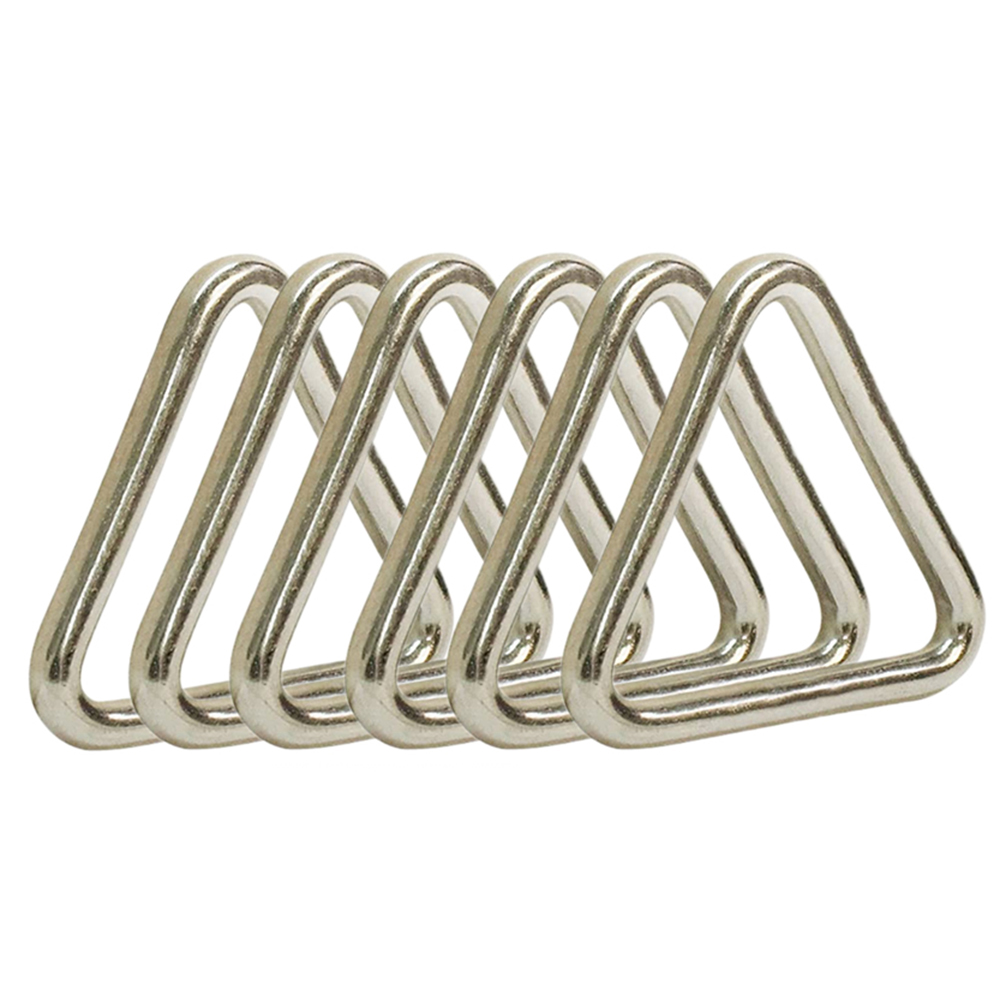

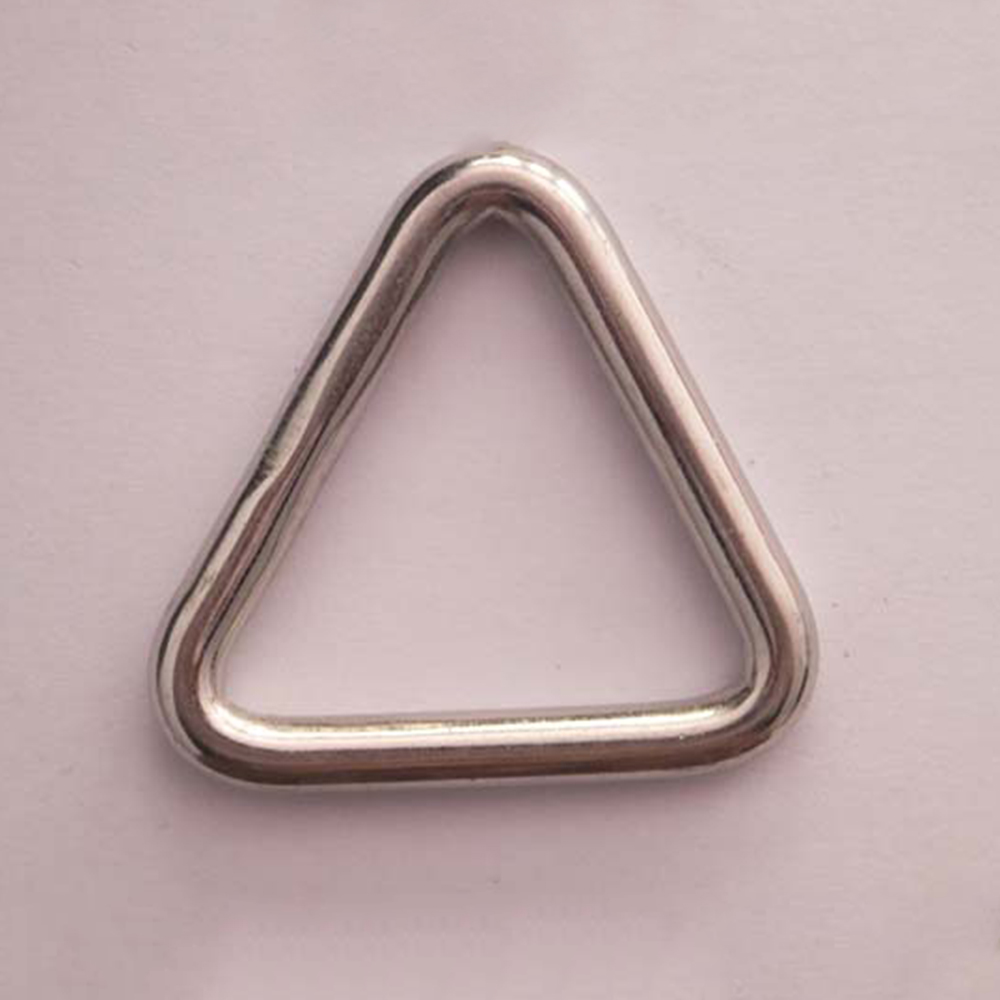

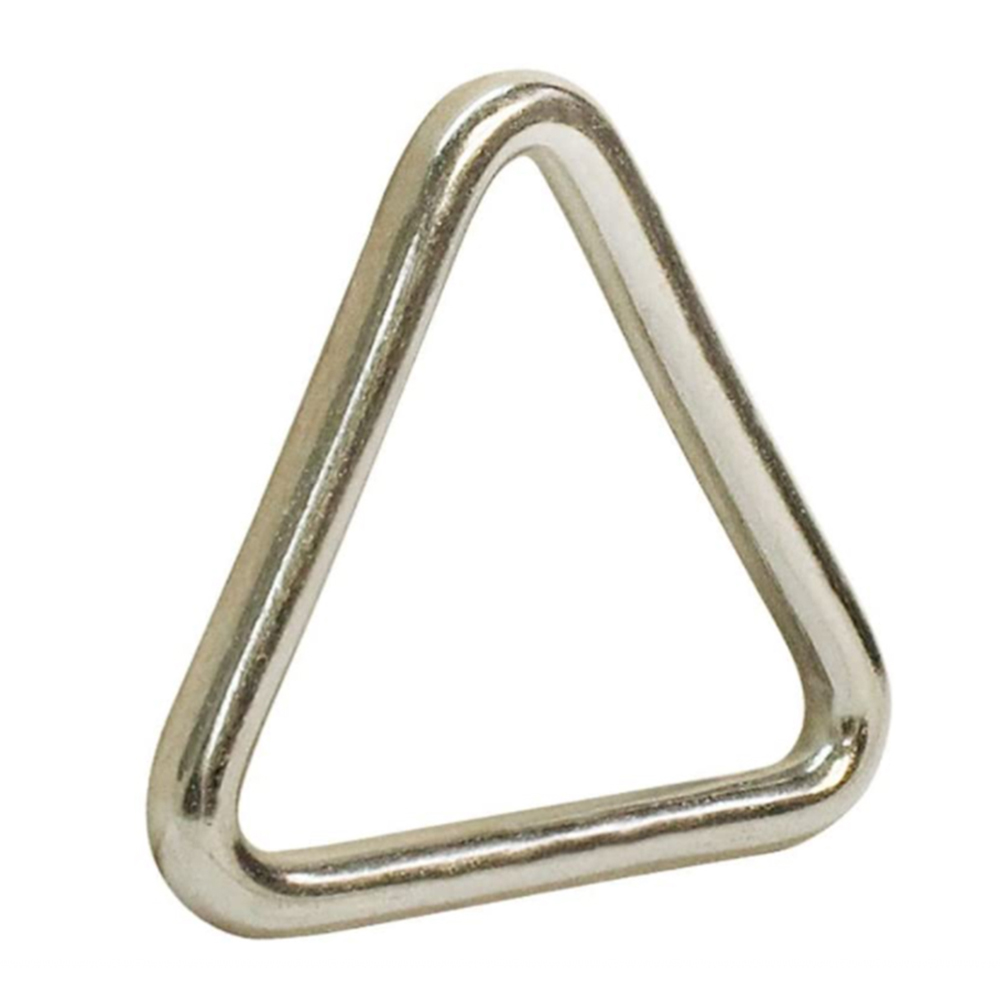

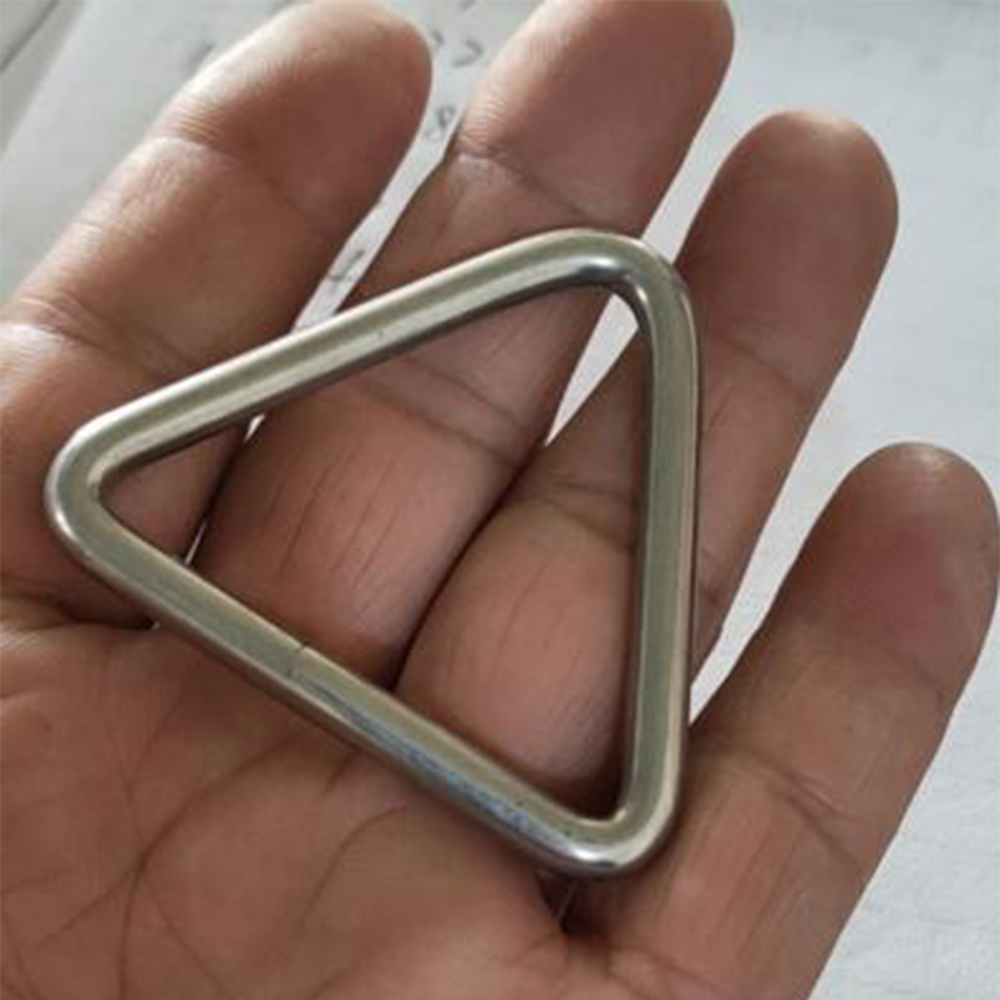

Welded Ring Stainless Steel Seamless Welding Metal Triangular Loops SS 304 316 Welded Delta Triangle Quick Link Ring
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name:Triangle Ring
-Material:Stainless steel AISI 316/304
-Size:3x35mm to 8x50mm
-Surface treatment:Polished
-Color:Silver
-Shape:Triangle
-Technology:Welded
-Feature:Sturday and solid,can be used for a long life time.
-Application:Bags, wallets, packaging, leather, crafts, ribbons
-Packaging: Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information
| Triangle Ring | ||||
| Size(mm) | B(mm) | ΦD(mm) | L(mm) | B.L.(kgs) |
| 3x35 | 35 | 3 | 35 | 600 |
| 4x20 | 20 | 4 | 18 | 900 |
| 5x30 | 30 | 5 | 30 | 1300 |
| 5x40 | 40 | 5 | 36 | 1300 |
| 5x45 | 45 | 5 | 39 | 1300 |
| 6x40 | 40 | 6 | 36 | 2000 |
| 6x45 | 45 | 6 | 40 | 2000 |
| 6x50 | 51 | 6 | 45 | 2000 |
| 7x70 | 70 | 7 | 70 | 2200 |
| 8x45 | 45 | 8 | 41 | 2800 |
| 8x50 | 50 | 8 | 45 | 2800 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name:Triangle Ring
-Material:Stainless steel AISI 316/304
-Size:3x35mm to 8x50mm
-Surface treatment:Polished
-Color:Silver
-Shape:Triangle
-Technology:Welded
-Feature:Sturday and solid,can be used for a long life time.
-Application:Bags, wallets, packaging, leather, crafts, ribbons
-Packaging: Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
