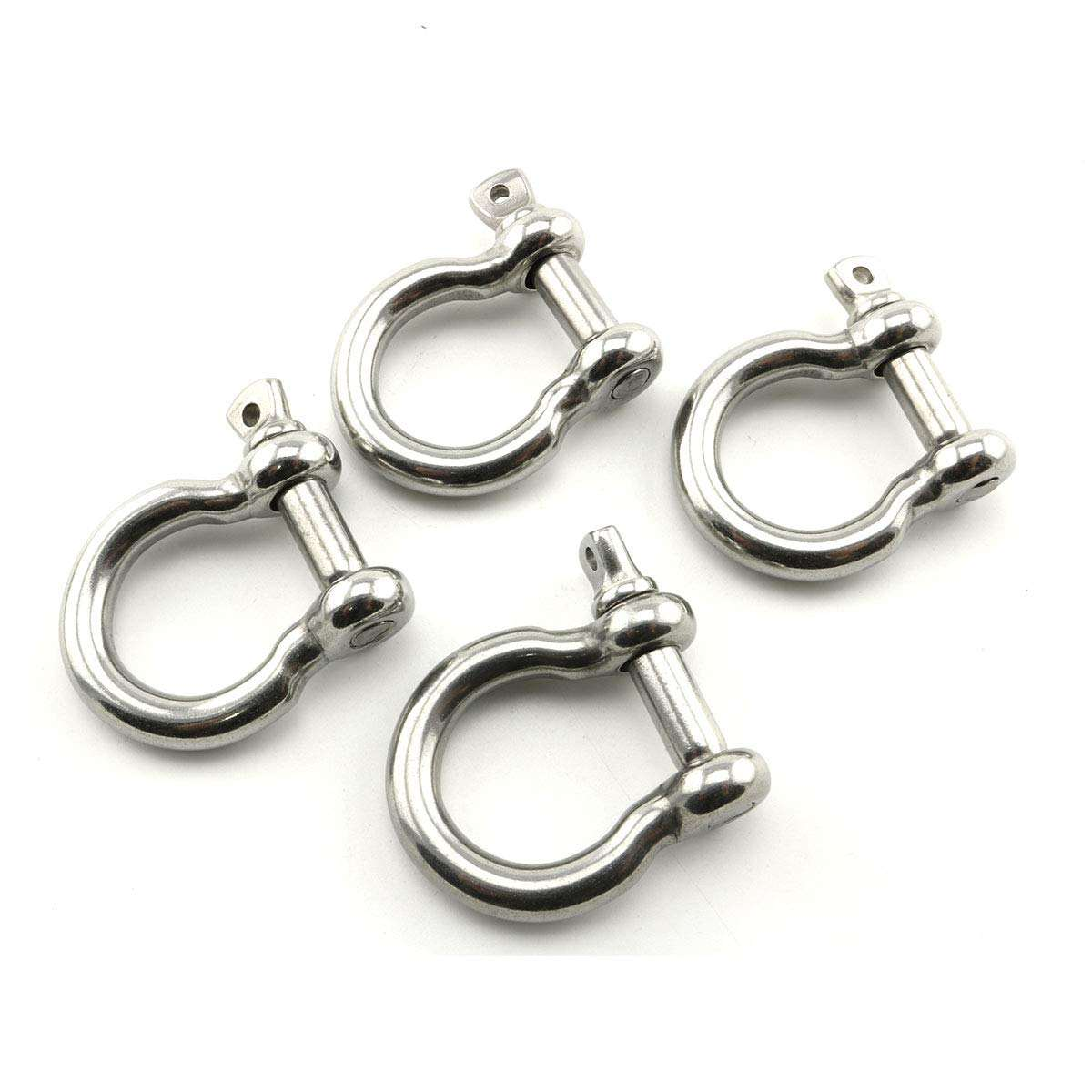

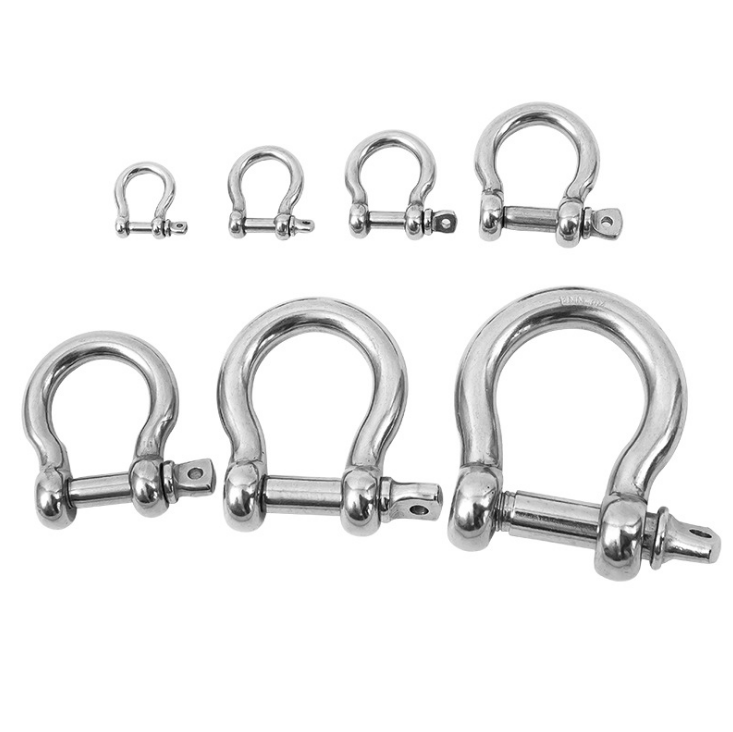

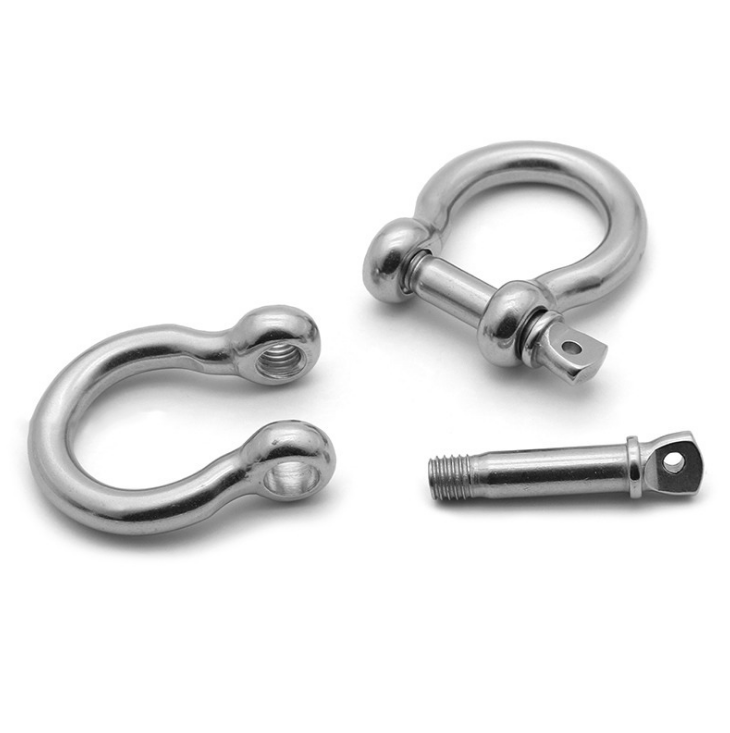

AISI304 AISI316 Marine JIS Type Screw Pin Bow Anchor Shackle
Material: Stainless steel
Surface treatment: Polishing
Size: 4mm-36mm
WLL:0.8-9.2T
Standard: JIS type
Product marking: Required by clients
Detail Information
| SIZE | A | B | C | D | E | W.L.L |
| mm | mm | mm | mm | mm | mm | kg |
| 4 | 16 | 8 | 8 | 4 | 12 | 80 |
| 5 | 20 | 10 | 10 | 5 | 15 | 100 |
| 6 | 24 | 12 | 12 | 6 | 18 | 200 |
| 8 | 32 | 16 | 16 | 8 | 24 | 320 |
| 10 | 40 | 20 | 20 | 10 | 30 | 520 |
| 12 | 48 | 24 | 24 | 12 | 36 | 800 |
| 14 | 56 | 28 | 28 | 14 | 42 | 1100 |
| 16 | 64 | 32 | 32 | 16 | 48 | 1500 |
| 18 | 72 | 36 | 36 | 18 | 54 | 2100 |
| 20 | 76 | 40 | 40 | 20 | 60 | 3000 |
| 22 | 88 | 44 | 44 | 22 | 66 | 3500 |
| 25 | 100 | 50 | 50 | 25 | 75 | 5000 |
| 28 | 112 | 56 | 56 | 28 | 84 | 7000 |
| 32 | 128 | 64 | 64 | 32 | 96 | 8000 |
| 36 | 144 | 72 | 72 | 36 | 108 | 9200 |
Material：Stainless Steel 316, 304 or Carbon Steel
Surface Finish: Highly Polished or hot dip galvanized or electro galvanized
Standards:Dee shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on.
Types:DIN Type, European Type, Japan Type and US Type.
Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
