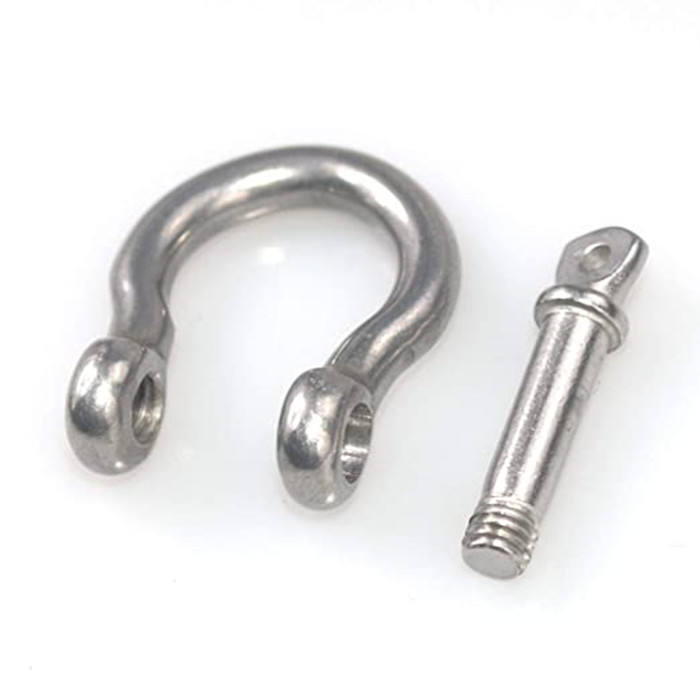

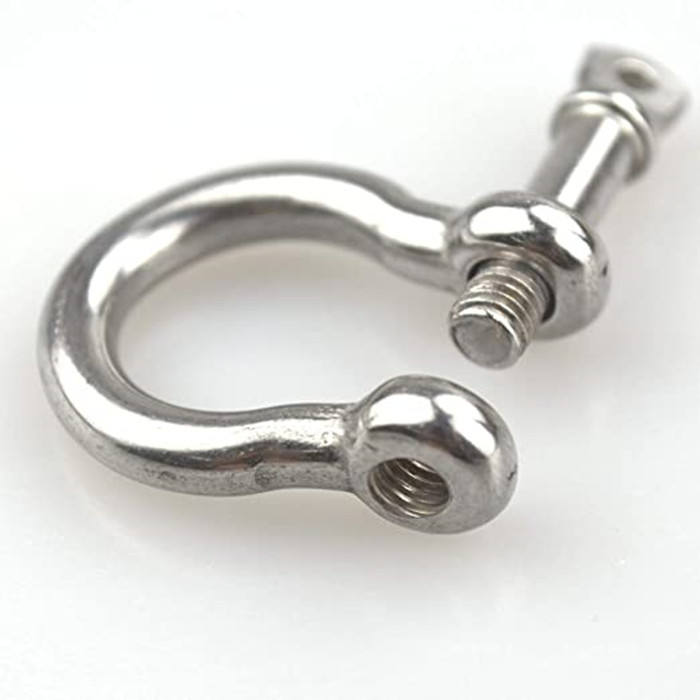

European Type 304/316 Stainless Steel Bow Shackle with Screw Pin

Material: Stainless steel

Surface treatment: Polishing

Size: 4mm-36mm

WLL:0.5-4.6T

Standard: European type

Product marking: Required by clients

Inquiry

Detail Information

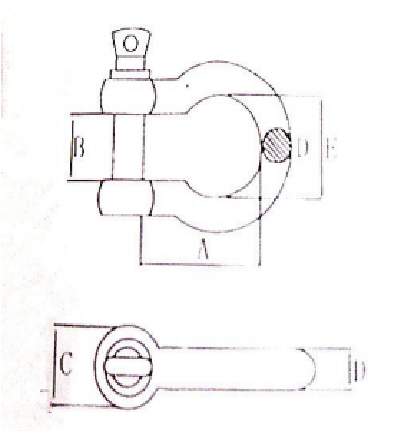

SIZE	A	B	C	D	E	W.L.L
mm	mm	mm	mm	mm	mm	kg
4	16	8	8	4	14	50
5	19	10	10	5	16	80
6	25	12	12	6	20	100
8	32	16	16	8	24	200
10	38	20	20	10	28	320
12	48	24	24	12	36	520
14	50	28	28	14	38	700
16	55	32	32	16	40	800
18	62	36	36	18	43	990
20	68	40	40	20	46	1100
22	82	44	44	22	56	1500
25	95	50	50	25	68	2100
28	108	56	56	28	74	3000
32	120	64	64	32	84	3500
36	135	72	72	36	92	4600

Material：Stainless Steel 316, 304 or Carbon Steel

Surface Finish: Highly Polished or hot dip galvanized or electro galvanized

Standards:Dee shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on.

Types:DIN Type, European Type, Japan Type and US Type.

Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.

Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.

Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
