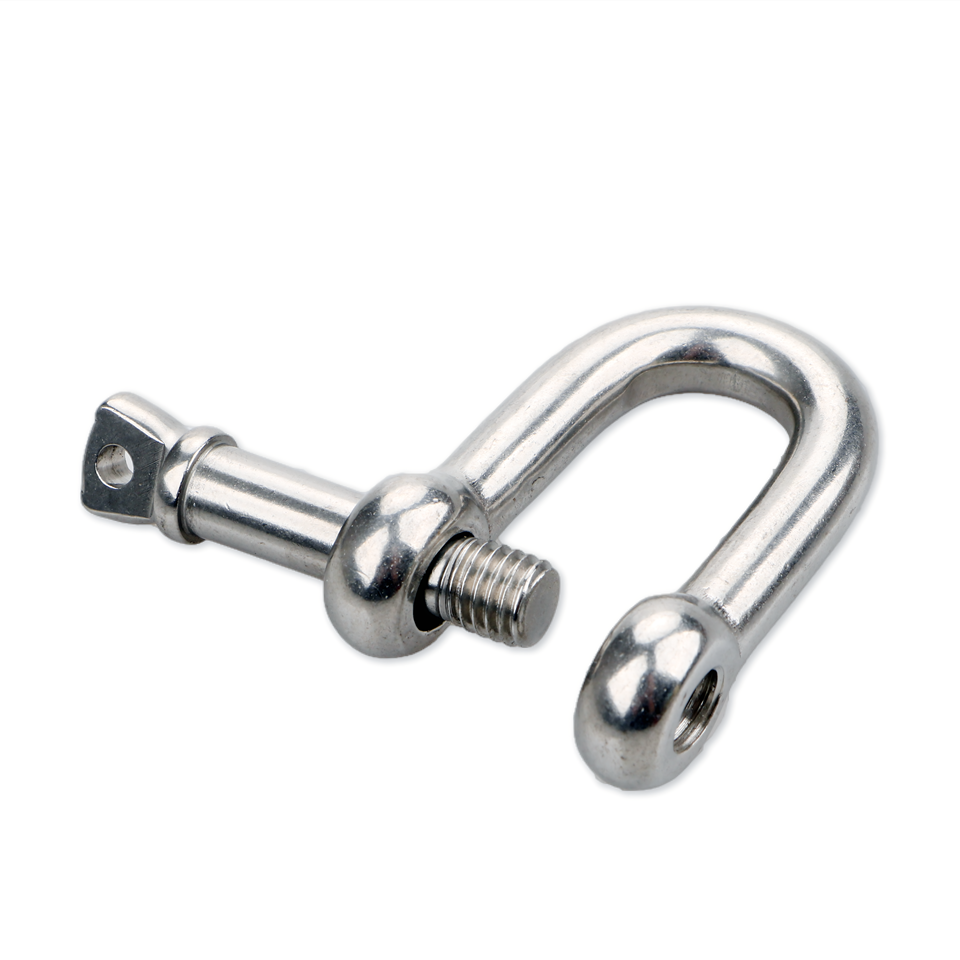

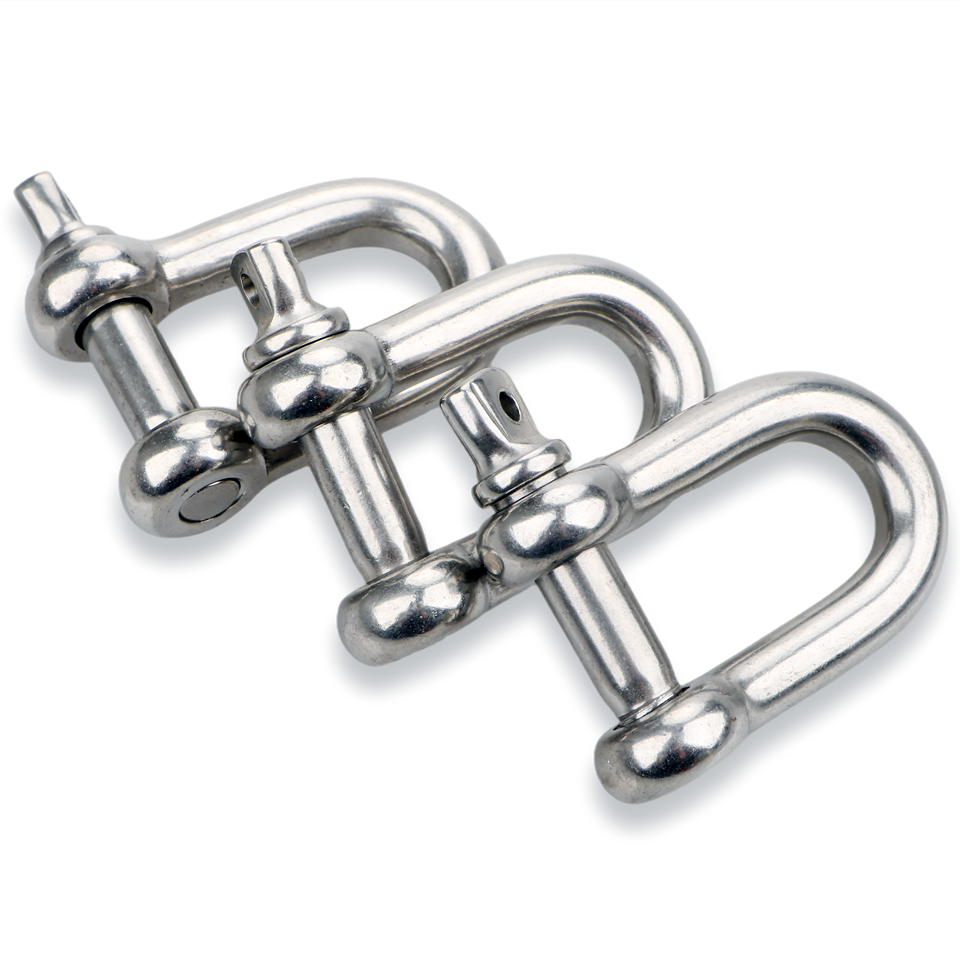

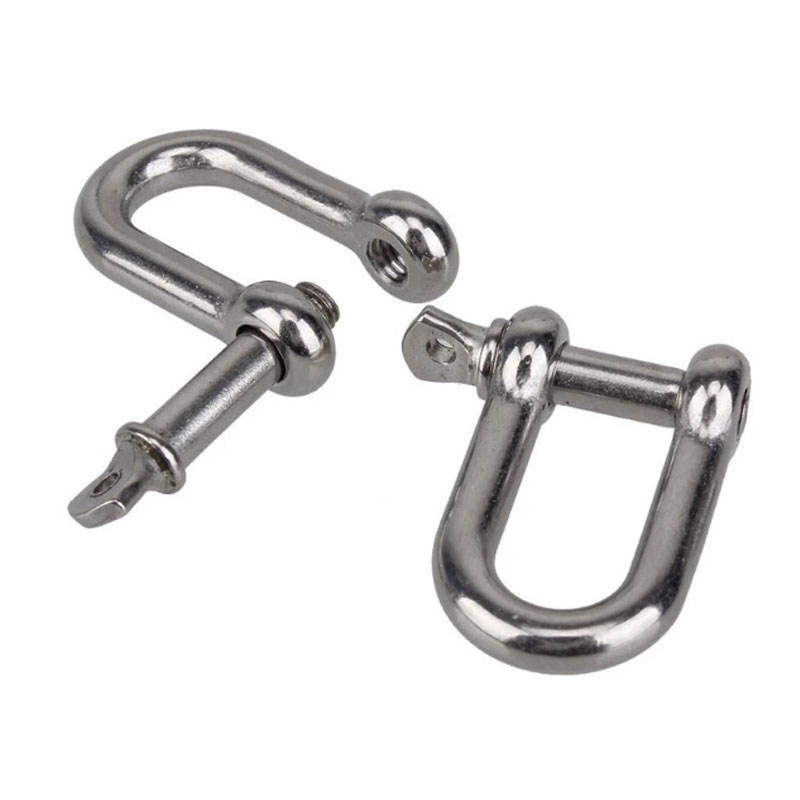

SS304 or SS316 High Strength European Type D Shackle

Material: Stainless steel

Surface treatment: Polishing

Size: 4mm-38mm

WLL:0.8-8T

Standard: European type

Product marking: Required by clients

Inquiry

Detail Information

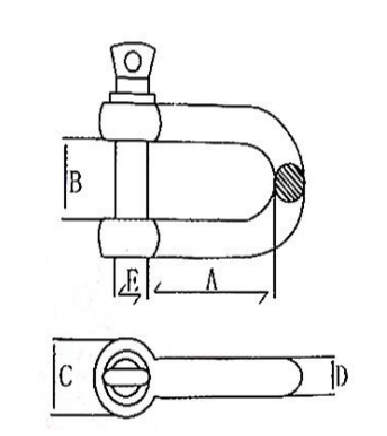

SIZE	A	B	C	D	E	W.L.L
mm	mm	mm	mm	mm	mm	kg
4	16	8	8	4	4	80
5	20	10	10	5	5	100
6	24	12	12	6	6	200
8	32	16	16	8	8	320
10	40	20	20	10	10	520
12	48	24	24	12	12	800
14	56	28	28	14	14	1100
16	64	32	32	16	16	1500
18	72	36	36	18	18	2100
20	76	40	40	20	20	3000
22	88	44	44	22	22	3500
25	100	50	50	25	25	5000
28	112	56	56	28	28	7000
32	128	64	64	32	32	8000
36	144	72	72	36	36
38	152	76	76	38	38

Material：Stainless Steel 316, 304 or Carbon Steel

Surface Finish: Highly Polished or hot dip galvanized or electro galvanized

Standards:Dee shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on.

Types:DIN Type, European Type, Japan Type and US Type.

Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.

Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.

Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
