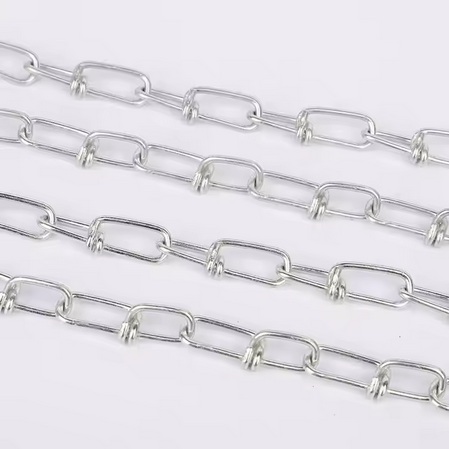

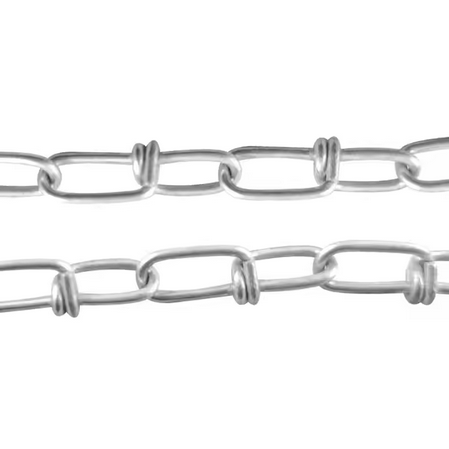

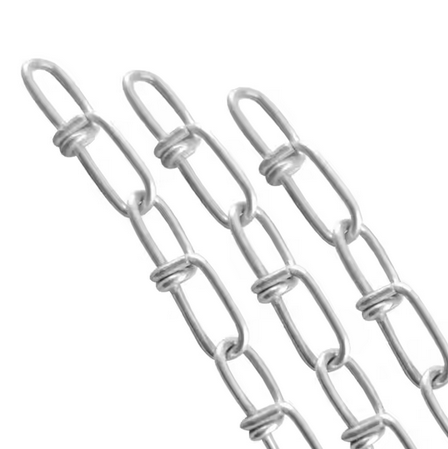

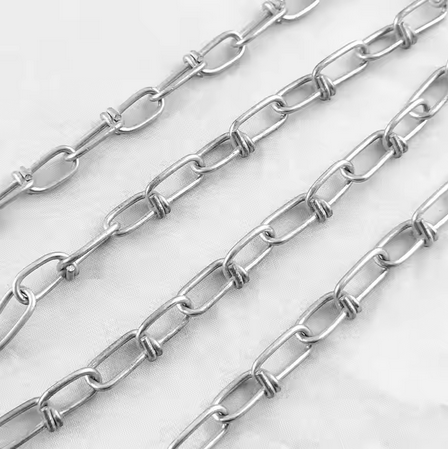

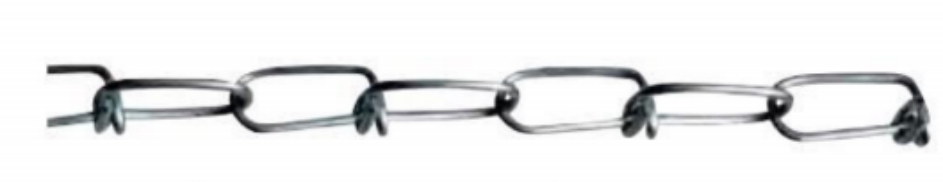

DIN5686 Stainless Steel Weldless Double Loop Link Chain
Material: Carbon steel, Stainless steel
Surface treatment: Black, Yellow, Green, Zinc, Self color, Polished
U.S.A Standard: 5-6/0
DIN5686: 14-55
Standard: U.S.A Standard, DIN5686
Product marking: Required by clients
Detail Information
| DIN5686 | TRADE SIZE | DIAMETER | INSIDE LENGTH | OUTSIDE LENGTH | BREAKING LOAD | UNIT WEIGHT |
| MM | MM | MM | KG | KG/100M | ||
| 14 | 1.4 | 21.0 | 6.5 | 16 | 4.2 | |
| 16 | 1.6 | 23.0 | 7.0 | 22 | 6.0 | |
| 20 | 1.8 | 26.0 | 8.0 | 30 | 7.3 | |
| 22 | 2.0 | 28.0 | 9.0 | 40 | 9.0 | |
| 25 | 2.2 | 31.0 | 10.0 | 50 | 11.0 | |
| 27 | 2.5 | 35.0 | 11.0 | 70 | 14.0 | |
| 30 | 2.8 | 39.0 | 12.5 | 90 | 17.0 | |
| 32 | 3.1 | 41.0 | 14.0 | 120 | 21.0 | |
| 35 | 3.4 | 44.0 | 15.0 | 140 | 26.0 | |
| 40 | 3.8 | 46.0 | 17.0 | 160 | 34.0 | |
| 45 | 4.2 | 50.0 | 19.0 | 170 | 41.0 | |
| 50 | 4.6 | 55.0 | 20.5 | 180 | 50.0 | |
| 55 | 5.0 | 60.0 | 22.5 | 190 | 57.0 |
STEEL LINK CHAIN
SPECIFICATION:
1)Standerd: EN standard,ASTM/NACM standard, DIN standard,UK standard.
2)Grade: G100 G80 G70 G43 G30 and commercial Link Chain
3)Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.
4)Surface :Self color,Zinc plated,Hot dip galv,Powder Coated,Painted.
5)Packing: PP/Gunny bag or cartons on pallet,steel drums on pallets,plasticdrums on pallet,wooden case or according to customers requirement.
Stainless Steel Link Chains are manufactured from premium stainless steel grades such as AISI 304 and 316, ensuring excellent corrosion and wear resistance. They are produced according to international standards including DIN 5685, DIN 763, and ISO 1834, guaranteeing consistent strength and quality. Commonly used in marine, industrial, architectural, and agricultural applications, these chains provide reliable performance for lifting, securing, and decorative purposes. Key features include high tensile strength, smooth surface finish, rust resistance, and long service life, making them suitable for both heavy-duty and aesthetic installations in harsh environments.
