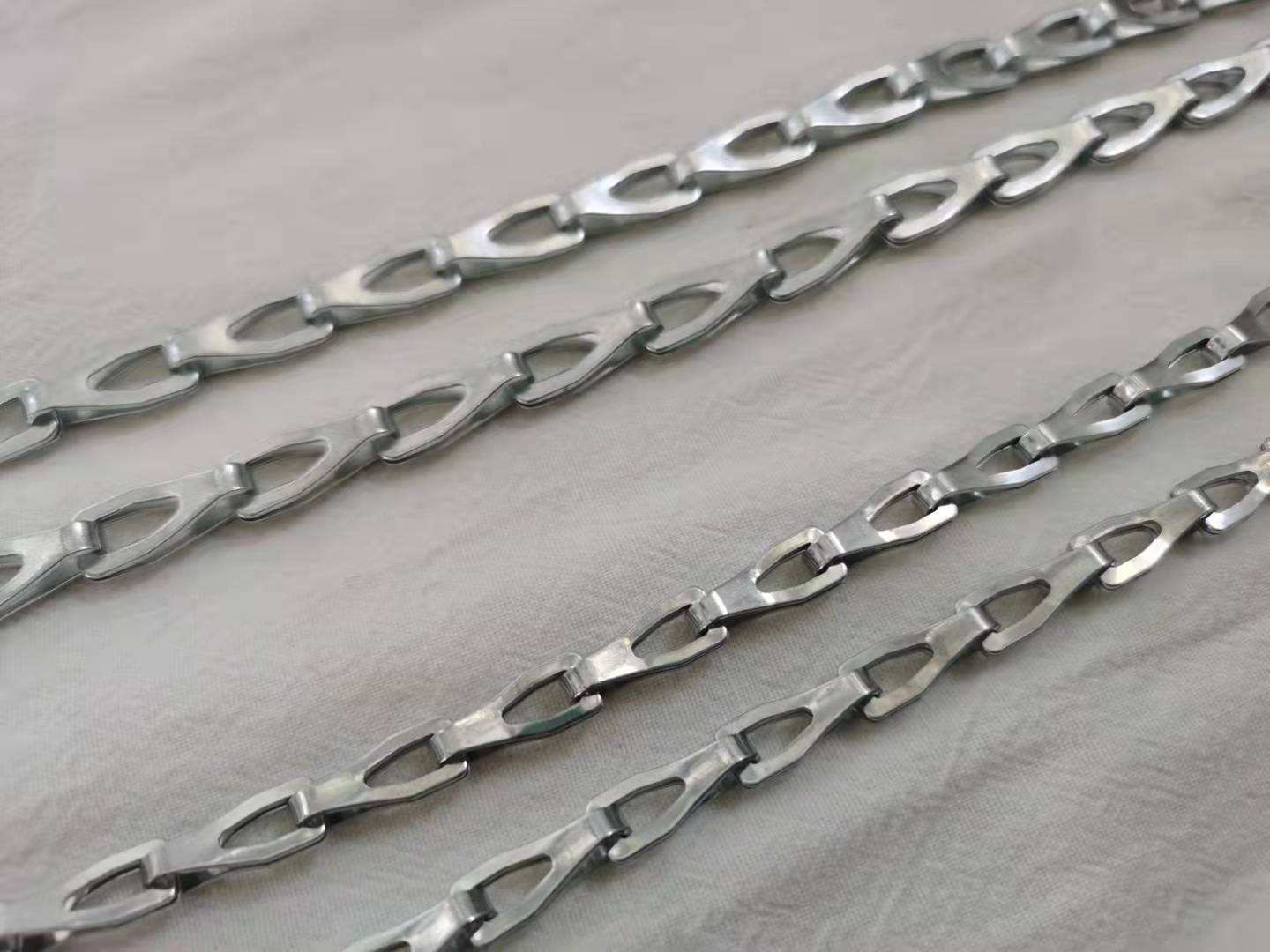

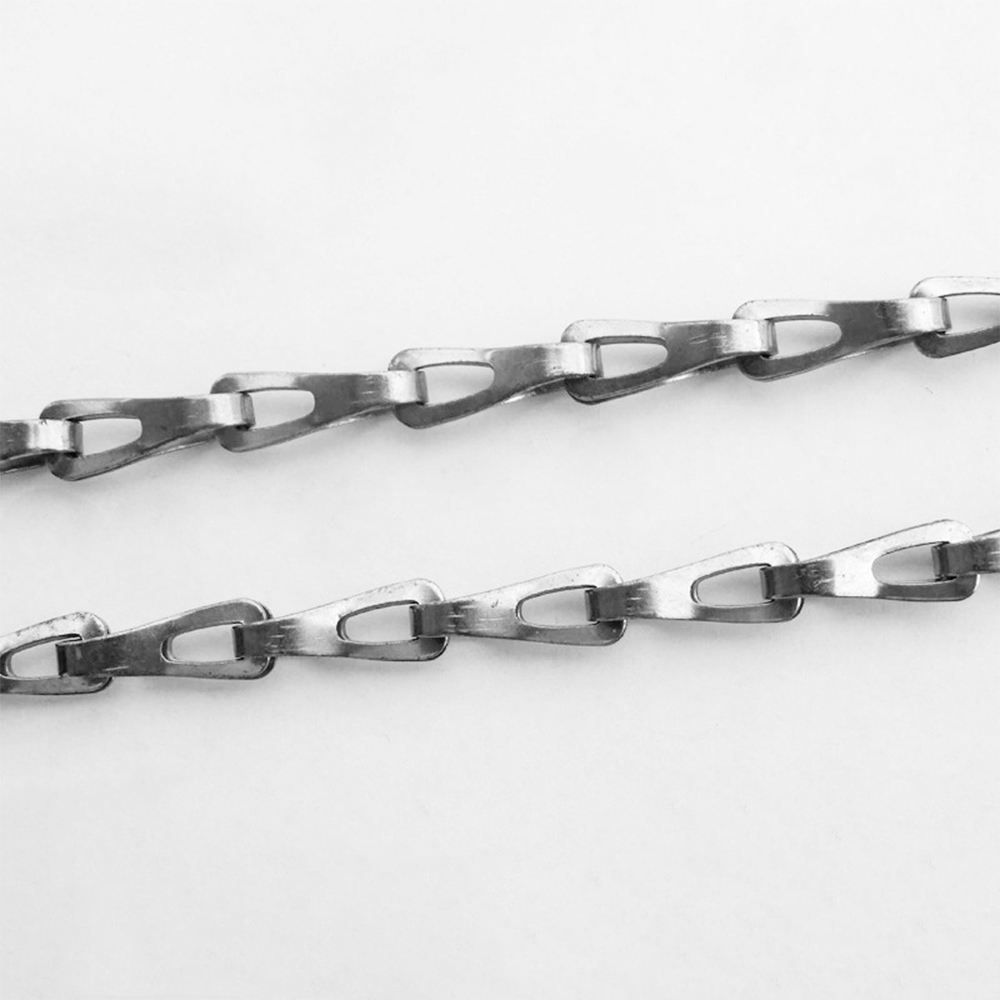

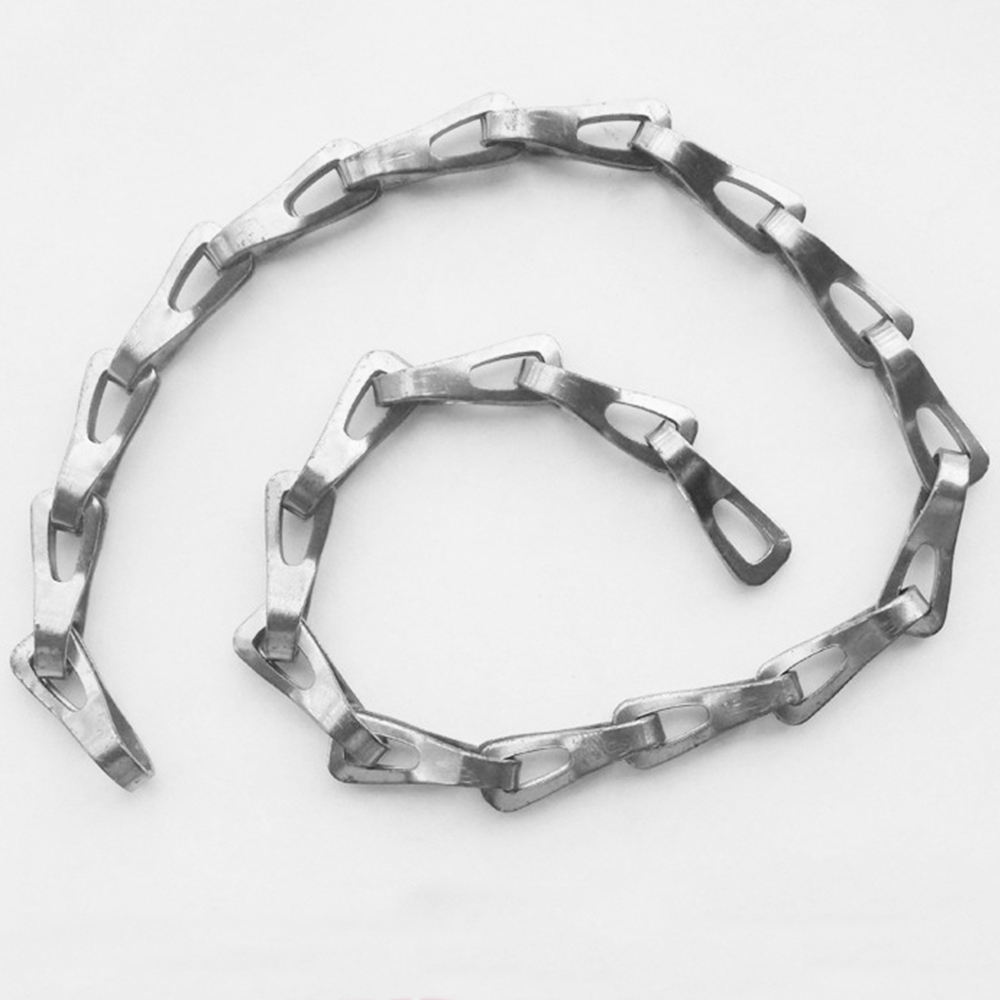

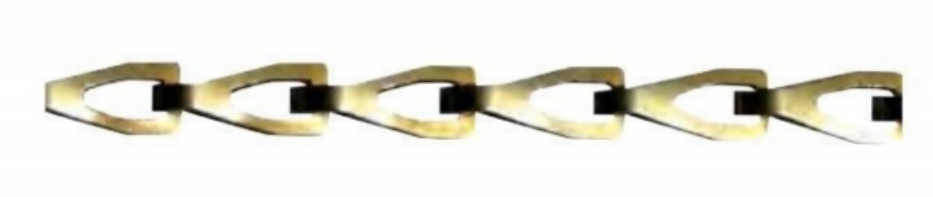

Stainless Steel Sash Melon Weldless Link Chain SASH Chain for Decoration
Material: Carbon steel, Stainless steel
Surface treatment: Zinc, Polished
Size: 8-65
Standard: Sash chain
Product marking: Required by clients
Detail Information
| TRADE SIZE | MATERIAL SIZE | NORMAL INSIDE LENGTH | APPROX.WGT PER 100 FT(30.5M) | WORKING LOAD LIMIT | MINIMUM BREAKING FORCE | |||||
| IN | MM | IN | MM | LBS | KG | LBS | KG | LBS | KN | |
| 8 | 0.035 | 0.9 | 0.56 | 14.1 | 3.9 | 2 | 75 | 34 | 300 | 1.3 |
| 25 | 0.042 | 1.1 | 0.56 | 14.1 | 4.9 | 2 | 94 | 43 | 375 | 1.7 |
| 30 | 0.028 | 0.7 | 0.57 | 14.4 | 4.9 | 2 | 81 | 37 | 325 | 1.4 |
| 35 | 0.035 | 0.9 | 0.57 | 14.4 | 5.7 | 3 | 106 | 48 | 425 | 1.9 |
| 40 | 0.042 | 1.1 | 0.57 | 14.4 | 7 | 3 | 131 | 59 | 525 | 2.3 |
| 45 | 0.05 | 1.3 | 0.57 | 14.4 | 8.7 | 4 | 175 | 79 | 700 | 3.1 |
| 50 | 0.06 | 1.5 | 0.65 | 15.1 | 12 | 5 | 225 | 102 | 900 | 4 |
| 60 | 0.062 | 1.6 | 0.76 | 19.3 | 15 | 7 | 231 | 105 | 925 | 4.1 |
| 65 | 0.072 | 1.8 | 0.88 | 22.2 | 19 | 9 | 319 | 145 | 1275 | 5.7 |
Stainless Steel Link Chains are manufactured from premium stainless steel grades such as AISI 304 and 316, ensuring excellent corrosion and wear resistance. They are produced according to international standards including DIN 5685, DIN 763, and ISO 1834, guaranteeing consistent strength and quality. Commonly used in marine, industrial, architectural, and agricultural applications, these chains provide reliable performance for lifting, securing, and decorative purposes. Key features include high tensile strength, smooth surface finish, rust resistance, and long service life, making them suitable for both heavy-duty and aesthetic installations in harsh environments.
