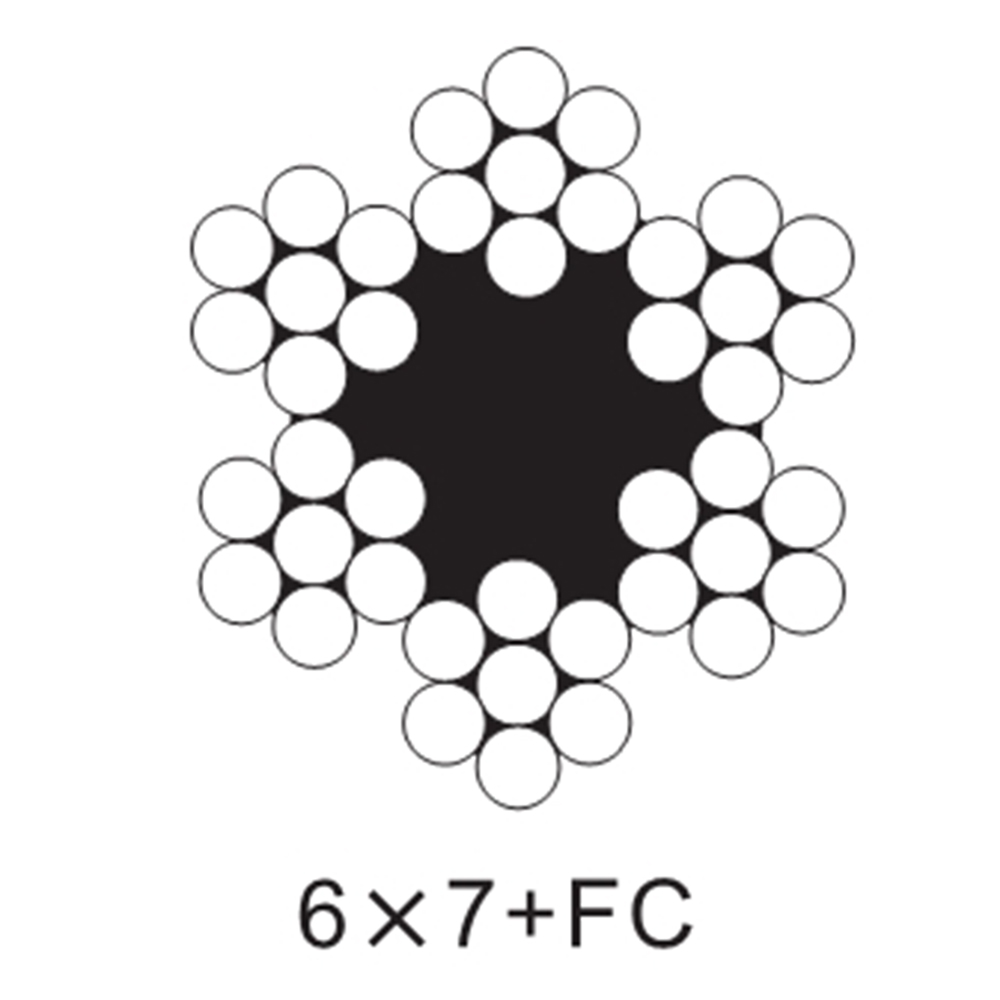

6x7+FC 7x7 Stainless Steel Wire Rope
-Stainless Steel Wire Rope
-6x7+FC / 7x7
-Diameter 1mm to 13mm
-It has features of good corrosion,heat and cold resistance in application of various fields such as chemistry,fisher boat,automobile,aircraft,hardware used in family or stores.
-We have the capability to provide the rope in various types of material and structure with shiny surface to meet customers' needs.
Detail Information
| 6x7+FC 7x7 | ||||||||
Diameter (mm) | Approx.Weight (kg/100m) | Nominal Tensile Strength | ||||||
| 1570N/mm² | 1770N/mm² | 1960N/mm² | ||||||
| Minimum Breaking Load (KN) | ||||||||
| MM | FC | WSC | FC | WSC | FC | WSC | FC | WSC |
| 1 | 0.35 | 0.38 | 0.52 | 0.61 | 0.59 | 0.69 | 0.65 | 0.76 |
| 1.2 | 0.51 | 0.57 | 0.75 | 0.81 | 0.85 | 1.01 | 0.94 | 1.01 |
| 1.5 | 0.80 | 0.88 | 1.17 | 1.27 | 1.32 | 1.58 | 1.46 | 1.58 |
| 1.59 | 0.90 | 0.99 | 1.32 | 1.42 | 1.49 | 1.78 | 1.65 | 1.78 |
| 1.6 | 0.91 | 1.01 | 1.33 | 1.44 | 1.50 | 1.80 | 1.67 | 1.80 |
| 2 | 1.43 | 1.57 | 2.08 | 2.25 | 2.35 | 2.81 | 2.60 | 281 |
| 3 | 3.21 | 3.54 | 4.69 | 5.07 | 5.29 | 6.33 | 5.86 | 6.33 |
| 4 | 5.71 | 6.29 | 8.34 | 9.02 | 9.40 | 11.26 | 10.41 | 11.26 |
| 5 | 8.93 | 9.83 | 13.03 | 14.09 | 14.69 | 17.59 | 16.27 | 17.59 |
| 6 | 12.85 | 14.15 | 18.76 | 20.29 | 21.16 | 25.33 | 23.43 | 25.33 |
| 6.5 | 15.08 | 16.60 | 22.02 | 23.81 | 24.83 | 29.73 | 27.49 | 29.73 |
| 7 | 17.49 | 19.26 | 25.54 | 27.62 | 28.79 | 34.48 | 31.89 | 34.48 |
| 8 | 22.85 | 25.15 | 33.36 | 36.07 | 3761 | 45.03 | 4165 | 45.03 |
| 9 | 28.92 | 31.83 | 42.22 | 45.65 | 47.60 | 56.99 | 52.71 | 56.99 |
| 10 | 35.70 | 39.30 | 52.12 | 56.36 | 58.76 | 70.36 | 65.07 | 70.36 |
| 11 | 43.20 | 47.55 | 63.07 | 68.20 | 71.10 | 85.14 | 78.74 | 85.14 |
| 12 | 51.41 | 56.59 | 75.06 | 81.16 | 84.62 | 101.32 | 93.70 | 101.32 |
| 13 | 60.33 | 66.42 | 88.09 | 95.25 | 99.31 | 118.92 | 109.97 | 118.92 |
General Information of Wire Cable
-Surface Treatment: Ungalvanized /Black/Bright/Electro Galvanized/Hot dip galvanized/zinc plated etc.
-Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.
-Packaging:Wrapped in plastic reel or plywood reel, then put on pallets or in wooden box or as per customer’s requirements.
-TENSILE STRENGTH OF STEEL WIRE:
1470 N/mm²(=150Kgf/mm²)
1570 N/mm²(=160Kgf/mm²)
1770 N/mm² (=180Kgf/mm²)
1960 N/mm² (=200Kgf/mm²)
2160 N/mm² (=220Kgf/mm²)
-Improved Plow Steel(IPS)
-Extra Improved Plow Steel(EIPS)
Construction and Application
1，6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, derricking, lifting, towing etc.
2，6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.
3，6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×25Fi+FC,6×25Fi+IWR, 6×29Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
4，18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload derrick ,and tower crane.
5，6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.
6，Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC
7，Galvanized Aircraft Cable 1×7,1×19,6×+FC ,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.
Stainless steel wire rope is manufactured in compliance with standards such as ASTM A1023, EN 12385, and ISO 2408, using high-grade materials like AISI 304, 316, or 316L. Common constructions include 1×19, 7×7, and 7×19, with diameters ranging from 1 mm to 32 mm. Known for its excellent corrosion resistance, durability, and aesthetic appearance, it performs reliably in marine, architectural, food processing, and medical industries. Typical applications include rigging, balustrades, lifting, and control cables. Stainless steel wire rope combines strength and flexibility, making it ideal for long-term use in harsh or hygienic environments.
