M4 M6 M8 M10 M12 316 Stainless Steel Hardware Double Ended Swivel Eye-eye Swivel Ring

Material: Stainless steel

Surface treatment: Polishing

Size: 4mm-19mm

BL:450-10000lbs

Standard: Eye&eye swivel

Product marking: Required by clients

Inquiry

Detail Information

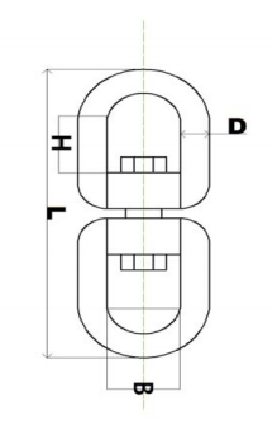

D	L	H	B	WT
mm	mm	mm	mm	tons
4	47	9	11.5	0.019
5	61	15	13.5	0.03
6	63.5	15	15	0.05
8	88	21	20	0.114
10	111	27	24	0.223
12	126	26	25	0.353
13	147	35	31	0.446
16	186	45	38	0.977
19	225	54	40	1.48

Material：Stainless Steel 316, 304 or Carbon Steel

Surface Finish: Highly Polished or hot dip galvanized or electro galvanized

Standards: Eye to eye, Jaw to jaw, Eye to jaw

Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.

Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.

Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
