Swivel Joint Connector 304/316 Stainless Steel Quick Release Double Jaw & Jaw Swivel Shackles
Material: Stainless steel
Surface treatment: Polishing

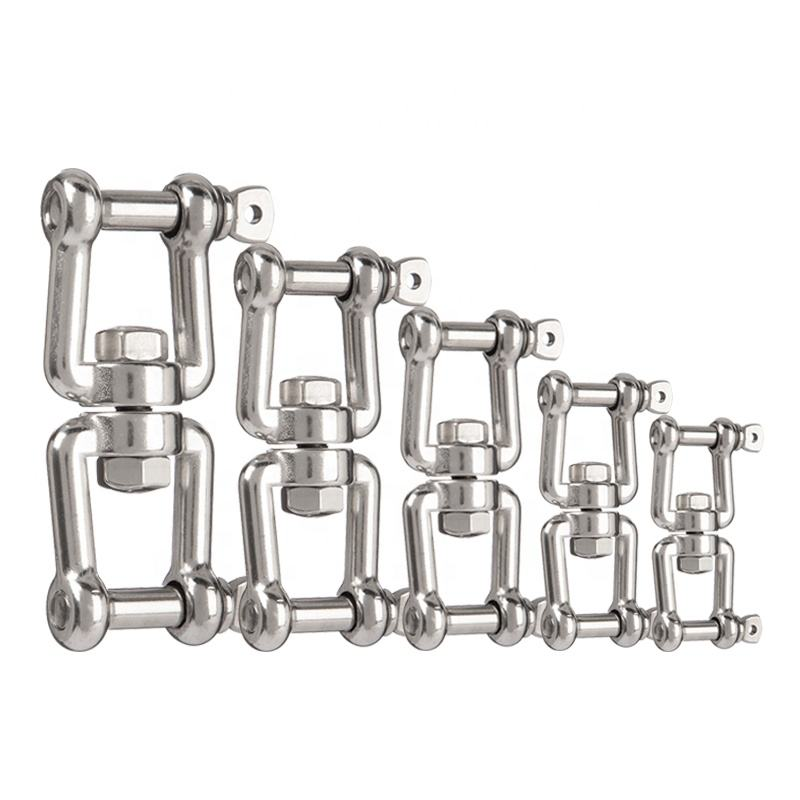

Size: 5mm-19mm
BL:1200-10000lbs
Standard: Jaw&jaw swivel
Product marking: Required by clients
Detail Information

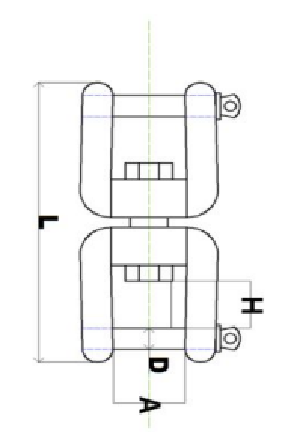

| D | L | H | A | WT |
| mm | mm | mm | mm | tons |
| 5 | 60 | 11.5 | 10 | 0.041 |
| 6 | 66 | 12 | 12 | 0.058 |
| 8 | 94 | 16 | 16 | 0.145 |
| 10 | 118 | 22 | 20 | 0.275 |
| 13 | 152 | 28 | 26 | 0.684 |
| 16 | 188 | 37 | 32 | 1.12 |
| 19 | 229 | 44 | 38 | 2.21 |
Material：Stainless Steel 316, 304 or Carbon Steel
Surface Finish: Highly Polished or hot dip galvanized or electro galvanized
Standards: Eye to eye, Jaw to jaw, Eye to jaw
Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
