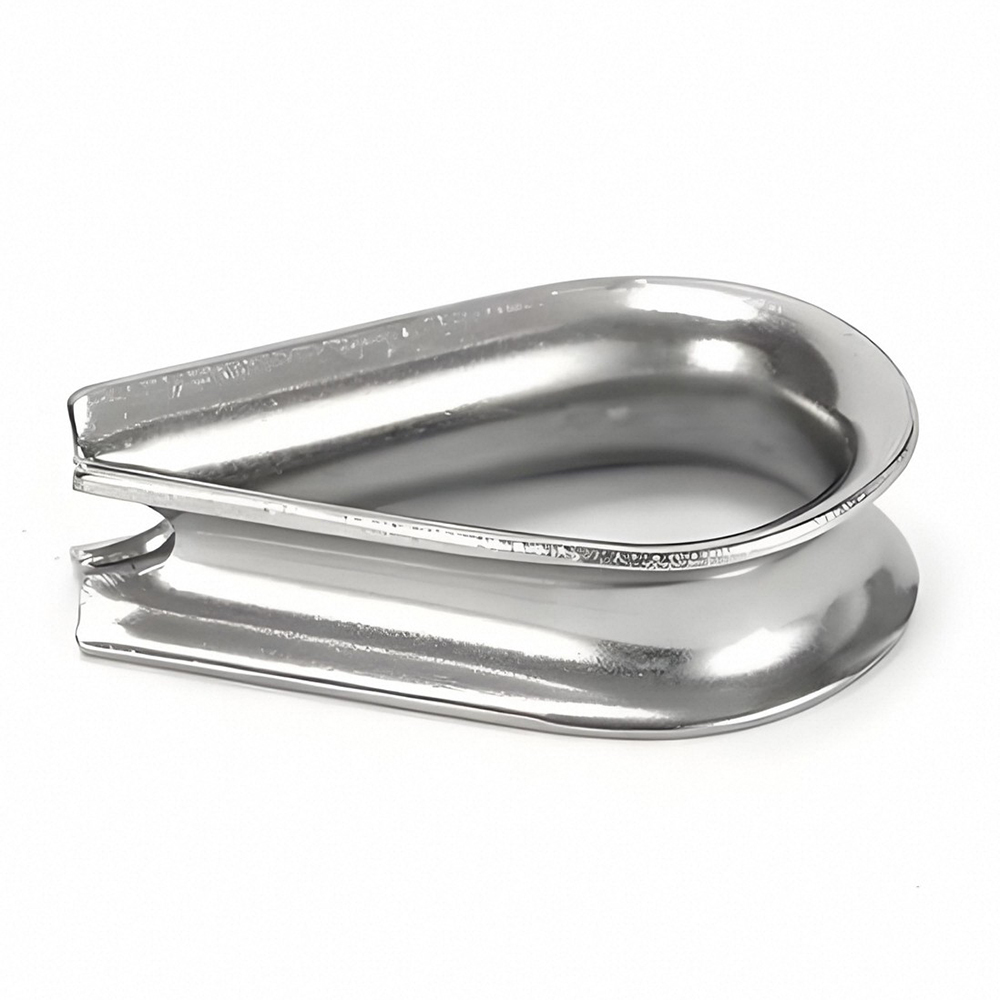

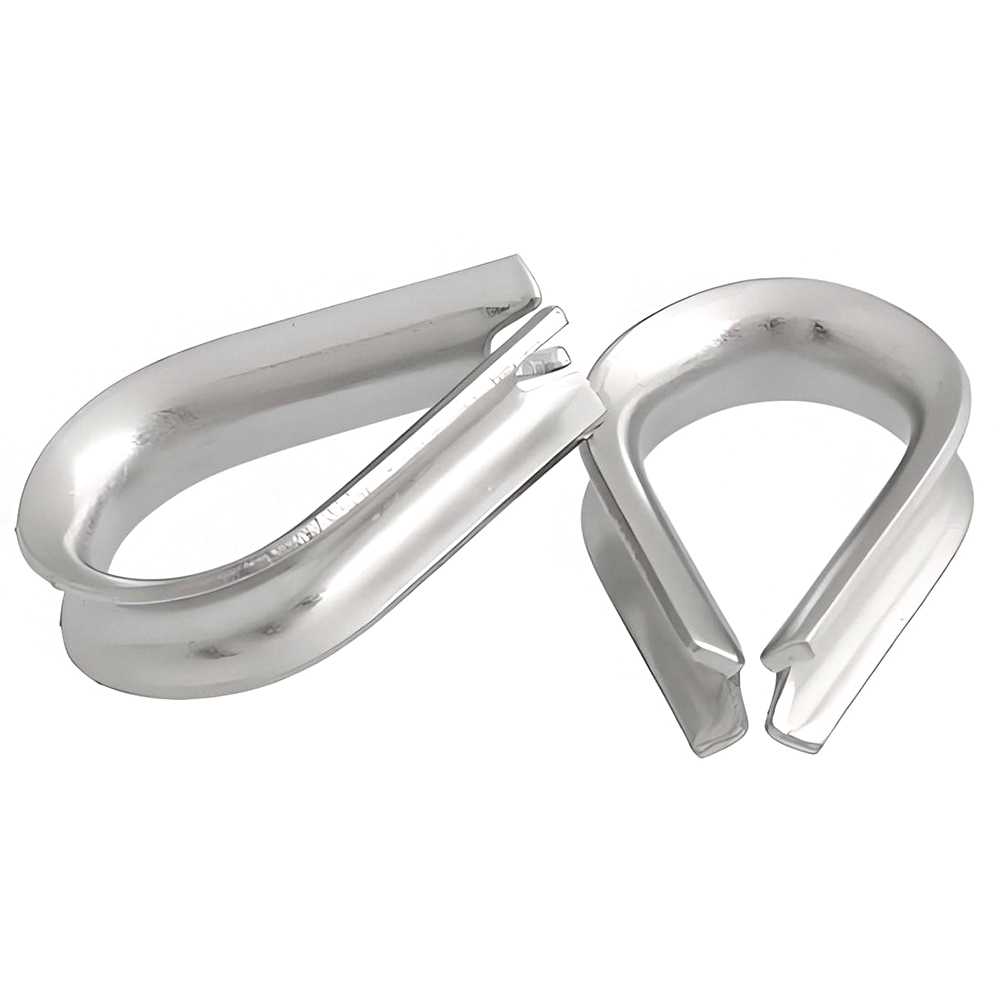

304 316 Stainless Steel JIS Type Customizable Cable Thimble Wire Rope Thimble Rigging
-Place of Origin:China (Mainland)
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Wire Rope Thimble
-Material:Stainless Steel 304/316
-Size:M2 to M26
-Surface Treatment:High Polished
-Also Available in Carbon steel Hot Dipped Galvanized, Electro Galvanized, Color Painted, Self colored or other etc.
-Color:Silver
-Features:Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are free from Lateral / longitudinal cracks, pits and marks etc.
Detail Information
| Specification | A(mm) | B(mm) | C(mm) | H(mm) | S(mm) | KPCS ( k g ) |
| M2 | 3.0 | 9.0 | 7.7 | 11.5 | 0.8 | 1.5 |
| M3 | 4.4 | 14.0 | 9.9 | 16.0 | 0.8 | 2.0 |
| M4 | 5.3 | 15.0 | 11.8 | 17.0 | 0.8 | 2.5 |
| M5 | 6.4 | 17.0 | 13.3 | 20.0 | 1.0 | 5.5 |
| M6 | 7.4 | 21.0 | 16.0 | 22.0 | 1.0 | 6.5 |
| M8 | 9.0 | 30.0 | 20.0 | 29.0 | 1.5 | 18.5 |
| M10 | 11.8 | 36.0 | 26.0 | 37.0 | 1.5 | 24.0 |
| M12 | 14.0 | 40.0 | 26.0 | 42.0 | 2.0 | 40.0 |
| M14 | 15.0 | 50.0 | 33.0 | 50.0 | 1.9 | 60.0 |
| M16 | 17.0 | 54.0 | 39.0 | 55.0 | 1.9 | 77.0 |
| M18 | 19.7 | 54.0 | 40.0 | 61.0 | 2.5 | 127.0 |
| M20 | 21.8 | 72.0 | 43.0 | 65.0 | 2.5 | 143.0 |
| M22 | 23.8 | 77.0 | 43.0 | 67.0 | 2.5 | 172.0 |
| M24 | 25.8 | 77.0 | 49.0 | 73.0 | 2.5 | 198.0 |
| M26 | 27.8 | 79.0 | 53.0 | 80.0 | 2.5 | 279.5 |
-Place of Origin:China (Mainland)
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Wire Rope Thimble
-Material:Stainless Steel 304/316
-Size:M2 to M26
-Surface Treatment:High Polished
-Also Available in Carbon steel Hot Dipped Galvanized, Electro Galvanized, Color Painted, Self colored or other etc.
-Color:Silver
-Features:Stainless Steel Cables have smooth surface, high corrosion resistant, high fatigue strength, excellent heat resistance and are free from Lateral / longitudinal cracks, pits and marks etc.
-Technology:Precision casting
-Application:Wire Rope Fittings
-Packaging:Polybag, carton or as per customer's requirements
Related Type:BS464 Type,DIN6899A Type,DIN6899B Type,DIN3091 Type,Italian Type,US G411 and G414 Type,European Type, Commercial Type,Tube Type,Ring Type,Standard or Nonstandard Type etc.
Note:Special specifications and marks can be made according to customers requirements.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
