Stainless Steel AISI304/316 Tube Type Thimble Wire Rope Accessories Cable Thimble Rigging Tubular Thimble
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001

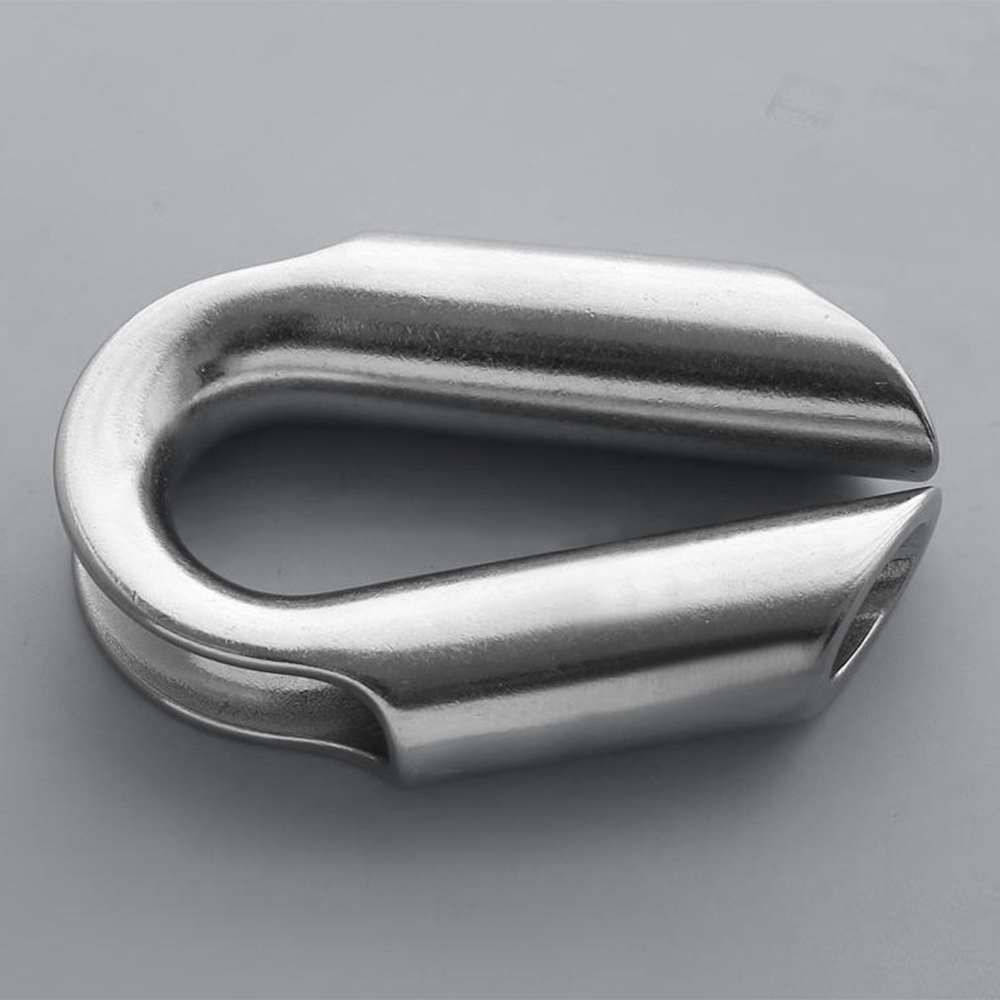

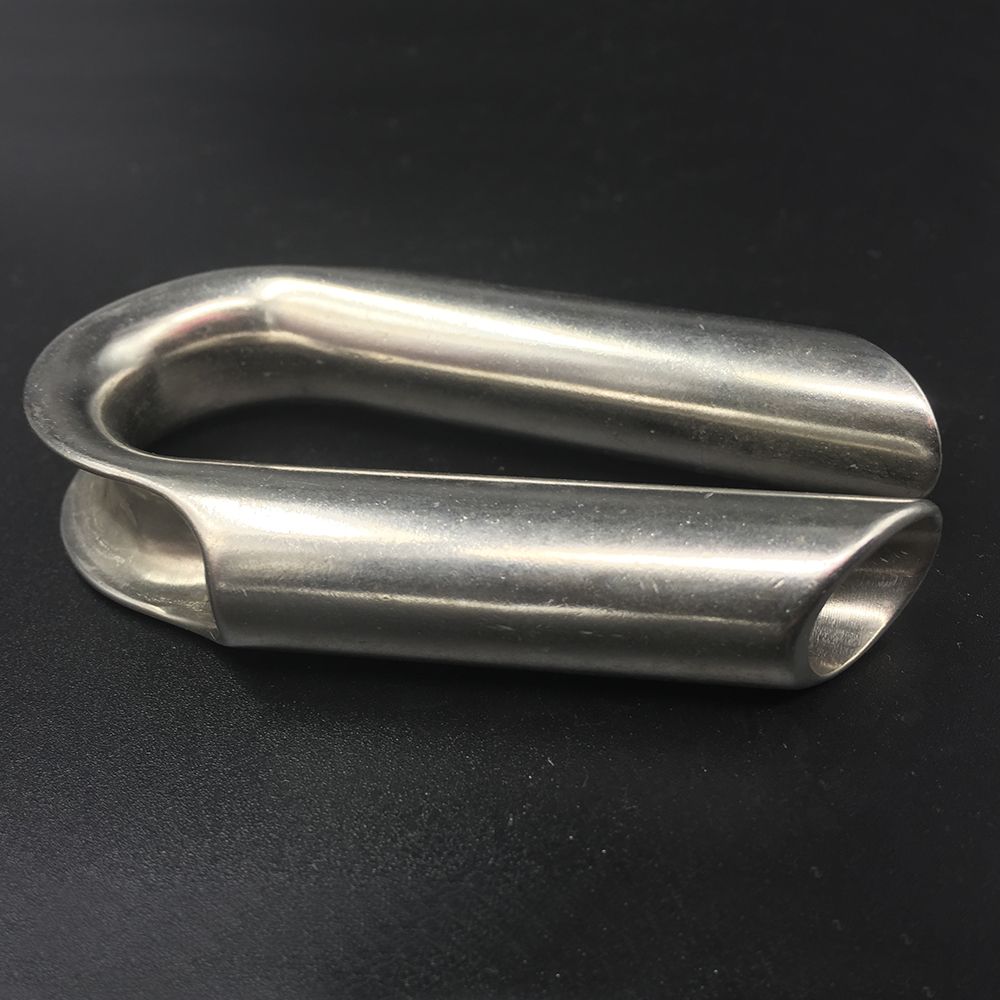

-Product name: Tube Thimble
-Material:Stainlee Steel 304/316
-Rope of dia.: 10mm to 38mm
-Surface treatment:Polished
-Also Available in Alloy steel, Carbon steel,Zinc plating, Hot dipped galvanized.
-Technology:Precision Casting
-Application:Wire rope fittings
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information

| STAINLESS STEEL AISI316 | ||||
| STAINLESS STEEL AISI304 | ||||

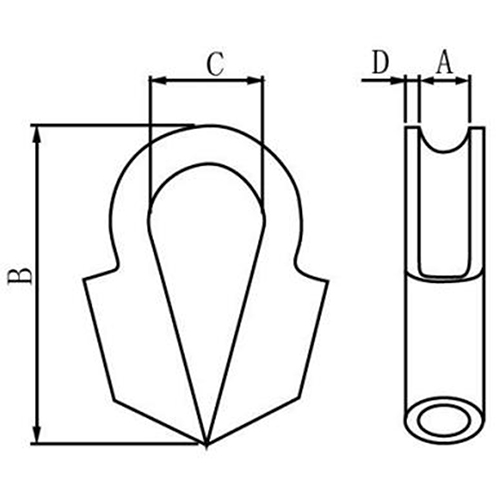

| rope of dia. MM | A MM | B MM | C MM | D MM |
| 10 | 12 | 90 | 23 | 4 |
| 12 | 15 | 105 | 27 | 5 |
| 14 | 17 | 115 | 27 | 4 |
| 16 | 19 | 120 | 32 | 5 |
| 18 | 22 | 140 | 35 | 5 |
| 22 | 25 | 180 | 45 | 6 |
| 25 | 30 | 195 | 47 | 7 |
| 32 | 35 | 215 | 60 | 7 |
| 38 | 45 | 260 | 70 | 7 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product name: Tube Thimble
-Material:Stainlee Steel 304/316
-Rope of dia.: 10mm to 38mm
-Surface treatment:Polished
-Also Available in Alloy steel, Carbon steel,Zinc plating, Hot dipped galvanized.
-Technology:Precision Casting
-Application:Wire rope fittings
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Related Type:BS464 Type,DIN6899A Type,DIN6899B Type,DIN3091 Type,Italian Type,US G411 and G414 Type,European Type, Commercial Type,Tube Type,Ring Type,Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
