Sturdy Durable Stainless Steel AISI316 Wire Rope Cable Thimble European Type

-Material: stainless steel 304, stainless steel 316

-Surface treatment: polishing ...

-Manufacture standard: European Type

-Product marking: Required by client.

-Other type: G411 type, G414 type, Italian Type

Inquiry

Detail Information

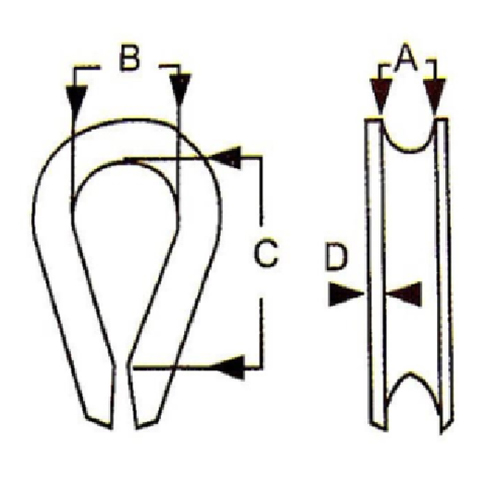

Euro Thimble 500

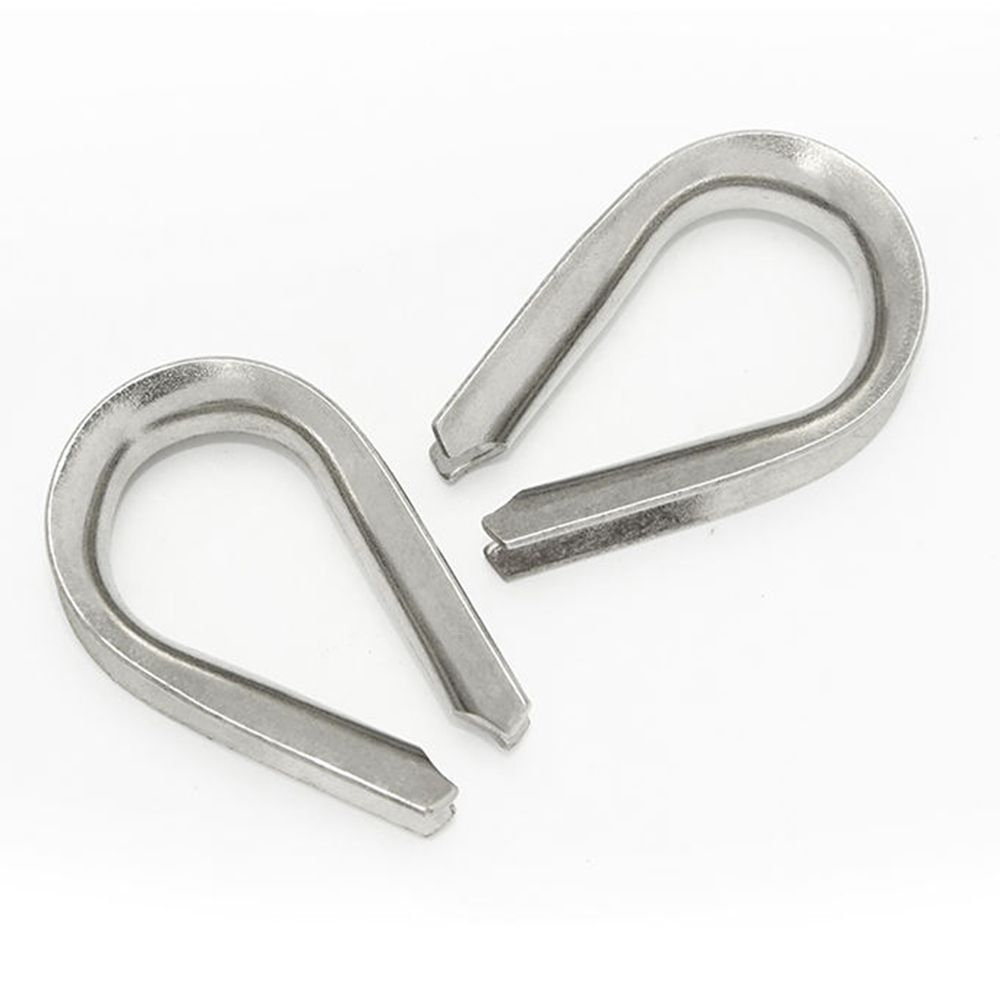

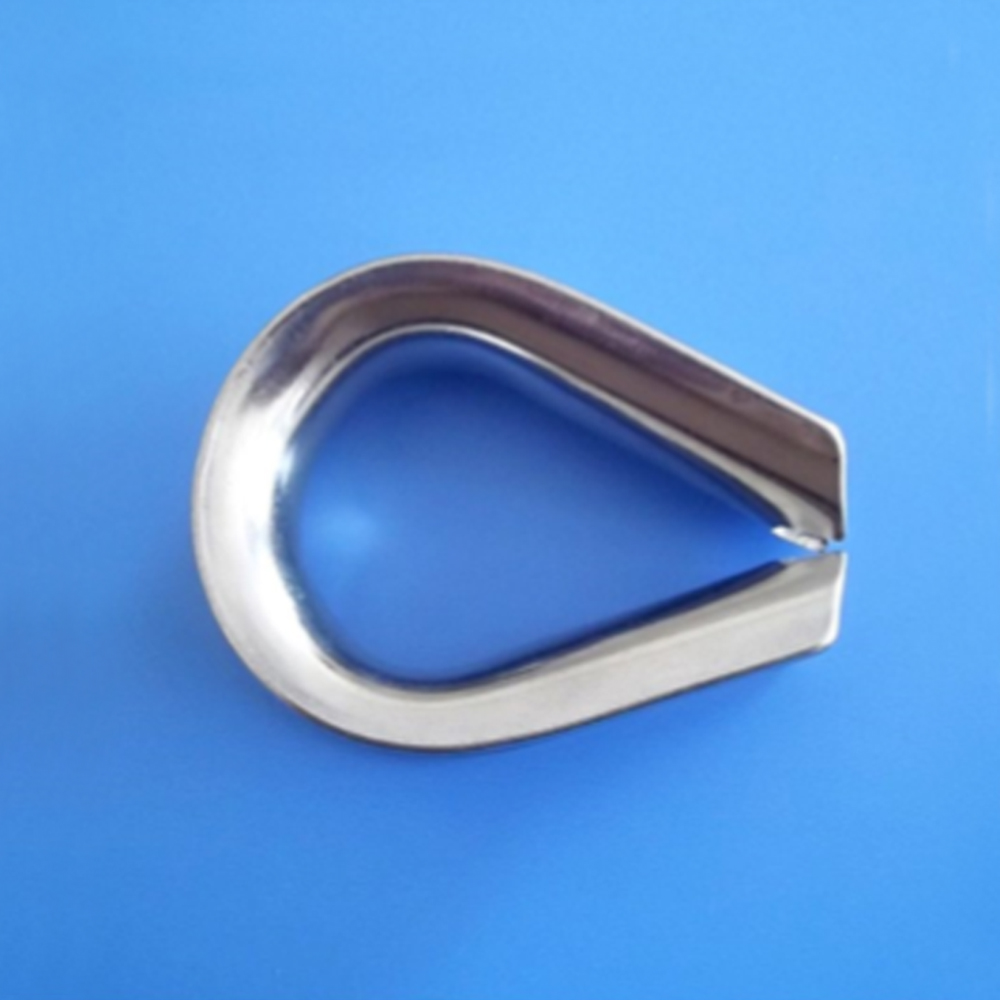

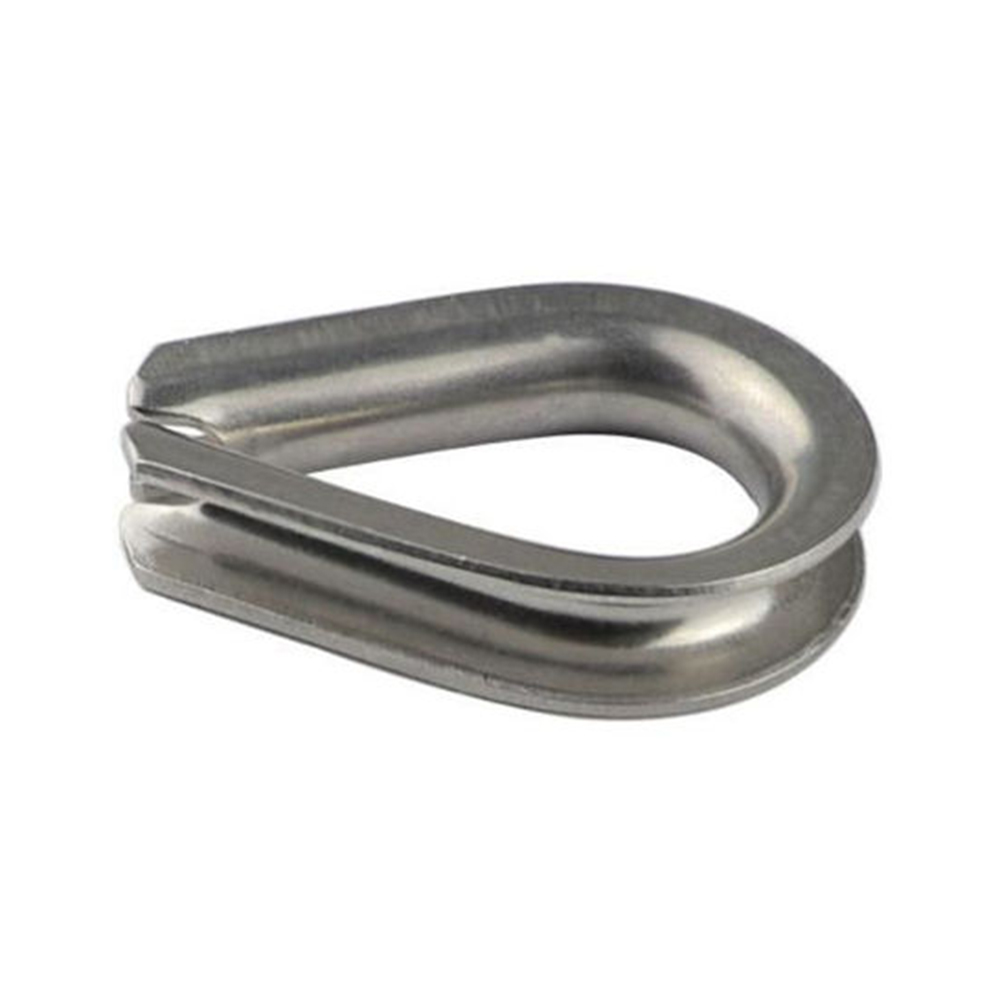

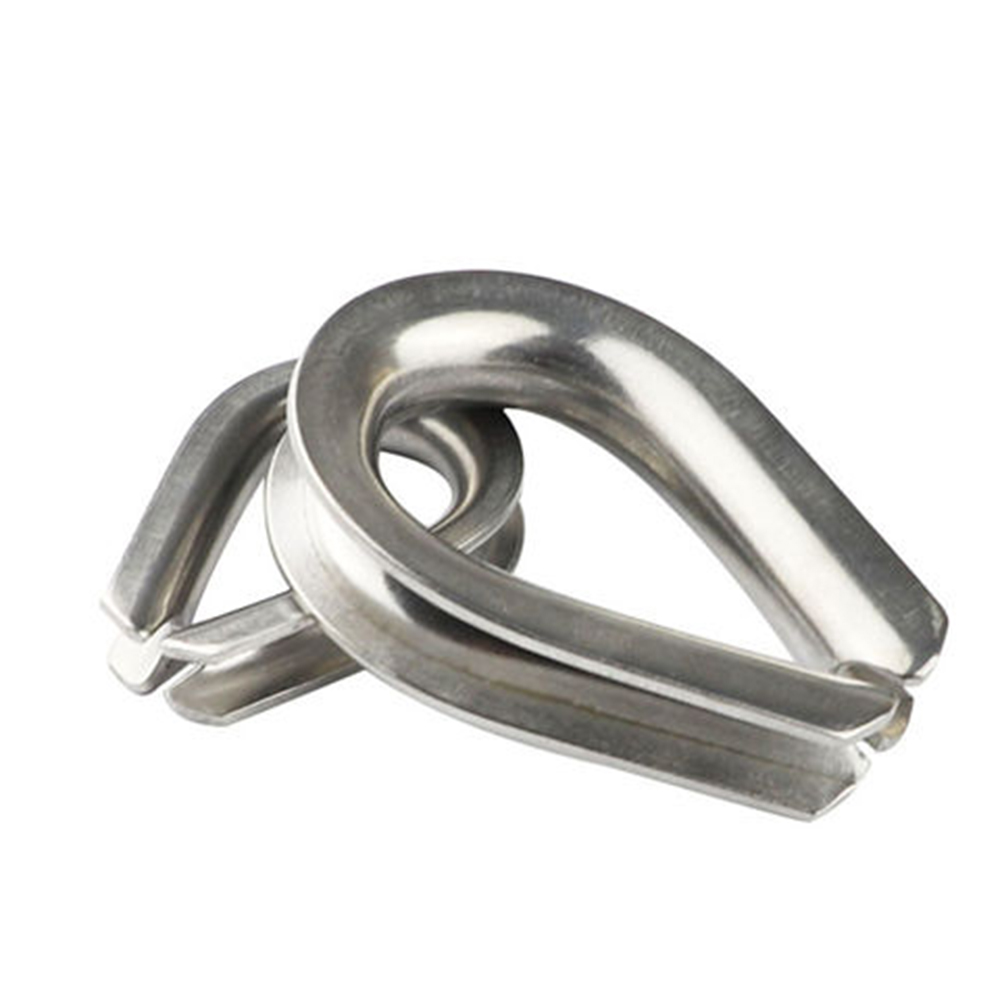

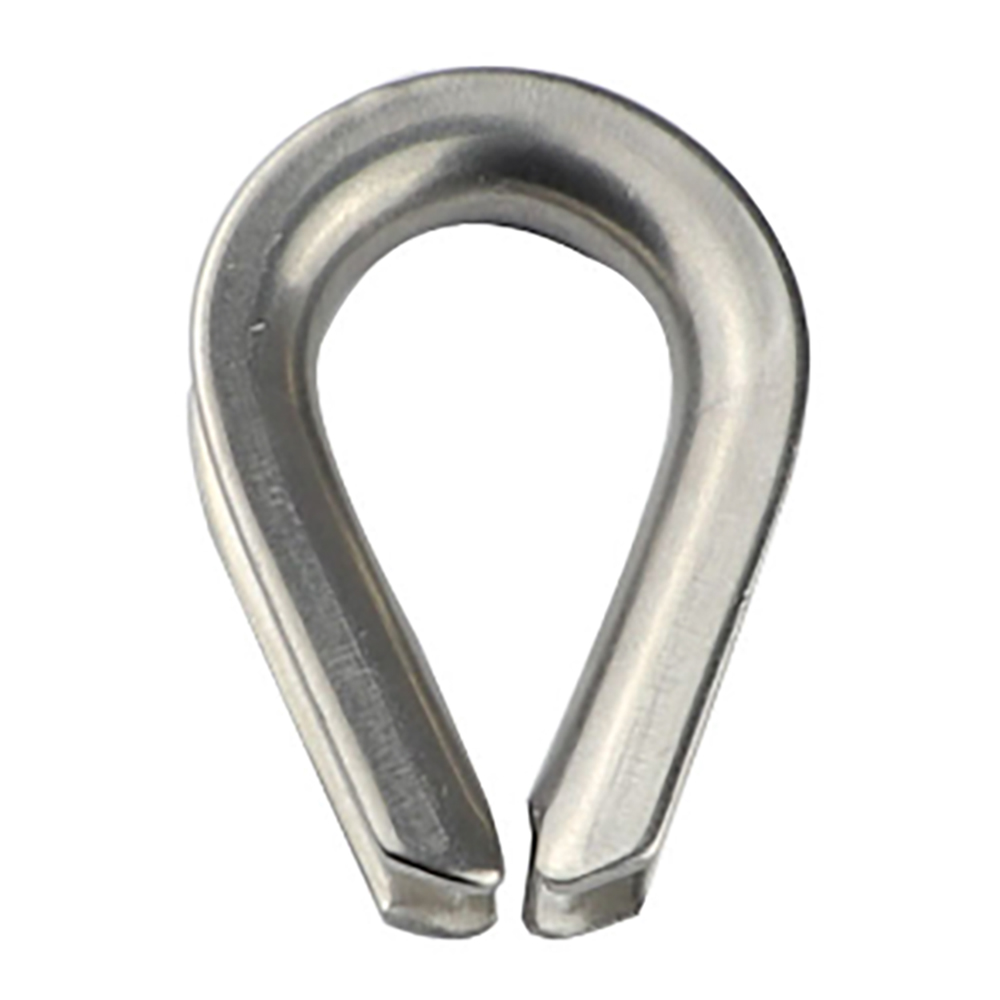

Stainless Steel European Type Wire Rope Thimble
SIZE	A	B	C	D
mm	mm	mm	mm	mm
2	2	8	14	1
3	3	10	16	1
4	4	11	19	1
5	5.6	13.5	23.5	1
6	6.6	15	25	1.25
8	9	18	32	1.5
10	11	23	37	1.5
12	14	27	44	2
14	15	34	55	2.5
16	17	35	63	2.5
18	19	40	69	3
20	22	46	76.5	4

-Material：Stainless Steel 316, 304 or Carbon Steel

-Surface Finish: Highly Polished or hot dip galvanized or electro galvanized

-Standards:BS464 Type,DIN6899A Type,DIN6899B Type,DIN3091 Type,Italian Type,US G411 and G414 Type,European Type, Commercial Type,Tube Type,Ring Type,Standard or Nonstandard Type etc.

-Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.

-Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.

Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
