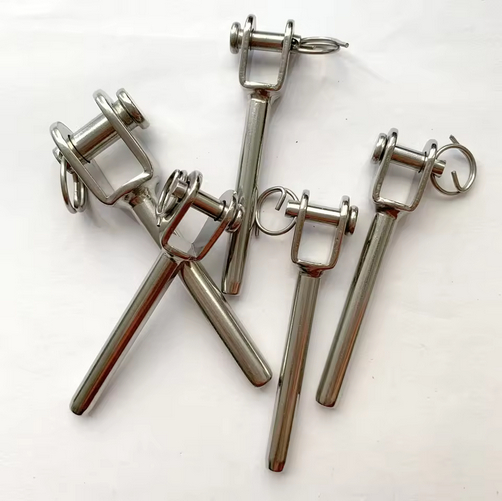

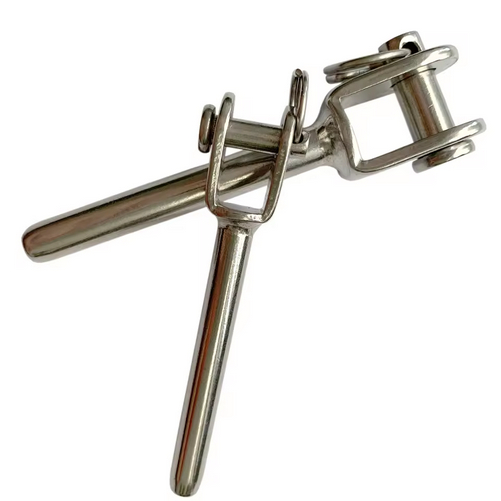

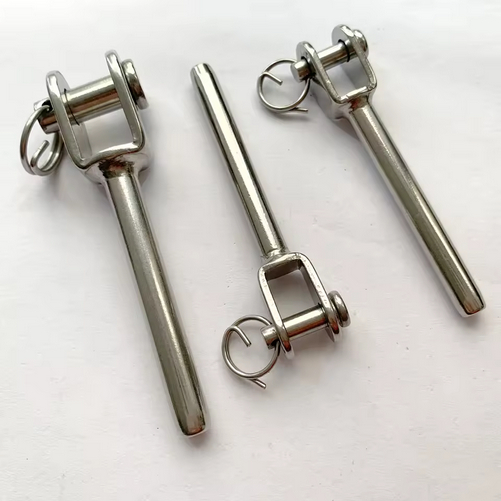

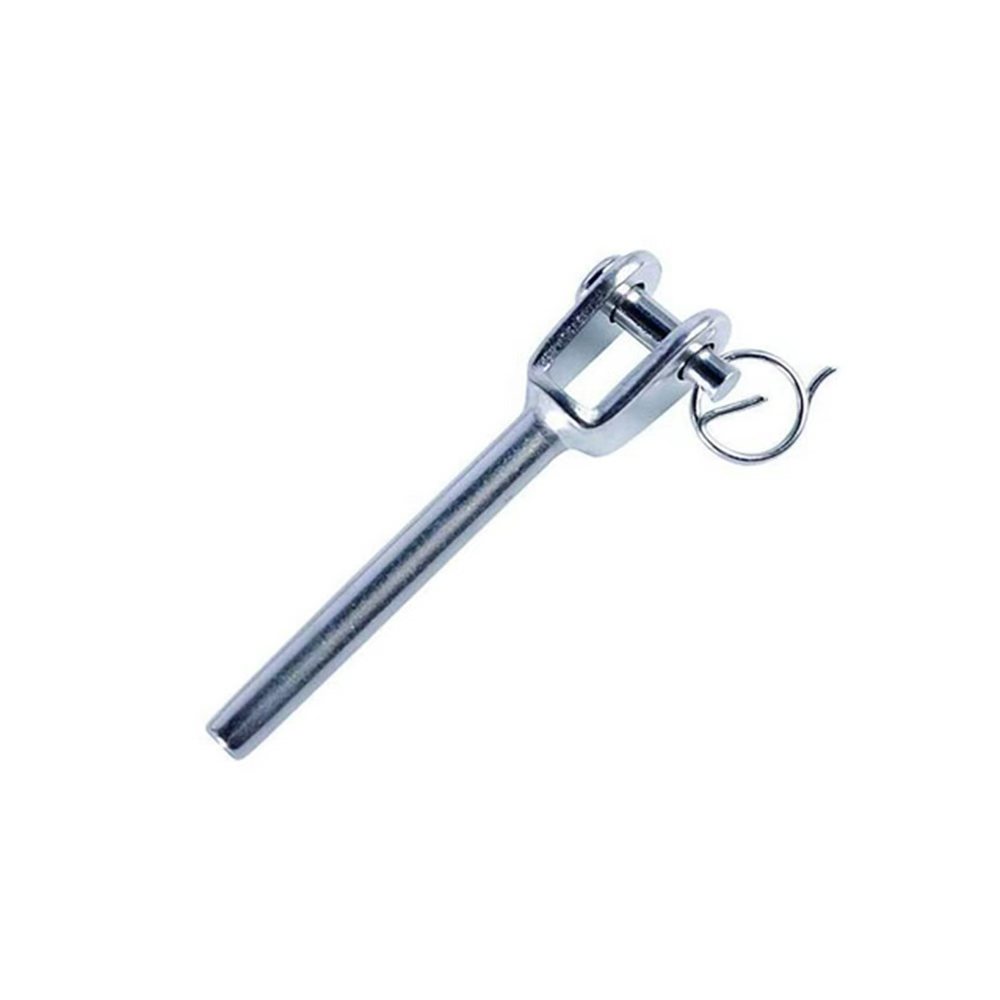

AISI316 Stainless Steel Swage Fork Jaw Terminal Rigging Hardware Accessories Swage Terminal 316 Jaw Terminal
Material: high quality stainless steel
Surface treatment: polishing
Manufacture standard: US，EURO etc.
Quality grade:stainless steel 304、316、
Product marking:required by client.

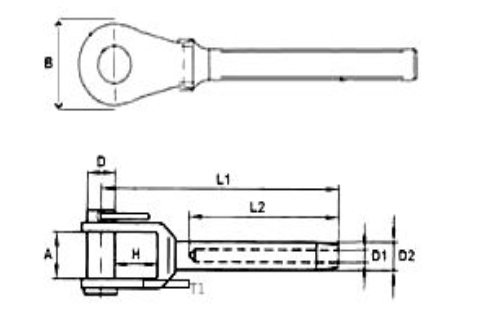

Detail Information
| WIREΦ | L1 | L2 | A | D | H | B | T1 | B1 | D1 | D2 | WT |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KGS |
| 2.5 | 55 | 24 | 6.5 | 5 | 10 | 13 | 3 | 10 | 2.7 | 5.5 | 0.0195 |
| 3 | 65 | 32 | 7.5 | 6 | 10 | 14 | 3 | 10 | 3.3 | 6.35 | 0.02 |
| 4 | 77 | 40 | 11 | 8 | 11 | 18.5 | 3 | 12 | 4.3 | 7.5 | 0.046 |
| 5 | 88 | 57 | 12 | 9 | 14 | 21 | 4 | 13.5 | 5.3 | 9 | 0.072 |
| 6 | 106 | 63 | 14 | 12 | 20 | 26 | 5 | 18.5 | 6.4 | 12.6 | 0.109 |
| 7 | 116 | 70 | 15 | 12 | 22 | 26.5 | 5 | 20.5 | 7.4 | 14.2 | 0.15 |
| 8 | 145 | 85 | 17 | 16 | 26 | 36 | 6 | 24.5 | 8.4 | 16 | 0.246 |
| 10 | 150 | 90 | 20 | 19 | 30 | 45.5 | 6 | 29.5 | 10.5 | 18 | 0.471 |
| 12 | 195 | 105 | 23 | 19 | 35 | 45.5 | 6 | 29.5 | 12.6 | 20 | 0.595 |
Material: high quality stainless steel
Surface treatment: polishing
Manufacture standard: US，EURO etc.
Quality grade:stainless steel 304、316、
Product marking:required by client.
We operate a strict and comprehensive quality control system. This system, supported by a dedicated team of inspectors, guarantees that every product we manufacture meets the highest standards and fulfills all customer quality requirements.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
