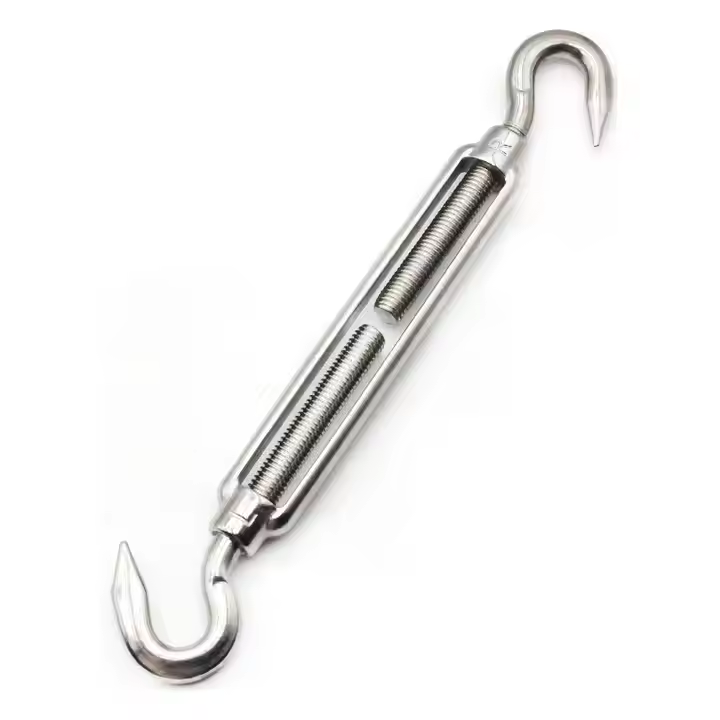

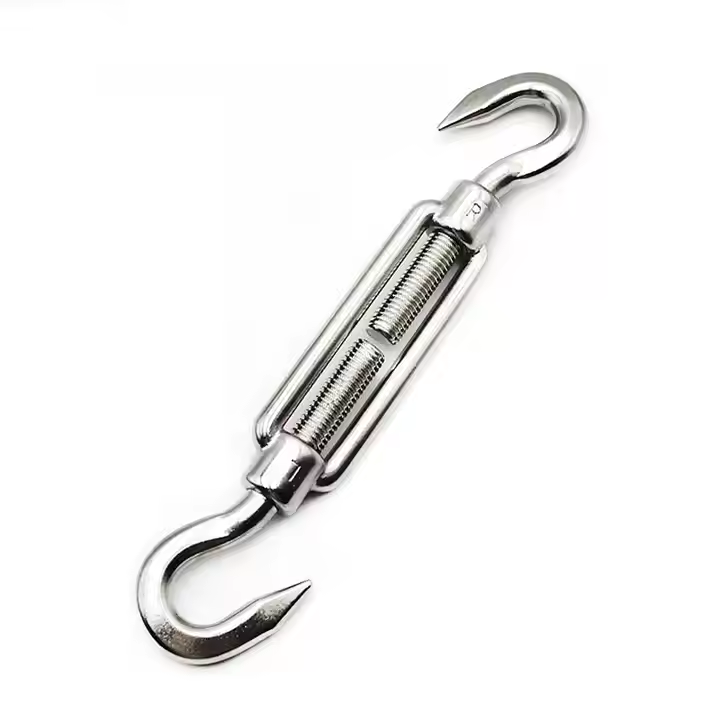

Rigging Hardware Hook to Hook Din1480 Turnbuckle 316 Stainless Steel Open Body Turnbuckles
Material: high quality stainless steel
Surface treatment: polishing
Also Available in Carbon steel,Hot dip galvanized,Electro Galvanized,Self-color etc.
Manufacture standard: DIN, JIS, US，KOREAN EURO etc.
Quality grade:stainless steel 304、316、
Product marking:required by client.
Detail Information
| SIZE | LA | L2 | b | da | C | di | WT |
| mm | mm | mm | mm | mm | mm | mm | KGS |
| 5M | 90 | 55 | 46 | 9.5 | 4.5 | 18.5 | 0.044 |
| 6M | 110 | 60 | 53 | 10 | 4.5 | 19 | 0.078 |
| 8M | 110 | 60 | 55 | 12 | 6.5 | 25 | 0.148 |
| 10M | 125 | 65 | 60 | 14 | 8 | 30 | 0.243 |
| 12M | 125 | 75 | 70 | 18 | 10.5 | 39 | 0.391 |
| 16M | 170 | 100 | 90 | 22 | 13 | 48 | 0.909 |
| 20M | 200 | 115 | 100 | 25 | 20 | 65 | 1.592 |
Material：Stainless Steel 316, 304 or Carbon Steel
Surface Finish: Highly Polished or hot dip galvanized or electro galvanized
Types：Eye/hook, Jaw/eye, hook/hook, jaw/jaw, eye/eye, Stub End etc.
Standards: DIN1478，DIN1480, European, JIS, Korean Type, U.S. Type, Commercial Type,Open body and Closed body Type, Standard or Nonstandard etc.
Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
