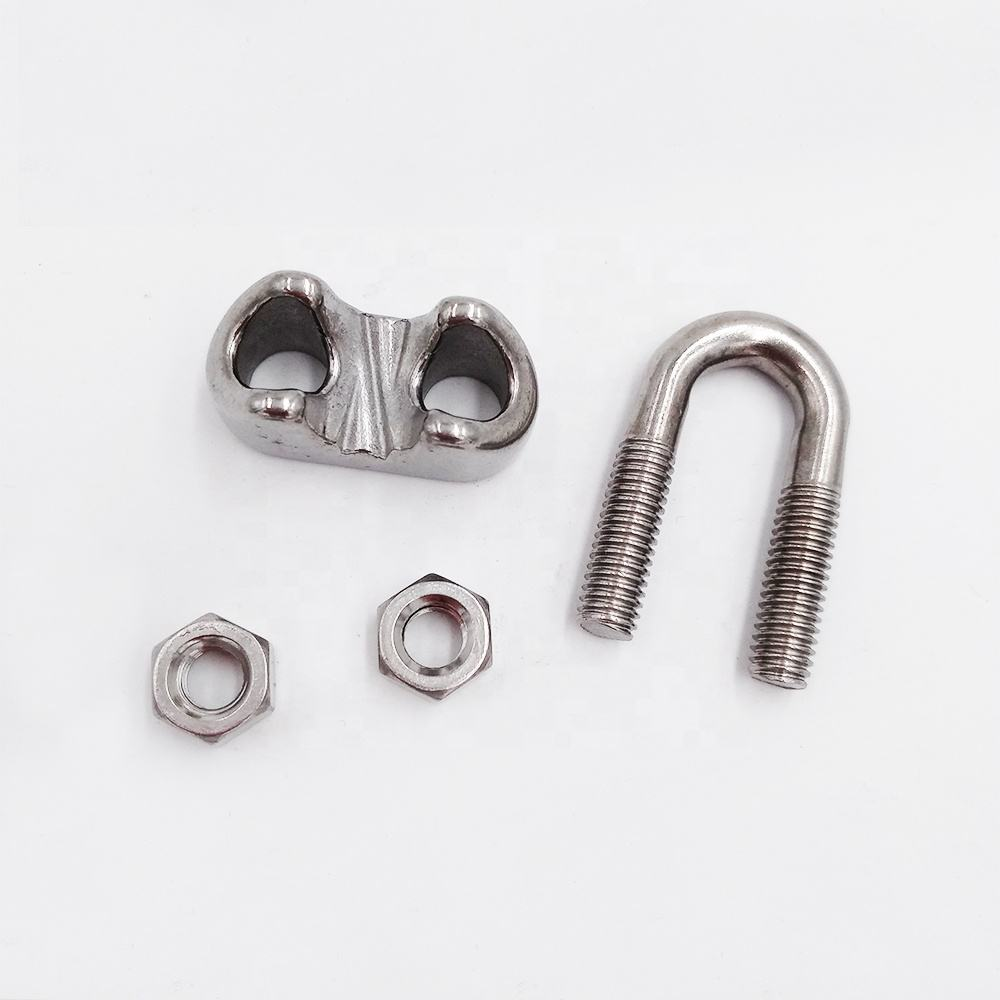

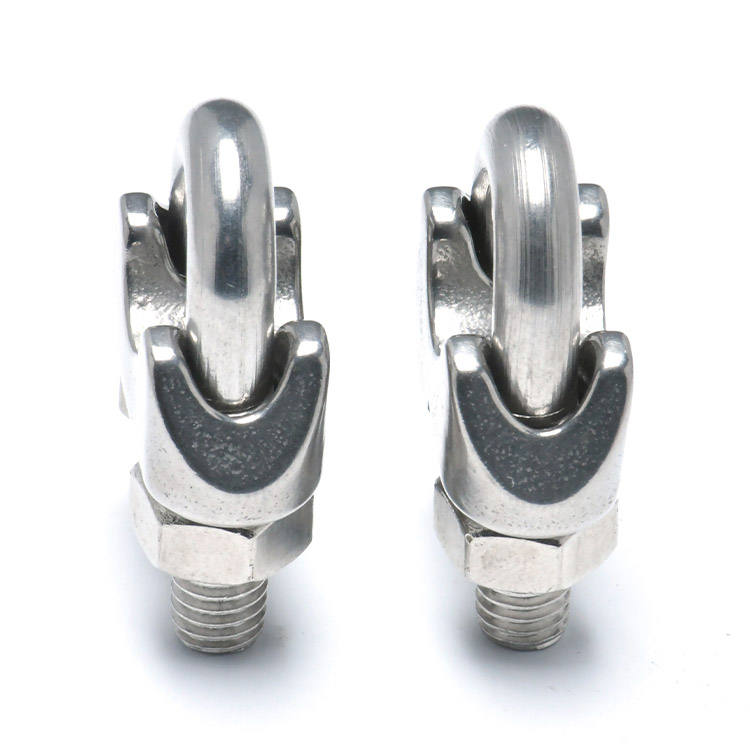

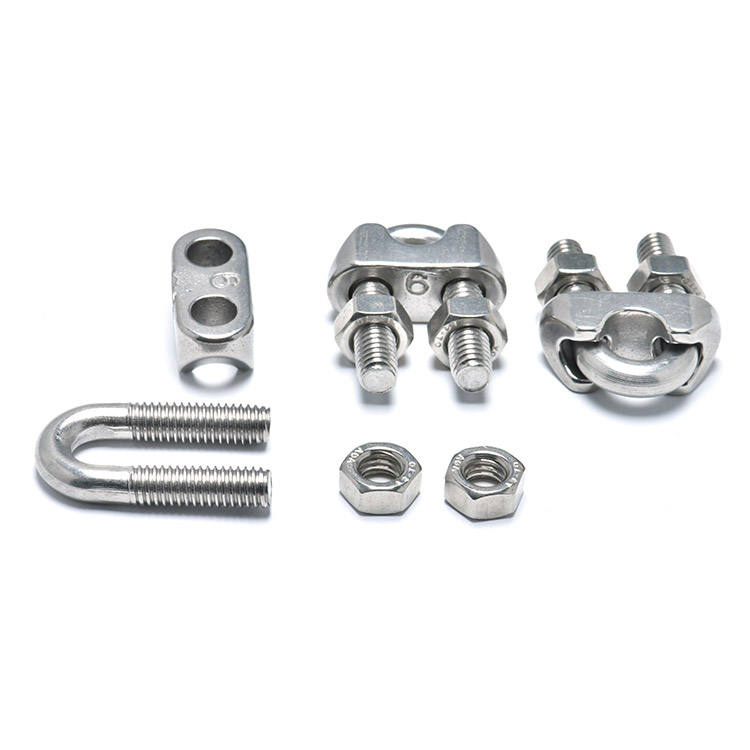

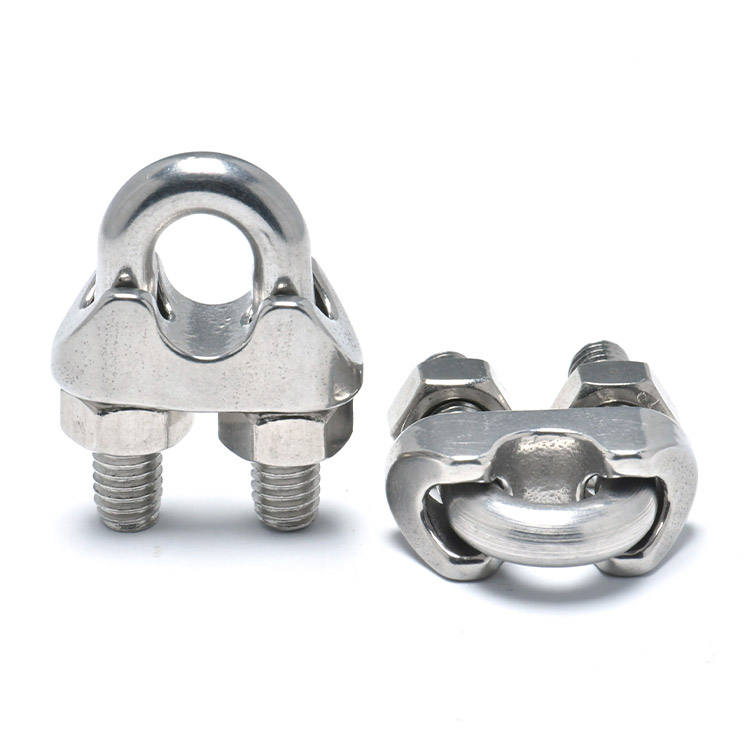

DIN741 Cable Clamp Stainless Steel 304/316 DIN741 Wire Rope Clip


Material: stainless steel 304, stainless steel 316 ...

Surface treatment: polishing ...

Manufacture standard: DIN741 Type

Product marking: Required by client.

Other type: US type, DIN741 type, JIS Type ...


Detail Information



SIZE (mm)A (mm)B (mm)C (mm)D (thread)L (mm)
312921M416
4      121022M418
5      131123M519
6      151326M523
8      191630M628
10      221934M834
11      222036M836
13      302442M1045
14      302544M1047
16      332950M1251
19      383254M1263
22      443761M1471
25      454165M1481



MaterialStainless Steel 316, 304 or Carbon Steel

Surface Finish: Highly Polished or hot dip galvanized or electro galvanized

Standards:Dee shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on.

Types:DIN Type, European Type, Japan Type and US Type.

Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.

Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.


Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
