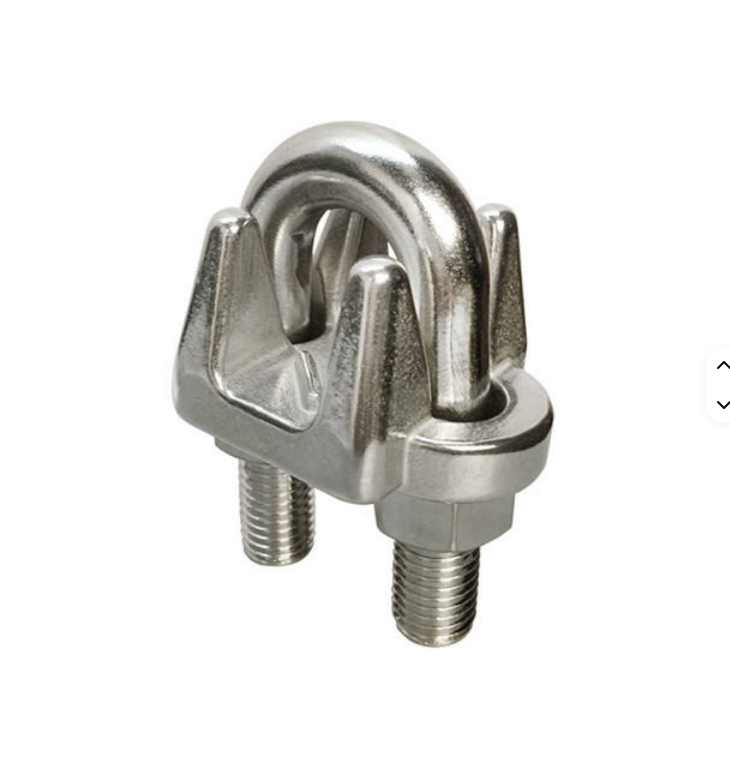

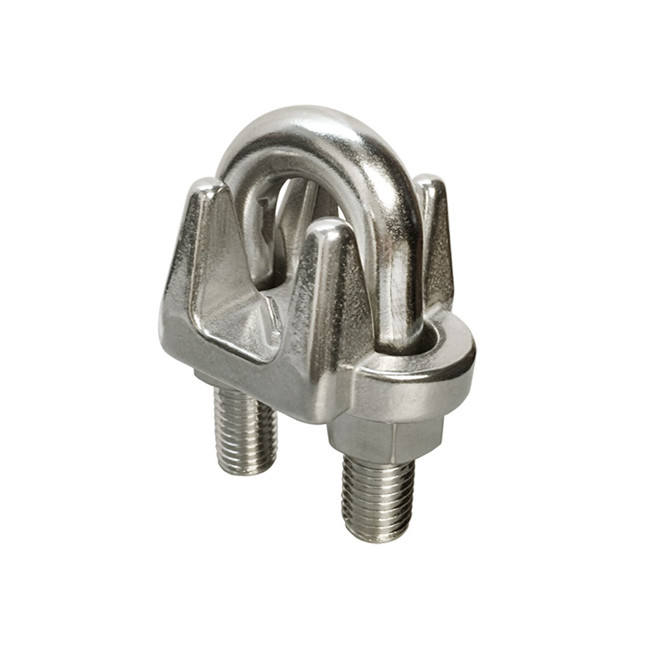

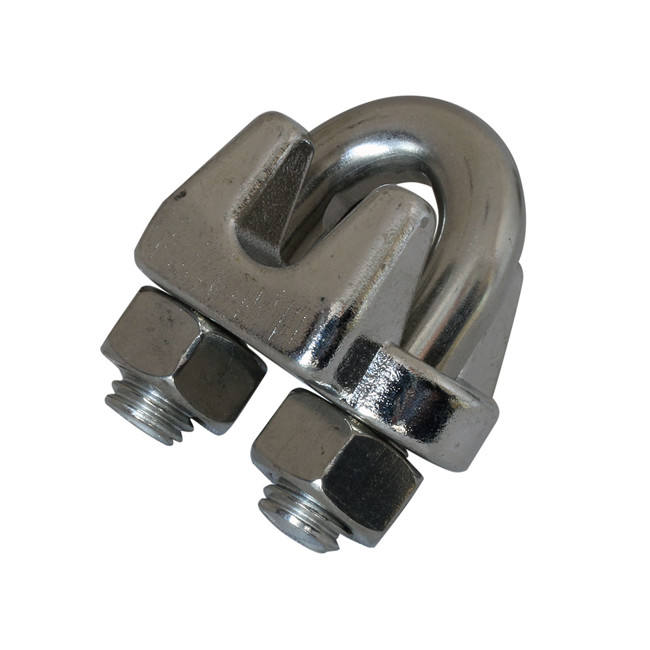

Drop Forged US Type 304 316 Stainless Steel Wire Rope Clamp Marine U Bolt Clip Rigging Hardware

Material: stainless steel 304, stainless steel 316 ...

Surface treatment: polishing ...

Manufacture standard: US Type

Product marking: Required by client.

Other type: US type, DIN741 type, JIS Type ...

Inquiry

Detail Information

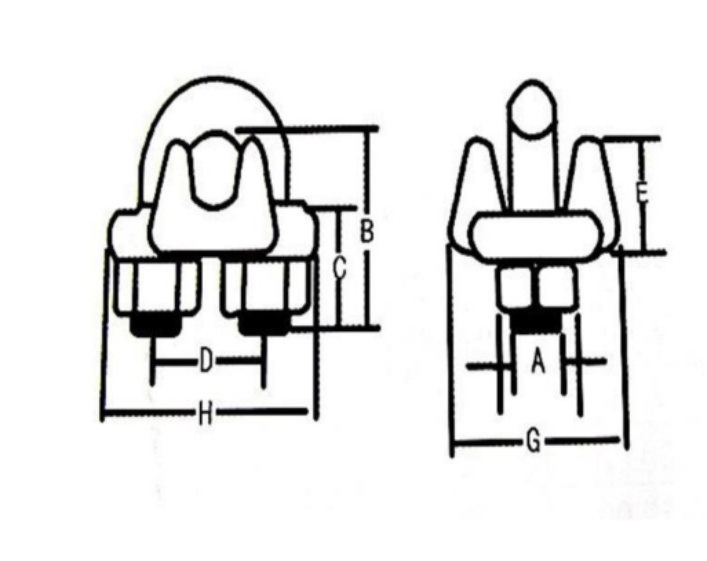

SIZE	A	B	C	D	E	G	H
SIZE	in	in	in	in	in	in	in
1/8	3/16	18	11	12	10	20	23
3/16	1/4	24	14	15	12	23	29
1/4	5/16	26	15	19	16	30	36
5/16	3/8	35	19	22	18	33	43
3/8	7/16	38	19	25	23	41	49
7/16	1/2	47	25	30	26	46	58
1/2	1/2	47	25	30	28	48	58
9/16	9/16	57	32	33	31	52	63
5/8	9/16	60	32	33	34	52	63
3/4	5/8	70	36	38	35	57	72
7/8	3/4	79	41	44	40	62	80
1	3/4	89	46	47	45	66	88
1 1/8	3/4	98	51	51	48	71	91
1 1/4	7/8	108	54	59	56	80	105
1 3/8	7/8	118	59	60	59	80	106
1 1/2	7/8	125	60	66	62	87	113
1 5/8	1	135	60	70	68	92	121
1 3/4	1 1/8	149	70	78	73	95	133
2	1 1/4	165	76	84	86	113	148
2 1/4	1 1/4	181	84	98	97	114	160
2 1/2	1 1/4	197	86	105	108	114	164
2 3/4	1 1/4	211	89	111	127	127	171
3	1 1/2	233	98	121	133	175	192

Material：Stainless Steel 316, 304 or Carbon Steel

Surface Finish: Highly Polished or hot dip galvanized or electro galvanized

Standards:Dee shackle, bow shackle, long D shackle, twist shackle, wide D shackle, chain shackle, anchor shackle, plate shackle, stamped shackle and so on.

Types:DIN Type, European Type, Japan Type and US Type.

Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.

Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.

Stainless Rigging Hardware includes shackles, turnbuckles, snap hooks, eye bolts, thimbles, and wire rope clips made from stainless steel grades such as AISI 304 and 316. These products comply with international standards like DIN, EN, and ISO for strength, safety, and corrosion resistance. Widely used in marine, architectural, and industrial applications, they provide secure connections and tension adjustment for lifting, sailing, and decorative structures. Their superior corrosion resistance, polished finish, and durability make them ideal for long-term use in harsh or aesthetic environments.
