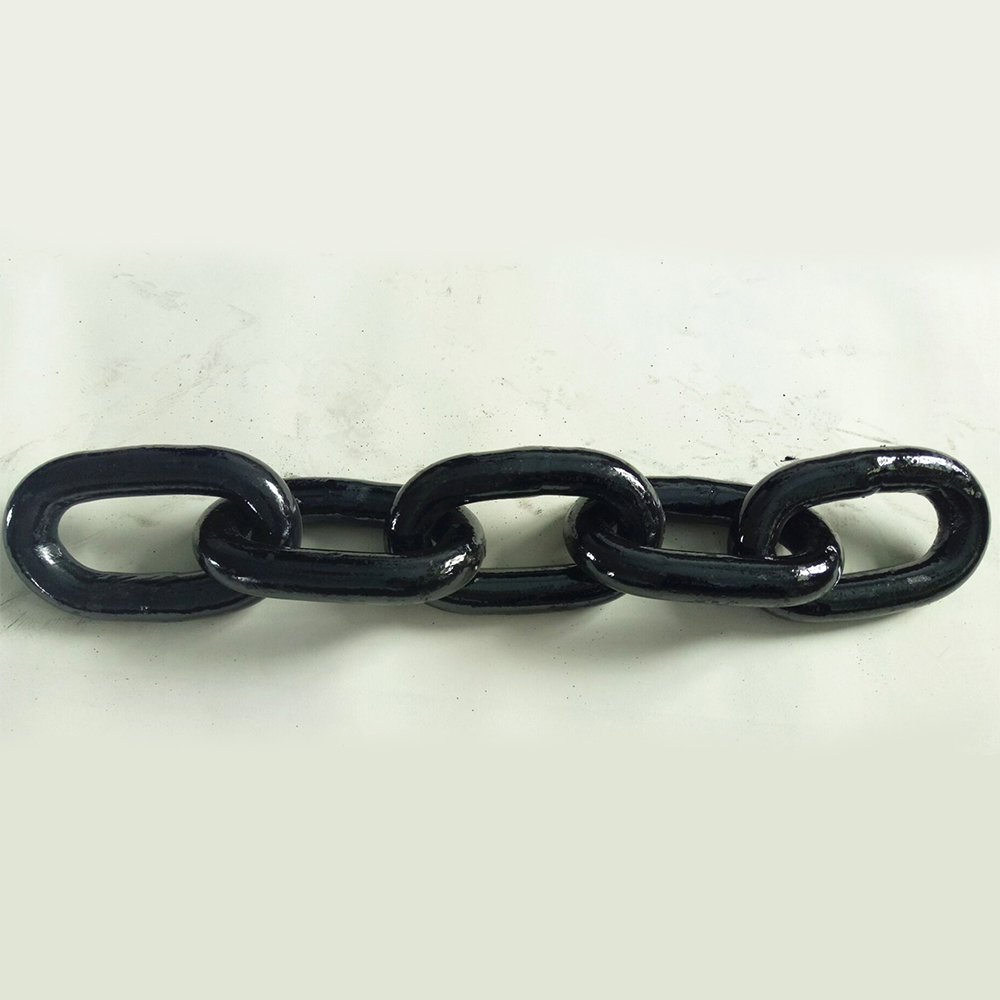

Boat Ship Anchor Chain Accessories End Link Heavy Duty Mooring Welded Lifting Chain Marine Galvanised Studless Anchor Chain Link
*Place of Origin:China
*Brand Name:CHONGHONG
*Certificate:ISO9001/ISO14001
*Product Name:End Link
*Material:KM1 KM2 KM3 or Customization
*Size:6mm-50mm or customisation
*Application:General purpose for all types of ships
*Packaging:Plastic reel, paper carton,wooded case, gunny bag and pail,then put on pallets or as per customer's requirements
*Special specifications can also be produced according to drawing and sample.
Detail Information
| Studless Link Anchor Chain | |||||||||
| CHAIN DIAMETER (MM) D | OUTSIDE LENGTH (MM) L | OUTSIDE WIDTH (MM) B | PROOF LOAD (KN) | BREAKING LOAD (KN) | PROOF LOAD (KN) | BREAKING LOAD (KN) | PROOF LOAD (KN) | BREAKING LOAD (KN) | WEIGHT KG/27.5M |
| GRADE 1 | GRADE 2 | GRADE 3 | |||||||
| 6 | 36 | 22 | 7 | 13 | 9 | 19 | 20 | ||
| 7 | 42 | 25 | 9 | 18 | 13 | 25 | 27 | ||
| 8 | 48 | 29 | 12 | 24 | 19 | 33 | 35 | ||
| 9 | 54 | 32 | 15 | 30 | 21 | 42 | 45 | ||
| 10 | 60 | 36 | 13 | 37 | 26 | 52 | 55 | ||
| 11 | 66 | 40 | 23 | 45 | 31 | 62 | 67 | ||
| 12.5 | 75 | 45 | 29 | 58 | 41 | 83 | 86 | ||
| 14 | 84 | 50 | 35 | 70 | 51 | 102 | 108 | ||
| 16 | 96 | 58 | 47 | 95 | 66 | 132 | 92 | 185 | 141 |
| 17.5 | 105 | 63 | 56 | 113 | 79 | 158 | 111 | 221 | 168 |
| 19 | 114 | 68 | 66 | 134 | 94 | 187 | 130 | 261 | 199 |
| 20.5 | 123 | 74 | 77 | 156 | 109 | 217 | 152 | 303 | 231 |
| 22 | 132 | 79 | 89 | 179 | 125 | 251 | 175 | 349 | 266 |
| 24 | 144 | 86 | 106 | 213 | 150 | 299 | 208 | 416 | 317 |
| 26 | 156 | 94 | 124 | 250 | 175 | 351 | 244 | 488 | 372 |
| 28 | 168 | 101 | 144 | 290 | 204 | 407 | 283 | 566 | 431 |
| 30 | 180 | 108 | 166 | 333 | 234 | 468 | 325 | 650 | 495 |
| 32 | 192 | 115 | 188 | 379 | 266 | 531 | 370 | 739 | 563 |
| 34 | 204 | 122 | 213 | 428 | 300 | 600 | 417 | 835 | 636 |
| 36 | 216 | 130 | 239 | 480 | 336 | 672 | 468 | 936 | 712 |
| 38 | 228 | 137 | 266 | 534 | 374 | 749 | 521 | 1043 | 794 |
| 40 | 240 | 144 | 294 | 592 | 415 | 829 | 578 | 1155 | 879 |
| 42 | 252 | 151 | 325 | 653 | 458 | 915 | 637 | 1274 | 970 |
| 44 | 264 | 158 | 356 | 716 | 503 | 1000 | 699 | 1398 | 1064 |
| 46 | 276 | 166 | 389 | 783 | 549 | 1098 | 764 | 1528 | 1163 |
| 48 | 288 | 173 | 424 | 853 | 598 | 1196 | 832 | 1664 | 1266 |
| 50 | 300 | 180 | 460 | 926 | 649 | 1294 | 903 | 1805 | 1374 |
| 52 | 312 | 177 | 697 | 1394 | 972 | 1945 | 1486 | ||
| 54 | 324 | 184 | 748 | 1497 | 1044 | 2089 | 1603 | ||
| 56 | 336 | 191 | 802 | 1603 | 1119 | 2237 | 1724 | ||
| 58 | 348 | 198 | 856 | 1713 | 1195 | 2390 | 1849 | ||
| 60 | 360 | 204 | 913 | 1826 | 1274 | 2547 | 1979 | ||
| 62 | 372 | 211 | 971 | 1941 | 1354 | 2709 | 2113 | ||
| 64 | 384 | 218 | 1030 | 2060 | 1437 | 2875 | 2251 | ||
| 66 | 396 | 225 | 1091 | 2182 | 1522 | 3044 | 2394 | ||
| 68 | 408 | 232 | 1153 | 2307 | 1609 | 3218 | 2542 | ||
| 70 | 420 | 238 | 1217 | 2434 | 1698 | 3396 | 2693 | ||
| 73 | 438 | 248 | 1315 | 2631 | 1835 | 3671 | 2929 | ||
| 76 | 456 | 259 | 1417 | 2833 | 1977 | 3953 | 3175 | ||
| 78 | 468 | 265 | 1486 | 2972 | 2073 | 4147 | 3344 | ||
| 81 | 486 | 276 | 1592 | 3184 | 2222 | 4443 | 3606 | ||
| 84 | 504 | 286 | 1701 | 3403 | 2374 | 4748 | 3879 | ||
| 87 | 522 | 296 | 1813 | 3627 | 2530 | 5060 | 4160 | ||
| 90 | 540 | 306 | 1928 | 3856 | 2690 | 5380 | 4453 | ||
*Place of Origin:China
*Brand Name:CHONGHONG
*Certificate:ISO9001/ISO14001
*Product Name:End Link
*Material:KM1 KM2 KM3 or Customization
*Size:6mm-50mm or customisation
*Application:General purpose for all types of ships
*Packaging:Plastic reel, paper carton,wooded case, gunny bag and pail,then put on pallets or as per customer's requirements
*Special specifications can also be produced according to drawing and sample.
Stud Link Anchor Chain & Accessories include stud link anchor chains, connecting links, swivels, shackles, and chain hooks. They are primarily made from high-strength carbon steel or alloy steel and are heat-treated for superior durability and fatigue resistance. Manufactured according to international standards such as ISO 1704, ISO 4565, and ASTM A689, these chains meet strict tensile strength and breaking load requirements for marine applications. Commonly used in shipping, offshore, and mooring operations, they provide reliable anchoring and load transfer. Key features include high load-bearing capacity, corrosion resistance (especially when galvanized), and long service life in harsh marine environments.
