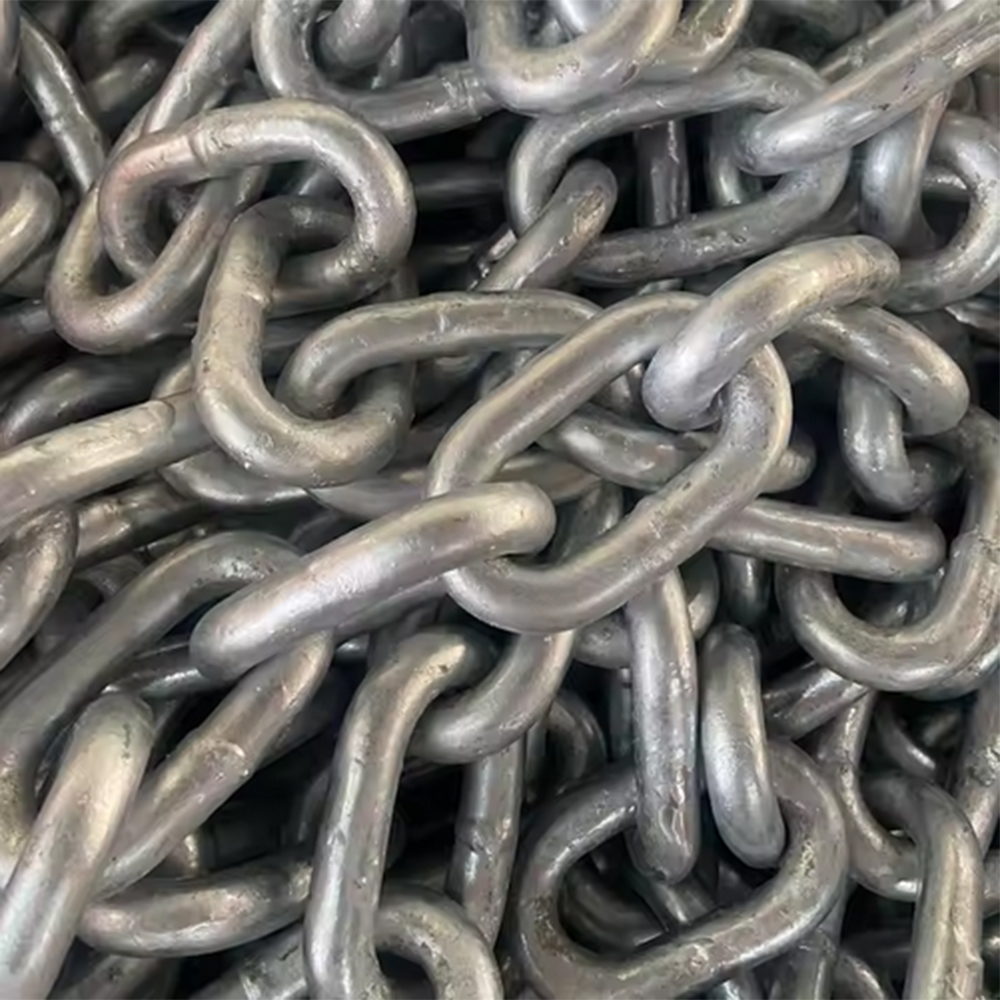

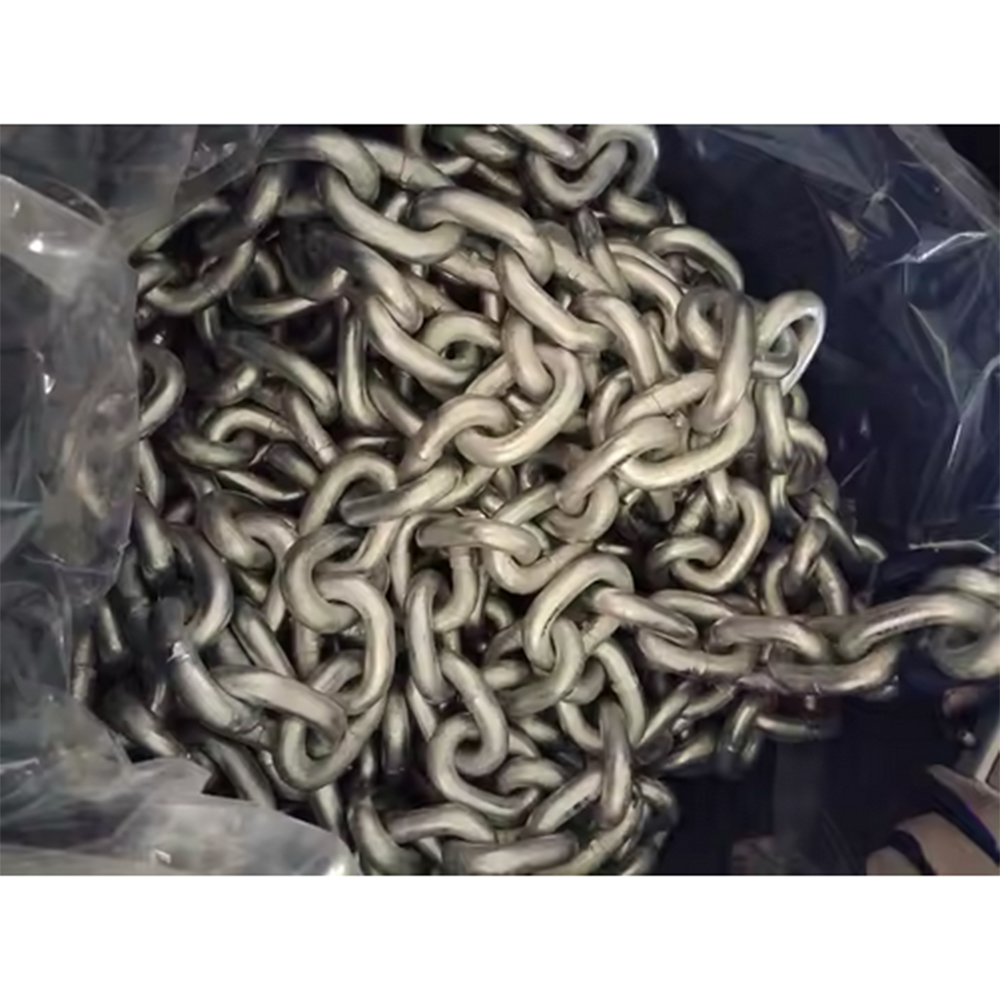

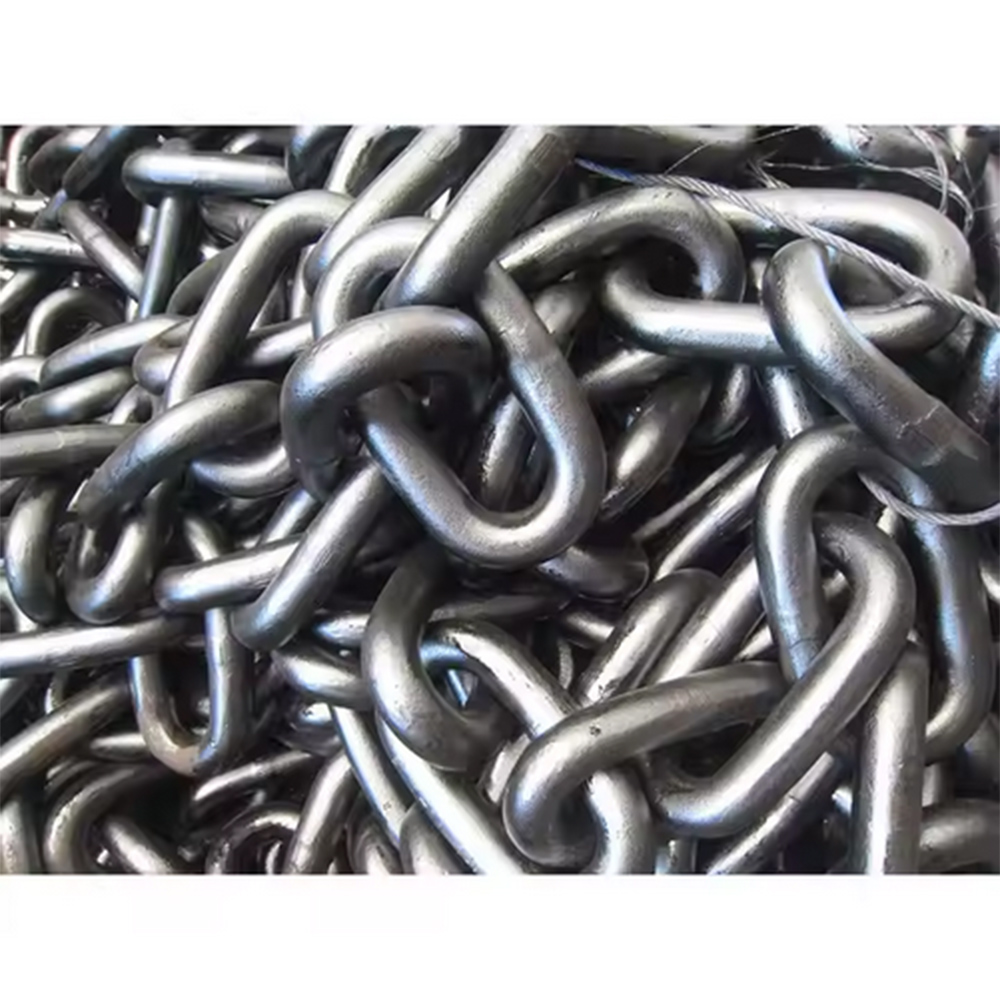

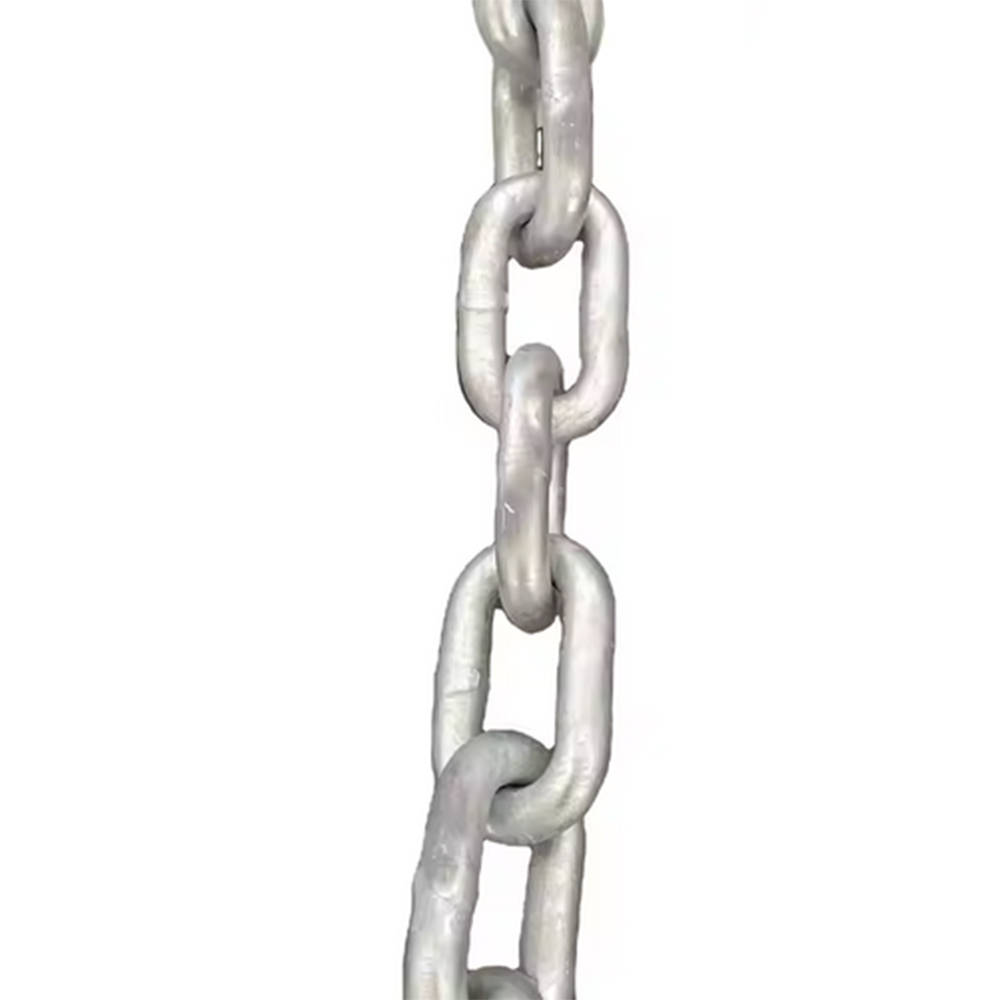

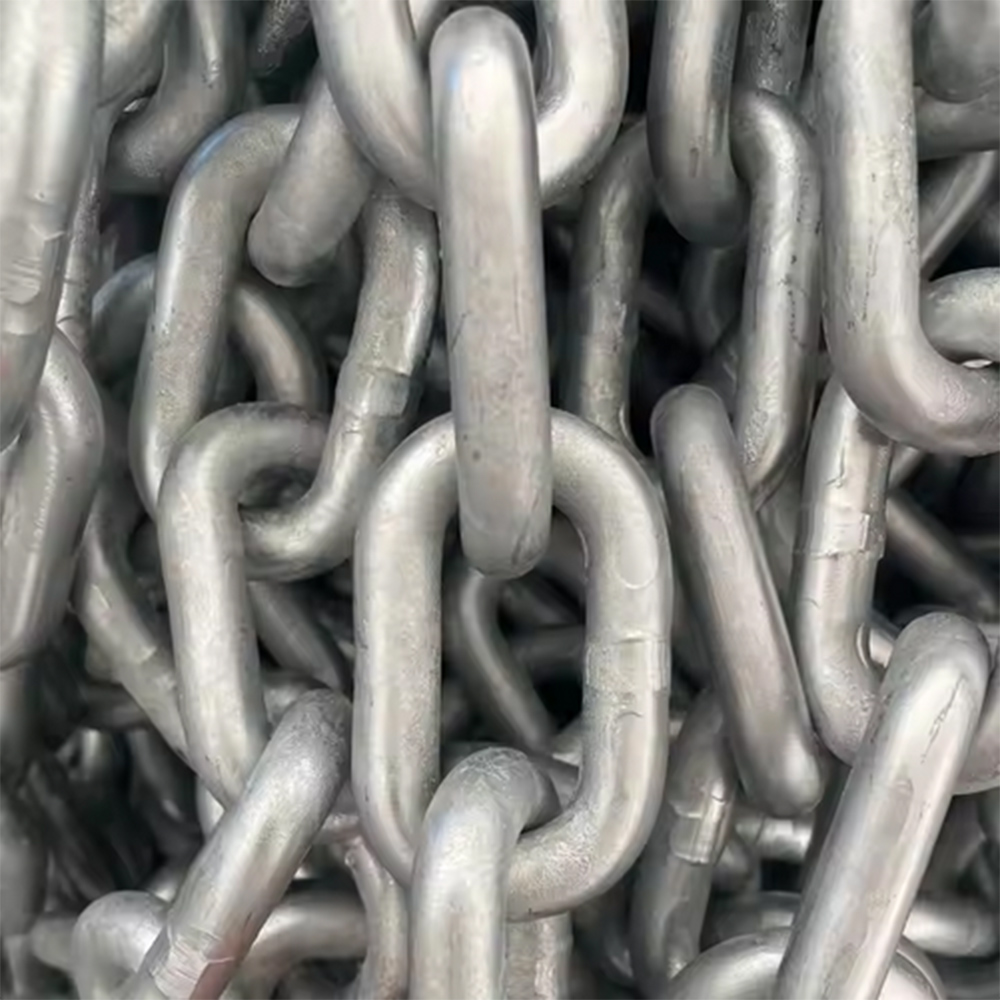

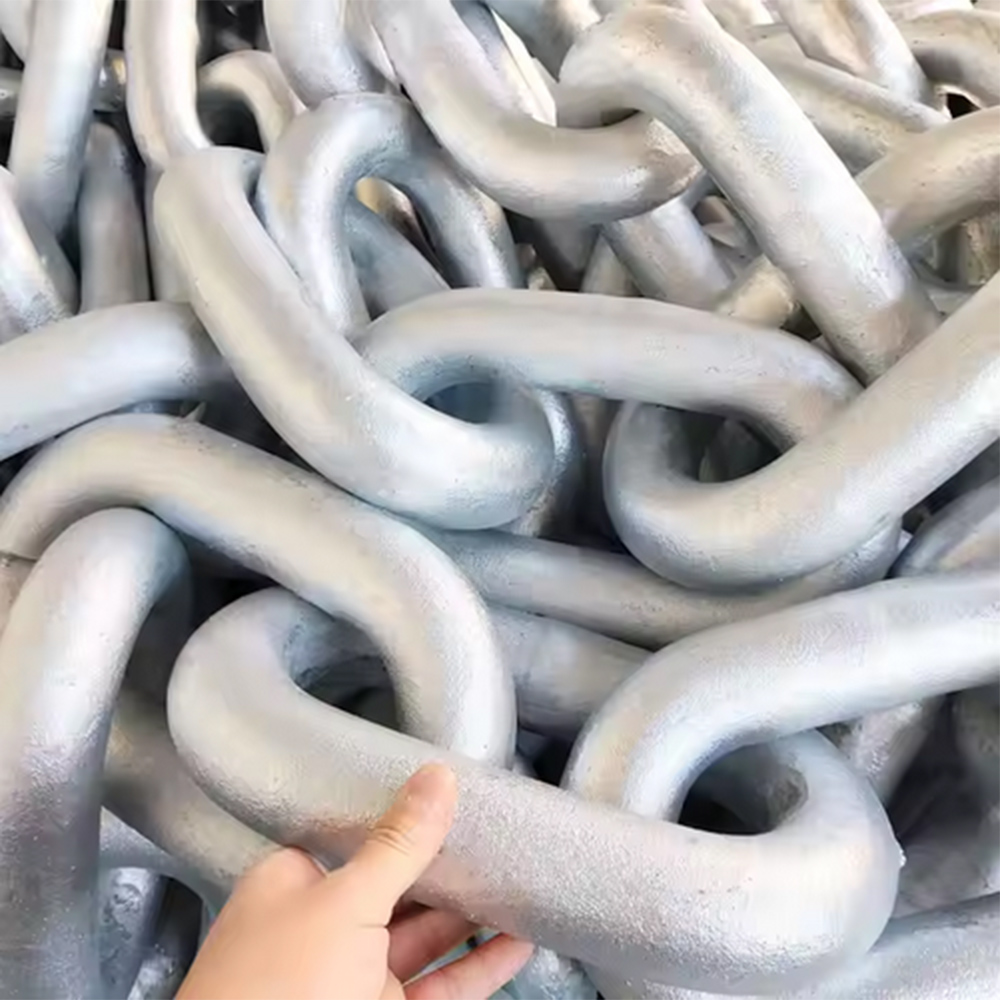

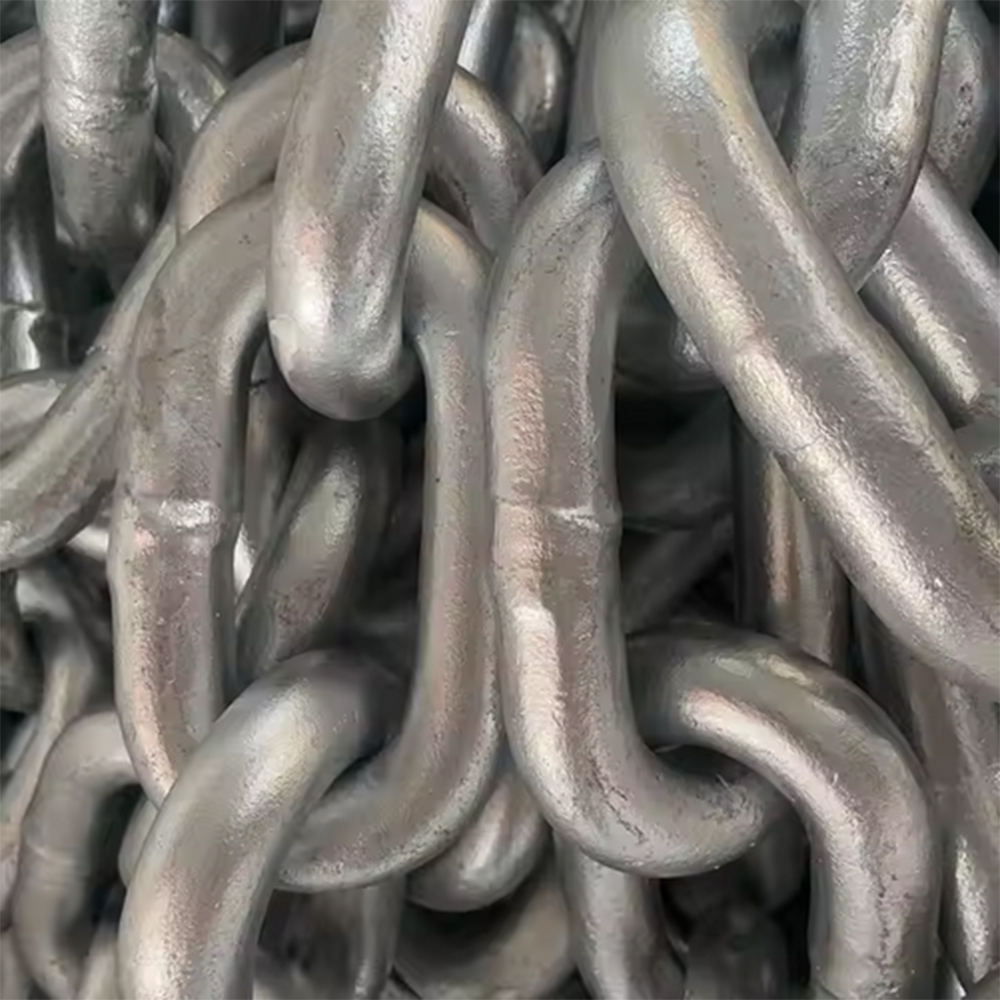

High Quality Marine Open Anchor Chain U1 U2 U3 Grade Studless Link Anchor Chain Marine Chain for Ship

■ Material: High Quality Alloy Steel/Carbon Steel

■ Surface treatment: Electro Galvanized, Black paint, Hot Dip Galvanized

■ Manufacture standard: U1/U2/U3

■ Package: Steel pallet, iron drum or as per customer request

■ Product marking: required by client.

Inquiry

Detail Information

Studless anchor chain 500

Studless Link Anchor Chain
CHAIN DIAMETER (MM) D	OUTSIDE LENGTH (MM) L	OUTSIDE WIDTH (MM) B	PROOF LOAD (KN)	BREAKING LOAD (KN)	PROOF LOAD (KN)	BREAKING LOAD (KN)	PROOF LOAD (KN)	BREAKING LOAD (KN)	WEIGHT KG/27.5M
CHAIN DIAMETER (MM) D	OUTSIDE LENGTH (MM) L	OUTSIDE WIDTH (MM) B	GRADE 1		GRADE 2		GRADE 3		WEIGHT KG/27.5M
6	36	22	7	13	9	19			20
7	42	25	9	18	13	25			27
8	48	29	12	24	19	33			35
9	54	32	15	30	21	42			45
10	60	36	13	37	26	52			55
11	66	40	23	45	31	62			67
12.5	75	45	29	58	41	83			86
14	84	50	35	70	51	102			108
16	96	58	47	95	66	132	92	185	141
17.5	105	63	56	113	79	158	111	221	168
19	114	68	66	134	94	187	130	261	199
20.5	123	74	77	156	109	217	152	303	231
22	132	79	89	179	125	251	175	349	266
24	144	86	106	213	150	299	208	416	317
26	156	94	124	250	175	351	244	488	372
28	168	101	144	290	204	407	283	566	431
30	180	108	166	333	234	468	325	650	495
32	192	115	188	379	266	531	370	739	563
34	204	122	213	428	300	600	417	835	636
36	216	130	239	480	336	672	468	936	712
38	228	137	266	534	374	749	521	1043	794
40	240	144	294	592	415	829	578	1155	879
42	252	151	325	653	458	915	637	1274	970
44	264	158	356	716	503	1000	699	1398	1064
46	276	166	389	783	549	1098	764	1528	1163
48	288	173	424	853	598	1196	832	1664	1266
50	300	180	460	926	649	1294	903	1805	1374
52	312	177			697	1394	972	1945	1486
54	324	184			748	1497	1044	2089	1603
56	336	191			802	1603	1119	2237	1724
58	348	198			856	1713	1195	2390	1849
60	360	204			913	1826	1274	2547	1979
62	372	211			971	1941	1354	2709	2113
64	384	218			1030	2060	1437	2875	2251
66	396	225			1091	2182	1522	3044	2394
68	408	232			1153	2307	1609	3218	2542
70	420	238			1217	2434	1698	3396	2693
73	438	248			1315	2631	1835	3671	2929
76	456	259			1417	2833	1977	3953	3175
78	468	265			1486	2972	2073	4147	3344
81	486	276			1592	3184	2222	4443	3606
84	504	286			1701	3403	2374	4748	3879
87	522	296			1813	3627	2530	5060	4160
90	540	306			1928	3856	2690	5380	4453

■ Material: High Quality Alloy Steel/Carbon Steel

■ Surface treatment: Electro Galvanized, Black paint, Hot Dip Galvanized

■ Manufacture standard: U1/U2/U3

■ Package: Steel pallet, iron drum or as per customer request

■ Product marking: required by client.

Stud Link Anchor Chain & Accessories include stud link anchor chains, connecting links, swivels, shackles, and chain hooks. They are primarily made from high-strength carbon steel or alloy steel and are heat-treated for superior durability and fatigue resistance. Manufactured according to international standards such as ISO 1704, ISO 4565, and ASTM A689, these chains meet strict tensile strength and breaking load requirements for marine applications. Commonly used in shipping, offshore, and mooring operations, they provide reliable anchoring and load transfer. Key features include high load-bearing capacity, corrosion resistance (especially when galvanized), and long service life in harsh marine environments.

High Quality Marine Open Anchor Chain U1 U2 U3 Grade Studless Link Anchor Chain Marine Chain for Ship

Detail Information

INQUIRY

Related Product

Wire Rope Tensioner Drop Forged US Type Open Body JAW & EYE Turnbuckle

12mm 6x24+7FC Wire Rope Cable Galvanized and Stainless Steel Wire Rope

Weldless Twist Link Chain Single Loop Link Chain Decorative Non-Welding Single/Double Jack Chain

Swivel Piece Marine Accessories Swivel Fore Runner Paint Black Stud Link Anchor Chain Swivel Group set

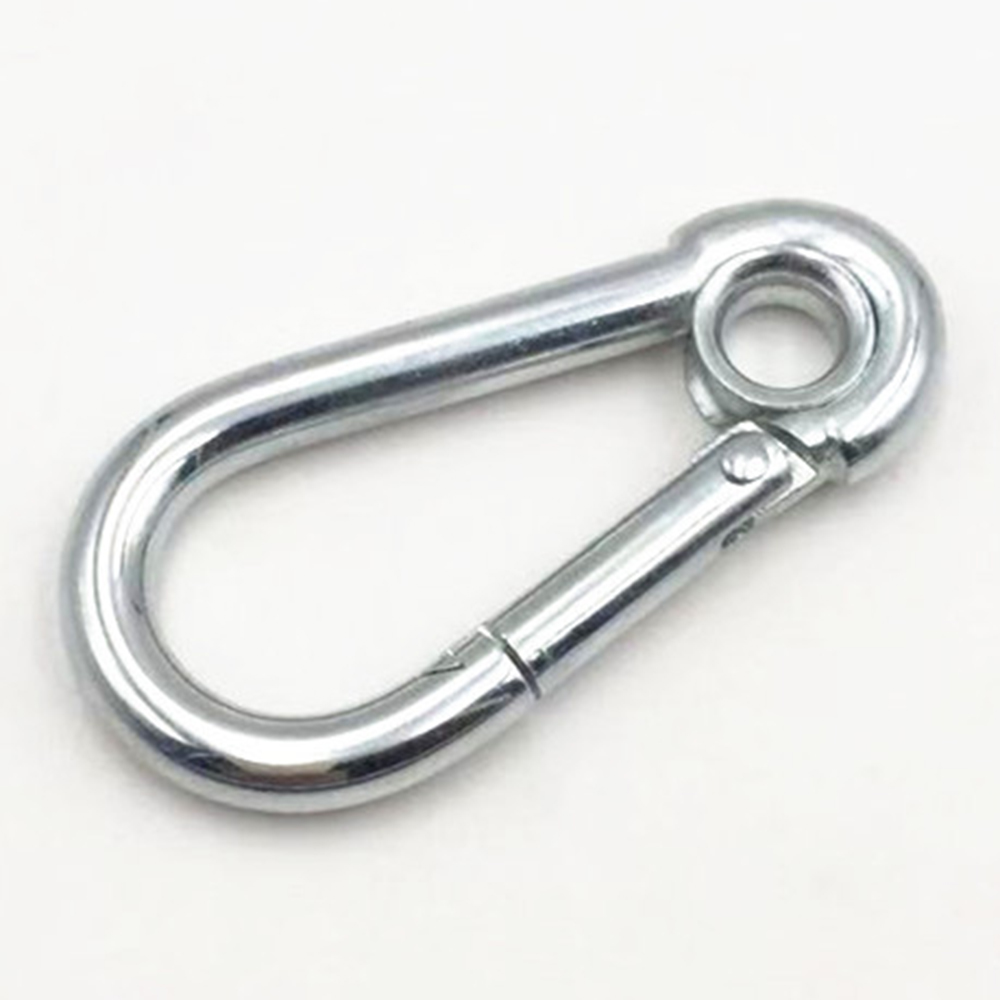

DIN5299A Zinc Plated Spring Snap Hook Climbing Safety Hook Carabiner Buckle
